2009 Lexus IS F seats

246
3-5. Other interior features
08_IS F_U_(L/O_0808)
Seat heaters
■The seat heaters can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■When not in use
Set the dial to “0”. The indicator light turns off.
Heats the seats
The indicator light comes on.
The higher the number, the
warmer the seats become.Driver’s seat
Front passenger ’s
seat

277
4-2. Maintenance
4
Maintenance and care
08_IS F_U_(L/O_0808)

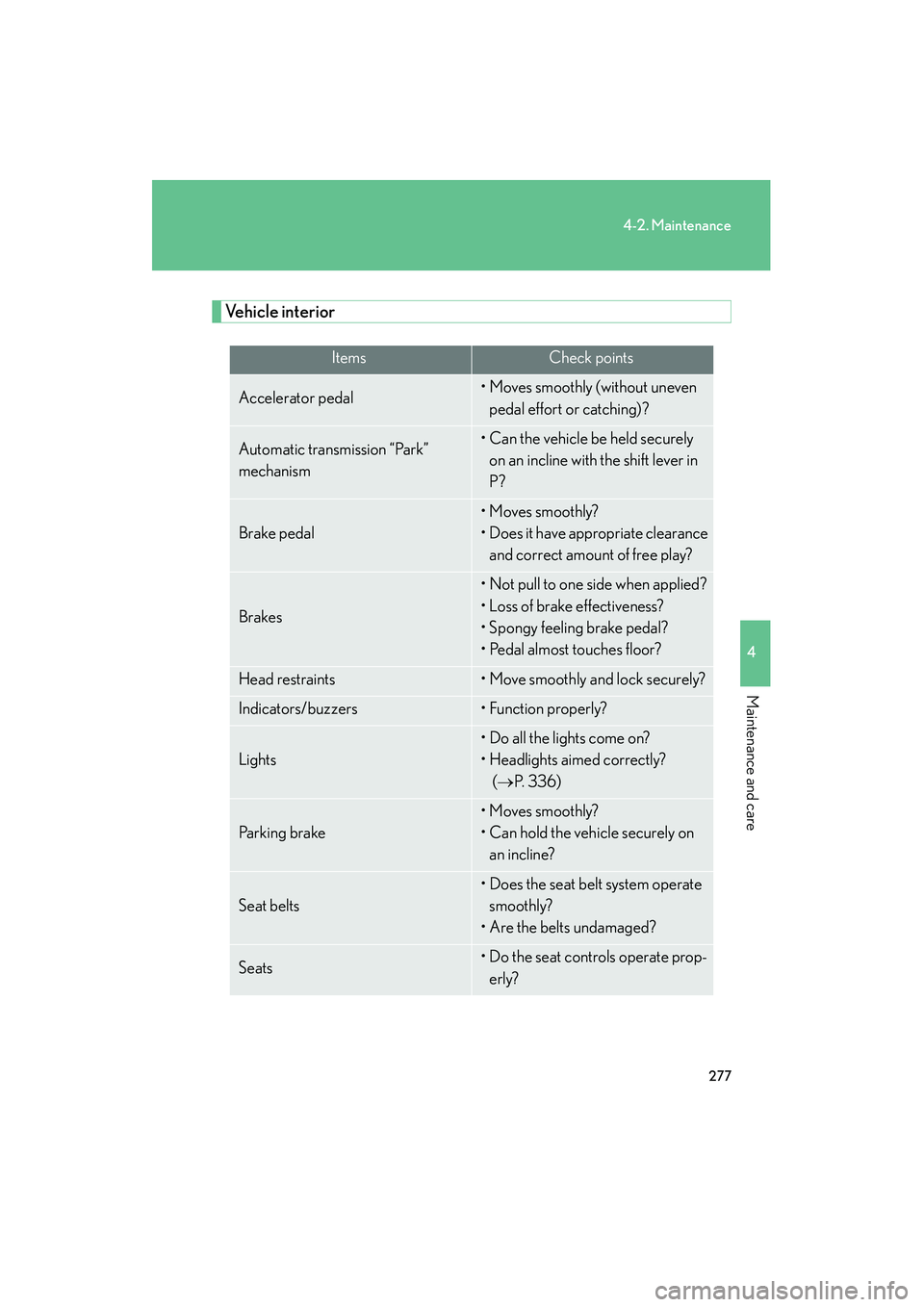

Vehicle interior
ItemsCheck points
Accelerator pedal• Moves smoothly (without uneven pedal effort or catching)?
Automatic transmission “Park”
mechanism• Can the vehicle be held securely on an incline with the shift lever in
P?
Brake pedal
• Moves smoothly?
• Does it have appropriate clearance and correct amount of free play?
Brakes
• Not pull to one side when applied?
• Loss of brake effectiveness?
• Spongy feeling brake pedal?
• Pedal almost touches floor?
Head restraints• Move smoothly and lock securely?
Indicators/buzzers•Function properly?
Lights
• Do all the lights come on?
• Headlights aimed correctly? (→ P. 3 3 6 )
Pa r k i n g b r a ke
• Moves smoothly?
• Can hold the vehicle securely on
an incline?
Seat belts
• Does the seat belt system operate smoothly?
• Are the belts undamaged?
Seats• Do the seat controls operate prop- erly?

326
4-3. Do-it-yourself maintenance
08_IS F_U_(L/O_0808)
Fuse layout and amperage ratings■ Engine compartment (type A)
FuseAmpereCircuit
1ABS 325 AVDIM
2ALT-S7. 5 ACharging system
3TURN-HAZ15 AEmergency flashers, turn signals
4IG2 MAIN20 AIG2, IGN, GAUGE
5RAD NO. 230 AAudio system
6D/C CUT20 ADOME, MPX-B
7RAD NO. 130 AAudio system
8MPX-B10 A
Headlights, front fog lights, parking
lights, license plate lights, windshield
washer, horns, power door lock sys-
tem, power windows, power seats,
electric tilt and telescopic steering
column, meters and gauges, smart
access system with push-button start,
outside rear view mirrors, air condi-
tioning system
9DOME10 AInterior lights, meters and gauges
10CDS10 AElectric cooling fans

334
4-3. Do-it-yourself maintenance
08_IS F_U_(L/O_0808)
FuseAmpereCircuit
13FR DOOR RH20 APower windows, outside rear view
mirrors
14AM27. 5 ASmart access system with push-button
start
15RH-IG7. 5 A
Seat belts, intuitive parking assist,
automatic transmission, seat heaters
and ventilators
16FR S/HTR RH15 ASeat heaters and ventilators
17ECU-IG RH10 A
Power seats, smart access system with
push-button start, outside rear view
mirrors, VDIM, air conditioning sys-
tem, pre-collision seat belt, electric tilt
and telescopic steering, power win-
dows, navigation system
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (→P. 3 3 8 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus
dealer.
■If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.

421
6-1. Specifications
6
Vehicle specifications
08_IS F_U_(L/O_0808)■
Temperature A, B, C
The temperature grades are A (the highest), B, and C, representing
the tire's resistance to the generation of heat and its ability to dissipate
heat when tested under controlled conditions on a specified indoor
laboratory test wheel.
Sustained high temperature can cause the material of the tire to degenerate
and reduce tire life, and excessive temperature can lead to sudden tire fail-
ure.
The grade C corresponds to a level of performance which all passenger car
tires must meet under the Federal Motor Vehicle Safety Standard No. 109.
Grades B and A represent higher levels of performance on the laboratory
test wheel than the minimum required by law.
Warning: The temperature grades for this tire are established for a tire that
is properly inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either separately or in
combination, can cause heat buildup and possible tire failure.
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sureTire pressure when the vehicle has been parked for
three hours or more, or has not been driven more
than 1 mile or 1.5 km under that condition
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a tire
may be inflated, shown on the sidewall of the tire
Recommended inflation
pressureCold tire inflation pressure recommended by a man-
ufacturer.
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of transmission, power
steering, power brakes, power windows, power seats,
radio and heater, to the extent that these items are
available as factory-installed equipment (whether
installed or not)

443
Alphabetical index
08_IS F_U_(L/O_0808)
Back-up lightsWattage ................................................... 412
Battery Checking ............................................... 296
If the vehicle has discharged battery.................................................. 394
Preparing and checking before winter ......................................184
Bottle holders .........................................236
Brake Fluid .......................................................... 294
Parking brake ........................................ 129
Brake assist ............................................... 169
Care Exterior ................................................... 268
Interior....................................................... 271
Seat belts ................................................ 272
Cargo capacity ...................................... 180
Cargo hooks .......................................... 253
CD changer ........................................... 209
CD player................................................ 209
Chains......................................................... 184 Child restraint system
Booster seats, definition .................... 94
Booster seats, installation ...............100
Convertible seats, definition ............ 94
Convertible seats, installation .......100
Front passenger occupant
classification system .........................89
Infant seats, definition .......................... 94
Infant seats, installation .....................100
Installing CRS with lower
anchorages...........................................99
Installing CRS with seat belts ........ 100
Installing CRS with top straps....... 104
Child safety
Airbag precautions ..............................84
Battery precautions ..............297, 396
Child restraint system ......................... 94
Child-protectors ...................................38
How your child should wear the seat belt ..........................................55
Installing child restraints.....................98
Moon roof precautions...................... 67
Power window lock switch .............. 63
Power window precautions ............ 64
Removed electronic key battery precautions..........................................321
Seat belt comfort guide ..................... 53
Seat belt extender precautions...... 57
Seat belt precautions ..........................56
Seat heater precautions.................. 247
Trunk precautions................................. 43B
C

446
Alphabetical index
08_IS F_U_(L/O_0808)
First-aid kit storage belt .....................253
Floor mat .................................................. 252
FluidBrake........................................................ 294
Washer ................................................... 299
Fog lights
Switch ........................................................145
Wattage.................................................... 412
Foot well lights ....................................... 227
Front fog lights Switch ........................................................145
Wattage.................................................... 412
Front passenger occupant classification system ............................89
Front passenger's seat belt reminder light..................................... 358
Front seats Adjustment............................................... 44
Driving position memory.................. 45
Seat position memory ........................ 49
Front turn signal lights Switch ........................................................128
Wattage.................................................... 412
Fuel
Capacity.................................................405
Fuel gauge ................................................131
Fuel pump shut off system ............ 352
Gas station information..................456
Information.............................................. 413
Refueling ................................................... 68
Fuel door .....................................................68
Fuel filler door ...........................................68
Fuel pump shut off system .................352
Fuses .......................................................... 322 Garage door opener .......................... 256
Gas station information ..................... 456
Gauges ........................................................ 131
Glove box ..................................................231
Glove box light ...................................... 232
Hazard lights
Switch.......................................................344
Head restraints Adjusting ................................................... 51
Headlight aim ......................................... 336
Headlight cleaner...................................149
Headlights Discharge headlights
precautions ........................................342
Replacing light bulbs ....................... 338
Switch........................................................ 142
Wattage ................................................... 412
Heaters Seat heaters ..........................................246
Side mirrors............................................198
Hill-start assist control ..........................169
Hood .......................................................... 283
Hooks
Cargo...................................................... 253
Coat ........................................................... 251
Shopping bag ..................................... 253
Horn ............................................................ 130FG
H

449
Alphabetical index
08_IS F_U_(L/O_0808)
Seat heaters.............................................246
Seat position memory ............................49
Seating capacity .....................................183
SeatsAdjustment ...............................................44
Adjustment precautions.....................44
Child seats/child restraint system installation ............................. 98
Cleaning .................................................. 271
Driver’s seat position memory ...... 45
Front passenger seat position memory ..................................................49
Head restraint .......................................... 51
Properly sitting in the seat.................76
Seat heaters.......................................... 246
Service reminder indicators ............. 135
Shift lever If the shift lever cannot be
shifted from P ................................... 389
Transmission .......................................... 120
Shift lever light ........................................ 227
Shift lock system ................................... 389
Shopping bag hooks ........................... 253
Side airbags ................................................78
Side marker lights Switch ........................................................ 142
Side mirrors Adjusting and folding ........................... 61
Mirror position memory ................... 45
Smart access system with
push-button startEntry function ..........................................24
Starting the engine................................116 Spare tire
Inflation pressure ................................... 311
Storage location .................................379
Spark plug................................................ 407
Specifications ......................................... 402
Speech command switch*
Speedometer ............................................ 131
Steering wheel
Adjustment .............................................. 58
Audio switches ....................................225
Steering wheel positionmemory .................................................. 45
Storage feature....................................... 231
Stuck If your vehicle becomes stuck .... 400
Sun visors ................................................. 237
Sunshade..................................................... 66
Switch
Emergency flasher switch ............. 344
Engine switch .......................................... 116
Fog light switch .................................... 145
F-sport mode total control switch............................................ 122, 172
Hazard light switch ...........................344
Ignition switch ......................................... 116
Light switches ........................................142
Power door lock switch .................... 37
Power window switch ........................ 63
Satellite switches.................................240
Transmission shift
switches .......................................122, 124
Window lock switch............................ 63
Wiper and washer switch............... 146
