2009 Lexus GS450h fuse box

438
4-3. Do-it-yourself maintenance
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Engine compartment
■12 volt battery
→P. 4 4 7
Engine oil level dipstick
(→P. 4 4 0 )
Engine oil filler cap (→P. 4 4 1 )
Brake fluid reservoir (→P. 4 4 6 )
Fuse box ( →P. 4 74 )Washer fluid tank
(→P. 4 5 1 )
Gasoline engine/power
control unit coolant
reservoir ( →P. 444)
Electric cooling fans
Condenser ( →P. 445)
Radiator ( →P. 445)
GS450h_HV_U.book Page 438 Monday, April 27, 2009 10:10 AM

474
4-3. Do-it-yourself maintenance
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the “POWER” switch to OFF.
Remove the engine compartment cover if necessary.
→P. 4 3 9
Open the fuse box cover.
■ Engine compartment
Remove the clips.
■ Front controller in the engine compartment fuse box
Lift the lid off while pushing the
tabs on either side.STEP1
STEP2
STEP3
GS450h_HV_U.book Page 474 Monday, April 27, 2009 10:10 AM

476
4-3. Do-it-yourself maintenance
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
■Luggage compartment (vehicles with active stabilizer suspension
system)
Remove the lid.
After a system failure, see “Fuse layout and amperage ratings”
(→ P. 478) for details about which fuse to check.
Remove the fuse with the pull-
out tool.
Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
STEP4
STEP5
STEP6
GS450h_HV_U.book Page 476 Monday, April 27, 2009 10:10 AM

477
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

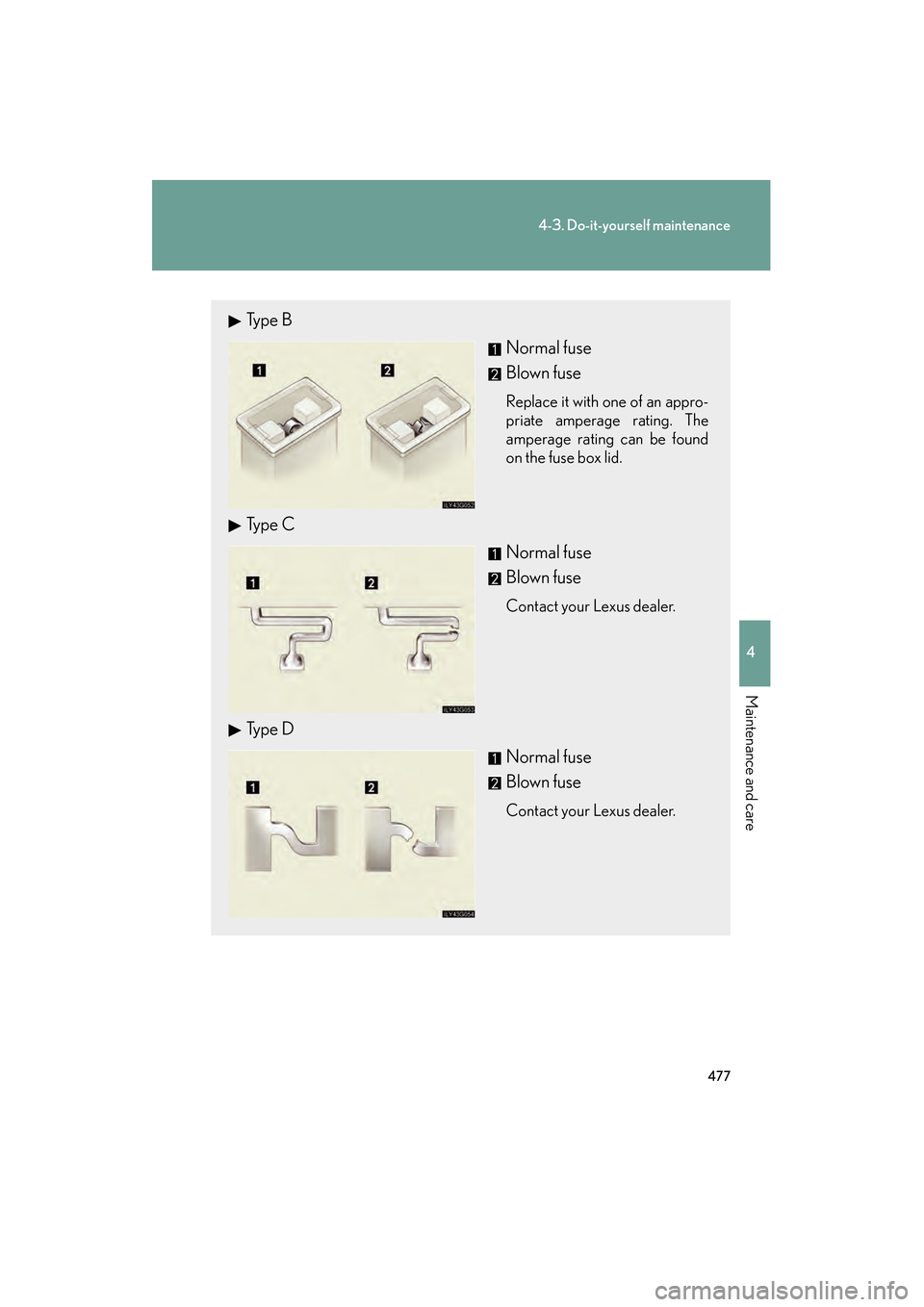

Ty p e BNormal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Ty p e CNormal fuse
Blown fuse
Contact your Lexus dealer.
Ty p e DNormal fuse
Blown fuse
Contact your Lexus dealer.
GS450h_HV_U.book Page 477 Monday, April 27, 2009 10:10 AM

483
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am

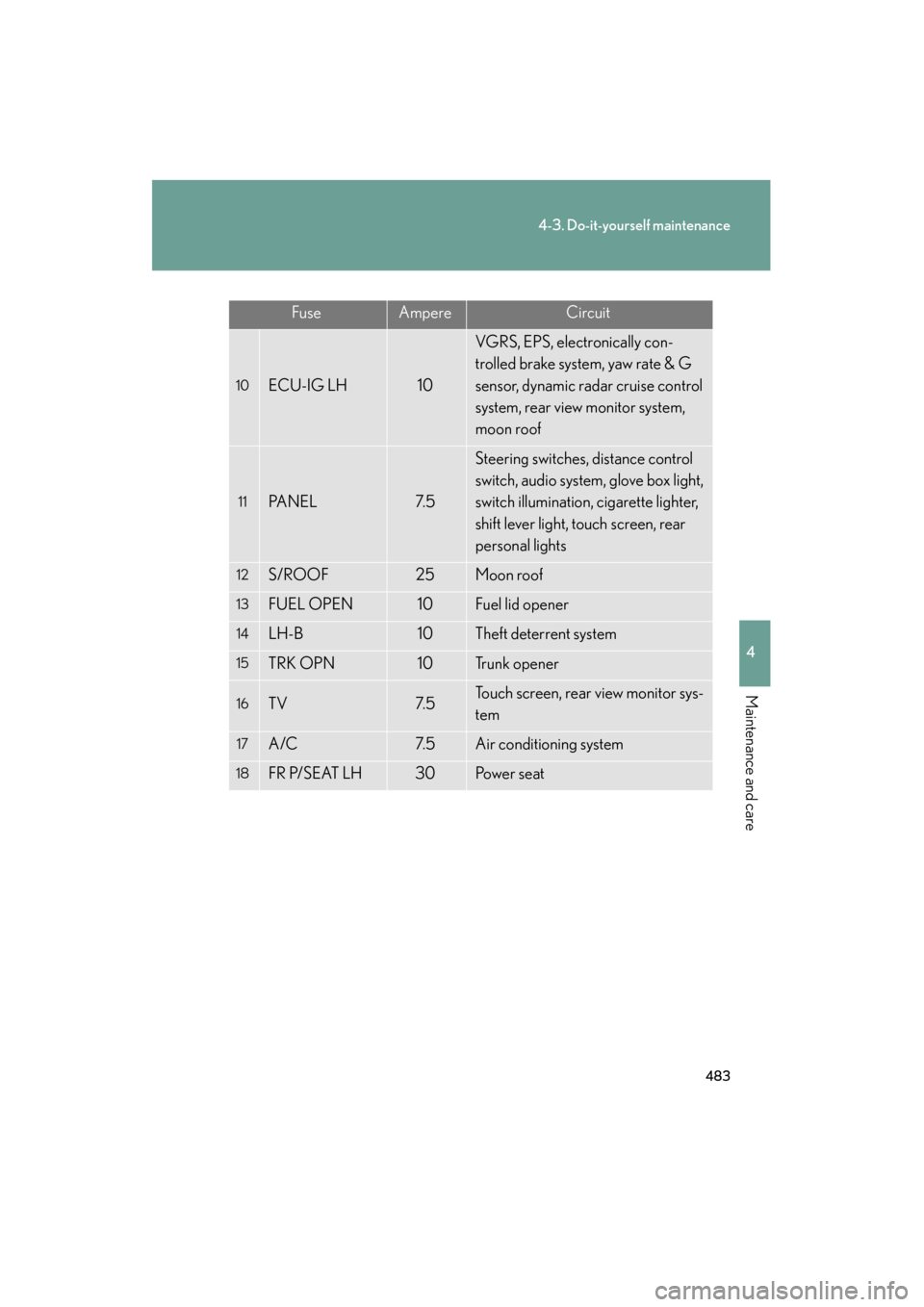

FuseAmpereCircuit
10ECU-IG LH10
VGRS, EPS, electronically con-
trolled brake system, yaw rate & G
sensor, dynamic radar cruise control
system, rear view monitor system,
moon roof
11PA N E L7. 5
Steering switches, distance control
switch, audio system, glove box light,
switch illumination, cigarette lighter,
shift lever light, touch screen, rear
personal lights
12S/ROOF25Moon roof
13FUEL OPEN10Fuel lid opener
14LH-B10Theft deterrent system
15TRK OPN10Tr u n k o p e n e r
16TV7. 5Touch screen, rear view monitor sys-
tem
17A/C7. 5Air conditioning system
18FR P/SEAT LH30Po w e r s e a t
GS450h_HV_U.book Page 483 Monday, April 27, 2009 10:10 AM

488
4-3. Do-it-yourself maintenance
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify fuses or the fuse box.
■Fuse box near the power control unit
Never check or replace the fuses as there are high voltage parts and wiring near
the fuse box.
Doing so may cause electric shock, resulting death or serious injury.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer.
GS450h_HV_U.book Page 488 Monday, April 27, 2009 10:10 AM

493
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Replacing light bulbs■ Headlight high beam
Left-hand side: Remove the fuse
box cover.
Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise to remove it.
STEP1
STEP2
STEP3
GS450h_HV_U.book Page 493 Monday, April 27, 2009 10:10 AM

607
Alphabetical index
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Foot light .................................................. 369
Front passenger occupant classification system ........................... 115
Front passenger’s seat belt
reminder light ....................................... 512
Front seats
Adjustment ...............................................64
Driver’s seat position memory ...... 66
Front turn signal lights Wattage ................................................. 573
Fuel Capacity.................................................566
Fuel gauge ..............................................159
Gas station information ................. 620
Information............................................ 574
Refueling ..................................................... 91
Messages ..............................................530
Fuel door....................................................... 91
Fuel filler door............................................. 91
Fuses........................................................... 474
Garage door opener.......................... 394
Gas station information ..................... 620
Gauges....................................................... 159
Glove box ................................................373
Hands-free system (for cellular phone).......................... 323
Head restraints..........................................70
Headlight aim ........................................ 489
Headlight cleaner .................................. 178 Headlights
Adaptive front lighting system...... 170
Discharge headlights precautions........................................ 497
Replacing light bulbs ........................ 492
Switch........................................................ 169
Wattage..................................................573
Heaters
Seat heaters ......................................... 386
Side mirror.............................................256
Hill-start assist control ......................... 214
Hood ..........................................................435
Hooks Cargo ...................................................... 392
Shopping bag ......................................392
Horn ............................................................ 158
Hybrid system ........................................... 24 Emergency shut off system.............. 29
Energy monitor/consumption screen...................................................... 29
High voltage components ............... 28
Power meter.......................................... 159
Power (ignition) switch .................... 148
Identification Engine..................................................... 565
Electric motor ..................................... 565
Vehicle ................................................... 565
Ignition switch Power switch......................................... 148
Illuminated entry system .................... 369
I/M test....................................................... 431
Immobilizer system ................................. 96
Indicator lights......................................... 163
Initialization Items to initialize ................................ 596
G
H
I
GS450h_HV_U.book Page 607 Monday, April 27, 2009 10:10 AM
