2009 Lexus GS450h ECO mode

46
1-3. Opening, closing and locking the doors and trunk
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
■To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get the
electronic key too close to the vehicle when operating the system from the outside
of the vehicle.
Depending on the position and holding condition of the electronic key, the key may
not be detected correctly and the system may not operate properly. (The alarm may
go off accidentally, or the door lock prevention may not function.)
■Note for the smart access system with push-button start
●Even when the electronic key is within the effective range (detection areas), the
system may not operate properly in the following cases.
• The electronic key is too close to the window or outside door handle, near theground, or in a high place when the doors are locked or unlocked.
• The electronic key is near the ground or in a high place, or too close to the rear bumper center when the trunk is unlocked.
• The electronic key is on the instrument panel, rear package tray or floor, or in
the glove box when the hybrid system is started or “POWER” switch modes
are changed.
●As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone.
●Even if the electronic key is not inside the vehicle, it may be possible to start the
hybrid system if the electronic key is near the window.
●The doors may unlock if a large amount of water splashes on the door handle,
such as in the rain or in a car wash when the electronic key is within the effective
range. (The doors will automatically be locked after approximately 60 seconds
if the doors are not opened and closed.)
GS450h_HV_U.book Page 46 Monday, April 27, 2009 10:10 AM

48
1-3. Opening, closing and locking the doors and trunk
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
AlarmSituationCorrection procedure
Exterior alarm
sounds once for 2
seconds
Tried to lock the doors using
the entry function while the
electronic key is still inside
the passenger compartmentRetrieve the electronic
key from the passenger
compartment and lock
the doors again.
Closed the trunk while the
electronic key is still inside
and all doors are lockedRetrieve the electronic
key from the trunk and
close the trunk lid.
Exterior alarm
sounds once for 60
secondsTried to exit the vehicle with
the electronic key and lock
the doors without first turning
the “POWER” switch OFFTurn the “POWER”
switch OFF and lock the
doors again.
Exterior alarm
sounds once for 10
secondsTried to lock the vehicle using
the entry function while a
door is openClose all of the doors
and lock the doors
again.
Interior alarm
sounds continu-
ouslyTried to open the door and
exit the vehicle without shift-
ing the shift lever to “P”Shift the shift lever to
“P”.
Interior alarm rings
continuously
Switched to ACCESSORY
mode while the driver’s door
is open (Opened the driver’s
door when the “POWER”
switch is in ACCESSORY
mode.)
Turn the “POWER”
switch OFF and close
the driver’s door.
Turned the “POWER” switch
OFF while the driver’s door is
open
Close the driver’s door.
GS450h_HV_U.book Page 48 Monday, April 27, 2009 10:10 AM

56
1-3. Opening, closing and locking the doors and trunk
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Automatic door locking and unlocking systems
The following functions can be set or canceled:
■ Setting and canceling the functions
To switch between setting and canceling, follow the procedure below:
Close all the doors and switch the “POWER” switch to ON
mode. (Perform step 2 within 10 seconds.) Shift the shift lever to “P” or “N”,
press and hold the driver’s door
lock switch (
or ) for
approximately 5 seconds and then
release.
The shift lever and switch positions
corresponding to the desired func-
tion to be set are shown as follows.
Use the same procedure to cancel
the function.
FunctionOperation
Shift position linked door
locking functionShifting the shift lever out of “P” locks all doors.
Shift position linked door
unlocking functionShifting the shift lever to “P” unlocks all doors.
Speed linked door locking
functionAll doors are locked when the vehicle speed is
approximately 12 mph (20 km/h) or higher.
Driver’s door linked door
unlocking functionAll doors are unlocked when the driver’s door is
opened within 10 seconds after turning the
“POWER” switch OFF.
STEP1
STEP2
GS450h_HV_U.book Page 56 Monday, April 27, 2009 10:10 AM

66
1-4. Adjustable components (seats, mirrors, steering wheel)
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Driving position memory system
Your preferred driving position (the position of the driver’s seat, steering
wheel and outside rear view mirrors) can be entered into the computer’s
memory and recalled with the touch of a button. It is also possible to set this
function to activate automatically when the doors are unlocked.
Three different driving positions can be entered into memory.
The same buttons are found on the front passenger’s side, allowing the
position of the front passen ger’s seat to be memorized.
■Entering a position to memory
Turn the “POWER” switch to ON mode.
Adjust the driver’s seat, steering wheel, and outside rear view
mirrors to the desired positions.
While pushing the “SET” but-
ton, or within 3 seconds after
the “SET” button is pushed,
push button “1”, “2” or “3”
until the signal beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
STEP1
STEP2
STEP3STEP3
GS450h_HV_U.book Page 66 Monday, April 27, 2009 10:10 AM

67
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Linking driving position memory with door unlock operation
Record your driving position to button “1”, “2” or “3” before performing
the following:
Using the wireless remote control Turn the “POWER” switch to OFF and close the driver’s door.
While pushing the desired button
(“1”, “2” or “3”), push on the
wireless remote control until the
signal beeps.
The driving position is recalled
when the driver’s door is unlocked
using the entry function or wireless
remote control and the driver ’s
door is opened.
Open one of the doors.
If a door is not opened within 60 seconds after is pushed,
the doors will be locked again and the alarm will automatically be set.
In case that the alarm is triggered, immediately stop the alarm.
(
→P. 9 8 )
■Recalling the memorized position
Check that the shift lever is set in “P”.
Turn the “POWER” switch to ON mode. Push button “1”, “2” or “3” to
recall the memorized position.
STEP1
STEP2
STEP1
STEP2
STEP3
GS450h_HV_U.book Page 67 Monday, April 27, 2009 10:10 AM

86
1-5. Opening and closing the windows and moon roof
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
■The power windows can be operated when
The “POWER” switch is in ON mode.
■Linked door lock window operation
●The power windows can be opened and closed using the mechanical key.
(→ P. 5 5 0 )
●The power windows can be opened using the wireless remote control.
(→ P. 5 1 )
■Operating the power windows after turning the “POWER” switch OFF
The power windows can be operated for approximately 45 seconds even after the
“POWER” switch is switched to ACCESSORY mode or turned OFF. They cannot,
however, be operated once the driver’s or front passenger’s door is opened.
■Jam protection function
If an object becomes caught between the window and the window frame, window
travel is stopped and the window is opened slightly.
■Customization that can be configured at Lexus dealer
Settings (e.g. linked door lock operation) can be changed.
(Customizable features →P. 592)
GS450h_HV_U.book Page 86 Monday, April 27, 2009 10:10 AM

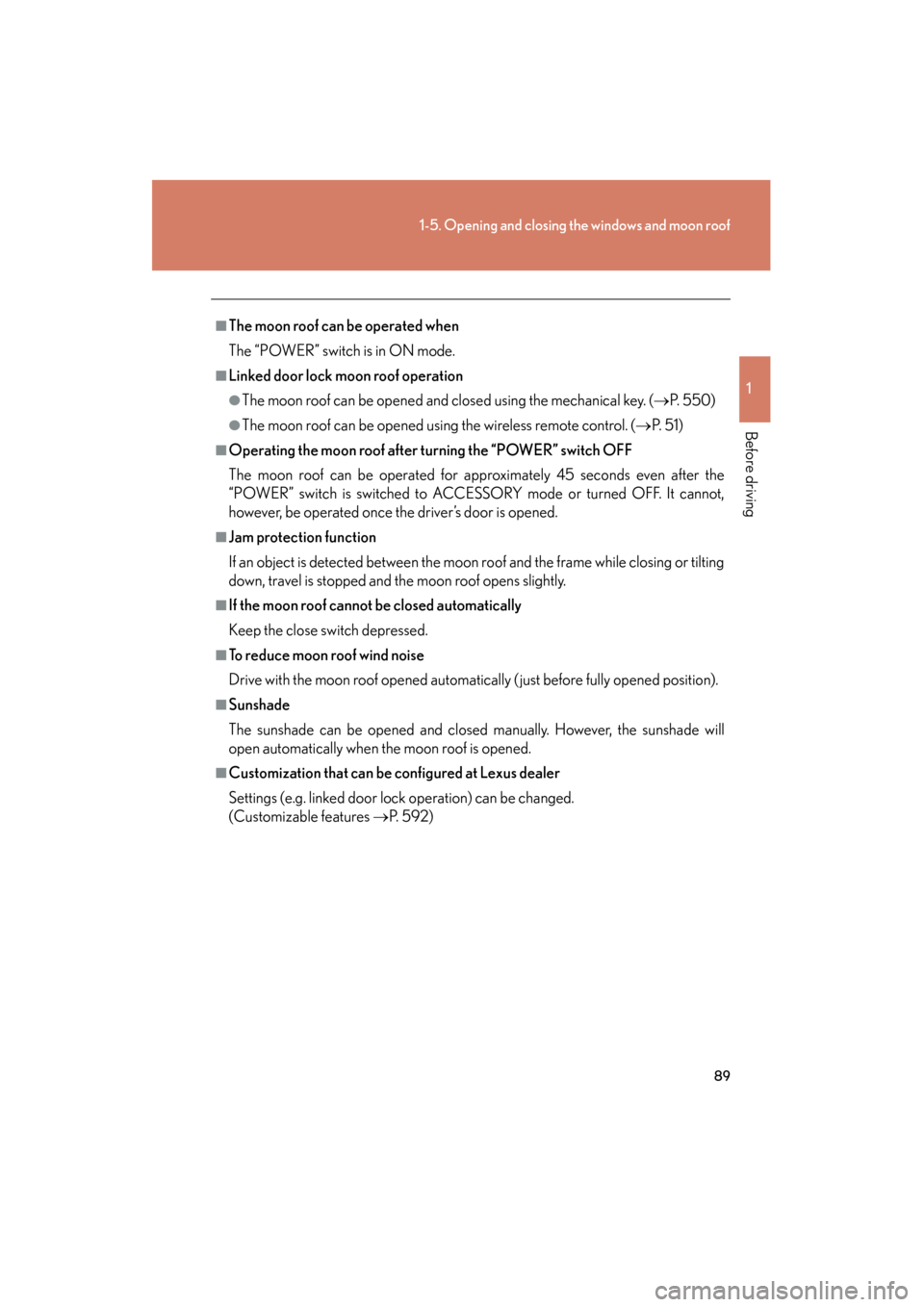

89
1-5. Opening and closing the windows and moon roof
1
Before driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
■The moon roof can be operated when
The “POWER” switch is in ON mode.
■Linked door lock moon roof operation
●The moon roof can be opened and closed using the mechanical key. (→P. 5 5 0 )
●The moon roof can be opened using the wireless remote control. ( →P. 5 1 )
■Operating the moon roof after turning the “POWER” switch OFF
The moon roof can be operated for approximately 45 seconds even after the
“POWER” switch is switched to ACCESSORY mode or turned OFF. It cannot,
however, be operated once the driver’s door is opened.
■Jam protection function
If an object is detected between the moon roof and the frame while closing or tilting
down, travel is stopped and th e moon roof opens slightly.
■If the moon roof cannot be closed automatically
Keep the close switch depressed.
■To reduce moon roof wind noise
Drive with the moon roof opened automatically (just before fully opened position).
■Sunshade
The sunshade can be opened and closed manually. However, the sunshade will
open automatically when the moon roof is opened.
■Customization that can be configured at Lexus dealer
Settings (e.g. linked door lock operation) can be changed.
(Customizable features →P. 5 9 2 )
GS450h_HV_U.book Page 89 Monday, April 27, 2009 10:10 AM

98
1-7. Theft deterrent system
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Alarm
The system sounds the alarm and flashes lights when forcible entry is
detected.
■Triggering of the alarm
The alarm is triggered in the following situations.
●A locked door or trunk is unlocked or opened in any way other
than by using the smart access system with push-button start,
wireless remote control or mechanical key. (The doors will lock
again automatically.)
● The hood is opened while the vehicle is locked.
■ Setting the alarm system
Close the doors, trunk and
hood, and lock all doors.
The system will be set automati-
cally after 30 seconds.
The indicator light changes from
being on to flashing when the
system is set.
■Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm.
●Unlock the doors or trunk.
● Turn the “POWER” switch to the ACCESSORY or ON mode.
(The alarm will be deactivated or stopped after a few seconds.)
GS450h_HV_U.book Page 98 Monday, April 27, 2009 10:10 AM
