GS_G_U (OM30B43U)
April 27, 2009 10:35 am
4-1. Maintenance and careCleaning and protecting the vehicle exterior................... 406
Cleaning and protecting the vehicle interior ................... 409
4-2. Maintenance Maintenance requirements ...... 412
General maintenance ................. 414
Emission inspection and maintenance (I/M)
programs ....................................... 417
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ................... 418
Hood................................................... 421
Positioning a floor jack............... 422
Engine compartment.................. 424
Tires .................................................. 438
Tire inflation pressure................. 448
Wheels.............................................. 453
Air conditioning filter.................. 455
Electronic key battery ............... 458
Checking and replacing fuses ........................... 460
Headlight aim ............................... 485
Light bulbs ...................................... 488 5-1. Essential information
Emergency flashers .................... 496
If your vehicle needs to be towed .................................. 497
If you think something is wrong ............................................ 503
Fuel pump shut off system ....... 504
Event data recorder................... 505
5-2. Steps to take in an emergency If a warning light turns on or a warning buzzer
sounds... ......................................... 507
If a warning message is displayed........................................ 516
If you have a flat tire (Vehicles with standard tires) .................... 531
If you have a flat tire (Vehicles with run-flat tires) ....................... 541
If the engine will not start .......... 542
If the shift lever cannot be shifted from “P” .......................... 543
If you lose your keys .................... 544
If the electronic key does not operate properly ....................... 545
If the 12 volt battery is discharged .................................. 548
If your vehicle ov erheats ........... 552
If the vehicle becomes stuck............................................... 555
4Maintenance and care5When trouble arises
GS_U_G.book Page 5 Monday, April 27, 2009 10:50 AM

9
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Tire
●Rotation
● Replacement
● Inflation pressure
● Information
P. 438
P. 531
P. 570
P. 576
Tail lights P. 155
Side marker light P. 155
Trunk P. 49
Rear window defogger P. 243
Door P. 44
Fuel filler door P. 81
Turn signal light P. 142
∗: If equipped
GS_U_G.book Page 9 Monday, April 27, 2009 10:50 AM

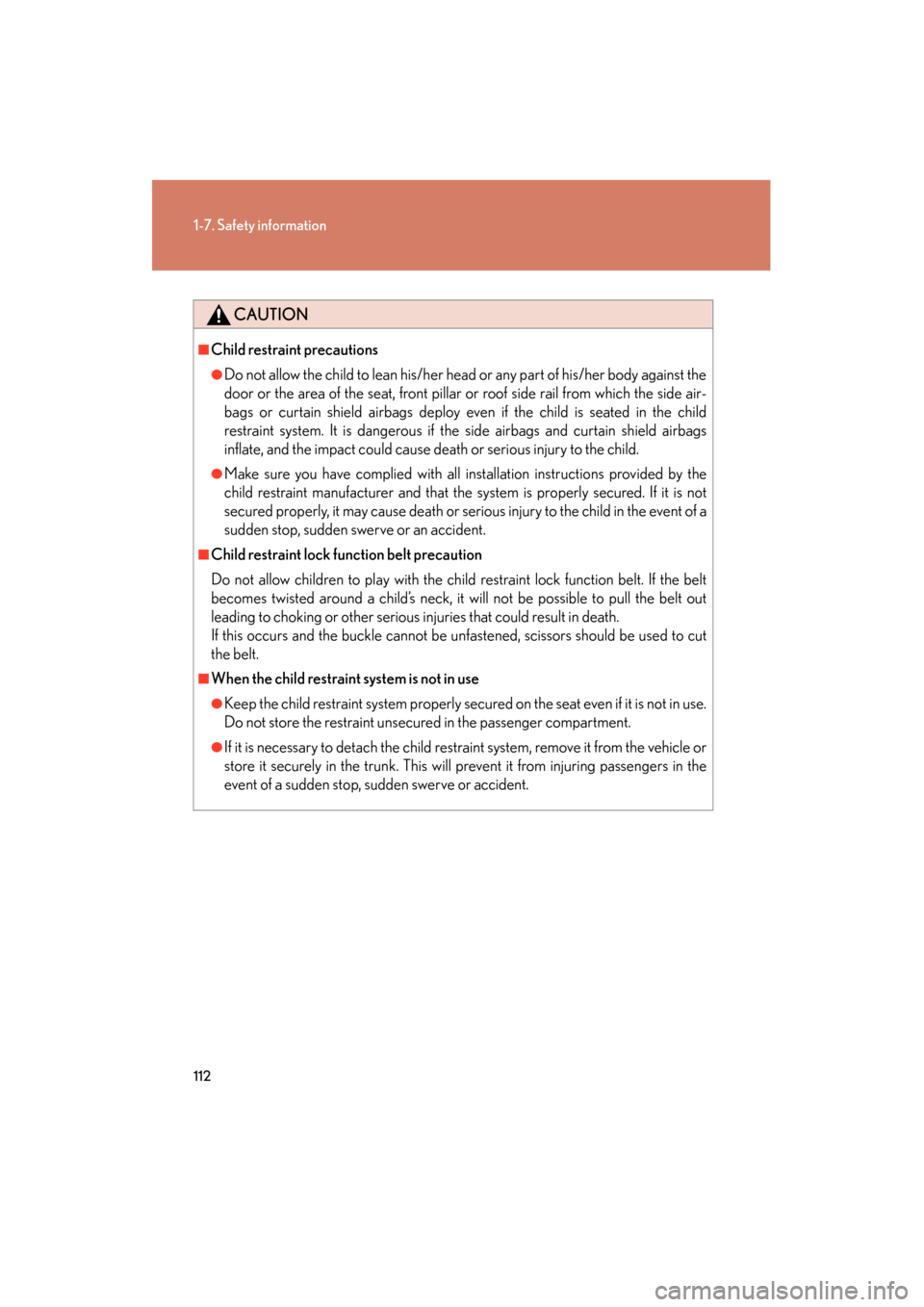

112
1-7. Safety information
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
CAUTION
■Child restraint precautions
●Do not allow the child to lean his/her head or any part of his/her body against the
door or the area of the seat, front pillar or roof side rail from which the side air-
bags or curtain shield airbags deploy even if the child is seated in the child
restraint system. It is dangerous if the side airbags and curtain shield airbags
inflate, and the impact could cause de ath or serious injury to the child.
●Make sure you have complied with all inst allation instructions provided by the
child restraint manufacturer and that the sy stem is properly secured. If it is not
secured properly, it may cause death or seri ous injury to the child in the event of a
sudden stop, sudden swerve or an accident.
■Child restraint lock function belt precaution
Do not allow children to play with the child restraint lock function belt. If the belt
becomes twisted around a child’s neck, it will not be possible to pull the belt out
leading to choking or other serious in juries that could result in death.
If this occurs and the buckle cannot be un fastened, scissors should be used to cut
the belt.
■When the child restraint system is not in use
●Keep the child restraint system properly secu red on the seat even if it is not in use.
Do not store the restraint unsecured in the passenger compartment.
●If it is necessary to detach the child restraint system, remove it from the vehicle or
store it securely in the trunk. This will prevent it from injuring passengers in the
event of a sudden stop, su dden swerve or accident.
GS_U_G.book Page 112 Monday, April 27, 2009 10:50 AM

198
2-4. Using other driving systems
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
■Smear effect
CAUTION
■When using the rear view monitor system
Observe the following precautions to avoid an accident that could result in death or
serious injuries.
●Never depend solely on the monitor system when reversing.
●Always check visually and with the mirrors to confirm your intended path is clear.
●Depicted distances between objects and flat surfaces differ from actual dis-
tances.
●Do not use the system if the trunk is open.
■Conditions which may affect the rear view monitor system
●If the back of the vehicle is hit, the camera’s position and mounting angle may
change. Contact your Lexus dealer.
●Rapid temperature changes, such as when hot water is poured on the vehicle in
cold weather, may cause the system to function abnormally.
●If the camera lens is dirty, it cannot transmit a clear image. Rinse with water and
wipe with a soft cloth. If extremely dirty, wash with a mild cleanser and rinse.
●The displayed image may be darker and mo ving images may be slightly distorted
when the system is cold.
If a bright light (for example, sunlight
reflected off the vehicle body) is picked up by
the camera, a smear effect* peculiar to the
camera may occur.
*: Smear effect—A phenomenon that occurs when a bright light (for example, sunlight
reflected off the vehicle body) is picked up
by the camera; when transmitted by the
camera, the light source appears to have a
vertical streak above and below it.
GS_U_G.book Page 198 Monday, April 27, 2009 10:50 AM

416
4-2. Maintenance
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Vehicle exterior
ItemsCheck points
Doors/trunk• Operate smoothly?
Engine hood• The lock system works properly?
Fluid leaks• Is there any leakage after parking?
Ti r e
• Inflation pressure is correct?
• Tire surfaces not worn or dam-aged?
• Tires rotated according to the
maintenance schedule?
• Wheel nuts are not loose?
CAUTION
■If the engine is running
Turn off the engine and ensure that there is adequate ventilation before performing
maintenance checks.
GS_U_G.book Page 416 Monday, April 27, 2009 10:50 AM

When trouble arises5
495
GS_G_U (OM30B43U)
May 1, 2009 1:17 pm
5-1. Essential informationEmergency flashers............... 496
If your vehicle needs to be towed ............................ 497
If you think something is wrong ..................................... 503
Fuel pump shut off system .................................... 504
Event data recorder ............. 505 5-2. Steps to take
in an emergency
If a warning light turns on or a warning buzzer
sounds... ................................. 507
If a warning message is displayed................................. 516
If you have a flat tire (Vehicles with standard tires) ............. 531
If you have a flat tire (Vehicles with run-flat tires)................. 541
If the engine will not start .... 542
If the shift lever cannot be shifted from “P”.................... 543
If you lose your keys .............. 544
If the electronic key does not operate properly ................. 545
If the 12 volt battery is discharged ............................ 548
If your vehicle overheats ..... 552
If the vehicle becomes stuck........................................ 555
Sec_05TOC.fm Page 495 Friday, May 1, 2009 1:17 PM

5
When trouble arises
497
5-1. Essential information
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
If your vehicle needs to be towed
Before towingThe following may indicate a problem with your automatic transmission.
Contact your Lexus dealer before towing.
● The engine is running, but the vehicle will not move.
● The vehicle makes an abnormal sound.
Emergency towing
If a tow truck is not available, in an emergency your vehicle may be tem-
porarily towed using a cable or chain secured to the emergency towing
eyelet. This should only be attempted on hard, surfaced roads for short
distances at low speeds.
A driver must be in the vehicle to s teer and operate the brakes. The vehi-
cle’s wheels, drive train, axles, steering and brakes must be in good condi-
tion.
If towing is necessary, we recommend having your vehicle towed by your
Lexus dealer or a commercial towing se rvice, using a lift-type truck or a flat
bed truck.
Use a safety chain system for all towing, and abide by all state/provincial
and local laws.
If towing from the rear, the wheels and axle on the ground must be in good
condition.
If they are damaged, use a to wing dolly or flat bed truck.
GS_U_G.book Page 497 Monday, April 27, 2009 10:50 AM

5
When trouble arises
503
5-1. Essential information
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
If you think something is wrong
If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact your Lexus dealer as soon as possible.
■Visible symptoms
●Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
● Flat-looking tires or uneven tire wear
● Engine coolant temper ature gauge needle continually points
higher than normal
■ Audible symptoms
●Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the engine
■ Operational symptoms
●Engine missing, stumbling or running rough
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, sp ongy feeling, pedal almost touches
the floor
GS_U_G.book Page 503 Monday, April 27, 2009 10:50 AM
