2009 Lexus GS350 trunk

47
1-2. Opening, closing and locking the doors and trunk
1
Before driving
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
When the setting or canceling operation is complete, all doors are locked
and then unlocked.
FunctionShift lever positionDriver’s door lock
switch position
Shift position linked door locking
function
“P”Shift position linked door unlock-
ing function
Speed linked door locking function
“N”Driver’s door linked door unlocking
function
■Closing the front doors from outside with the inside lock button set in the locked
position
The door cannot be locked if the “ENGINE START STOP” switch is in ACCES-
SORY or IGNITION ON mode, or the electronic key is left in the vehicle. (How-
ever, depending on the key’s location, the system may not be able to detect it. In
these instances the door lock protection function will not operate properly.)
■Using the mechanical key
The doors can also be locked and unlocked with the mechanical key. ( →P. 545)
■Customization that can be configured at Lexus dealer
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features → P. 5 9 1 )
GS_U_G.book Page 47 Monday, April 27, 2009 10:50 AM

48
1-2. Opening, closing and locking the doors and trunk
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out, resulting in
death or serious injury.
●Always use a seat belt.
●Always lock all doors.
●Ensure that all doors are properly closed.
●Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehicle and it
may result in serious injury or death.
Be especially careful for the front door s, the doors may be opened even if the
inside lock buttons are in locked position.
●Set the rear door child-protector locks when children are seated in the rear seat.
GS_U_G.book Page 48 Monday, April 27, 2009 10:50 AM

49
1
1-2. Opening, closing and locking the doors and trunk
Before driving
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Tr u n k
Canceling the trunk opener feature
Turn the main switch in the glove
box OFF to disable the trunk
opener.ON
OFF
The trunk lid cannot be opened
even with the wireless remote con-
trol or the smart access system
with push- button start.
The trunk can be opened using the trunk opener, smart access system with
push-button start or wireless remote control.
■Opening the trunk from inside the vehicle
Press the opener switch.
■ Opening the trunk from outside the vehicle
Smart access system with push-button start
→ P. 3 0
Wireless remote control
→ P. 4 1
GS_U_G.book Page 49 Monday, April 27, 2009 10:50 AM

50
1-2. Opening, closing and locking the doors and trunk
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
■Tr u n k e a s y c l o s e r
When you lower the trunk lid to about half way closed, the automatic trunk closer
will close the trunk for you.
■Tr u n k l i g h t
When the trunk light switch is set to ON, the trunk light turns on when the trunk is
opened.
■Tr u n k h a n d l e
■Internal trunk release lever
■Using the mechanical key
The trunk can be also opened using the mechanical key. ( →P. 545)
ON
OFF
Use the trunk handle when closing the trunk.
The trunk lid can be opened by pulling down
on the glow-in-the-dark lever located on the
inside of the trunk lid.
The lever will continue to glow for some time
after the trunk lid is closed.
GS_U_G.book Page 50 Monday, April 27, 2009 10:50 AM

51
1-2. Opening, closing and locking the doors and trunk
1
Before driving
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

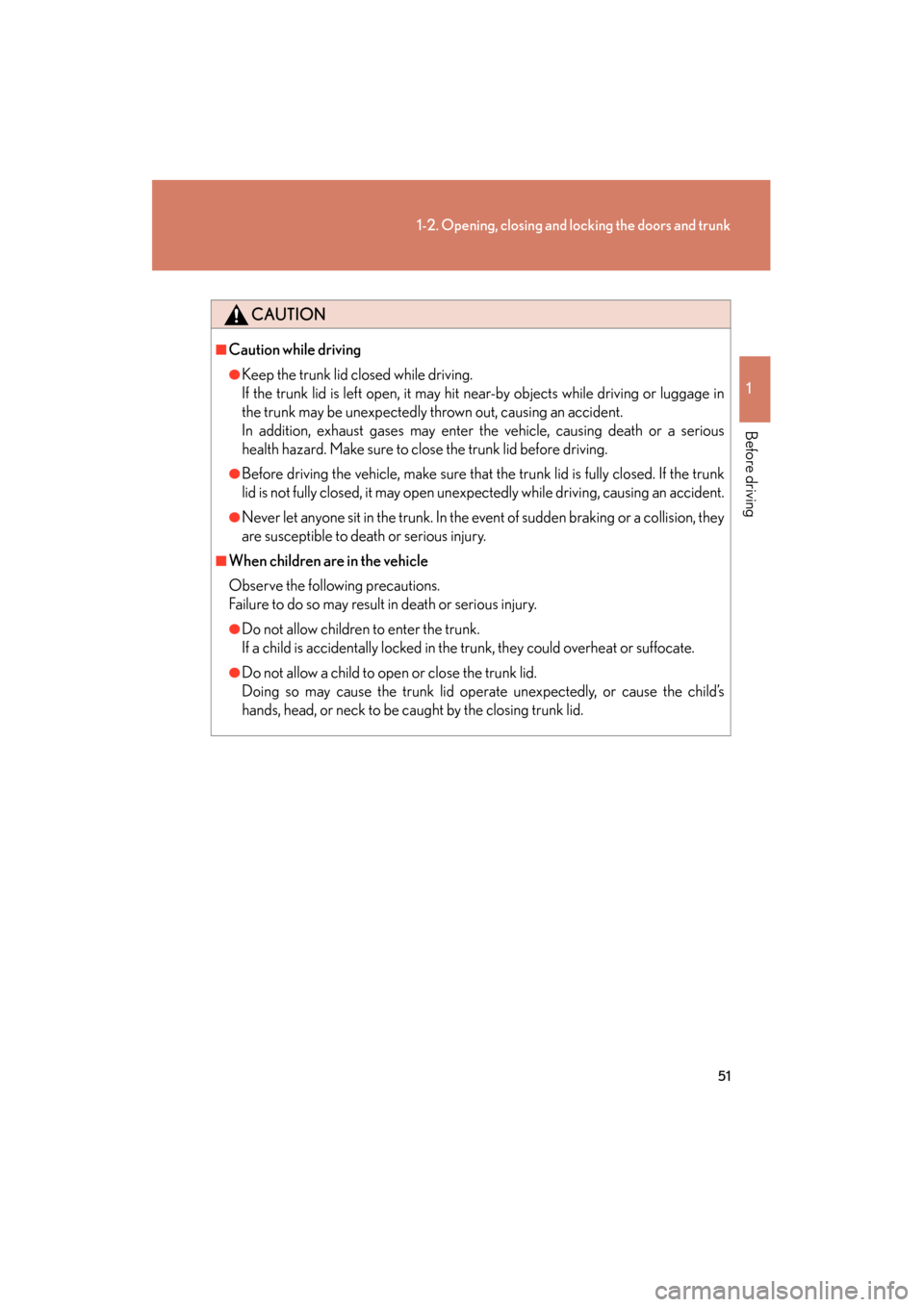

CAUTION
■Caution while driving
●Keep the trunk lid closed while driving.
If the trunk lid is left open, it may hit near-by objects while driving or luggage in
the trunk may be unexpectedly th rown out, causing an accident.
In addition, exhaust gases may enter th e vehicle, causing death or a serious
health hazard. Make sure to cl ose the trunk lid before driving.
●Before driving the vehicle, make sure that the trunk lid is fully closed. If the trunk
lid is not fully closed, it may open unexpe ctedly while driving, causing an accident.
●Never let anyone sit in the trunk. In the ev ent of sudden braking or a collision, they
are susceptible to death or serious injury.
■When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not allow children to enter the trunk.
If a child is accidentally locked in the trunk, they could overheat or suffocate.
●Do not allow a child to open or close the trunk lid.
Doing so may cause the trunk lid operate unexpectedly, or cause the child’s
hands, head, or neck to be caught by the closing trunk lid.
GS_U_G.book Page 51 Monday, April 27, 2009 10:50 AM

52
1-2. Opening, closing and locking the doors and trunk
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
CAUTION
■Using the trunk
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in serious injury.
●Remove any heavy loads, such as snow and ice, from the trunk lid before opening
it. Failure to do so may cause the trunk lid to fall closed again after it is opened.
●When opening or closing the trunk lid, thoroughly check to make sure the sur-
rounding area is safe.
●If anyone is in the vicinity, make sure they are safe and let them know that the
trunk is about to open or close.
●Use caution when opening or closing the trunk lid in windy weather as it may
move abruptly in strong wind.
●Do not attach any accessories other than genuine Lexus parts to the trunk lid.
Such additional weight on the trunk lid may cause the lid to fall closed again after
it is opened.
●The trunk lid may fall if it is not opened
fully. It is more difficult to open or close
the trunk lid on an incline than on a level
surface, so beware of the trunk lid unex-
pectedly opening or closing by itself.
Make sure that the trunk lid is fully open
and secure before using the trunk.
●When closing the trunk lid, take extra
care to prevent your fingers etc. from
being caught.
●When closing the trunk lid, make sure to
press it lightly on its outer surface. If the
trunk handle is used to fully close the
trunk lid, it may result in hands or arms
being caught.
GS_U_G.book Page 52 Monday, April 27, 2009 10:50 AM

53
1-2. Opening, closing and locking the doors and trunk
1
Before driving
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

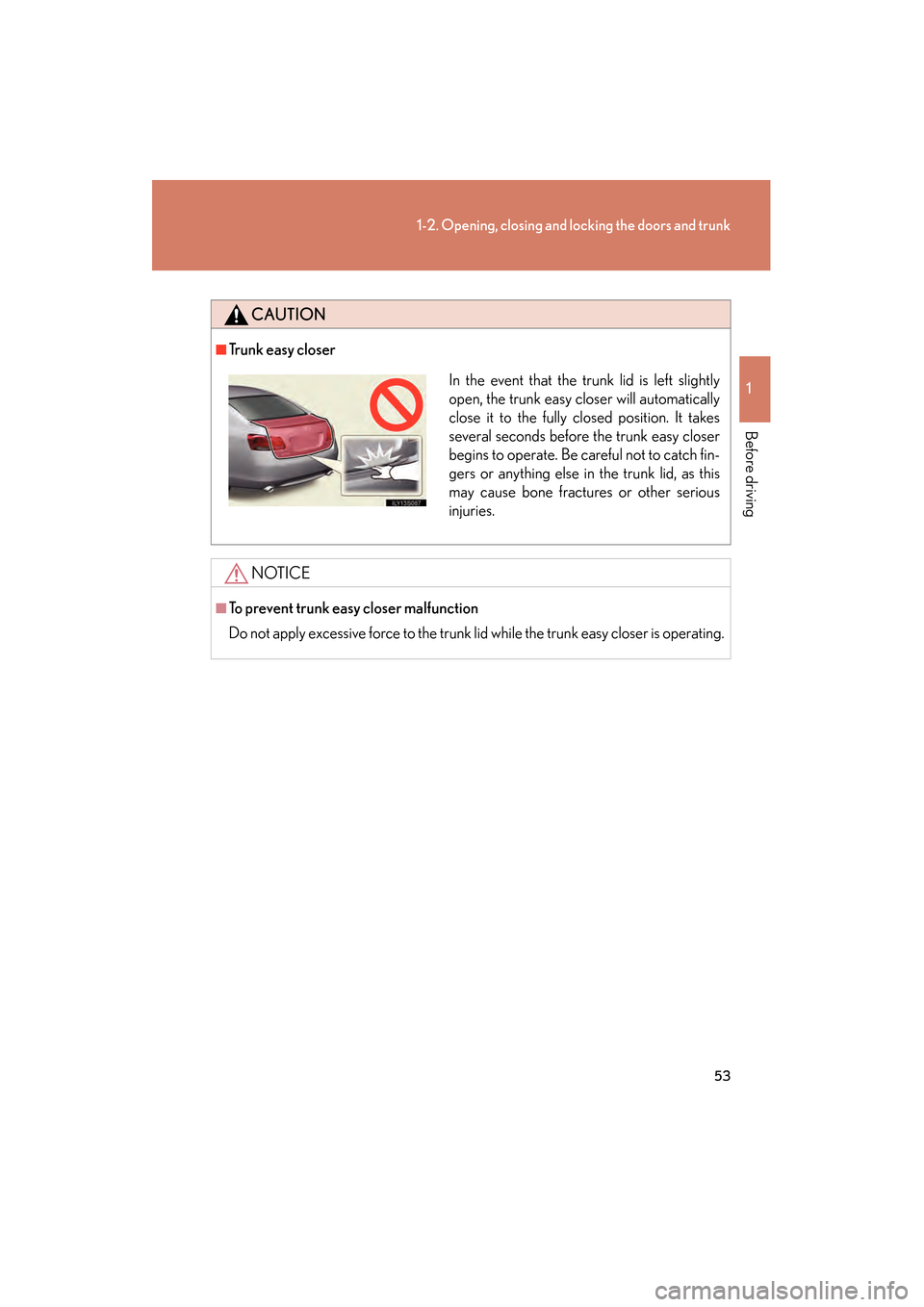

CAUTION
■Tr u n k e a s y c l o s e r
NOTICE
■To prevent trunk easy closer malfunction
Do not apply excessive force to the trunk lid while the trunk easy closer is operating.
In the event that the trunk lid is left slightly
open, the trunk easy closer will automatically
close it to the fully closed position. It takes
several seconds before the trunk easy closer
begins to operate. Be careful not to catch fin-
gers or anything else in the trunk lid, as this
may cause bone fractures or other serious
injuries.
GS_U_G.book Page 53 Monday, April 27, 2009 10:50 AM

86
1-6. Theft deterrent system
GS_G_U (OM30B43U)
April 20, 2009 4:34 pm
Alarm
The system sounds the alarm and flashes lights when forcible entry is
detected.
■Triggering of the alarm
The alarm is triggered in the following situations.
●A locked door or trunk is unlocked or opened in any way other
than by using the smart access system with push-button start,
wireless remote control or mechanical key. (The doors will lock
again automatically.)
● The hood is opened while the vehicle is locked.
■ Setting the alarm system
Close the doors, trunk and
hood, and lock all doors.
The system will be set automati-
cally after 30 seconds.
The indicator light changes from
being on to flashing when the
system is set.
■Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm.
●Unlock the doors or trunk.
● Turn the “ENGINE START STOP” switch to the ACCESSORY or
IGNITION ON mode. (The alarm will be deactivated or stopped
after a few seconds.)
GS_U_G.book Page 86 Monday, April 27, 2009 10:50 AM
