■Steering wheel
Vo l u m e
The voice guidance volume
cannot be adjusted by using
this button.
Hands-free phone system
ON/starts a call
Hands-free phone system
OFF/ends a call/refuses a call
Press: Voice command sys-
tem ON
Press and hold: Voice com-
mand system OFF
■ Microphone

268
3-6. Other interior features
ES350_U_(L/O_0808)
Power outlet
■The power outlet can be used when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short circuit.
■To prevent the fuse from being blown
Do not use an accessory that uses more than 12 V 10 A.
■To prevent the battery from being discharged
Do not use the power outlet longer than necessary when the engine is not running.
The power outlet can be used for 12 V accessories that run on less than 10
A.

Maintenance and care4
291
ES350_U_(L/O_0808)
4-1. Maintenance and careCleaning and protecting the vehicle exterior............. 292
Cleaning and protecting the vehicle interior .............. 295
4-2. Maintenance Maintenance requirements ....................... 298
General maintenance ......... 300
Emission inspection and maintenance (I/M)
programs............................... 303 4-3. Do-it-yourself maintenance
Do-it-yourself service precautions ........................... 304
Hood .......................................... 308
Positioning a floor jack ......... 309
Engine compartment ............. 311
Tires............................................ 326
Tire inflation pressure........... 334
Wheels ...................................... 338
Air conditioning filter ........... 340
Electronic key battery.......... 342
Checking and replacing fuses ........................................ 344
Headlight aim ......................... 352
Light bulbs................................ 354

305

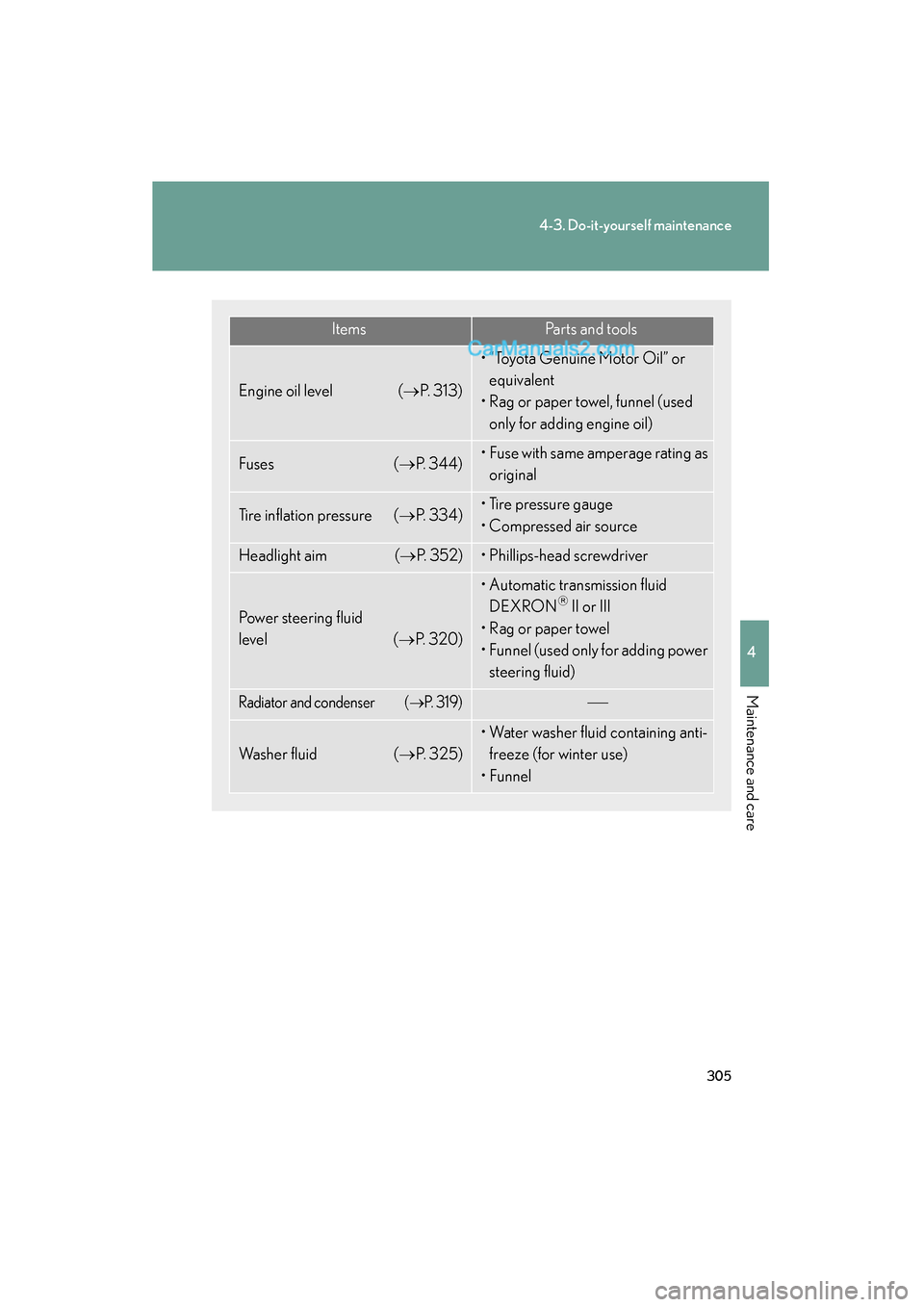

4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U_(L/O_0808)
ItemsParts and tools
Engine oil level (→P. 313)
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel, funnel (used
only for adding engine oil)
Fuses (→ P. 344)• Fuse with same amperage rating as
original
Tire inflation pressure ( →P. 3 3 4 )• Tire pressure gauge
• Compressed air source
Headlight aim ( →P. 3 5 2 )• Phillips-head screwdriver
Power steering fluid
level (→ P. 3 2 0 )
• Automatic transmission fluid
DEXRON II or III
• Rag or paper towel
• Funnel (used only for adding power steering fluid)
Radiator and condenser (→P. 3 1 9 )
Washer fluid ( →P. 3 2 5 )
• Water washer fluid containing anti-
freeze (for winter use)
• Funnel

311
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U_(L/O_0808)
Engine compartment
Power steering fluid reservoir(→P. 320)
Engine oil filler cap (→P. 314)
Engine oil level dipstick (→P. 3 1 3 )
Brake fluid reservoir (→P. 319)
Battery ( →P. 322)Fuse box ( →P. 3 4 4 )
Electric cooling fans
Condenser ( →P. 319)
Radiator ( →P. 319)
Washer fluid tank (→P. 325)
Engine coolant reservoir (→P. 317)

344
4-3. Do-it-yourself maintenance
ES350_U_(L/O_0808)
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the “ENGINE START STOP” switch OFF.
Remove the engine compartment cover.
→P. 312
Open the fuse box cover.
Engine compartment
Push the tabs in and lift the lid
off.
Driver's side instrument
panel
Remove the lid.
After a system failure, see “Fuse layout and amperage ratings”
(→ P. 346) for details about which fuse to check.
Remove the fuse with the pull-
out tool.STEP1
STEP2
STEP3
STEP4
STEP5

345
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U_(L/O_0808)
Check if the fuse has blown.Type A
Normal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Type B
Normal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating.
Type C
Normal fuse
Blown fuse
Contact your Lexus dealer.
STEP6
