2009 KIA SOUL wiper fluid

455
Features of your vehicle
D200100CAM
Windshield wipers
Operates as follows when the ignition
switch is turned ON.: For a single wiping cycle, movethe lever to this ( / / M IST)
position and release it with the
lever in the OFF position. The
wipers will operate continuously
if the lever is held in this posi-tion.
O / OFF : Wiper is not in operation
--- / INT : Wiper operates intermittently at the same wiping intervals. Use
this mode in a light rain or mist.
To vary the speed setting, turn
the speed control knob.
1 / LO : Normal wiper speed
2 / HI : Fast wiper speed
✽✽ NOTICE
If there is heavy accumulation of snow
or ice on the windshield, defrost the
windshield for about 10 minutes, or
until the snow and/or ice is removed
before using the windshield wipers to
ensure proper operation.
D200200BUN-C1
Windshield washers (front)
In the O (OFF) position, pull the lever
gently toward you to spray washer fluid
on the windshield and to run the wipers
1-3 cycles. Use this function when the windshield is
dirty.
The spray and wiper operation will con-
tinue until you release the lever.
If the washer does not work, check the
washer fluid level. If the fluid level, you
will need to add appropriate non-abra-
sive windshield washer fluid to the wash-
er reservoir.
The reservoir filler neck is located in the
front of the engine compartment on the
passenger side.
CAUTION
To prevent possible damage to the washer pump, do not operate the
washer when the fluid reservoir is empty.
//
MIST
WARNING
Do not use the washer in freezing
temperatures without first warming
the windshield with the defrosters;
the washer solution could freeze on
the windshield and obscure yourvision.
CAUTION
To prevent possible damage to the wipers or windshield, do not
operate the wipers when thewindshield is dry.
To prevent damage to the wiper blades, do not use gasoline,
kerosene, paint thinner, or othersolvents on or near them.
To prevent damage to the wiper arms and other components, do
not attempt to move the wipersmanually.

Features of your vehicle
56
4
D200300CUN-EE-AM

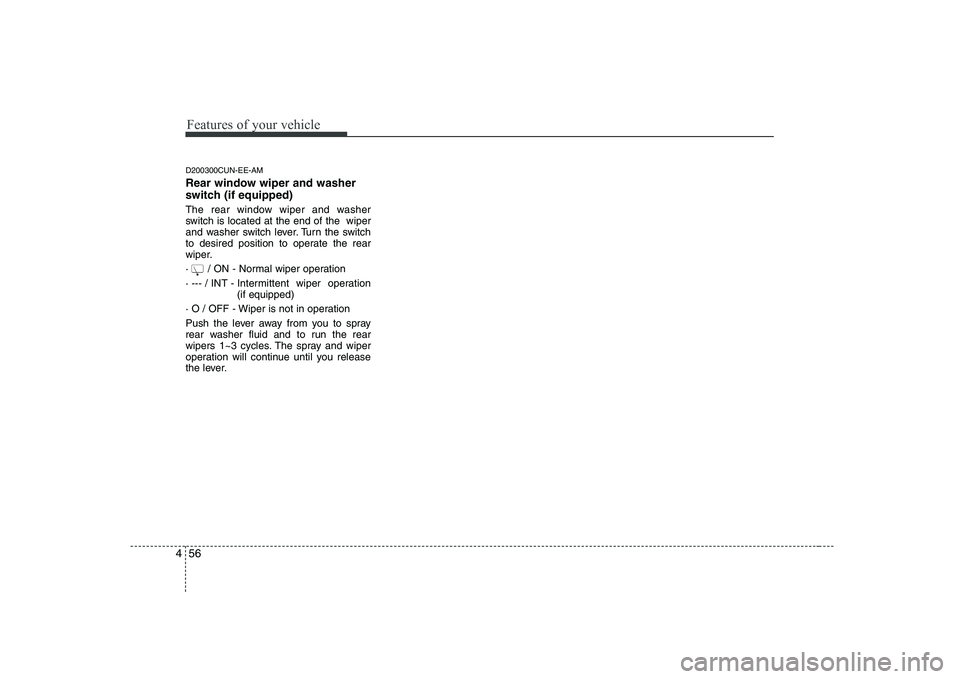

Rear window wiper and washer
switch (if equipped)
The rear window wiper and washer
switch is located at the end of the wiper
and washer switch lever. Turn the switch
to desired position to operate the rear
wiper.
· / ON - Normal wiper operation
· --- / INT - Intermittent wiper operation
(if equipped)
· O / OFF - Wiper is not in operation
Push the lever away from you to spray
rear washer fluid and to run the rear
wipers 1~3 cycles. The spray and wiper
operation will continue until you release
the lever.

7
Engine compartment / 7-2 Maintenance services / 7-4
Owner maintenance / 7-6Scheduled maintenance service / 7-8Explanation of scheduled maintenance items / 7-21Engine oil / 7-25Engine coolant / 7-26Brake/clutch fluid / 7-29Automatic transaxle fluid / 7-30
Washer fluid / 7-32Parking brake / 7-32
Fuel filter / 7-33
Air cleaner / 7-34
Wiper blades / 7-35Battery / 7-38
Tires and wheels / 7-41 Fuses / 7-51 Light bulbs / 7-60
Appearance care / 7-68
Emission control system / 7-74
Maintenance

77
Maintenance
G030103AUN-U1
At least monthly:
Check the coolant level in the enginecoolant reservoir.
Check the operation of all exterior lights, including the stoplights, turn sig-
nals and hazard warning flashers.
Check the inflation pressures of all tires including the spare. G030104AUN-U1
At least twice a year
(i.e., every Spring and Fall):
Check the radiator, heater and air con- ditioning hoses for leaks or damage.
Check the windshield washer spray and wiper operation. Clean wiper
blades with clean cloth dampened with
washer fluid.
Check the headlight alignment.
Check the muffler, exhaust pipes, shields and clamps.
Check the lap/shoulder belts for wear and function.
Check for worn tires and loose wheel lug nuts. G030105APA-U1
At least once a year:
Clean the body and door drain holes.
Lubricate the door hinges and checks,
and hood hinges.
Lubricate the door and hood locks and latches.
Lubricate the door rubber weather- strips.
Check the air conditioning system.
Inspect and lubricate automatic transaxle linkage and controls.
Clean the battery and terminals.
Check the brake/clutch fluid level.

Index
4
I
Storage compartment ·····················································4-70
Sunroof···········································································4-21
Tailgate ···········································································4-11
Tire Pressure Monitoring System (TPMS) ····················6-15
Tire specification and pressure label ·······························8-7
Tires and wheels ······················································7-41/8-3
Towing ···········································································6-19
Trailer towing ································································5-39
Vehicle break-in process ··················································1-5
Vehicle certification label ················································8-6
Vehicle identification number (VIN) ·······························8-6
Vehicle weight ·······························································5-47
Washer fluid ···································································7-32
Windows ········································································4-13
Windshield defrosting and defogging····························4-68
Winter driving ································································5-35
Wiper blades ··································································7-35
Wipers and washers ·······················································4-54
V
W
T
