2009 KIA SOUL dimensions

8
Dimensions / 8-2 Bulb wattage / 8-2
Tires and wheels / 8-3Recommended lubricants and capacities / 8-4
Vehicle identification number (VIN) / 8-6
Vehicle certification label / 8-6
Tire specification and pressure label / 8-7
Engine number / 8-7
Specifications & Consumer information

Specifications & Consumer information
2
8
Item mm (in)
Overall length 4105 (161.6)
Overall width 1785 (70.3)
Overall height * 1
1610 (63.4) / 1660 (65.4)* 2
Front tread 1570 (61.8)* 1
/ 1555 (61.2)* 3
/ 1550 (61.0)* 4
Rear tread 1575 (62.0)* 1
/ 1560 (61.4)* 3
/ 1555 (61.2)* 4
Wheelbase 2550 (100.4)
DIMENSIONS
Headlights (High/Low) 60/55
Front turn signal lights 21
Position lights 5
Side repeater lights* 5
Front fog lights* 27
Rear fog light* 21
Stop and tail lights 21/5
Rear turn signal lights 21
Back-up lights 16
High mounted stop light* 5
License plate lights 5 Map lamps* 10
Room lamp 10
Luggage room lamp* 5
BULB WATTAGE
* : If equipped
*
1
: with 195/65R15 tire
* 2
: with roof rack
* 3
: with 205/55R16 tire
* 4
: with 225/45R18 tire
I010000BUN-EE-C1
I030000AUN-KM-ED
Light Bulb Wattage

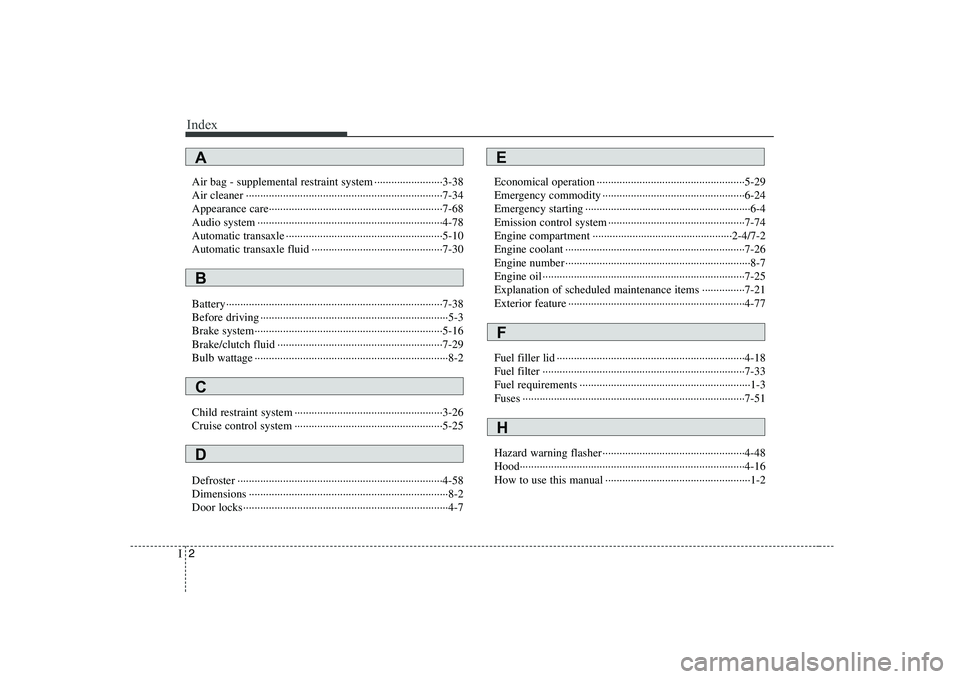

Index
2
I
Air bag - supplemental restraint system ························3-38
Air cleaner ·····································································7-34
Appearance care·····························································7-68
Audio system ·································································4-78
Automatic transaxle ·······················································5-10
Automatic transaxle fluid ··············································7-30
Battery············································································7-38
Before driving ··································································5-3
Brake system··································································5-16
Brake/clutch fluid ··························································7-29
Bulb wattage ····································································8-2
Child restraint system ····················································3-26
Cruise control system ····················································5-25
Defroster ········································································4-58
Dimensions ······································································8-2
Door locks········································································4-7 Economical operation ····················································5-29
Emergency commodity ··················································6-24
Emergency starting ··························································6-4
Emission control system ················································7-74
Engine compartment ·················································2-4/7-2
Engine coolant ·······························································7-26
Engine number ·································································8-7
Engine oil ·······································································7-25
Explanation of scheduled maintenance items ···············7-21
Exterior feature ······························································4-77
Fuel filler lid ··································································4-18
Fuel filter ·······································································7-33
Fuel requirements ····························································1-3
Fuses ··············································································7-51
Hazard warning flasher··················································4-48
Hood···············································································4-16
How to use this manual ···················································1-2
A
B
C
D
E
F
H
