759
Maintenance

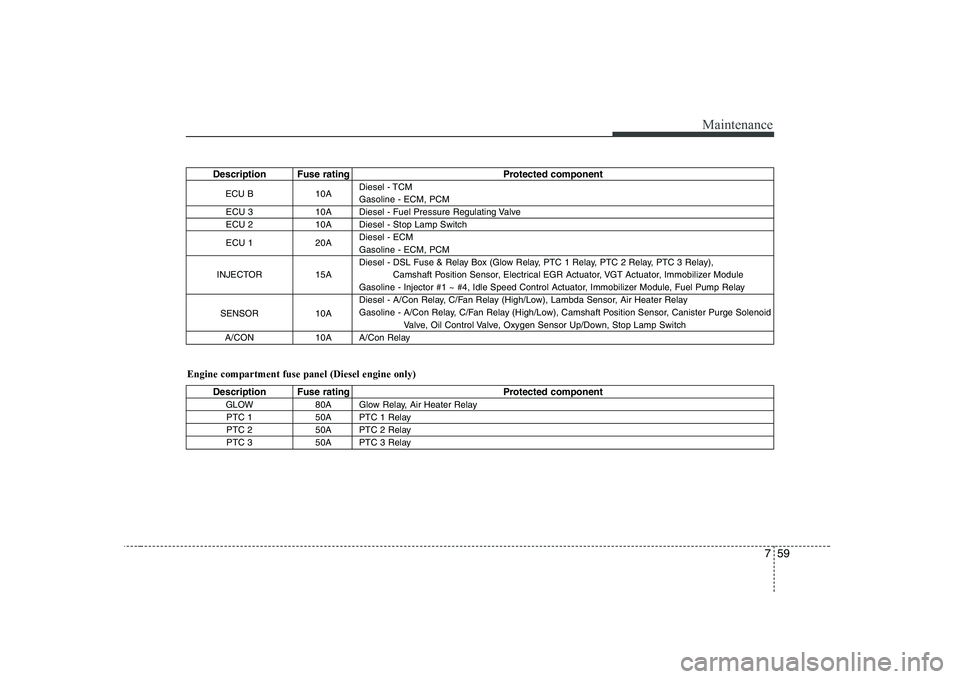

Description Fuse rating Protected componentECU B 10A Diesel - TCM Gasoline - ECM, PCM
ECU 3 10A Diesel - Fuel Pressure Regulating Valve
ECU 2 10A Diesel - Stop Lamp Switch
ECU 1 20A Diesel - ECM Gasoline - ECM, PCM
INJECTOR 15A Diesel - DSL Fuse & Relay Box (Glow Relay, PTC 1 Relay, PTC 2 Relay, PTC 3 Relay),
Camshaft Position Sensor, Electrical EGR Actuator, VGT Actuator, Immobilizer Module
Gasoline - Injector #1 ~ #4, Idle Speed Control Actuator, Immobilizer Module, Fuel Pump Relay
SENSOR 10A Diesel - A/Con Relay, C/Fan Relay (High/Low), Lambda Sensor, Air Heater Relay
Gasoline - A/Con Relay, C/Fan Relay (High/Low), Camshaft Position Sensor, Canister Purge Solenoid
Valve, Oil Control Valve, Oxygen Sensor Up/Down, Stop Lamp Switch
A/CON 10A A/Con Relay
Engine compartment fuse panel (Diesel engine only)
Description Fuse rating Protected component GLOW 80A Glow Relay, Air Heater Relay PTC 1 50A PTC 1 Relay
PTC 2 50A PTC 2 Relay
PTC 3 50A PTC 3 Relay
