2009 KIA Carens engine

13
Introduction
A020101AUN-EUYour new vehicle is designed to use only
unleaded fuel having a pump octane
number ((R+M)/2) of 87 or highter.
Your new vehicle is designed to obtain
maximum performance with UNLEADED
FUEL, as well as minimize exhaust emis-
sions and spark plug fouling.
A020103AUN-EUGasoline containing alcohol andmethanolGasohol, a mixture of gasoline and
ethanol (also known as grain alcohol),
and gasoline or gasohol containing
methanol (also known as wood alcohol)
are being marketed along with or instead
of unleaded gasoline.
Do not use gasohol containing more than
10% ethanol, and do not use gasoline or
gasohol containing any methanol. Either
of these fuels may cause drivability prob-
lems and damage to the fuel system.
Discontinue using gasohol of any kind if
drivability problems occur.
Vehicle damage or drivability problems
may not be covered by the manufactur-
er’s warranty if they result from the use
of:
1. Gasohol containing more than 10% ethanol.
2. Gasoline or gasohol containing methanol.
3. Leaded fuel or leaded gasohol. "E85" fuel is an alternative fuel com-
prised of 85 percent ethanol and 15 per-
cent gasoline, and is manufactured
exclusively for use in Flexible Fuel
Vehicles. “E85” is not compatible with
your vehicle. Use of “E85” may result in
poor engine performance and damage to
your vehicle's engine and fuel system.
KIA recommends that customers do not
use fuel with an ethanol content exceed-
ing 10 percent.
FUEL REQUIREMENTS
CAUTION
Never add any fuel system cleaning
agents to the fuel tank other than what has been specified. (Consultan authorized KIA dealer fordetails.)
CAUTION
Never use gasohol which containsmethanol. Discontinue use of anygasohol product which impairs dri- vability.
CAUTION
Your New Vehicle Limited Warrantydoes not cover damage to the fuelsystem or any performance prob- lems caused by the use of “E85” fuel.
WARNING
Do not "top off" after the nozzle automatically shuts off when
refueling.
Tighten the cap until it clicks, otherwise the Check Engine
light will illuminate.
Always check that the fuel cap is installed securely to prevent fuel
spillage in the event of an acci-
dent.

Introduction41A020104AUNUse of MTBEKIA recommends avoiding fuels contain-
ing MTBE (Methyl Tertiary Butyl Ether)
over 15.0% vol. (Oxygen Content 2.7%
weight) in your vehicle.
Fuel containing MTBE over 15.0% vol.
(Oxygen Content 2.7% weight) may
reduce vehicle performance and produce
vapor lock or hard starting.
A020105AUNDo not use methanolFuels containing methanol (wood alco-
hol) should not be used in your vehicle.
This type of fuel can reduce vehicle per-
formance and damage components of
the fuel system.A020106AUNGasolines for cleaner airTo help contribute to cleaner air, KIA rec-
ommends that you use gasolines treated
with detergent additives, which help pre-
vent deposit formation in the engine.
These gasolines will help the engine run
cleaner and enhance performance of the
Emission Control System.A020107AUNOperation in foreign countriesIf you are going to drive your vehicle in
another country, be sure to:
Observe all regulations regarding reg-istration and insurance.
Determine that acceptable fuel is avail- able.
A030000AUNNo special break-in period is needed. By
following a few simple precautions for the
first 1,000 km (600 miles) you may add to
the performance, economy and life of
your vehicle.
Do not race the engine.
While driving, keep your engine speed(rpm, or revolutions per minute)
between 2,000 rpm and 4,000 rpm.
Do not maintain a single speed for long periods of time, either fast or slow.
Varying engine speed is needed to
properly break-in the engine.
Avoid hard stops, except in emergen- cies, to allow the brakes to seat prop-
erly.
Don't let the engine idle longer than 3 minutes at one time.
Don't tow a trailer during the first 2,000 km (1,200 miles) of operation.VEHICLE BREAK-IN PROCESS
CAUTION
Your New Vehicle Limited Warrantymay not cover damage to the fuelsystem and any performance prob- lems that are caused by the use offuels containing methanol or fuels containing MTBE (Methyl TertiaryButyl Ether) over 15.0% vol.(Oxygen Content 2.7% weight.)

15
Introduction

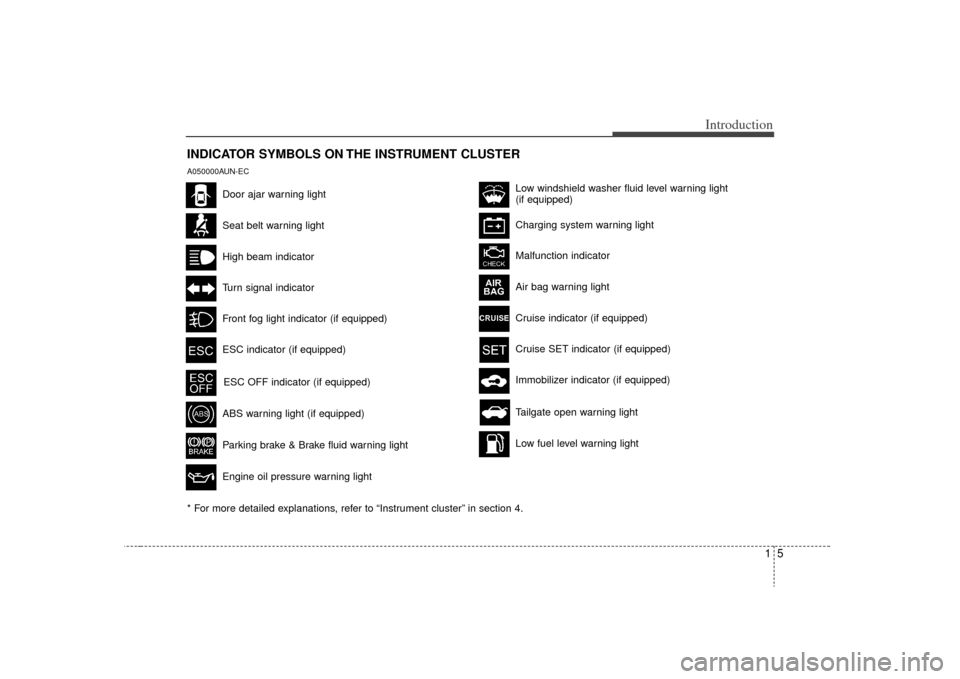

INDICATOR SYMBOLS ON THE INSTRUMENT CLUSTER
Door ajar warning lightSeat belt warning lightHigh beam indicatorTurn signal indicatorFront fog light indicator (if equipped)ABS warning light (if equipped)Parking brake & Brake fluid warning lightEngine oil pressure warning lightESC indicator (if equipped)ESC OFF indicator (if equipped)
Malfunction indicatorAir bag warning lightCruise indicator (if equipped)Cruise SET indicator (if equipped)Immobilizer indicator (if equipped) Low fuel level warning light Tailgate open warning light
* For more detailed explanations, refer to “Instrument cluster” in section 4.Charging system warning lightLow windshield washer fluid level warning light
(if equipped)

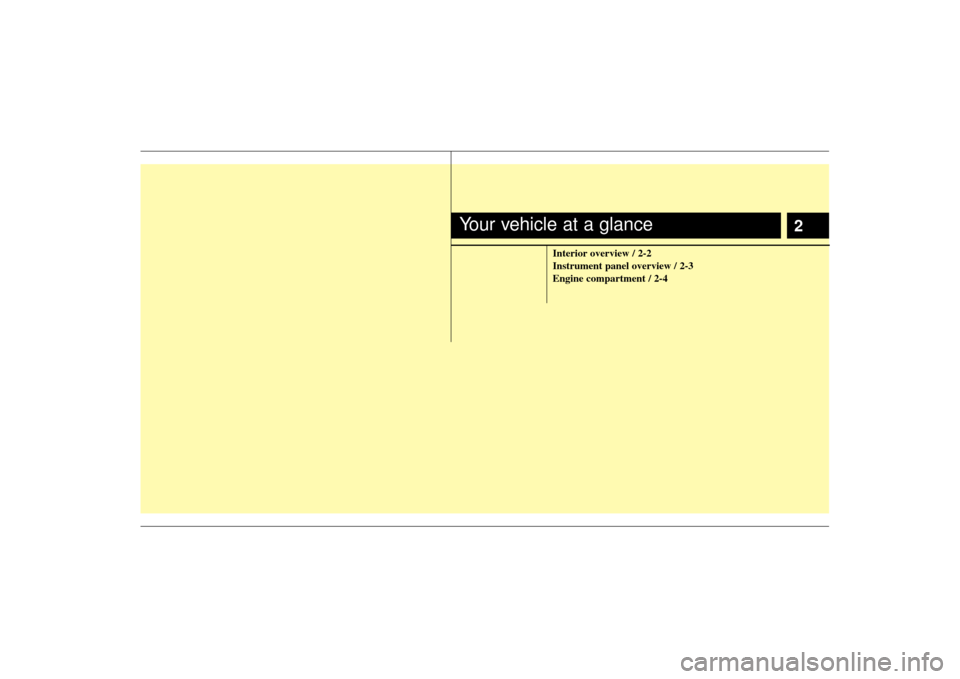

A050000AUN-EC

2
Interior overview / 2-2
Instrument panel overview / 2-3
Engine compartment / 2-4
Your vehicle at a glance

Your vehicle at a glance42ENGINE COMPARTMENT
1. Engine coolant reservoir ...................7-17
2. Engine oil filler cap ...........................7-16
3. Brake fluid reservoir ..........................7-20
4. Air cleaner.........................................7-25
5. Fuse box ...........................................7-46
6. Negative battery terminal ...........6-4/7-28
7. Positive battery terminal .............6-4/7-28
8. Automatic transaxle fluid dipstick......7-22
9. Radiator cap ...............................6-6/7-19
10. Engine oil dipstick ...........................7-16
11. Power steering fluid reservoir .........7-21
12. Windshield washer fluid reservoir ...7-24
OUN079041
B030000AUN-EU■
■2.4L Engine
* The actual engine room in the vehicle may differ from the illustration.

25
Your vehicle at a glance
OUN078001
1. Engine coolant reservoir ...................7-17
2. Engine oil filler cap ...........................7-16
3. Brake fluid reservoir ..........................7-20
4. Air cleaner.........................................7-25
5. Fuse box ...........................................7-46
6. Negative battery terminal ...........6-4/7-28
7. Positive battery terminal .............6-4/7-28
8. Automatic transaxle fluid dipstick......7-22
9. Radiator cap ...............................6-6/7-19
10. Engine oil dipstick ...........................7-16
11. Power steering fluid reservoir .........7-21
12. Windshield washer fluid reservoir ...7-24
■
■2.7L Engine* The actual engine room in the vehicle may differ from the illustration.

39
Safety features of your vehicle
C010200AUNFront seat adjustment - power
(for driver’s seat)The front seat can be adjusted by using
the control knob located on the outside of
the seat cushion. Before driving, adjust
the seat to the proper position so as to
easily control the steering wheel, pedals
and switches on the instrument panel.
C010201AUNForward and backwardPush the control knob forward or back-
ward to move the seat to the desired
position. Release the knob once the seat
reaches the desired position.
WARNING
The power seat is operable with the
ignition OFF.
Therefore, children should never be
left unattended in the car.
CAUTION
Power seat is driven by an elec-tric motor. Stop operating oncethe adjustment is completed.Excessive operation may damage the electrical equipment.
When in operation, the power seat consumes large amount ofelectrical power. To prevent unnecessary charging systemdrain, don’t adjust the power seat longer than necessary while theengine is not running.
Do not operate two or more power seat control knobs at the sametime. Doing so may result inpower seat motor or electrical component malfunction.
OUN028062

317
Safety features of your vehicle
C010313AUN-EUFull flat seatWhen the vehicle is parked, you can place
the front seat in a reclined position, nearly
flat.
1. Move the rear seat to the farthest rear-ward position. (if equipped)
2. Move the front seat to the farthest for- ward position.
3. Remove the headrest.
4. Recline the seatback as far as it can go to allow the rear seat passenger to sup-
port their legs in the reclined position.
1VQA2329
WARNING
- Full flat seat
Do not allow a passenger to use the
full flat seat feature while the vehi-
cle is in motion. Severe injury or
death could occur in an accident.
WARNING
- Uprighting
seat
When you return the seatback to its
upright position, hold the seatback
and return it slowly. If the seatback
is returned without holding it, the
back of the seat could spring for-
ward resulting in accidental injury
from being struck by the seatback.
CAUTION
- Rear seat belts
When returning the rear (2nd and /or3rd row) seatbacks to the uprightposition, remember to return the rear shoulder belts to their proper posi-tion. Routing the seat belt webbing through the rear seat belt guides willhelp keep the belts from being trapped behind or under the seats.
CAUTION -
Damaging rear
seat belt buckles
When you fold the rear (2nd and/or
3rd row) seatback or put luggage onthe rear (2nd and 3rd row) seat cushion, insert the buckle in thepocket between the rear seatbackand cushion. Doing so can preventthe buckle from being damaged by the rear seatback or luggage.
WARNING -
Cargo loading
Make sure the engine is off, the auto-
matic transaxle is in P (Park) and the
parking brake is applied whenever
loading or unloading cargo. Failure
to take these steps may allow the
vehicle to move if shift lever is inad-
vertently moved to another position.
WARNING
- Cargo
Cargo should always be secured to
prevent it from being thrown about
the vehicle in a collision and caus-
ing injury to the vehicle occupants.
Special care of objects should be
taken when placing them in the rear
(2nd and/or 3rd row) seats, since
those may hit the front seat occu-
pants in a frontal collision.
