2009 JEEP LIBERTY snow chains

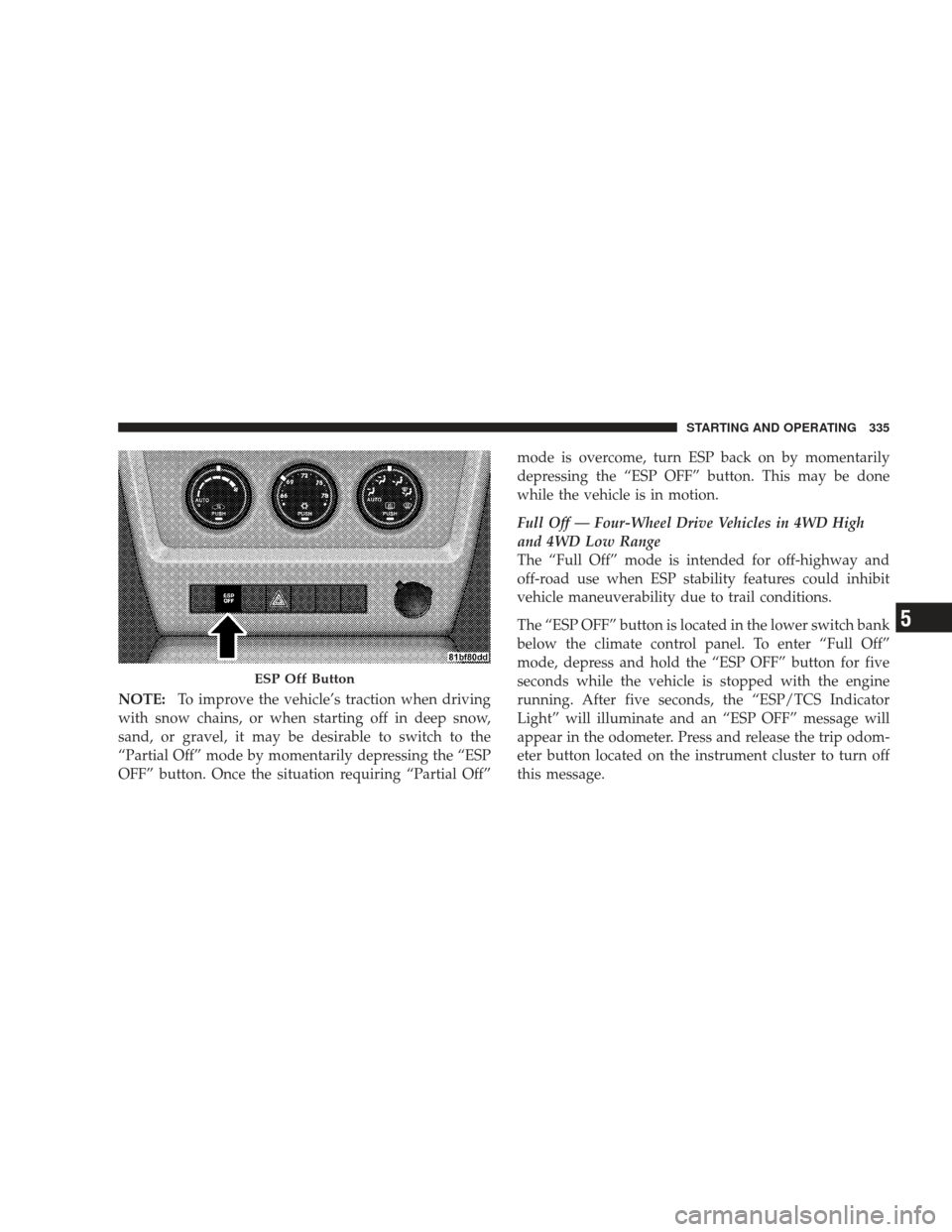

NOTE:To improve the vehicle’s traction when driving
with snow chains, or when starting off in deep snow,
sand, or gravel, it may be desirable to switch to the
“Partial Off” mode by momentarily depressing the “ESP
OFF” button. Once the situation requiring “Partial Off” mode is overcome, turn ESP back on by momentarily
depressing the “ESP OFF” button. This may be done
while the vehicle is in motion.
Full Off — Four-Wheel Drive Vehicles in 4WD High
and 4WD Low Range
The “Full Off” mode is intended for off-highway and
off-road use when ESP stability features could inhibit
vehicle maneuverability due to trail conditions.
The “ESP OFF” button is located in the lower switch bank
below the climate control panel. To enter “Full Off”
mode, depress and hold the “ESP OFF” button for five
seconds while the vehicle is stopped with the engine
running. After five seconds, the “ESP/TCS Indicator
Light” will illuminate and an “ESP OFF” message will
appear in the odometer. Press and release the trip odom-
eter button located on the instrument cluster to turn off
this message.
ESP Off Button
STARTING AND OPERATING 335
5

These cautions apply to all chain traction devices, includ-
ing link and cable (radial) chains.

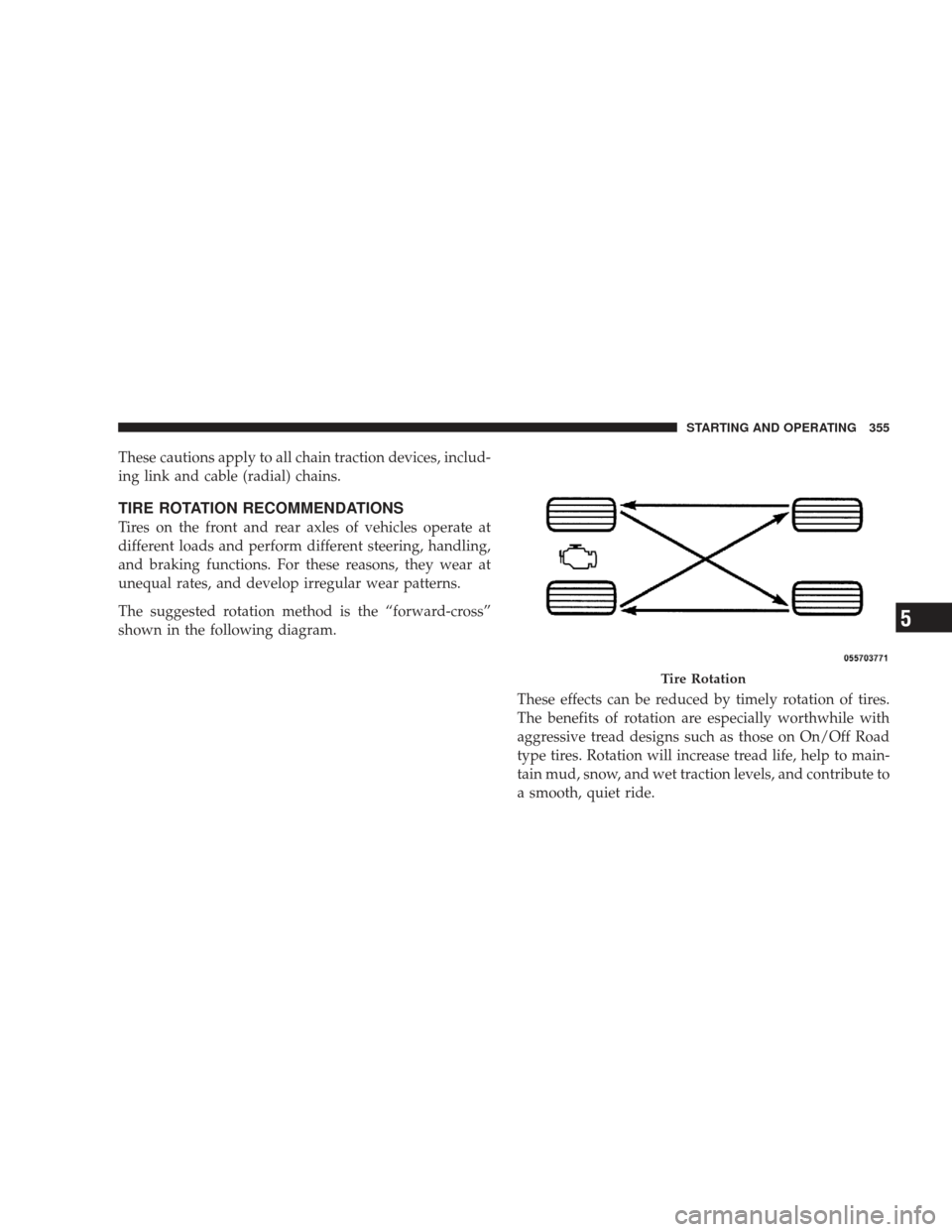

TIRE ROTATION RECOMMENDATIONS
Tires on the front and rear axles of vehicles operate at
different loads and perform different steering, handling,
and braking functions. For these reasons, they wear at
unequal rates, and develop irregular wear patterns.
The suggested rotation method is the “forward-cross”
shown in the following diagram.These effects can be reduced by timely rotation of tires.
The benefits of rotation are especially worthwhile with
aggressive tread designs such as those on On/Off Road
type tires. Rotation will increase tread life, help to main-
tain mud, snow, and wet traction levels, and contribute to
a smooth, quiet ride.
Tire Rotation
STARTING AND OPERATING 355
5

3. Lots of snow or ice around the wheels or wheel
housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPMS sensors.
Vehicles with Full-Size Spare
1. The matching full-size spare wheel and tire assembly
has a tire pressure monitoring sensor that can be moni-
tored by the TPMS.
2. If you install the full-size spare in place of a road tire
that has a pressure below the low-pressure warning limit,
a chime will sound and the TPMS Telltale Light will turn
on upon the next ignition key cycle.
3. Driving the vehicle for up to 20 minutes above 15 mph
(25 km/h) will turn off the TPMS Telltale Light, as long as
no tire pressure is below the low-pressure warning limit
in any of the four active road tires.Vehicles with Compact Spare
1. The compact spare tire does not have a tire pressure
monitoring sensor. Therefore, the TPMS will not monitor
the pressure in the compact spare tire.
2. If you install the compact spare tire in place of a road
tire that has a pressure below the low-pressure warning
limit, a chime will sound and the TPMS Telltale Light will
turn on upon the next ignition key cycle.
3. After driving the vehicle for up to 20 minutes above
15 mph (25 km/h), the TPMS Telltale Light will flash on
and off for 75 seconds and then remain on solid.
4. For each subsequent ignition key cycle, a chime will
sound and the TPMS Telltale Light will flash on and off
for 75 seconds and then remain on solid.
5. Once you repair or replace the original road tire and
reinstall it on the vehicle in place of the compact spare,
the TPMS will update automatically and the TPMS
360 STARTING AND OPERATING

If the ignition key is cycled, this sequence will repeat,
providing the system fault still exists. If the system fault
no longer exists, the Tire Pressure Monitoring Telltale
Light will no longer flash, and theCHECK TPM SYS-
TEM message will no longer display, and a pressure
value will display in place of the dashes. A system fault
can occur due to any of the following: 1. Jamming due to electronic devices or driving next to
facilities emitting the same radio frequencies as the TPMS
sensors.
2. Installing some form of aftermarket window tinting
that affects radio wave signals.
3. Lots of snow or ice around the wheels or wheel
housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPMS sensors.
Vehicles with Full-Size Spare
1. The matching full size spare wheel and tire assembly
has a tire pressure monitoring sensor that can be moni-
tored by the TPMS.
2. If you install the full size spare in place of a road tire
that has a pressure below the low-pressure warning limit,
a chime will sound and the TPMS Telltale Light will turn
STARTING AND OPERATING 363
5

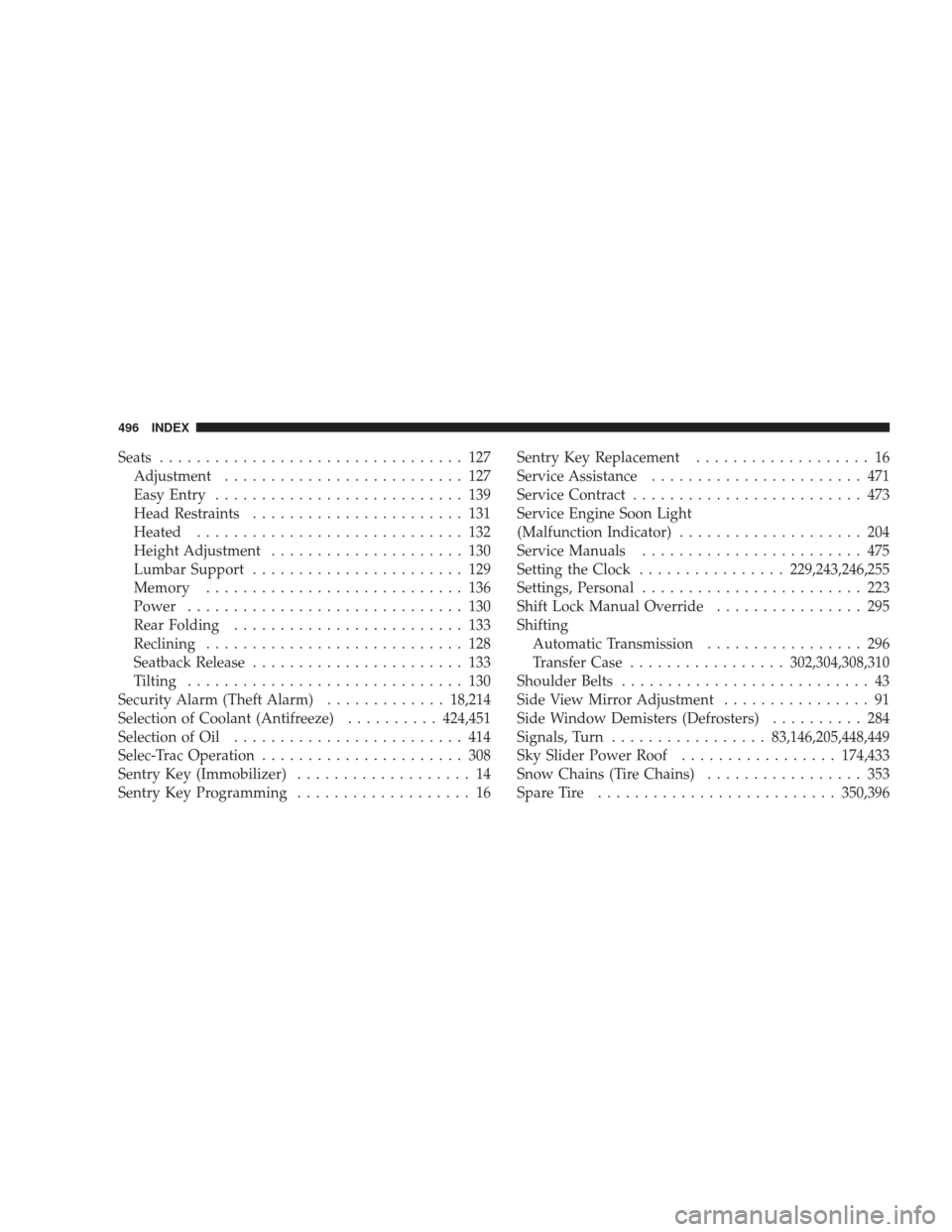

Seats................................. 127
Adjustment .......................... 127
Easy Entry ........................... 139
Head Restraints ....................... 131
Heated ............................. 132
Height Adjustment ..................... 130
Lumbar Support ....................... 129
Memory ............................ 136
Power .............................. 130
Rear Folding ......................... 133
Reclining ............................ 128
Seatback Release ....................... 133
Tilting .............................. 130
Security Alarm (Theft Alarm) .............18,214
Selection of Coolant (Antifreeze) ..........424,451
Selection of Oil ......................... 414
Selec-Trac Operation ...................... 308
Sentry Key (Immobilizer) ................... 14
Sentry Key Programming ................... 16 Sentry Key Replacement
................... 16
Service Assistance ....................... 471
Service Contract ......................... 473
Service Engine Soon Light
(Malfunction Indicator) .................... 204
Service Manuals ........................ 475
Setting the Clock ................ 229,243,246,255
Settings, Personal ........................ 223
Shift Lock Manual Override ................ 295
Shifting Automatic Transmission ................. 296
Transfer Case ................. 302,304,308,310
Shoulder Belts ........................... 43
Side View Mirror Adjustment ................ 91
Side Window Demisters (Defrosters) .......... 284
Signals, Turn ................. 83,146,205,448,449
Sky Slider Power Roof .................174,433
Snow Chains (Tire Chains) ................. 353
Spare Tire .......................... 350,396
496 INDEX
