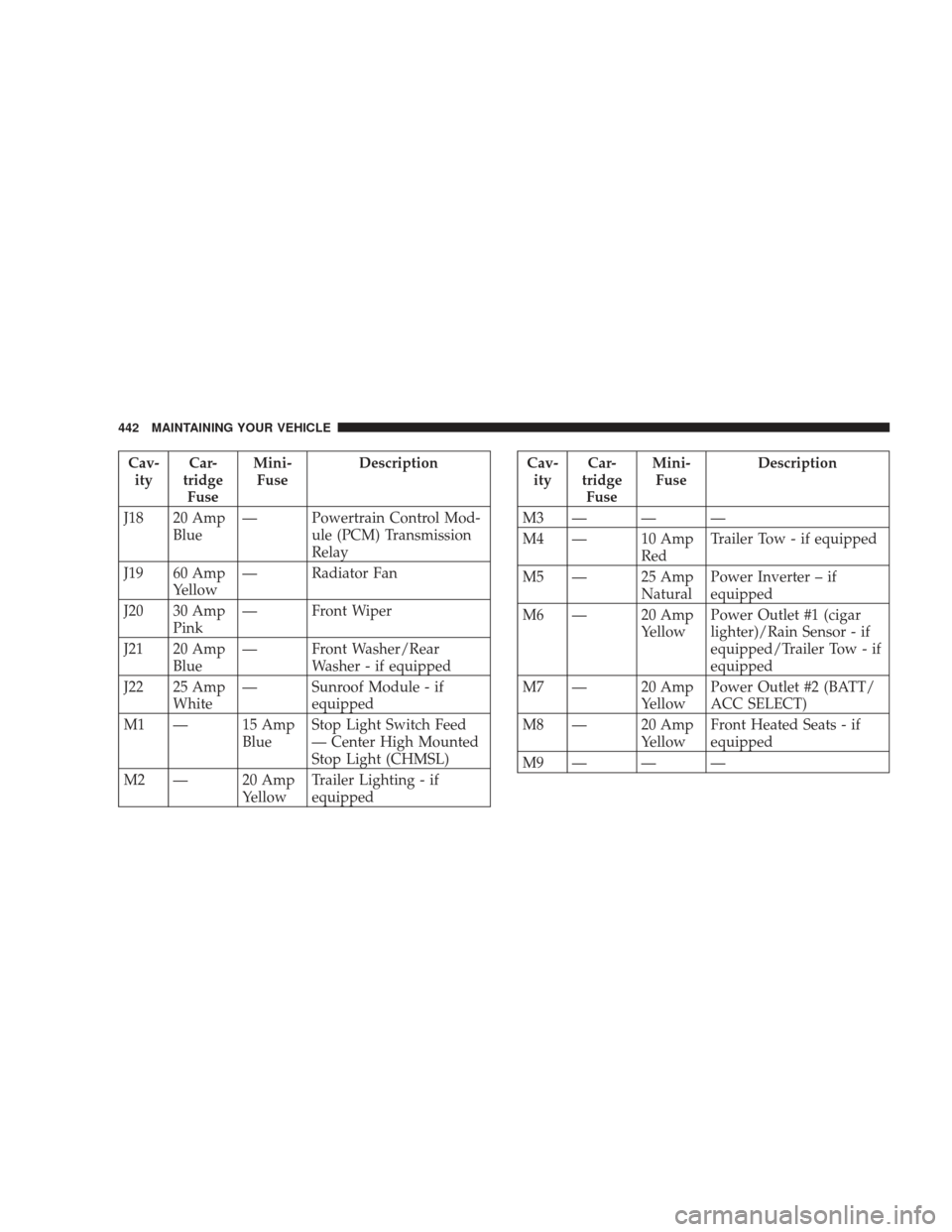

Cav-ity Car-
tridge Fuse Mini-
Fuse Description
J18 20 Amp Blue — Powertrain Control Mod-
ule (PCM) Transmission
Relay
J19 60 Amp Yellow — Radiator Fan
J20 30 Amp Pink — Front Wiper
J21 20 Amp Blue — Front Washer/Rear
Washer - if equipped
J22 25 Amp White — Sunroof Module - if
equipped
M1 — 15 Amp BlueStop Light Switch Feed
— Center High Mounted
Stop Light (CHMSL)
M2 — 20 Amp YellowTrailer Lighting - if
equippedCav-
ity Car-
tridge Fuse Mini-
Fuse Description
M3 — — —
M4 — 10 Amp RedTrailer Tow - if equipped
M5 — 25 Amp NaturalPower Inverter – if
equipped
M6 — 20 Amp YellowPower Outlet #1 (cigar
lighter)/Rain Sensor - if
equipped/Trailer Tow - if
equipped
M7 — 20 Amp YellowPower Outlet #2 (BATT/
ACC SELECT)
M8 — 20 Amp YellowFront Heated Seats - if
equipped
M9 — — —
442 MAINTAINING YOUR VEHICLE
Cav-ity Car-
tridge Fuse Mini-
Fuse Description
M10 — 15 Amp BlueHands-Free Module
(HFM) – if equipped/
Universal Garage Door
Opener (UGDO) – if
equipped/Vanity Light
M11 — 10 Amp RedAutomatic Temperature
Control (ATC) - if
equipped
M12 — 30 Amp GreenRadio/Amplifier - if
equipped
M13 — 20 Amp YellowCabin Compartment
Node (CCN)/Wireless
Control Module (WCM)/
Multifunction Control
Switch
M14 — — —Cav- ity Car-
tridge Fuse Mini-
Fuse Description
M15 — 20 Amp YellowMultifunction Control
Switch/Cabin Compart-
ment Node (CCN)/
Steering Column Control
Module (SCM)/Rear
View Mirror/Tire Pres-
sure Monitor (TPM) - if
equipped/IR Sensor - if
equipped/Transfer Case
Module - if equipped
M16 — 10 Amp RedOccupant Restraint Con-
troller (ORC)
M17 — 15 Amp BlueExterior Lighting — Left
Front Park and Side
Marker, Left Tail and
Running, License Lights
MAINTAINING YOUR VEHICLE 443
7
