2009 INFINITI QX56 ECU

SEC-80
< ECU DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY UNIT
13 B/WInside key antenna 3
(front of center con-
sole) (+) signal
LOCK Any door open → all doors closed
14 W/G Inside key antenna 3
(front of center con-
sole) (-) signal
15 G Inside key antenna 1
(rear of center con-
sole) (+) signal
LOCK Any door open → all doors closed
16 L Inside key antenna 1
(rear of center con-
sole) (-) signal
17 W/L Rear bumper anten-
na (+) signal
LOCK Lift back door handle (close switch).
18 W/R Rear bumper anten-
na (-) signal
19 P Front outside anten-
na LH (+) signal
LOCK Press front door request switch LH.
20 V Front outside anten-
na LH (-) signal
21 B/W Remote keyless en-
try receiver RSSI sig-
nal ——
23 L/W Power back door out-
put —Power liftgate switch ON.
0
Power liftgate switch OFF. Battery voltage
25 P/L Front door request
switch RH —Press front door request switch RH.
0
Other than above Battery voltage
27 R/B Ignition knob switch — Press ignition switch.
Battery voltage
Return ignition switch to LOCK position. 0
28 R Unlock sensor
(driver side) —Door (driver si
de) is locked. 5
Door (driver side ) is unlocked. 0
29 LG/W Back door open
switch input —Back door handle switch ON.
0
Back door handle switch OFF. Battery voltage
Te r m i n a l
Wire
Color Item Condition
Voltage (V)Approx.
Ignition
Switch Po-
sition Operation or Conditions
PIIB7441E
PIIB7441E
SIIA1910J
SIIA1910J
PIIA2344E
Revision: December 20092009 QX56

INTELLIGENT KEY UNITSEC-81
< ECU DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
30 G/B Remote keyless en-
try receiver power
supply
—— 5
32 L/O Steering lock sole-
noid communication
signal LOCKWhen Intelligent Key is inside vehicle,
press ignition knob switch.
Other than above
5
33 W Inside key antenna 4
(overhead console
area) (+) signal
LOCKPress ignition knob switch: ON (Ignition
knob switch)
34 BR Inside key antenna 4
(overhead console
area) (-) signal
35 O Inside key antenna 2
(luggage compart-
ment) (+) signal
LOCK Back door open → all doors closed
36 R Inside key antenna 2
(luggage compart-
ment) (-) signal
37 LG Front outside anten-
na (+) signal RH
LOCK Press front door request switch RH.
38 B/Y Front outside anten-
na (-) signal RH
39 L/R P range switch —Selector lever is in “P” position.
0
Other than above Battery voltage
40 V AS select unlock out-
put
—UNLOCK with rear door locks disabled.
0
Other than above Battery voltage
Te r m i n a l
Wire
Color Item Condition
Voltage (V)Approx.
Ignition
Switch Po-
sition Operation or Conditions
SIIA1911J
PIIB7441E
PIIB7441E
SIIA1910J
Revision: December 20092009 QX56

SEC-82
< ECU DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY UNIT
Reference Value - Steering Lock Solenoid
INFOID:0000000004221486
TERMINAL LAYOUT
PHYSICAL VALUES
WIIA1169E
Te r m i n a l Wire
Color Signal Designation Condition
Voltage (V)Approx.
Ignition
Switch Posi- tion Operation or Conditions
1 G/Y Power source (fuse) LOCK —Battery voltage
2L/Y Steering lock solenoid
power supply LOCK
— 5
3L/O Steering lock solenoid
communication signal
LOCKWhen Intelligent Key is inside ve-
hicle, press ignition knob switch.
Other than the above
5
4B Steering lock solenoid
ground —— 0
SIIA1911J
Revision: December 20092009 QX56

INTELLIGENT KEY UNITSEC-83
< ECU DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
Wiring Diagram - INTE LLIGENT KEY SYSTEM/ENGINE START FUNCTION -
INFOID:0000000003775937
ABKWA0016GB
Revision: December 20092009 QX56

SEC-84
< ECU DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY UNIT
AAKWA0242GB
Revision: December 20092009 QX56

INTELLIGENT KEY UNITSEC-85
< ECU DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P

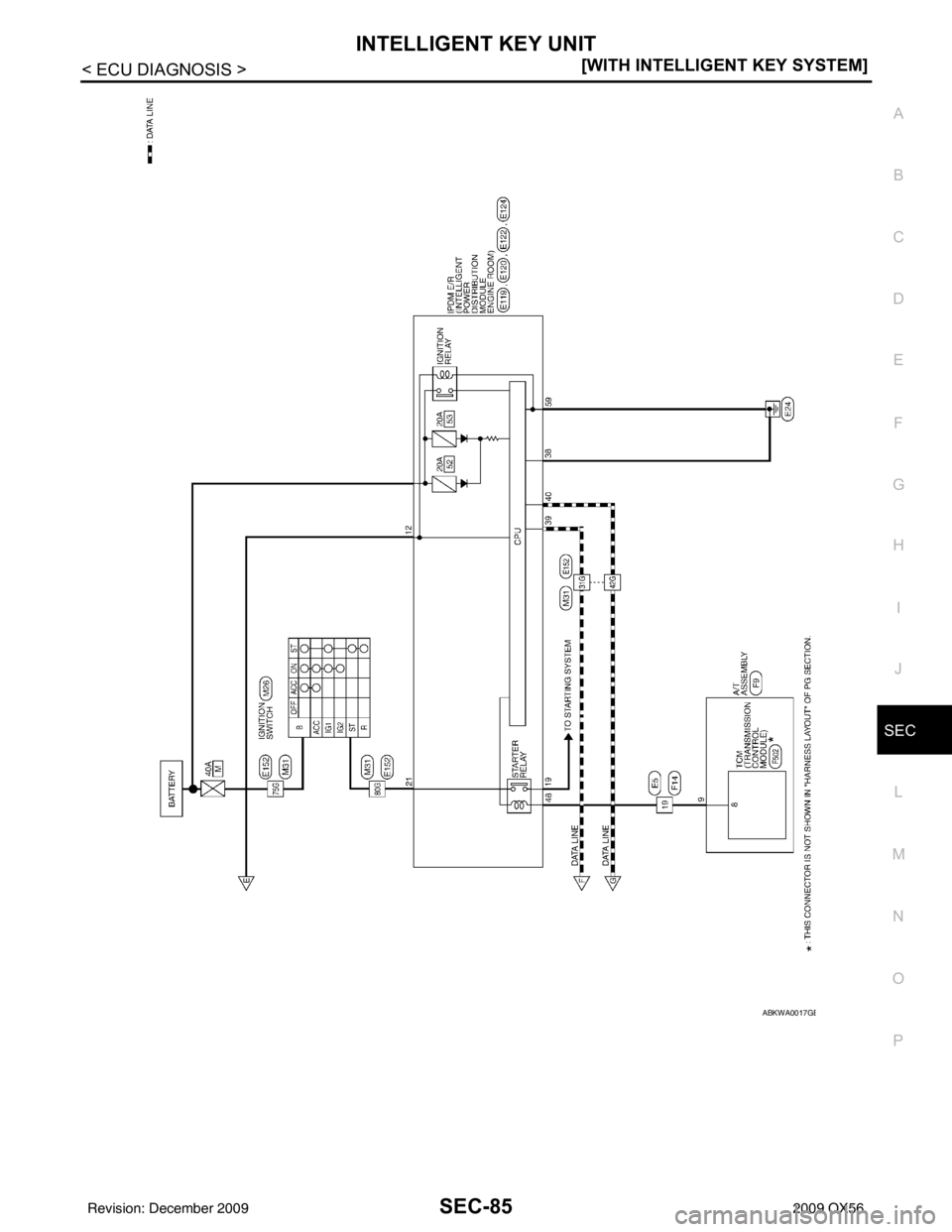

ABKWA0017GB
Revision: December 20092009 QX56

SEC-86
< ECU DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
INTELLIGENT KEY UNIT
ABKIA0049GB
Revision: December 20092009 QX56

INTELLIGENT KEY UNITSEC-87
< ECU DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P

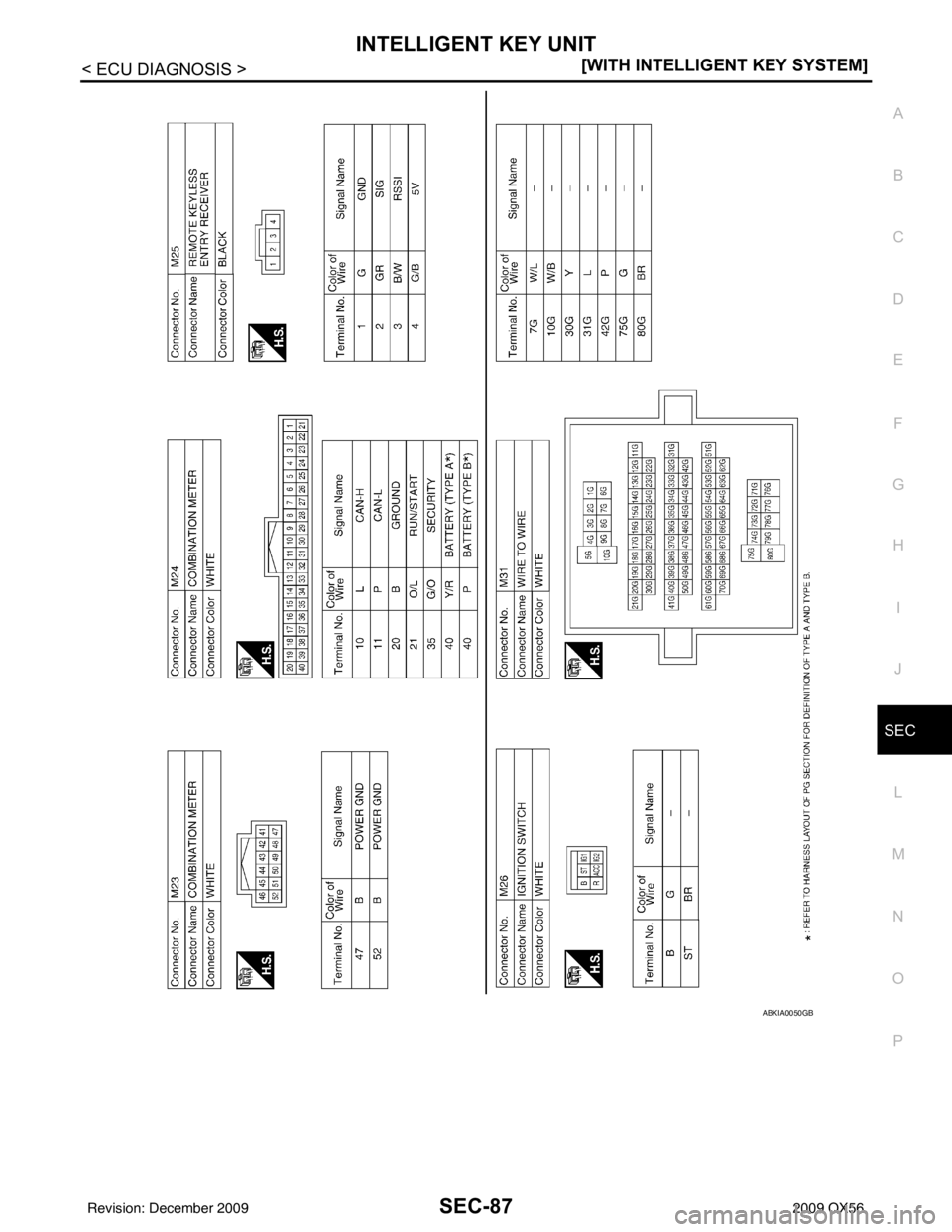

ABKIA0050GB
Revision: December 20092009 QX56
