2009 INFINITI QX56 engine coolant

P0117, P0118 ECT SENSOREC-123
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
1. Check resistance between engine
coolant temperature sensor
terminals 1 and 2 as shown in the figure.
2. If NG, replace engine coolant temperature sensor.
PBIB2005E
Engine coolant temperature °C ( °F)] Resistance (k Ω)
20 (68) 2.1 - 2.9
50 (122) 0.68 - 1.00
90 (194) 0.236 - 0.260
SEF012P
Revision: December 20092009 QX56

EC-128
< COMPONENT DIAGNOSIS >[VK56DE]
P0125 ECT SENSOR
P0125 ECT SENSOR
Component DescriptionINFOID:0000000003771384
The engine coolant temperature sens
or is used to detect the engine
coolant temperature. The sensor modifies a voltage signal from the
ECM. The modified signal returns to the ECM as the engine coolant
temperature input. The sensor uses a thermistor which is sensitive to
the change in temperature. The elec trical resistance of the ther-
mistor decreases as temperature increases.

*: This data is reference value and is measured between ECM terminal 73 (Engine
coolant temperature sensor) and ground.
CAUTION:
Do not use ECM ground terminals when measuring in put/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
On Board Diagnosis LogicINFOID:0000000003771385
DTC Confirmation ProcedureINFOID:0000000003771386
CAUTION:
Be careful not to overheat engine.
NOTE:
If DTC P0125 is displayed with P0117 or P0118, first perform the trouble diagnosis for DTC P0117,
P0118. Refer to EC-121, "DTC Confirmation Procedure"
.
 If DTC P0125 is displayed with P0116, first perf orm the trouble diagnosis for DTC P011. Refer to EC-
117, "DTC Confirmation Procedure".
1. If DTC Confirmation Procedure has been previously conducted, always perform the following before con-
ducting the next step.
a. Turn ignition switch OFF and wait at least 10 seconds.
b. Turn ignition switch ON.
c. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Select “DATA MONITOR” mode with CONSULT-III.
SEF594K
Engine coolant temperature °C ( °F)] Voltage* (V) Resistance (k
Ω)
–10 (14) 4.4 7.0 - 11.4 20 (68) 3.5 2.1 - 2.9
50 (122) 2.2 0.68 - 1.00
90 (194) 0.9 0.236 - 0.260
SEF012P
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0125
0125 Insufficient engine coolant
temperature for closed loop
fuel control  Voltage sent to ECM from the sensor is not
practical, even when some time has passed
after starting the engine.
 Engine coolant temperature is insufficient for closed loop fuel control.  Harness or connectors
(High resistance in the circuit)
 Engine coolant temperature sensor
Thermostat
Revision: December 20092009 QX56

P0125 ECT SENSOREC-129
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
4. Check that “COOLAN TEMP/S” is above 31
°C (88 °F).
If it is above 31 °C (88 °F), the test result will be OK.
If it is below 31 °C (88 °F), go to following step.
5. Start engine and run it for 65 minutes at idle speed. If “COOLAN TEMP/S” increases to more than 31 °C (88 °F) within 65 minutes, stop engine because
the test result will be OK.
6. Check 1st trip DTC.
7. If 1st trip DTC is detected, go to EC-129, "Diagnosis Procedure"
.
Diagnosis ProcedureINFOID:0000000003771387
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to EC-85, "Ground Inspection"
.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2.CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to EC-129, "Component Inspection"
.
OK or NG
OK >> GO TO 3.
NG >> Replace engine coolant temperature sensor.
3.CHECK THERMOSTAT OPERATION
When the engine is cold [lower than 70 °C (158 °F)] condition, grasp lower radiator hose and confirm the engine
coolant does not flow.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace thermostat. Refer to CO-22, "Removal and Installation"
.
4.CHECK INTERMITTENT INCIDENT
Refer to GI-35, "How to Check Terminal"
and GI-38, "Intermittent Incident".
Refer to EC-432, "Wiring Diagram - ENGINE CONTROL SYSTEM -"
.
>> INSPECTION END
Component InspectionINFOID:0000000003771388
ENGINE COOLANT TEMPERATURE SENSOR
BBIA0354E
Revision: December 20092009 QX56

EC-130
< COMPONENT DIAGNOSIS >[VK56DE]
P0125 ECT SENSOR

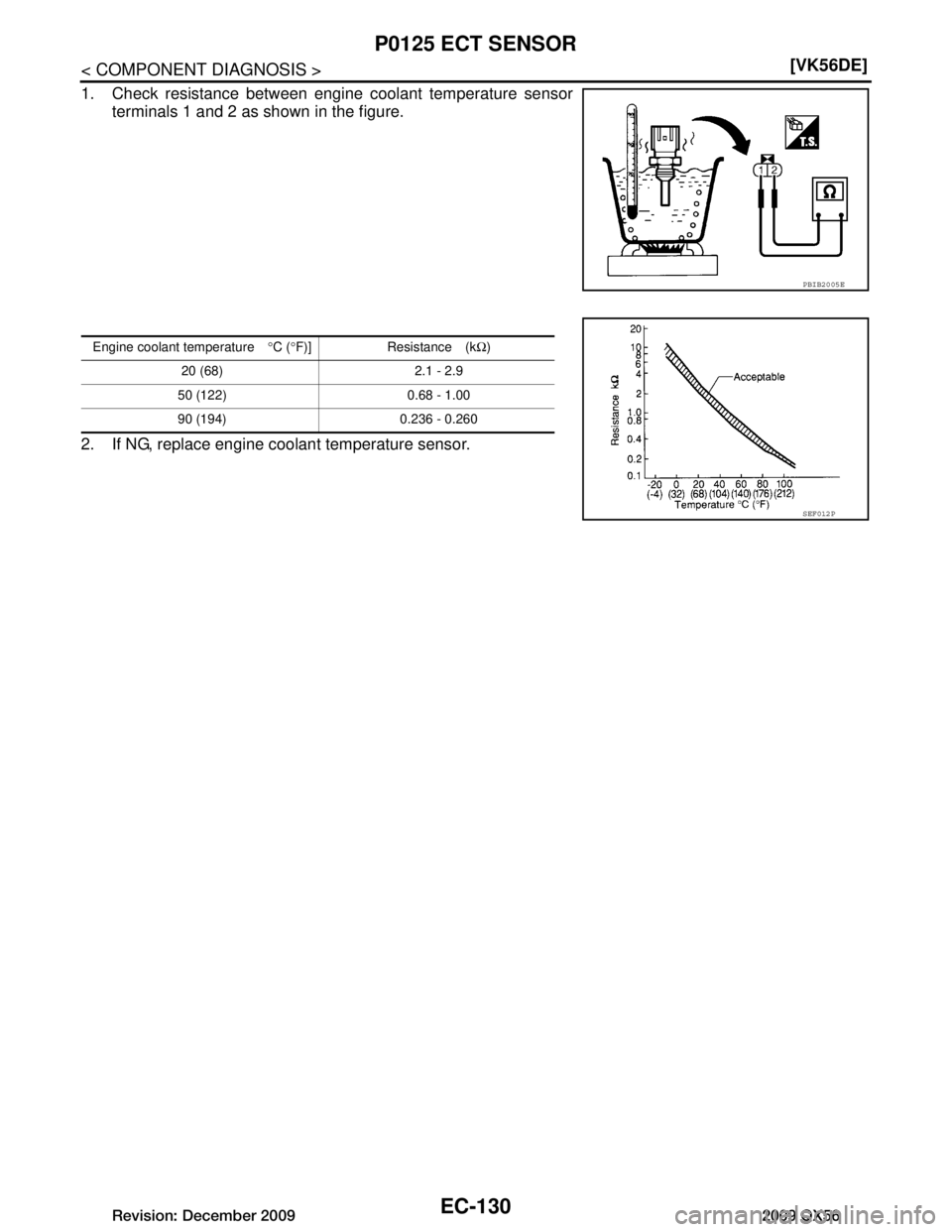

1. Check resistance between engine coolant temperature sensor
terminals 1 and 2 as shown in the figure.
2. If NG, replace engine coolant temperature sensor.
PBIB2005E
Engine coolant temperature °C ( °F)] Resistance (k Ω)
20 (68) 2.1 - 2.9
50 (122) 0.68 - 1.00
90 (194) 0.236 - 0.260
SEF012P
Revision: December 20092009 QX56

P0127 IAT SENSOREC-131
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0127 IAT SENSOR
Component DescriptionINFOID:0000000003771389

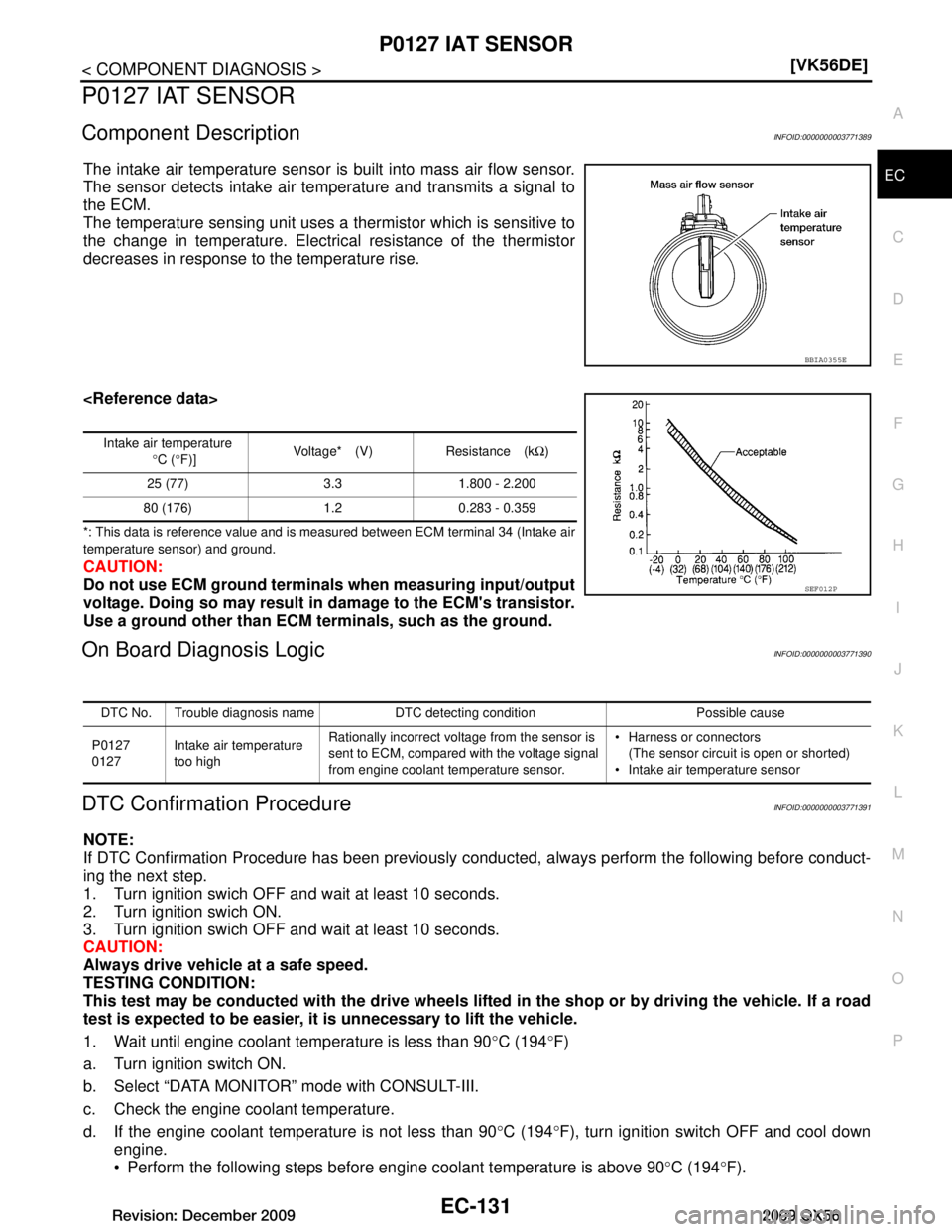

The intake air temperature sensor is
built into mass air flow sensor.
The sensor detects intake air temperature and transmits a signal to
the ECM.
The temperature sensing unit uses a thermistor which is sensitive to
the change in temperature. Electric al resistance of the thermistor
decreases in response to the temperature rise.

*: This data is reference value and is measured between ECM terminal 34 (Intake air
temperature sensor) and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output
voltage. Doing so may result in damage to the ECM's transistor.
Use a ground other than ECM te rminals, such as the ground.
On Board Diagnosis LogicINFOID:0000000003771390
DTC Confirmation ProcedureINFOID:0000000003771391
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always perform the following before conduct-
ing the next step.
1. Turn ignition swich OFF and wait at least 10 seconds.
2. Turn ignition swich ON.
3. Turn ignition swich OFF and wait at least 10 seconds.
CAUTION:
Always drive vehicle at a safe speed.
TESTING CONDITION:
This test may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road
test is expected to be easier, it is unnecessary to lift the vehicle.
1. Wait until engine coolant temperature is less than 90 °C (194 °F)
a. Turn ignition switch ON.
b. Select “DATA MONITOR” mode with CONSULT-III.
c. Check the engine coolant temperature.
d. If the engine coolant temperature is not less than 90 °C (194 °F), turn ignition switch OFF and cool down
engine.
 Perform the following steps before engine coolant temperature is above 90 °C (194 °F).
BBIA0355E
Intake air temperature
°C ( °F)] Voltage* (V) Resistance (k
Ω)
25 (77) 3.3 1.800 - 2.200
80 (176) 1.2 0.283 - 0.359
SEF012P
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0127
0127 Intake air temperature
too high Rationally incorrect voltage from the sensor is
sent to ECM, compared with the voltage signal
from engine coolant temperature sensor.  Harness or connectors
(The sensor circuit is open or shorted)
 Intake air temperature sensor
Revision: December 20092009 QX56

EC-134
< COMPONENT DIAGNOSIS >[VK56DE]
P0128 THERMOSTAT FUNCTION
P0128 THERMOSTAT FUNCTION
On Board Diagn
osis LogicINFOID:0000000003771394
NOTE:
If DTC P0128 is displayed with DTC P0300, P0301, P0302, P0303, P0304, P0305, P0306, P0307 or P0308,
first perform the trouble diagnosis for DTC P 0300, P0301, P0302, P0303, P0304, P0305, P0306, P0307,
P0308. Refer to EC-189, "DTC Confi rmation Procedure"
.
Engine coolant temperature has not risen enough to open the thermostat even though the engine has run long
enough.
This is due to a leak in the seal or the thermostat stuck open.
DTC Confirmation ProcedureINFOID:0000000003771395
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
 For best results, perform at ambient temperature of –10 °C (14 °F) or higher.
 For best results, perform at en gine coolant temperature of –10 °C (14 °F) to 52 °C (126 °F).
 Before performing the following procedure, do not fill with the fuel.
1. Turn A/C switch OFF.
2. Turn blower fan switch OFF.
3. Turn ignition switch ON.
4. Select “COOLAN TEMP/S” in “DATA MONITOR” mode with CONSULT-III.
5. Check the indication of “COOLAN TEMP/S”. If it is below 52 °C (126 °F), go to following step.
If it is above 52 °C (126 °F), cool down the engine to less than 52 °C (126 °F). Then go to next steps.
6. Start engine and wait at idle for at least 30 minutes. If “COOLAN TEMP/S” increases to more than 71 °C (160 °F) within 30 minutes, turn ignition switch
OFF because the test result will be OK.
7. Check 1st trip DTC.
8. If 1st trip DTC is detected, go to EC-134, "Diagnosis Procedure"
.
Diagnosis ProcedureINFOID:0000000003771396
1.CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to EC-134, "Component Inspection"
.
OK or NG
OK >> GO TO 2.
NG >> Replace engine coolant temperature sensor.
2.CHECK THERMOSTAT
Refer to CO-22, "Removal and Installation"
.
OK or NG
OK >> INSPECTION END
NG >> Replace thermostat.
Component InspectionINFOID:0000000003771397
ENGINE COOLANT TEMPERATURE SENSOR
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0128
0128 Thermostat function The engine coolant temperature does not
reach to specified temperature even though
the engine has run long enough.  Thermostat
 Leakage from sealing portion of thermostat
 Engine coolant temperature sensor
Revision: December 20092009 QX56

P0128 THERMOSTAT FUNCTIONEC-135
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
1. Check resistance between engine
coolant temperature sensor
terminals 1 and 2 as shown in the figure.
2. If NG, replace engine coolant temperature sensor.
PBIB2005E
Engine coolant temperature °C ( °F)] Resistance (k Ω)
20 (68) 2.1 - 2.9
50 (122) 0.68 - 1.00
90 (194) 0.236 - 0.260
SEF012P
Revision: December 20092009 QX56

EC-170
< COMPONENT DIAGNOSIS >[VK56DE]
P0171, P0174 FUEL INJECTION SYSTEM FUNCTION
7. If it is difficult to start engine at step 6,
the fuel injection system has a malfunction, too.
8. Crank engine while depressing accelerator pedal. If engine starts, go to EC-170, "Diagnosis Procedure"
. If
engine does not start, check exhaust and intake air leak visually.
WITH GST
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Disconnect mass air flow sensor harness connector.
4. Restart engine and let it idle for at least 5 seconds.
5. Stop engine and reconnect mass air flow sensor harness con- nector.
6. Select Service $03 with GST. Make sure DTC P0102 is detected.
7. Select Service $04 with GST and erase the DTC P0102.
8. Start engine again and let it idle for at least 10 minutes.
9. Select Service $07 with GST. The 1st trip DTC P0171 or P0174 should be detected at this stage, if a malfunction exists. If so, go
to EC-170, "Diagnosis Procedure"
.
NOTE:
If 1st trip DTC is not detected during above proc edure, performing the following procedure is advised.
a. Turn ignition switch OFF and wait at least 10 seconds.
b. Start engine and drive the vehicle under the similar conditions to (1st trip) Freeze Frame Data for 10 min- utes. Refer to the table below.
Hold the accelerator pedal as steady as possible.
The similar conditions to (1st trip) Freeze Frame Da ta means the vehicle operation that the following con-
ditions should be satisfied at the same time.
10. If it is difficult to start engine at step 8, the fuel injection system has a malfunction.
11. Crank engine while depressing accelerator pedal. If engine starts, go to EC-170, "Diagnosis Procedure"
.
If engine does not start, check exhaus t and intake air leak visually.
Diagnosis ProcedureINFOID:0000000003771435
1.CHECK EXHAUST GAS LEAK
1. Start engine and run it at idle.
Engine coolant temperature (T)
condition When the freeze frame data shows lower than 70
°C (158 °F),
T should be lower than 70 °C (158 °F).
When the freeze frame data shows higher than or equal to 70 °C (158 °F),
T should be higher than or equal to 70 °C (158 °F).
BBIA0368E
Engine speed Engine speed in the freeze frame data ± 400 rpm
Vehicle speed Vehicle speed in the freeze frame data ± 10 km/h (6 MPH)
Engine coolant temperature (T)
condition When the freeze frame data shows lower than 70
°C (158 °F),
T should be lower than 70 °C (158 °F).
When the freeze frame data shows higher than or equal to 70 °C (158 °F),
T should be higher than or equal to 70 °C (158 °F).
Revision: December 20092009 QX56
