2009 INFINITI QX56 engine

EC-76
< COMPONENT DIAGNOSIS >[VK56DE]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
DETAILED PROCEDURE
1.CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”
1. Start engine.
2. Confirm that the testing conditions are met. Refer to EC-74, "Testing Condition"
.
3. Select “A/F ALPHA-B1”, “A/F AL PHA-B2” in “SPEC” of “DATA MONITOR” mode, and make sure that the
each indication is within the SP value.
NOTE:

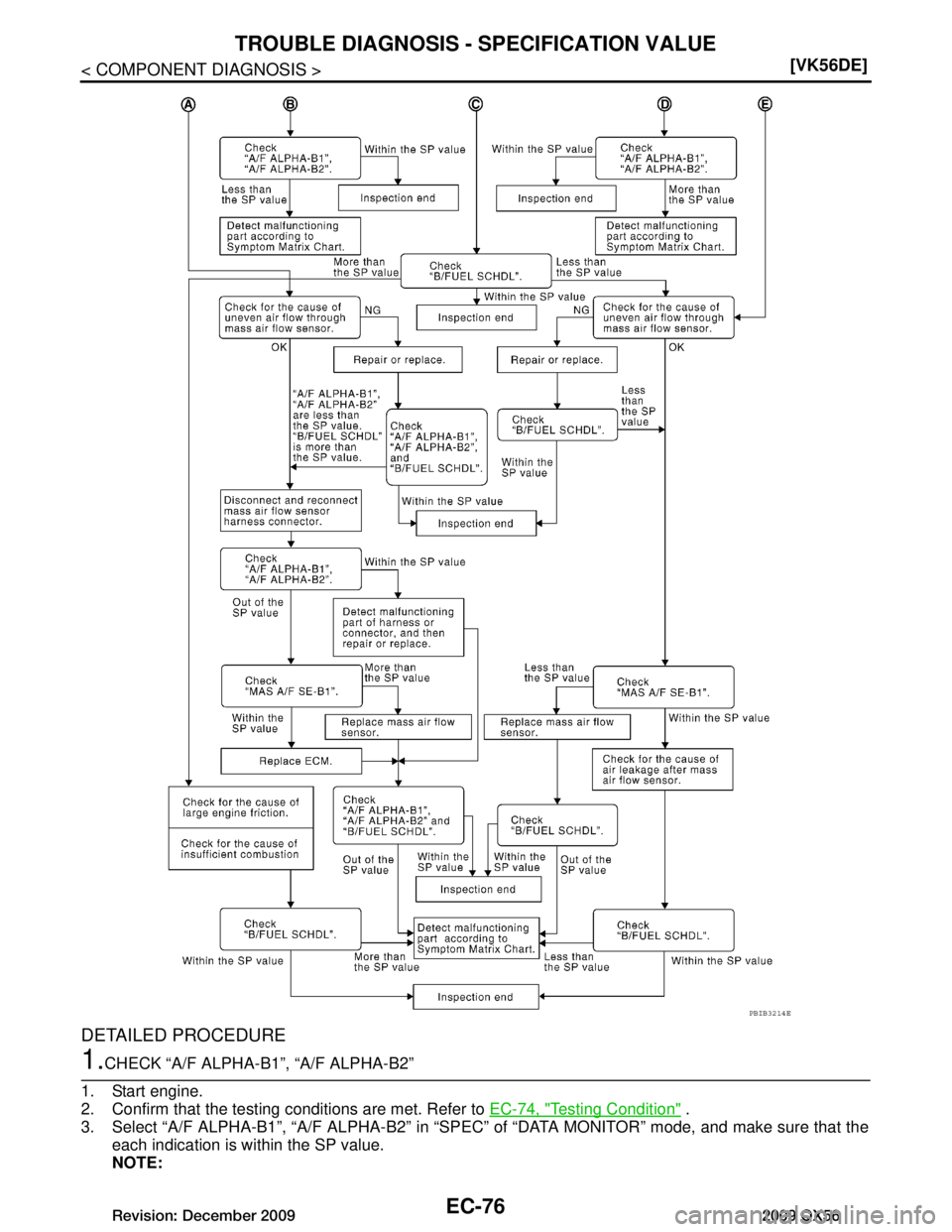

PBIB3214E
Revision: December 20092009 QX56

TROUBLE DIAGNOSIS - SPECIFICATION VALUEEC-77
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Check “A/F ALPHA-B1”, “A/F ALPHA-B2” for approximat
ely 1 minute because they may fluctuate. It is NG
if the indication is out of the SP value even a little.
OK or NG
OK >> GO TO 17.
NG (Less than the SP value)>>GO TO 2.
NG (More than the SP value)>>GO TO 3.
2.CHECK “B/FUEL SCHDL”
Select “B/FUEL SCHDL” in “SPEC” of “DATA MONITOR” m ode, and make sure that the indication is within the
SP value.
OK or NG
OK >> GO TO 4.
NG (More than the SP value)>>GO TO 19.
3.CHECK “B/FUEL SCHDL”
Select “B/FUEL SCHDL” in “SPEC” of “DATA MONITOR” m ode, and make sure that the indication is within the
SP value.
OK or NG
OK >> GO TO 6.
NG (More than the SP value)>>GO TO 6.
NG (Less than the SP value)>>GO TO 25.
4.CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”
1. Stop the engine.
2. Disconnect PCV hose, and then plug it.
3. Start engine.
4. Select “A/F ALPHA-B1”, “A/F AL PHA-B2” in “SPEC” of “DATA MONITOR” mode, and make sure that the
each indication is within the SP value.
OK or NG
OK >> GO TO 5.
NG >> GO TO 6.
5.CHANGE ENGINE OIL
1. Stop the engine.
2. Change engine oil. NOTE:
This symptom may occur when a large amount of gas oline is mixed with engine oil because of driving
conditions (such as when engine oil temperature does not rise enough since a journey distance is too
short during winter). The symptom will not be detect ed after changing engine oil or changing driving con-
dition.
>>INSPECTION END
6.CHECK FUEL PRESSURE
Check fuel pressure. (Refer to EC-487, "Fuel Pressure Check"
.)
OK or NG
OK >> GO TO 9.
NG (Fuel pressure is too high)>>Replace fuel pressure regulator, refer to EC-487, "Fuel Pressure Check"
.
GO TO 8.
NG (Fuel pressure is too low)>>GO TO 7.
7.DETECT MALFUNCTIONING PART
1. Check the following.
- Clogged and bent fuel hose and fuel tube
- Clogged fuel filter
- Fuel pump and its circuit (Refer to EC-487, "Fuel Pressure Check"
.)
2. If NG, repair or replace the malfunctioning part. (Refer to EC-487, "Fuel Pressure Check"
.)
If OK, replace fuel pressure regulator.
Revision: December 20092009 QX56

EC-78
< COMPONENT DIAGNOSIS >[VK56DE]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
>> GO TO 8.
8.CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”
1. Start engine.
2. Select “A/F ALPHA-B1”, “A/F AL PHA-B2” in “SPEC” of “DATA MONITOR” mode, and make sure that the
each indication is within the SP value.
OK or NG
OK >> INSPECTION END
NG >> GO TO 9.
9.PERFORM POWER BALANCE TEST
1. Perform “POWER BALANCE” in “ACTIVE TEST” mode.
2. Make sure that the each cylinder produces a momentary engine speed drop.
OK or NG
OK >> GO TO 12.
NG >> GO TO 10.
10.DETECT MALFUNCTIONING PART
1. Check the following.
- Ignition coil and its circuit (Refer to EC-404, "Diagnosis Procedure"
.)
- Fuel injector and its circuit (Refer to EC-392, "Diagnosis Procedure"
.)
- Intake air leakage
- Low compression pressure (Refer to EM-23, "Checking Compression Pressure"
.)
2. If NG, repair or replace the malfunctioning part.
If OK, replace fuel injector. (It may be caus ed by leakage from fuel injector or clogging.)
>> GO TO 11.
11 .CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”
1. Start engine.
2. Select “A/F ALPHA-B1”, “A/F AL PHA-B2” in “SPEC” of “DATA MONITOR” mode, and make sure that the
each indication is within the SP value.
OK or NG
OK >> INSPECTION END
NG >> GO TO 12.
12.CHECK A/F SENSOR 1 FUNCTION
Perform all DTC Confirmation Procedure related with A/F sensor 1.
 For DTC P0130, P0150, refer to EC-136, "DTC Confirmation Procedure"
.
 For DTC P0131, P0151, refer to EC-140, "DTC Confirmation Procedure"
.
 For DTC P0132, P0132, refer to EC-143, "DTC Confirmation Procedure"
.
 For DTC P0133, P0153, refer to EC-146, "DTC Confirmation Procedure"
.
 For DTC P2A00, P2A03, refer to EC-377, "DTC Confirmation Procedure"
.
OK or NG
OK >> GO TO 15.
NG >> GO TO 13.
13.CHECK A/F SENSOR 1 CIRCUIT
Perform Diagnostic Procedure according to corresponding DTC.
>> GO TO 14.
14.CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”
1. Start engine.
2. Select “A/F ALPHA-B1”, “A/F AL PHA-B2” in “SPEC” of “DATA MONITOR” mode, and make sure that the
each indication is within the SP value.
OK or NG
Revision: December 20092009 QX56

TROUBLE DIAGNOSIS - SPECIFICATION VALUEEC-79
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
OK >>
INSPECTION END
NG >> GO TO 15.
15.DISCONNECT AND RECONNECT ECM HARNESS CONNECTOR
1. Stop the engine.
2. Disconnect ECM harness connector. Check pin term inal and connector for damage, and then reconnect it.
>> GO TO 16.
16.CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”
1. Start engine.
2. Select “A/F ALPHA-B1”, “A/F AL PHA-B2” in “SPEC” of “DATA MONITOR” mode, and make sure that the
each indication is within the SP value.
OK or NG
OK >> INSPECTION END
NG >> Detect malfunctioning part according to EC-475, "Symptom Matrix Chart"
.
17.CHECK “B/FUEL SCHDL”
Select “B/FUEL SCHDL” in “SPEC” of “DATA MONITOR” m ode, and make sure that the indication is within the
SP value.
OK or NG
OK >> INSPECTION END
NG (More than the SP value)>>GO TO 18.
NG (Less than the SP value)>>GO TO 25.
18.DETECT MALFUNCTIONING PART
1. Check for the cause of large engine friction. Refer to the following.
- Engine oil level is too high
- Engine oil viscosity
- Belt tension of power steering, alternator, A/C compressor, etc. is excessive
- Noise from engine
- Noise from transmission, etc.
2. Check for the cause of insufficient combustion. Refer to the following.
- Valve clearance malfunction
- Intake valve timing control function malfunction
- Camshaft sprocket installation malfunction, etc.
>> Repair or replace malfunctioning part, and then GO TO 30.
19.CHECK INTAKE SYSTEM
Check for the cause of uneven air flow through mass air flow sensor. Refer to the following.
 Crushed air ducts
 Malfunctioning seal of air cleaner element
 Uneven dirt of air cleaner element
 Improper specification of intake air system
OK or NG
OK >> GO TO 21.
NG >> Repair or replace malfunctioning part, and then GO TO 20.
20.CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”, AND “B/FUEL SCHDL”
Select “A/F ALPHA-B1”, “A/F ALPHA-B2”, and “B/F UEL SCHDL” in “SPEC” of “DATA MONITOR” mode, and
make sure that the each indication is within the SP value.
OK or NG
OK >> INSPECTION END
NG (“B/FUEL SCHDL” is more, “A/F ALPHA-B1”, “A /F ALPHA-B2” are less than the SP value)>>GO TO 21.
21.DISCONNECT AND RECONNECT MASS AIR FLOW SENSOR HARNESS CONNECTOR
1. Stop the engine.
Revision: December 20092009 QX56

EC-80
< COMPONENT DIAGNOSIS >[VK56DE]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
2. Disconnect mass air flow sensor harness connector. Check pin terminal and connector for damage and
then reconnect it again.
>> GO TO 22.
22.CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”
1. Start engine.
2. Select “A/F ALPHA-B1”, “A/F AL PHA-B2” in “SPEC” of “DATA MONITOR” mode, and make sure that the
each indication is within the SP value.
OK or NG
OK >> 1. Detect malfunctioning part of mass air flow sensor circuit and repair it. Refer to EC-109 .
2. GO TO 29.
NG >> GO TO 23.
23.CHECK “MAS A/F SE-B1”
Select “MAS A/F SE-B1” in “SPEC” of “DATA MONITOR” mode, and make sure that the indication is within the
SP value.
OK or NG
OK >> GO TO 24.
NG (More than the SP value)>>Replace mass air flow sensor, and then GO TO 29.
24.REPLACE ECM
1. Replace ECM.
2. Perform initialization of IVIS(NAT S) system and registration of all IVIS(NATS) ignition key IDs. Refer to
SEC-6, "ECM RE-COMMUNICATING FUNCT ION : Special Repair Requirement"
.
3. Perform EC-17, "VIN Registration"
.
4. Perform EC-18, "Accelerator Pedal Released Position Learning"
.
5. Perform EC-18, "Throttle Valve Closed Position Learning"
.
6. Perform EC-18, "Idle Air Volume Learning"
.
>> GO TO 29.
25.CHECK INTAKE SYSTEM
Check for the cause of uneven air flow through mass air flow sensor. Refer to the following.
 Crushed air ducts
 Malfunctioning seal of air cleaner element
 Uneven dirt of air cleaner element
 Improper specification of intake air system
OK or NG
OK >> GO TO 27.
NG >> Repair or replace malfunctioning part, and then GO TO 26.
26.CHECK “B/FUEL SCHDL”
Select “B/FUEL SCHDL” in “SPEC” of “DATA MONITOR” mode, and make sure that the indication is within the
SP value.
OK or NG
OK >> INSPECTION END
NG (Less than the SP value)>>GO TO 27.
27.CHECK “MAS A/F SE-B1”
Select “MAS A/F SE-B1” in “SPEC” of “DATA MONITOR” mode, and make sure that the indication is within the
SP value.
OK or NG
OK >> GO TO 28.
NG (Less than the SP value)>>Replace mass air flow sensor, and then GO TO 30.
28.CHECK INTAKE SYSTEM
Check for the cause of air leak after the mass air flow sensor. Refer to the following.
Revision: December 20092009 QX56

EC-82
< COMPONENT DIAGNOSIS >[VK56DE]
POWER SUPPLY AND GROUND CIRCUIT
POWER SUPPLY AND GROUND CIRCUIT
Diagnosis ProcedureINFOID:0000000003771324
1.INSPECTION START
Start engine.
Is engine running?
Ye s o r N o
Ye s > > G O T O 8 .
No >> GO TO 2.
2.CHECK ECM POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF and then ON.
2. Check voltage between ECM terminal 109 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
 10A fuse
 Harness for open or short between ECM and fuse
>> Repair harness or connectors.
4.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to EC-85, "Ground Inspection"
.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace ground connections.
5.CHECK ECM GROUND CIRCUIT FOR OPEN AND SHORT-I
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminals 1, 115, 116 and ground. Refer to Wiring Diagram.
3. Also check harness for short to power. Voltage: Battery voltage
MBIB0015E
BBIA0354E
Continuity should exist.
Revision: December 20092009 QX56

P0011, P0021 IVT CONTROLEC-87
< COMPONENT DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0011, P0021 IVT CONTROL
On Board Diagnosis LogicINFOID:0000000003771334
FAIL-SAFE MODE
When the malfunction is detected,
the ECM enters fail-safe mode.
DTC Confirmation ProcedureINFOID:0000000003771335
CAUTION:
Always drive at a safe speed.
NOTE:
If DTC P0011 or P0021 is displayed with DTC P0075, P0081, P1140 or P1145, first perform the trouble
diagnosis for EC-100
or EC-291.
 If DTC Confirmation Procedure has been previously c onducted, always perform the following before con-
ducting the next step.
1. Turn ignition swich OFF and wait at least 10 seconds.
2. Turn ignition swich ON.
3. Turn ignition swich OFF and wait at least 10 seconds.
TESTING CONDITION:
Before performing the following procedure, confi rm that battery voltage is between 10V and 16V at
idle.
PROCEDURE FOR MALFUNCTION A
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-III.
3. Maintain the following conditions for at least 10 consecutive seconds.
DTC No. Trouble diagnosis name Detecting condition Possible cause
P0011
0011
(Bank 1)
Intake valve timing control
performance A
The alignment of the intake valve timing
control has been misresistered.  Harness or connectors
(Intake valve timing control solenoid
valve circuit is open or shorted.)
 Harness or connectors (Intake valve timing control position
sensor circuit is open or shorted.)
 Intake valve timing control solenoid valve
 Intake valve timing control position sensor
 Crankshaft position sensor (POS)
 Camshaft position sensor (PHASE)
 Accumulation of debris to the signal
pick-up portion of the camshaft
sprocket
 Timing chain installation
 Foreign matter caught in the oil groove for intake valve timing control
P0021
0021
(Bank 2)
B
There is a gap between angle of target and
phase-control angle degree.
Detected items Engine operating condition in fail-safe mode
Intake valve timing control The signal is not energized to the solenoid valve and the valve control does not function
ENG SPEED More than 2,000 rpm (A constant rotation is maintained.)
COOLAN TEMP/S More than 70 °C (158 °F)
Selector lever 1st or 2nd position
Driving location uphill Driving vehicle uphill
(Increased engine load will help maintain the driving con-
ditions required for this test.)
Revision: December 20092009 QX56

EC-88
< COMPONENT DIAGNOSIS >[VK56DE]
P0011, P0021 IVT CONTROL
4. Maintain the following conditions for at least 20 consecutive seconds.
5. Check 1st trip DTC.
6. If 1st trip DTC is detected, go to
EC-88, "Diagnosis Procedure"
.
PROCEDURE FOR MALFUNCTION B
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-III.
3. Maintain the following conditions for at least 10 consecutive seconds.
4. Check 1st trip DTC.
5. If 1st trip DTC is detected, go to EC-88, "Diagnosis Procedure"
.
With GST
Follow the procedure “With CONSULT-III” above.
Diagnosis ProcedureINFOID:0000000003771336
1.CHECK OIL PRESSURE WARNING LAMP
1. Start engine.
2. Check oil pressure warning lamp and confirm it is not illumi- nated.
OK or NG
OK >> GO TO 2.
NG >> Go to LU-8, "Inspection"
.
2.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to EC-85, "Ground Inspection"
.
OK or NG
ENG SPEED Idle
COOLAN TEMP/S More than 70 °C (158 °F)
Selector lever P or N position
ENG SPEED 1,700 - 3,175 rpm (A cons tant rotation is maintained.)
COOLAN TEMP/S More than 70 °C (158 °F)
Selector lever 1st or 2nd position
Driving location uphill Driving vehicle uphill
(Increased engine load will help maintain the driving con-
ditions required for this test.)
PBIA8559J
BBIA0354E
Revision: December 20092009 QX56
