< ON-VEHICLE REPAIR >[ATX14B]
FRONT OIL SEAL
1. Install the new front oil seal until it is flush with the end face of
the front case using Tool.
CAUTION:
 Do not reuse oil seal.
 Apply petroleum jelly to oil seal.
2. Align the matching mark of the front drive shaft with the match- ing mark of the companion flange, then install the companion
flange.
3. Install the new self-lock nut. Tighten to the specified torque using suitable tool. Refer to DLN-142, "Disassembly and
Assembly".
CAUTION:
Do not reuse self-lock nut.
4. Install the front propeller shaft. Refer to DLN-186, "Removal and
Installation".
5. Refill the transfer with fluid and check for fluid leakage and fluid level. Refer to DLN-129, "Inspection"
.
Tool number : KV38100500 ( — )
SDIA2662E
SDIA2658E
LDIA0147E
Revision: December 20092009 QX56

DLN-142
< DISASSEMBLY AND ASSEMBLY >[ATX14B]
TRANSFER ASSEMBLY
DISASSEMBLY AND ASSEMBLY
TRANSFER ASSEMBLY
Disassembly and AssemblyINFOID:0000000005874983

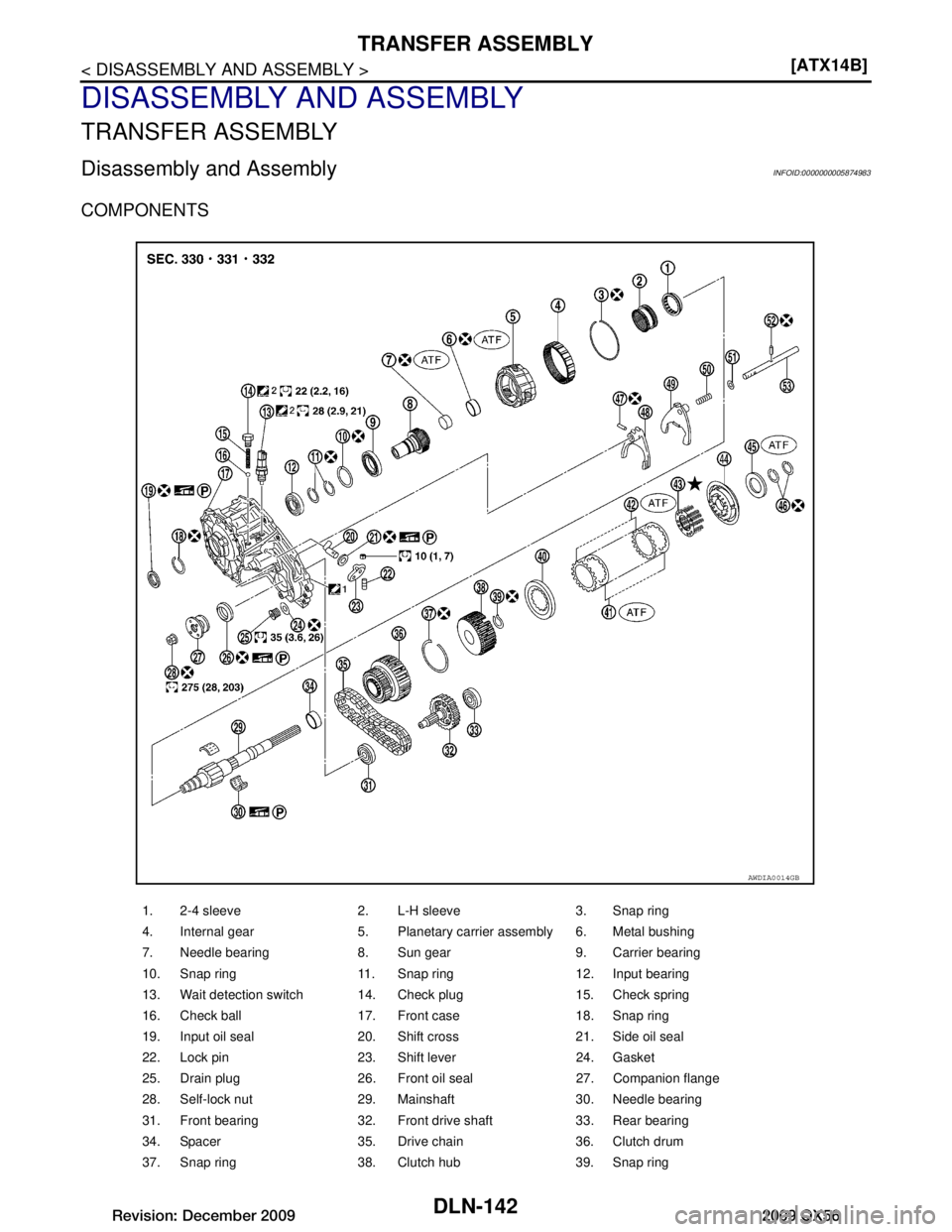

COMPONENTS
1. 2-4 sleeve 2. L-H sleeve 3. Snap ring
4. Internal gear 5. Planetary carrier assembly 6. Metal bushing
7. Needle bearing 8. Sun gear 9. Carrier bearing
10. Snap ring 11. Snap ring 12. Input bearing
13. Wait detection switch 14. Check plug 15. Check spring
16. Check ball 17. Front case 18. Snap ring
19. Input oil seal 20. Shift cross 21. Side oil seal
22. Lock pin 23. Shift lever 24. Gasket
25. Drain plug 26. Front oil seal 27. Companion flange
28. Self-lock nut 29. Mainshaft 30. Needle bearing
31. Front bearing 32. Front drive shaft 33. Rear bearing
34. Spacer 35. Drive chain 36. Clutch drum
37. Snap ring 38. Clutch hub 39. Snap ring
AWDIA0014GB
Revision: December 20092009 QX56

DLN-144
< DISASSEMBLY AND ASSEMBLY >[ATX14B]
TRANSFER ASSEMBLY
DISASSEMBLY
Rear Case
1. Remove the rear case bolts.
2. Remove the rear case from the center case.
3. Remove the dust cover using suitable tool.
4. Remove the rear oil seal using suitable tool.
CAUTION:
Do not damage rear case.
5. Remove the breather tube.
Front Case
1. Remove the rear case assembly. Refer to DLN-142, "Disassembly and Assembly".
2. Remove the lock pin nut.
40. Sub oil pump cover 41. O-ring 42. Transfer motor
43. Connector bracket A. Apply Genuine Anaerobic Liquid Gasket, Three Bond TB1133C or
equivalent.B. Apply Genuine Liquid Gasket,
Three Bond TB1215 or equiva-
lent.
SDIA2092E
SDIA2093E
SDIA2094E
SDIA2095E
Revision: December 20092009 QX56

TRANSFER ASSEMBLYDLN-145
< DISASSEMBLY AND ASSEMBLY > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
3. Remove the lock pin using suitable tool.
4. Remove the shift lever.
5. Remove the side oil seal from the front case using suitable tool. CAUTION:
Do not damage front case or shift cross.
6. Remove the check plug, check spring and check ball.
7. Remove the wait detection switch.
8. Remove the self-lock nut from the companion flange using suit- able tool.
9. Put a matching mark on top of the front drive shaft thread in line with the mark on the companion flange.
CAUTION:
Use paint to make the matching mark on the front drive
shaft thread. Never damage the front drive shaft.
SDIA2150E
SDIA2166E
WDIA0196E
SDIA2841E
SDIA2779E
Revision: December 20092009 QX56

DLN-176
< DISASSEMBLY AND ASSEMBLY >[ATX14B]
TRANSFER ASSEMBLY
21. Tighten the front case bolts to the specified torque. Refer to
DLN-142, "Disassembly and Assembly"
.
CAUTION:
Be sure to install air breather hose clamp, connector
bracket and harness clip.
22. Install the drain plug with a new gasket. CAUTION:
Do not reuse gasket.
23. Align the matching mark on the front drive shaft with the mark on the companion flange, then install the companion flange.
24. Install a new companion flange self-lock nut. Tighten to the specified torque using suitable tool. Refer to DLN-142, "Disas-
sembly and Assembly".
CAUTION:
Do not reuse self-lock nut.
25. Remove all the sealant from the check plug, switch mounting and front case.
CAUTION:
Remove old sealant adhering to mating surfaces. Also
remove any moisture, oil, or foreign material adhering to
application and mounting surfaces.
26. Install the check ball and check spring to the front case. Apply sealant to the check plug and wait detection switch and install
them to the front case. Tighten to the specified torque. Refer to
DLN-142, "Disassembly and Assembly"
.
 Use Genuine Silicone RTV or equivalent. Refer to GI-15,
"Recommended Chemical Products and Sealants".
NOTE:
Wait detection switch harness connector is black.
SDIA2100E
SDIA2779E
WDIA0219E
WDIA0158E
Revision: December 20092009 QX56

TRANSFER ASSEMBLYDLN-177
< DISASSEMBLY AND ASSEMBLY > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
27. Install the new oil seal in the front case using Tool.
CAUTION:
 Do not reuse oil seal.
 Apply petroleum jelly to seal lip before installing.
28. Install the shift lever to the shift cross.
29. Install the lock pin and lock pin nut. Tighten to the specified torque. Refer to DLN-142, "Disassembly and Assembly"
.
Rear Case
1. Apply petroleum jelly to the circumference of the new rear oil
seal. Install the new rear oil seal so that it is flush with the case
tip face using Tool.
CAUTION:
 Do not reuse oil seal.
 Apply petroleum jelly to seal lip before installing.
2. Apply petroleum jelly to the circumference of the new dust cover (1). Position the new dust cover with protrusions (A) as shown.
 Rear case (2)
CAUTION:
 Do not reuse dust cover.
 Position the projection in the position as shown.
3. Install the new dust cover using Tool.
4. Install the air breather into the rear case.
5. Remove all the sealant from the rear case to center case mating surfaces.
CAUTION:
Remove all foreign materials such as water, oil, and grease
from center case and rear case mating surfaces.
6. Apply liquid gasket to the entire rear case mating surface of the center case.
Use Genuine Anaerobic Liquid Gasket or equivalent. Refer to GI-15, "Recommended Chemical
Products and Sealants".
CAUTION:
Do not to allow Liquid Gasket to enter stem bleeder hole.
Tool number : ST22360002 (J-25679-01)
SDIA2182E
Tool number : ST30720000 (J-25405)
SDIA2204E
AWDIA0550GB
Tool number : KV40105310 ( — )
SDIA2205E
Revision: December 20092009 QX56
