2009 INFINITI QX56 diagram

HEADLAMPEXL-53
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
EXL
N
O P
HEADLAMP
Wiring Diagram INFOID:0000000003776198
AALWA0195GB
Revision: December 20092009 QX56

DAYTIME LIGHT SYSTEMEXL-57
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
EXL
N
O P
DAYTIME LIGHT SYSTEM
Wiring DiagramINFOID:0000000003776199
ABLWA0022GB
Revision: December 20092009 QX56

EXL-64
< COMPONENT DIAGNOSIS >
AUTO LIGHT SYSTEM
AUTO LIGHT SYSTEM
Wiring DiagramINFOID:0000000003776200
AALWA0197GB
Revision: December 20092009 QX56

HEADLAMP AIMING SYSTEM (MANUAL)EXL-71
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
EXL
N
O P
HEADLAMP AIMING SYSTEM (MANUAL)
Wiring DiagramINFOID:0000000003776201
ABLWA0024GB
Revision: December 20092009 QX56

FRONT FOG LAMP SYSTEMEXL-75
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
EXL
N
O P

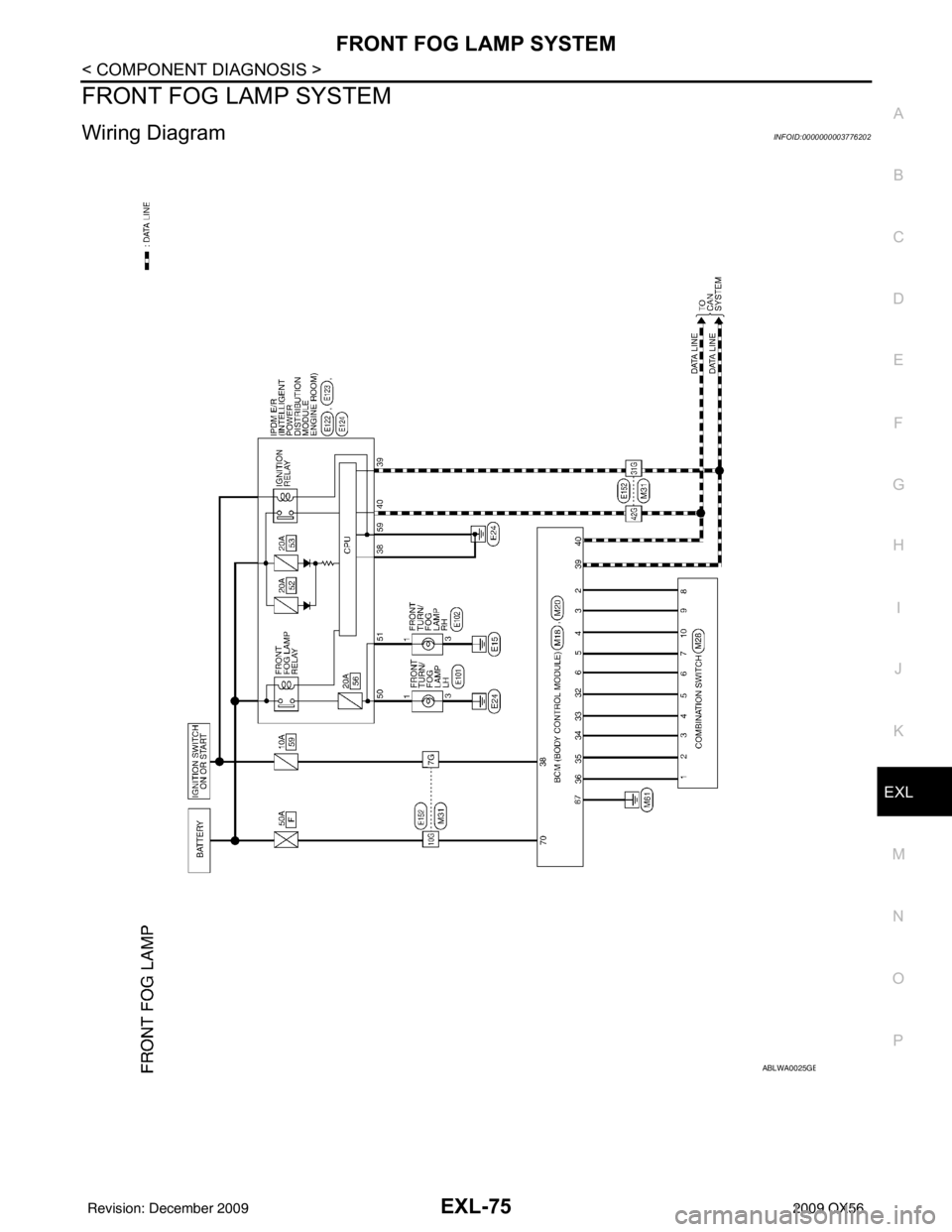

FRONT FOG LAMP SYSTEM
Wiring DiagramINFOID:0000000003776202
ABLWA0025GB
Revision: December 20092009 QX56

EXL-78
< COMPONENT DIAGNOSIS >
TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

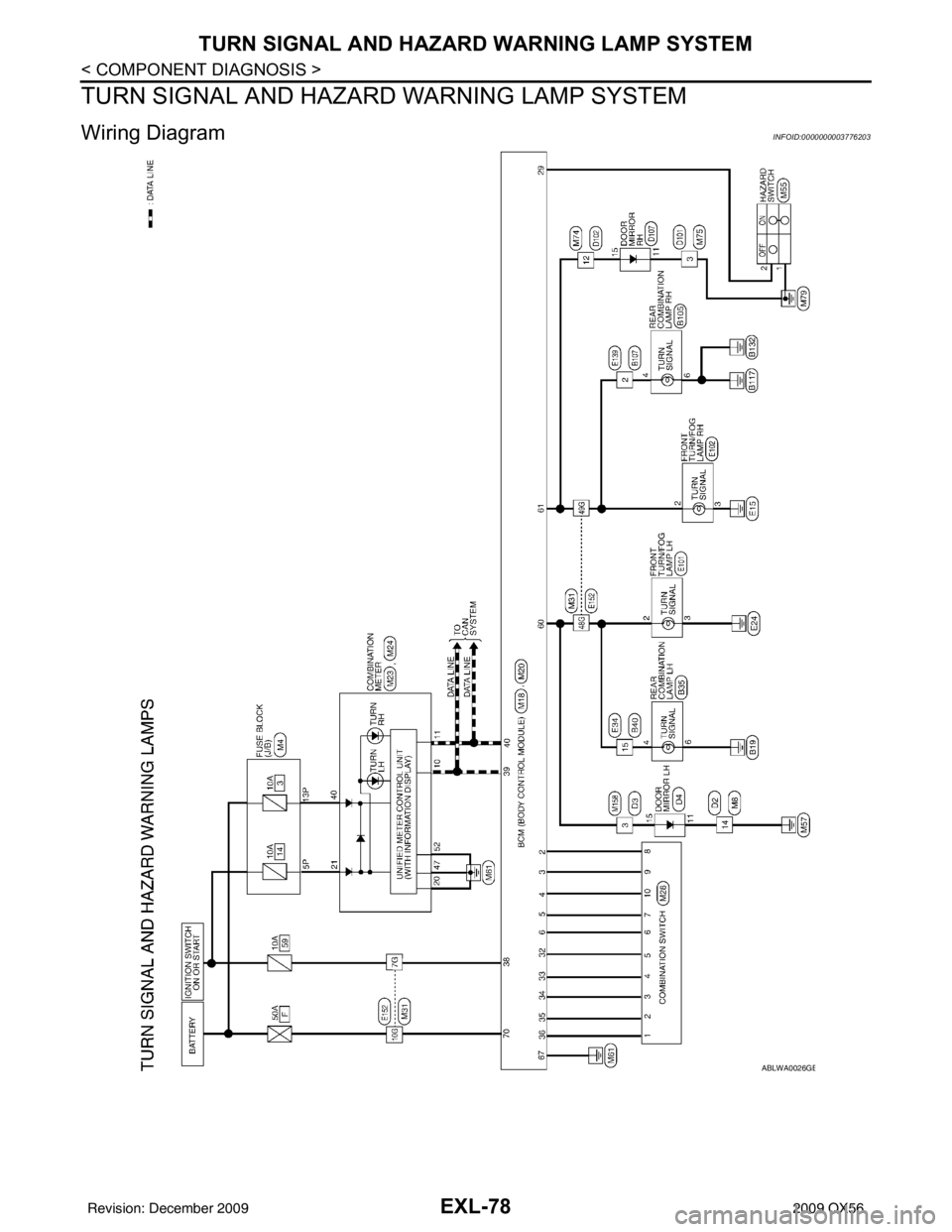

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM
Wiring DiagramINFOID:0000000003776203
ABLWA0026GB
Revision: December 20092009 QX56

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEMEXL-85
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
EXL
N
O P

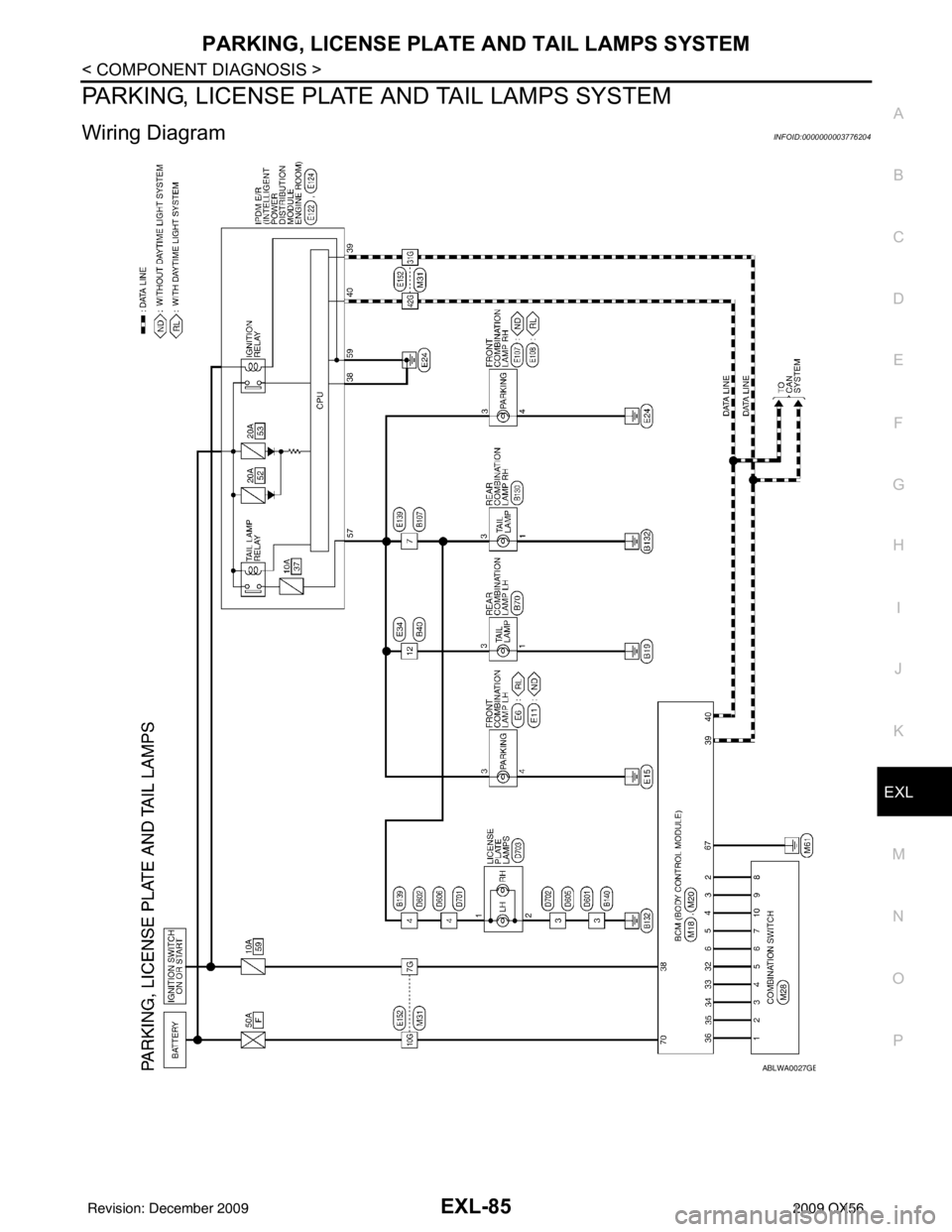

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM
Wiring DiagramINFOID:0000000003776204
ABLWA0027GB
Revision: December 20092009 QX56

STOP LAMPEXL-91
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
EXL
N
O P

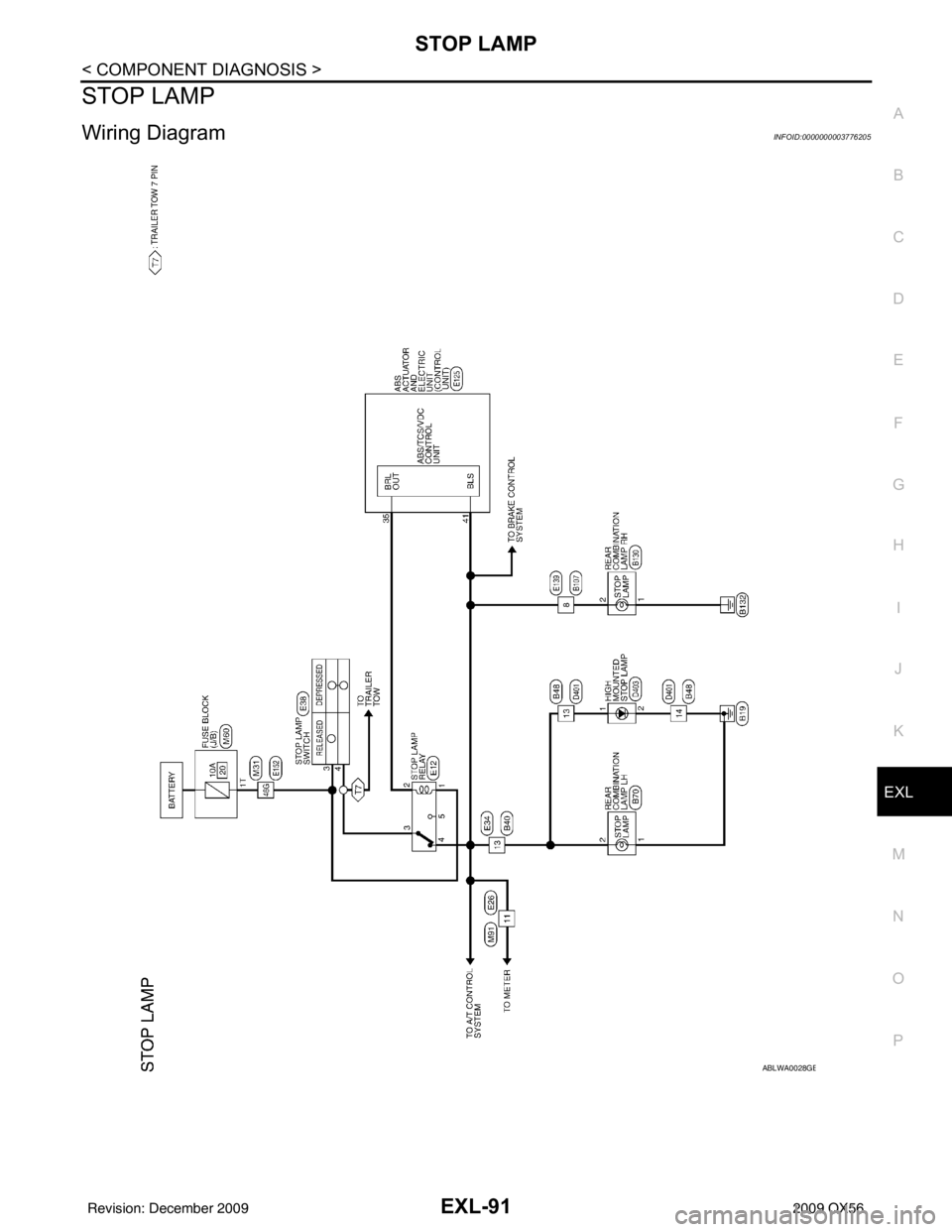

STOP LAMP
Wiring DiagramINFOID:0000000003776205
ABLWA0028GB
Revision: December 20092009 QX56
