2009 Hyundai H-1 (Grand Starex) wipers

4
Keys / 4-2 Remote keyless entry / 4-4Theft-alarm system / 4-6
Door locks / 4-8
Tailgate / 4-13
Windows / 4-16Bonnet / 4-21
Fuel filler lid / 4-23
Steering wheel / 4-26
Mirrors / 4-28
Instrument cluster / 4-32
Rear parking assist system / 4-44
Hazard warning flasher / 4-46Lighting / 4-47
Wipers and washers / 4-52
Interior light / 4-55
Defroster / 4-58
Manual climate control system / 4-59
Windscreen defrosting and defogging / 4-70
Storage compartment / 4-72
Interior features / 4-74Audio system / 4-79
Features of your vehicle

Features of your vehicle
52
4
A : Wiper speed control
· – Single wipe · 0 – Off
· --- – Intermittent wipe (if equipped)
· 1 – Low wiper speed· 2 – High wiper speed
B : Intermittent wipe time adjustment
C : Wash with brief wipes
D : Rear wiper/washer control · – Spraying washer fluid
· – Continuous wipe· 0 – Off
· – Wash with brief wipes D200100ATQ-UK
Windscreen wipers
Operates as follows when the ignition
switch is turned ON.
: For a single wiping cycle, push thelever upward and release it with the
lever in the 0 position. The wipers
will operate continuously if the lever
is pushed upward and held.
0 : Wiper is not in operation.
--- : Wiper operates intermittently at the same wiping intervals. Use this
mode in a light rain or mist. To vary
the speed setting, turn the speed
control knob(1). In this position, the
wiping intervals are also varied auto-
matically depending on your vehicle
speed. (if equipped)
WIPERS AND WASHERS
Windscreen wiper/washer
Rear window wiper/washer (if equipped)
OTQ048902
OTQ048904
OTQ048909
1
Fast
Slow

453

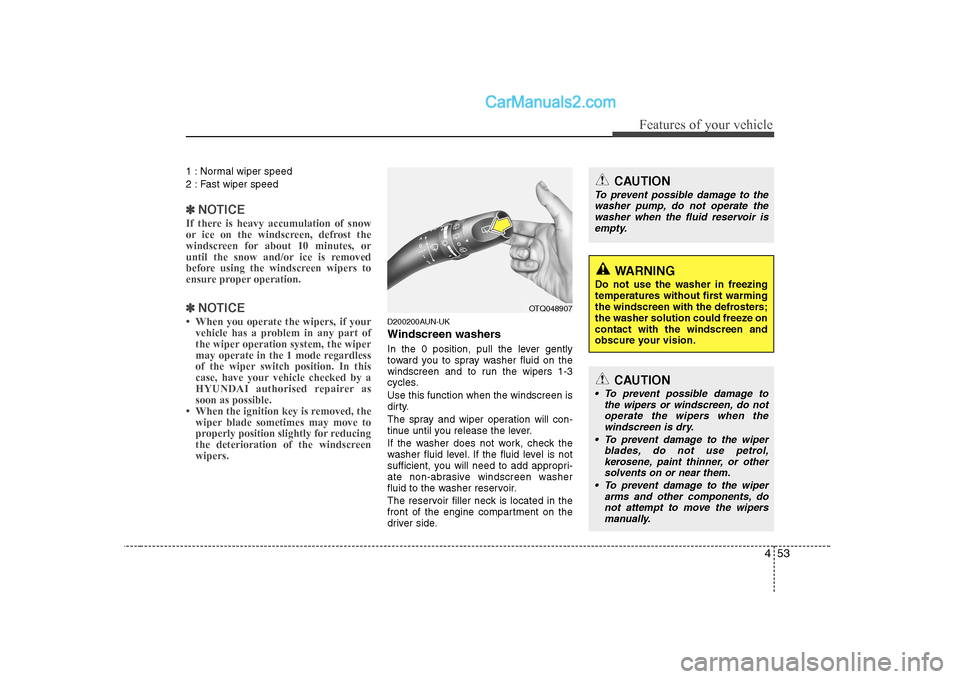

Features of your vehicle
1 : Normal wiper speed
2 : Fast wiper speed
✽✽NOTICE
If there is heavy accumulation of snow
or ice on the windscreen, defrost the
windscreen for about 10 minutes, or
until the snow and/or ice is removed
before using the windscreen wipers to
ensure proper operation.
✽
✽ NOTICE

725
Maintenance
WIPER BLADES
G180100AUN-UK Blade inspection
✽✽ NOTICE
Commercial hot waxes applied by auto-
matic car washes have been known to
make the windscreen difficult to clean.
Contamination of either the windscreen
or the wiper blades with foreign matter
can reduce the effectiveness of the wind-
screen wipers. Common sources of con-
tamination are insects, tree sap, and hot
wax treatments used by some commer-
cial car washes. If the blades are not wip-
ing properly, clean both the window and
the blades with a good cleaner or mild
detergent, and rinse thoroughly with
clean water. G180200AUN Blade replacement When the wipers no longer clean ade-
quately, the blades may be worn or
cracked, and require replacement.
1JBA5122/HCAUTION
To prevent damage to the wiper
blades, do not use petrol, kerosene,
paint thinner, or other solvents onor near them.
CAUTION
To prevent damage to the wiper
arms or other components, do not attempt to move the wipers manual-ly.
CAUTION
The use of a non-specified wiper
blade could result in wiper malfunc- tion and failure.
