Safety features of your vehicle
2
3

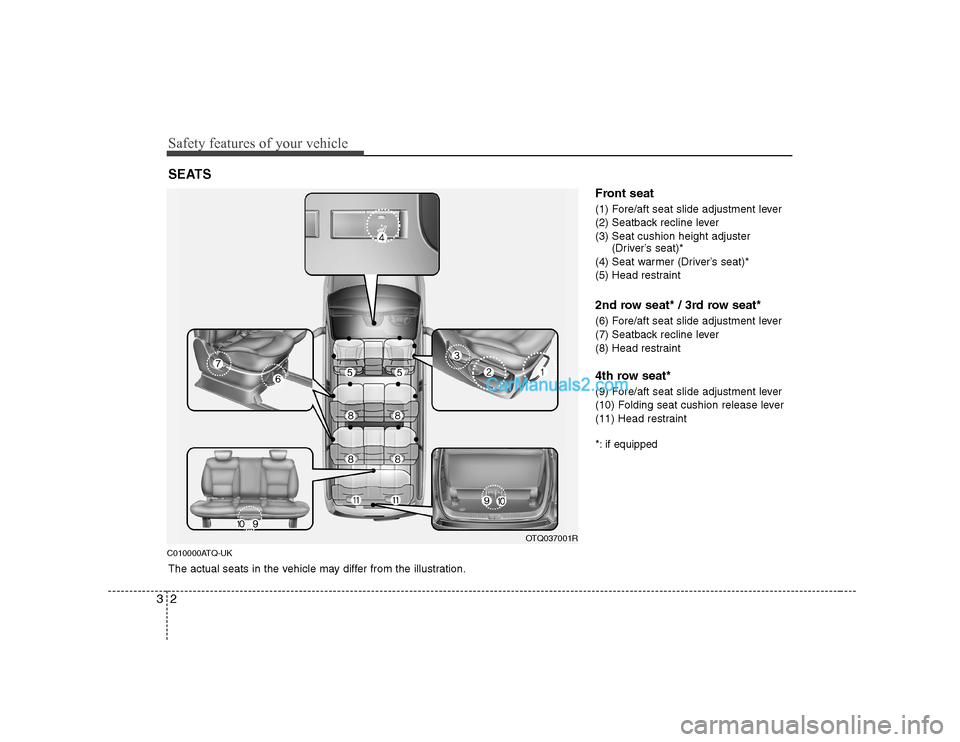

C010000ATQ-UK Front seat
(1) Fore/aft seat slide adjustment lever
(2) Seatback recline lever
(3) Seat cushion height adjuster
(Driver’s seat)*
(4) Seat warmer (Driver’s seat)*
(5) Head restraint
2nd row seat* / 3rd row seat*
(6) Fore/aft seat slide adjustment lever
(7) Seatback recline lever
(8) Head restraint
4th row seat*
(9) Fore/aft seat slide adjustment lever
(10) Folding seat cushion release lever
(11) Head restraint
*: if equipped
SEATS
OTQ037001R
The actual seats in the vehicle may differ from the illustration.
315
Safety features of your vehicle
Height adjustment (if equipped)
You can adjust the height of the shoulder
belt anchor to one of 5 positions for max-
imum comfort and safety. The height of the adjusting seat belt
should not be too near your neck. The
shoulder portion should be adjusted so
that it lies across your chest and midway
over your shoulder nearest the door and
not your neck.
To adjust the height of the seat belt
anchor, lower or raise the height adjuster
into an appropriate position.To raise the height adjuster, pull it up (1).
To lower it, push it down (3) whilst press-
ing the height adjuster button (2).
Release the button to lock the anchor
into position. Try sliding the height
adjuster to make sure that it has lockedinto position.
WARNING
Verify the shoulder belt anchor is locked into position at the appro-
priate height. Never position the
shoulder belt across your neck or
face. Improperly positioned seatbelts can cause serious injuriesin an accident.
Failure to replace seat belts after an accident could leave you with
damaged seat belts that will not
provide protection in the event ofanother collision leading to per-
sonal injury or death. Replace
your seat belts after being in an
accident as soon as possible.
OEN036029
Front seat
B200A02NF/H
WARNING
You should place the lap belt por-
tion as low as possible and snugly
across your hips, not on your waist.If the lap belt is located too high on
your waist, it may increase the
chance of injury in the event of a
collision. Both arms should not be
under or over the belt. Rather, one
should be over and the other under,
as shown in the illustration.
Never wear the seat belt under the
arm nearest the door.
