2009 HUMMER H3 engine coolant

Service and
Appearance Care
Service
Service...............................5-3
Accessories and
Modications.....................5-3
California Proposition
65 Warning.......................5-4
California Perchlorate
Materials Requirements.....5-4
Doing Your Own
Service Work....................5-4
Adding Equipment to the
Outside of the Vehicle........5-5
Fuel
Fuel....................................5-5
Gasoline Octane.................5-5
Gasoline Specications.......5-5
California Fuel....................5-5
Additives.............................5-6
Fuels in Foreign
Countries..........................5-7
Filling the Tank...................5-7
Filling a Portable Fuel
Container..........................5-8
Checking Things Under
the Hood
Checking Things Under
the Hood..........................5-9
Hood Release.....................5-9
Engine Compartment
Overview.........................5-10
Engine Oil.........................5-13
Engine Oil Life System.....5-15
Engine Air Cleaner/Filter. . .5-17
Automatic Transmission
Fluid................................5-18
Manual Transmission
Fluid................................5-20
Hydraulic Clutch................5-21
Cooling System.................5-22
Engine Coolant.................5-23
Engine Overheating...........5-27
Engine Fan Noise.............5-28
Power Steering Fluid.........5-29
Windshield Washer Fluid. . .5-30
Brakes..............................5-30
Battery..............................5-33
Jump Starting...................5-34
Rear Axle
Rear Axle.........................5-38
Four-Wheel Drive
Four-Wheel Drive..............5-38
Front Axle
Front Axle.........................5-39
Headlamp Aiming
Headlamp Aiming..............5-39
Bulb Replacement
Bulb Replacement.............5-41
Halogen Bulbs..................5-41
Headlamps........................5-41
Taillamps, Turn Signal,
Stoplamps and Back-up
Lamps (H3)
.....................5-42
Taillamps, Turn Signal,
Stoplamps and Back-up
Lamps (H3T)
...................5-42
License Plate Lamp..........5-43
Replacement Bulbs...........5-43
Service and Appearance Care 5-1

CAUTION (Continued)
vapor. You can be badly burned
and the vehicle damaged if this
occurs. To help avoid injury to
you and others:
Dispense fuel only into
approved containers.
Do not ll a container while
it is inside a vehicle, in a
vehicle’s trunk, pickup bed,
or on any surface other than
the ground.
Bring the ll nozzle in contact
with the inside of the ll
opening before operating the
nozzle. Contact should be
maintained until the lling is
complete.
Do not smoke while
pumping fuel.
Do not use a cellular phone
while pumping fuel.
Checking Things
Under the Hood
{CAUTION
An electric fan under the hood
can start up and injure you even
when the engine is not running.
Keep hands, clothing, and tools
away from any underhood
electric fan.
{CAUTION
Things that burn can get on hot
engine parts and start a re.
These include liquids like fuel, oil,
coolant, brake uid, windshield
washer and other uids, and
plastic or rubber. You or others
could be burned. Be careful not to
drop or spill things that will burn
onto a hot engine.
Hood Release
To open the hood:
1. Pull the handle with this symbol
on it. It is located inside the
vehicle on the lower left side of
the instrument panel.
2. Release the secondary latch on
the hood. It is located below the
front center of the hood.
3. Lift the hood.
Before closing the hood, be sure
all the ller caps are on properly.
Then pull the hood down and close
it rmly.
Service and Appearance Care 5-9

A. Windshield Washer Fluid
Reservoir. See “Adding Washer
Fluid” underWindshield
Washer Fluid on page 5-30.
B. Engine Coolant Recovery Tank.
SeeEngine Coolant on
page 5-23.
C.Engine Air Cleaner/Filter on
page 5-17.
D. Power Steering Fluid Reservoir.
SeePower Steering Fluid on
page 5-29.
E. Automatic Transmission Fluid
Dipstick (If Equipped). See
“Checking the Fluid Level”
underAutomatic Transmission
Fluid on page 5-18.
F. Engine Oil Fill Cap. See “When
to Add Engine Oil” under
Engine Oil on page 5-13.G. Radiator Pressure Cap.
SeeCooling System on
page 5-22.
H. Remote Negative (−) Terminal
(GND). SeeJump Starting on
page 5-34.
I. Engine Oil Dipstick. See
“Checking Engine Oil” under
Engine Oil on page 5-13.
J. Positive (+) Battery Terminal.
SeeJump Starting on
page 5-34.
K. Brake Fluid Reservoir.
See “Brake Fluid” under
Brakes on page 5-30.
L.Engine Compartment Fuse Block
on page 5-92.
M.Battery on page 5-33.
N. Hydraulic Clutch Fluid Reservoir
(If Equipped). SeeHydraulic
Clutch on page 5-21.
Service and Appearance Care 5-11

A.Engine Air Cleaner/Filter on
page 5-17.
B. Air Filter Restriction Indicator
(If Equipped). SeeEngine Air
Cleaner/Filter on page 5-17.
C. Windshield Washer Fluid
Reservoir. See “Adding Washer
Fluid” underWindshield
Washer Fluid on page 5-30.
D. Engine Coolant Recovery Tank.
SeeEngine Coolant on
page 5-23.
E. Automatic Transmission
Fluid Dipstick (If Equipped).
See “Checking the Fluid Level”
underAutomatic Transmission
Fluid on page 5-18.
F. Engine Oil Dipstick. See
“Checking Engine Oil” under
Engine Oil on page 5-13.G. Engine Oil Fill Cap. See “When
to Add Engine Oil” underEngine
Oil on page 5-13.
H. Brake Fluid Reservoir.
See “Brake Fluid” underBrakes
on page 5-30.
I.Battery on page 5-33.
J. Power Steering Fluid Reservoir.
SeePower Steering Fluid on
page 5-29.
K.Engine Compartment Fuse Block
on page 5-92.
L. Radiator Pressure Cap.
SeeCooling System on
page 5-22.Engine Oil
Checking Engine Oil
It is a good idea to check the
engine oil every time you get fuel.
In order to get an accurate reading,
the oil must be warm and the
vehicle must be on level ground.
The engine oil dipstick handle
is a yellow loop. SeeEngine
Compartment Overview on
page 5-10for the location of the
engine oil dipstick.
1. Turn off the engine and give the
oil several minutes to drain back
into the oil pan. If you do not
do this, the oil dipstick might not
show the actual level.
2. Pull out the dipstick and clean it
with a paper towel or cloth,
then push it back in all the way.
Remove it again, keeping the
tip down, and check the level.
Service and Appearance Care 5-13

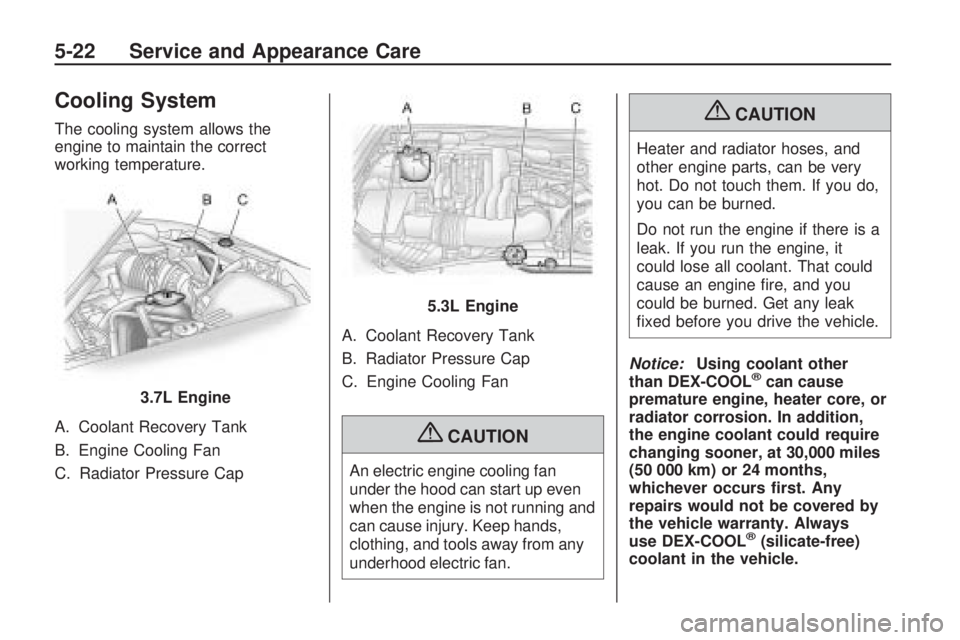

Cooling System
The cooling system allows the
engine to maintain the correct
working temperature.
A. Coolant Recovery Tank
B. Engine Cooling Fan
C. Radiator Pressure CapA. Coolant Recovery Tank
B. Radiator Pressure Cap
C. Engine Cooling Fan
{CAUTION
An electric engine cooling fan
under the hood can start up even
when the engine is not running and
can cause injury. Keep hands,
clothing, and tools away from any
underhood electric fan.
{CAUTION
Heater and radiator hoses, and
other engine parts, can be very
hot. Do not touch them. If you do,
you can be burned.
Do not run the engine if there is a
leak. If you run the engine, it
could lose all coolant. That could
cause an engine re, and you
could be burned. Get any leak
xed before you drive the vehicle.
Notice:Using coolant other
than DEX-COOL
®can cause
premature engine, heater core, or
radiator corrosion. In addition,
the engine coolant could require
changing sooner, at 30,000 miles
(50 000 km) or 24 months,
whichever occurs rst. Any
repairs would not be covered by
the vehicle warranty. Always
use DEX-COOL
®(silicate-free)
coolant in the vehicle. 3.7L Engine
5.3L Engine
5-22 Service and Appearance Care

Engine Coolant
The cooling system in the vehicle
is lled with DEX-COOL®engine
coolant. This coolant is designed to
remain in the vehicle for ve years
or 150,000 miles (240 000 km),
whichever occurs rst.
The following explains the cooling
system and how to check and
add coolant when it is low.
If there is a problem with engine
overheating, seeEngine
Overheating on page 5-27.
What to Use
{CAUTION
Adding only plain water to the
cooling system can be dangerous.
Plain water, or some other liquid
such as alcohol, can boil before
the proper coolant mixture will.
(Continued)
CAUTION (Continued)
The vehicle’s coolant warning
system is set for the proper
coolant mixture. With plain water
or the wrong mixture, the engine
could get too hot but you would
not get the overheat warning.
The engine could catch re and
you or others could be burned.
Use a 50/50 mixture of clean,
drinkable water and DEX-COOL
®
coolant.
Use a 50/50 mixture of clean,
drinkable water and DEX-COOL
coolant. If using this mixture,
nothing else needs to be added.
This mixture:
Gives freezing protection down
to−34°F (−37°C), outside
temperature.
Gives boiling protection up to
265°F (129°C), engine
temperature.
Protects against rust and
corrosion.
Will not damage aluminum parts.
Helps keep the proper engine
temperature.
Notice:If an improper coolant
mixture is used, the engine could
overheat and be badly damaged.
The repair cost would not be
covered by the vehicle warranty.
Too much water in the mixture
can freeze and crack the engine,
radiator, heater core, and
other parts.
Notice:If extra inhibitors
and/or additives are used in the
vehicle’s cooling system, the
vehicle could be damaged.
Use only the proper mixture of
the engine coolant listed in
this manual for the cooling
system. SeeRecommended
Fluids and Lubricants on
page 6-12for more information.
Service and Appearance Care 5-23

Checking Coolant
The vehicle must be on a level
surface when checking the
coolant level.
The coolant recovery tank cap has
this symbol on it.
It is located toward the rear of
the engine compartment on
the passenger side of the vehicle.
SeeEngine Compartment Overview
on page 5-10for more information
on location.
Check to see if coolant is visible in
the coolant recovery tank. If the
coolant inside the coolant recovery
tank is boiling, do not do anythingelse until it cools down. If coolant is
visible but the coolant level is not
at or above the FULL COLD
mark, add a 50/50 mixture of clean,
drinkable water and DEX-COOL
coolant at the coolant recovery tank,
but be sure the cooling system is
cool before this is done.
The vehicle must be on a level
surface. When the engine is cold,
the coolant level should be at FULL
COLD, or a little higher. When
the engine is warm, the level could
be above the FULL COLD level.
When the engine is cold, the coolant
level should be at least up to the
FULL COLD mark. If it is not, there
could be a leak in the cooling
system.
How to Add Coolant to the
Recovery Tank
{CAUTION
You can be burned if you spill
coolant on hot engine parts.
Coolant contains ethylene glycol
and it will burn if the engine parts
are hot enough. Do not spill
coolant on a hot engine.
Notice:This vehicle has a
specic coolant ll procedure.
Failure to follow this procedure
could cause the engine to
overheat and be severely
damaged.
When the coolant in the coolant
recovery tank is at the FULL COLD
mark, start the vehicle.
If coolant is needed, add the proper
DEX-COOL coolant mixture at
the coolant recovery tank.
5-24 Service and Appearance Care

How to Add Coolant to the
Radiator
{CAUTION
An electric engine cooling fan
under the hood can start up even
when the engine is not running and
can cause injury. Keep hands,
clothing, and tools away from any
underhood electric fan.
{CAUTION
Steam and scalding liquids
from a hot cooling system can
blow out and burn you badly.
(Continued)
CAUTION (Continued)
They are under pressure, and if
you turn the surge tank pressure
cap — even a little — they can
come out at high speed.
Never turn the cap when the
cooling system, including the
surge tank pressure cap, is hot.
Wait for the cooling system and
surge tank pressure cap to cool
if you ever have to turn the
pressure cap.
If coolant is needed, add the proper
mixture directly to the radiator,
but be sure the cooling system is
cool before this is done.1. Remove the radiator pressure
cap when the cooling system,
including the upper radiator
hose, is no longer hot.
Turn the pressure cap slowly
counterclockwise about
one full turn.
If you hear a hiss, wait for that
to stop. A hiss means there
is still some pressure left.
2. Keep turning the cap to
remove it.
Service and Appearance Care 5-25
