Specif ications
234
Capacities
Seating Capacities
Engine
Weights
Dimensions 162.7 in (4,133 mm)
68.9 in (1,750 mm)
50.0 in (1,270 mm)
Excluding the oil remaining in the engine
0.16 US gal (0.6
)
Including the coolant in the reserve tank and that remaining in the
engine
Reserve tank capacity:
Fuel tank
Engine coolant
Engine oil
Manual
transmission
fluid
Differential
fluid
Windshield
washer
reservoir
6.3 US qt (6.0
)
2.6 US qt (2.5)
0.81 US qt (0.77)
0.78 US qt (0.74)
1.7 US qt (1.6
)
1.6 US qt (1.5)
5.9 US qt (5.6)
4.8 US qt (4.5)
5.1 US qt (4.8)
2.01 US gal (7.6
)
1.72 US gal (6.5)
13.2 US gal (50
)
Total
Front
2
2
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Spark Plug Gap 0.04 in (1.1 mm)PK22PR-L11S
PFR7G-11S 11.1 : 1
132 cu-in (2,157 cm
)
3.43 x 3.57 in (87.0 x 90.7 mm) Water cooled 4-stroke DOHC
VTEC 4-cylinder gasoline engine
Gross vehicle weight rating
(GVWR)
See the certification label attached
to the driver’s doorjamb.59.4 in (1,510 mm)
57.9 in (1,470 mm)
Length
Width
Height
Wheelbase
Track
94.5 in (2,400 mm)
50.7 in (1,288 mm)
Front
Rear
1:
2:
NGK :
DENSO : Change
Total
Change
Including filter
Without filter
Total
Change
Total
Change
Total
U.S. Vehicles
Canadian
Vehicles
1:
2:
Except CR models
CR models
1
2
1
2
0mm
0.1 mm
2009 S2000
Quality grades can be f ound where
applicable on the tire sidewall
between tread shoulder and
maximum section width. For
example:
All passenger car tires must conf orm
to Federal Saf ety Requirements in
addition to these grades.The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specif ied government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative perf ormance of
tires depends upon the actual condi-
tions of their use, however, and may
depart signif icantly f rom the norm
due to variations in driving habits,
service practices and dif f erences in
road characteristics and climate.
The traction grades, f rom highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specif ied government test surf aces
of asphalt and concrete. A tire
marked C may have poor traction
perf ormance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
The tires on your vehicle meet all
U.S. Federal Saf ety Requirements.
All tires are also graded f or
treadwear, traction, and temperature
perf ormance according to
Department of Transportation
(DOT) standards. The f ollowing
explains these gradings.
DOT Tire Quality Grading (U.S. Vehicles)
Unif orm T ire Quality Grading
T readwear 200
Traction AA
Temperature A T readwear
T raction
236
2009 S2000
µ
µ µ
µ
µ
µ
µ
µ
The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below.
Manuf acturer’s
identification mark.
This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation.
The tire identif ication number (TIN)
is a group of numbers and letters
that look like the f ollowing example.
TIN is located on the sidewall of the
tire. Load index (a numerical code
associated with the maximum
load the tire can carry).
Whenever tires are replaced, they
should be replaced with tires of the
same size. Following is an example
of tire size with an explanation of
what each component means. Speed symbol (an
alphabetical code indicating
the maximum speed rating).
Tire width in millimeters.
Aspect ratio (the tire’s section
height as a percentage of its
width).
Tire construction code (R
indicates radial).
Rim diameter in inches.
R
DOT
B97R
17
215
45 87
W
Tire Labeling
T ire Ident if icat ion Number (T IN)
Tire Size
238
(3)
(4)

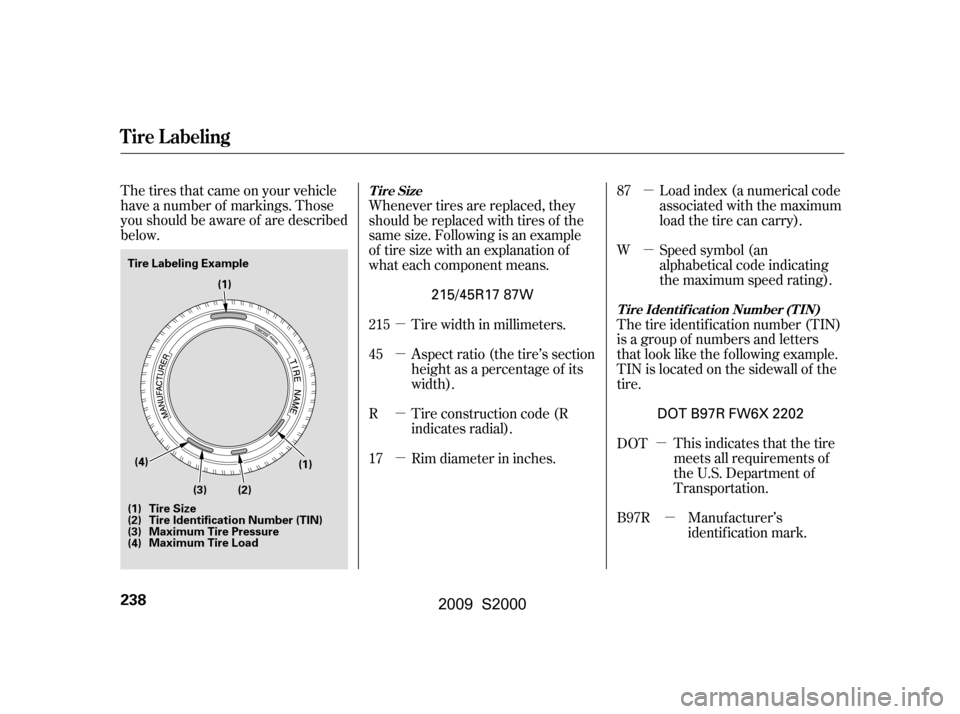

Tire Labeling Example
(1)
(2) (1)
(2)
(3)
(4)
(1) Tire Size Tire Identification Number (TIN)
Maximum Tire Pressure
Maximum Tire Load
DOT B97R FW6X 2202
215/45R17 87W
