2009 HONDA S2000 display

Î
Ì Ì Î
Ì
Î
Î
Maintenance Minder
168
Maintenance Sub Items
Check tire inflation and condition
Replace air cleaner element
Replace dust and pollen filter
Inspect drive belt
Replace transmission fluid
Replace spark plugs
Inspect valve clearance
Replace engine coolant
Replace rear differential fluid
Maintenance Main Items
Replace engine oil
Replace engine oil and oil filter
Inspect front and rear brakes
Check parking brake adjustment
Inspect these items: Tie rod ends, steering gear box, and boots
Suspension components
Driveshaft boots
Brake hoses and lines (including VSA)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Check expiration date for tire sealant bottle
:
A
B
Symbol
Symbol
1
2
3
4
5
61
2
Adjust the valves during services A, B, 1, 2, or 3 if they are noisy.
Inspect idle speed every 160,000 miles (256,000 km).
Independent of the maintenance messages in the information display,
replace the brake fluid every 3 years.
See information on maintenance and emissions warranty on page .
If the message ‘‘SERVICE’’ does not appear more than 12 months after the
display is reset, change the engine oil every year.
NOTE: 1:
2 : CR models
167
If you drive in dusty conditions, replace every 15,000
miles (24,000 km).
If you drive primarily in urban areas that have high
concentrations of soot in the air from industry and
from diesel-powered vehicles, replace every 15,000
miles (24,000 km).
Driving in mountainous areas results in higher level
of mechanical (shear) stress to fluid. This requires
differential fluid changes more frequently than
recommended by the maintenance minder. If you
regularly drive your vehicle under these conditions,
have the differential fluid changed every 15,000 miles
(24,000 km).
Maintenance Minder
2009 S2000

Make sure the API Certif ication Seal
says ‘‘For Gasoline Engines.’’
Oil is major contributor to your
engine’s perf ormance and longevity.
Always use a premium-grade
detergent oil displaying the API
certif ication seal. This seal indicates
the oil is energy conserving, and that
it meets the American Petroleum
Institute’s latest requirements. It is
highly recommended that you use
Honda motor oil in your vehicle f or
as long as you own it.

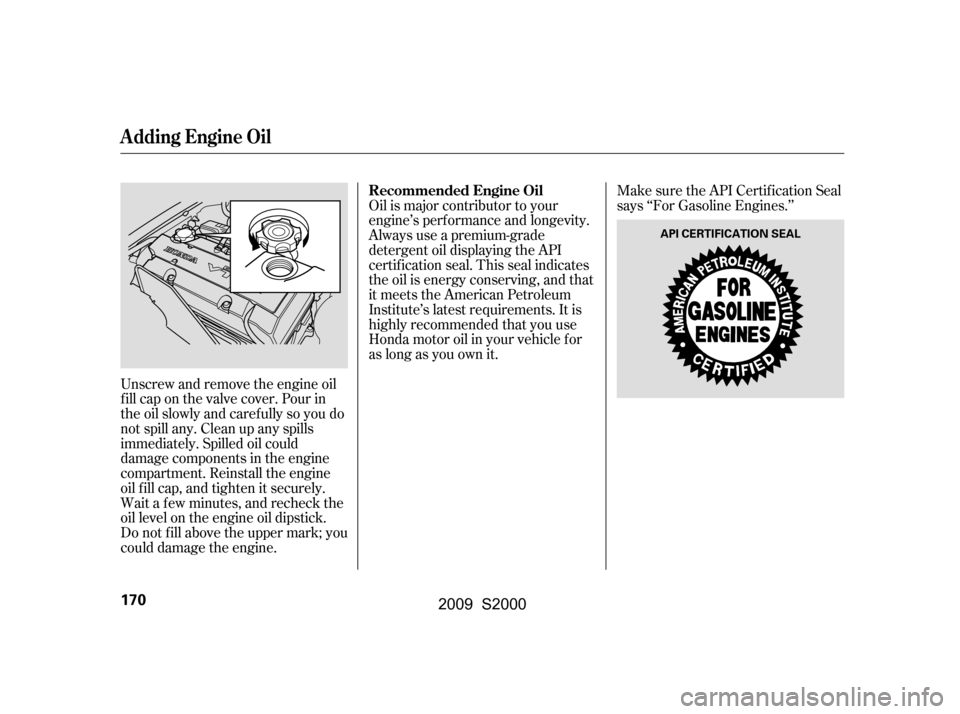

Unscrew and remove the engine oil
fill cap on the valve cover. Pour in
the oil slowly and caref ully so you do
not spill any. Clean up any spills
immediately. Spilled oil could
damage components in the engine
compartment. Reinstall the engine
oil f ill cap, and tighten it securely.
Wait a f ew minutes, and recheck the
oil level on the engine oil dipstick.
Do not f ill above the upper mark; you
could damage the engine. Recommended Engine Oil
A dding Engine Oil
170
API CERTIFICATION SEAL
2009 S2000

µ

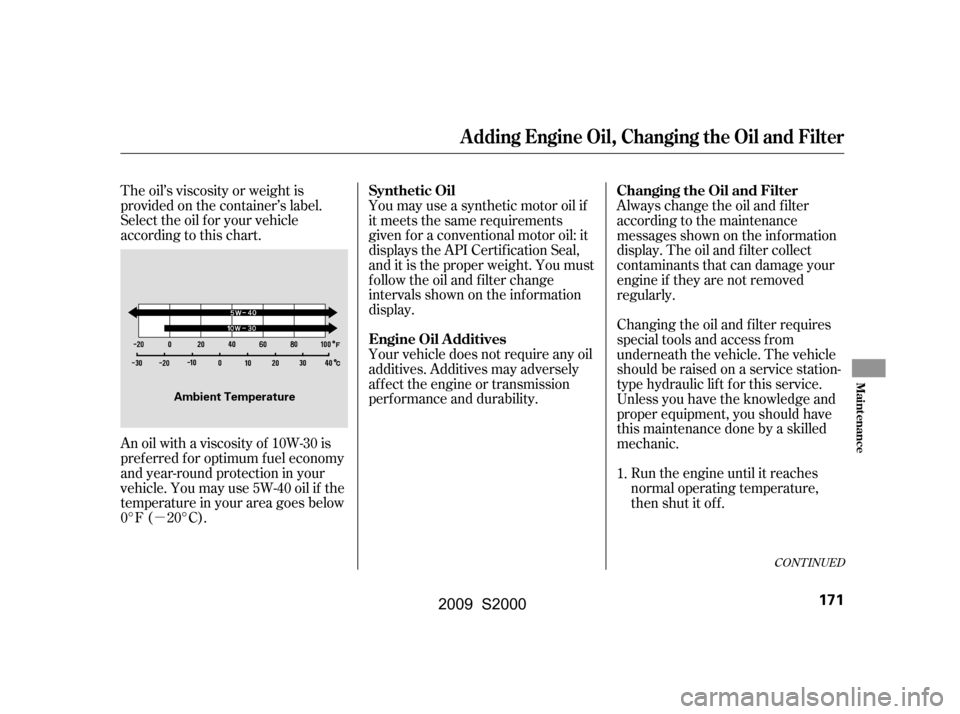

The oil’s viscosity or weight is
provided on the container’s label.
Select the oil f or your vehicle
according to this chart.
An oil with a viscosity of 10W-30 is
pref erred f or optimum f uel economy
and year-round protection in your
vehicle. You may use 5W-40 oil if the
temperature in your area goes below
0°F ( 20°C).
Your vehicle does not require any oil
additives. Additives may adversely
af f ect the engine or transmission
perf ormance and durability.
You may use a synthetic motor oil if
it meets the same requirements
given f or a conventional motor oil: it
displays the API Certif ication Seal,
and it is the proper weight. You must
f ollow the oil and f ilter change
intervals shown on the information
display.
Always change the oil and f ilter
according to the maintenance
messages shown on the inf ormation
display. The oil and f ilter collect
contaminants that can damage your
engine if they are not removed
regularly.
Run the engine until it reaches
normal operating temperature,
then shut it off.
Changing the oil and f ilter requires
special tools and access f rom
underneath the vehicle. The vehicle
should be raised on a service station-
type hydraulic lif t f or this service.
Unless you have the knowledge and
proper equipment, you should have
this maintenance done by a skilled
mechanic.
1.
CONT INUED
Synthetic Oil
Engine Oil A dditives
Changing the Oil and Filter
A dding Engine Oil, Changing the Oil and Filter
Maint enance
171
Ambient Temperature
2009 S2000

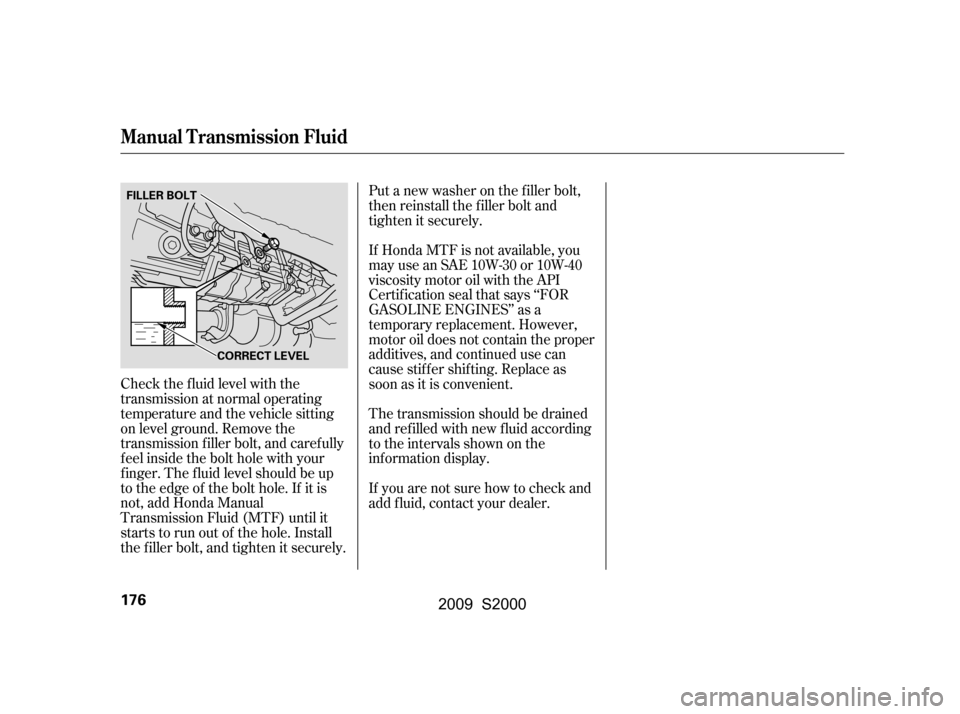

Check the f luid level with the
transmission at normal operating
temperature and the vehicle sitting
on level ground. Remove the
transmission f iller bolt, and caref ully
f eel inside the bolt hole with your
f inger. The f luid level should be up
to the edge of the bolt hole. If it is
not, add Honda Manual
Transmission Fluid (MTF) until it
starts to run out of the hole. Install
the f iller bolt, and tighten it securely.If you are not sure how to check and
add f luid, contact your dealer.
The transmission should be drained
and ref illed with new f luid according
to the intervals shown on the
inf ormation display.
If Honda MTF is not available, you
may use an SAE 10W-30 or 10W-40
viscosity motor oil with the API
Certif ication seal that says ‘‘FOR
GASOLINE ENGINES’’ as a
temporary replacement. However,
motor oil does not contain the proper
additives, and continued use can
cause stiffer shifting. Replace as
soon as it is convenient.
Put a new washer on the f iller bolt,
then reinstall the f iller bolt and
tighten it securely.
Manual T ransmission Fluid
176
CORRECT LEVEL
FILLER BOLT
2009 S2000

Use an SAE 90 viscosity hypoid gear
oil, API service classif ied GL5 or
GL6 only.
Put a new washer on the f iller bolt,
then reinstall the f iller bolt. Tighten
it securely. Tightening torque:
If you are not sure how to check and
add f luid, contact your dealer.
Check the f luid level with the
dif f erential at normal operating
temperature and the vehicle sitting
on level ground. Remove the
dif f erential f luid f iller bolt and
washer, and caref ully f eel inside the
bolt hole with your f inger. The f luid
level should be up to the edge of the
bolt hole. If it is not, slowly add f luid
until it starts to run out of the hole. The dif f erential should be drained
and ref illed with new f luid according
to the intervals shown on the
inf ormation display.
Dif f erential Fluid
Maint enance
177
CORRECT LEVEL
FILLER BOLT
WASHER
34 lbf·ft (46 N·m , 4.7 kgf·m)
2009 S2000

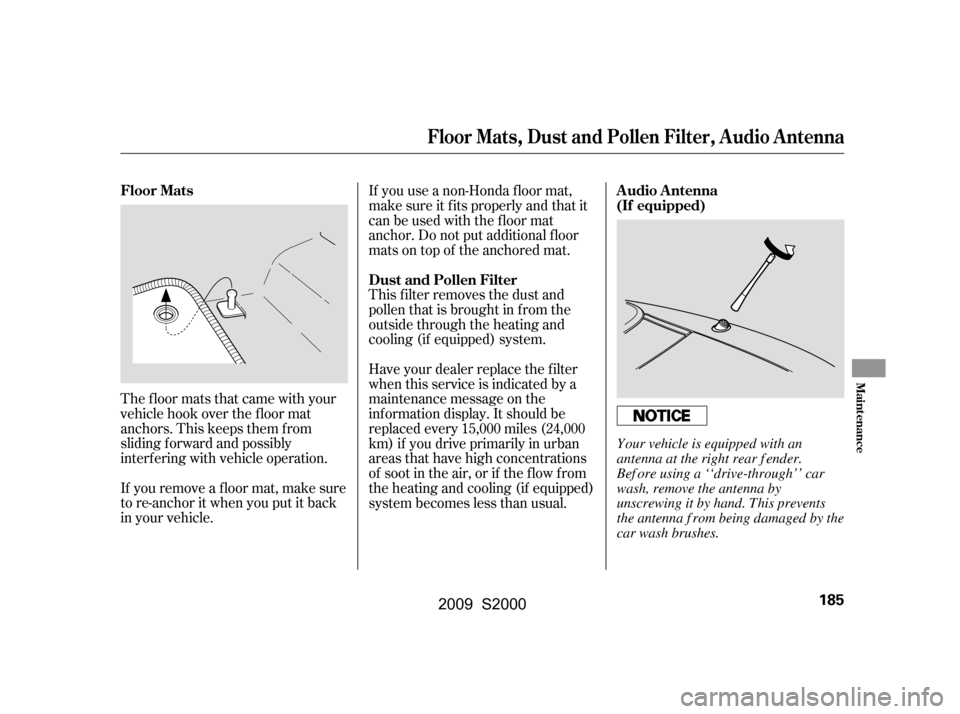

The floor mats that came with your
vehicle hook over the f loor mat
anchors. This keeps them f rom
sliding f orward and possibly
interf ering with vehicle operation.
If you remove a f loor mat, make sure
tore-anchoritwhenyouputitback
in your vehicle.If you use a non-Honda f loor mat,
make sure it f its properly and that it
canbeusedwiththefloormat
anchor. Do not put additional f loor
mats on top of the anchored mat.
This f ilter removes the dust and
pollenthatisbroughtinfromthe
outside through the heating and
cooling (if equipped) system.
Have your dealer replace the filter
when this service is indicated by a
maintenance message on the
inf ormation display. It should be
replaced every 15,000 miles (24,000
km) if you drive primarily in urban
areas that have high concentrations
of soot in the air, or if the f low f rom
the heating and cooling (if equipped)
system becomes less than usual.
Floor Mats
Dust and Pollen FilterA udio A ntenna
(If equipped)
Floor Mats, Dust and Pollen Filter, A udio A ntenna
Maint enance
185
Your vehicle is equipped with an
antenna at the right rear f ender.
Bef ore using a ‘‘drive-through’’ car
wash, remove the antenna by
unscrewing it by hand. This prevents
the antenna f rom being damaged by the
car wash brushes.
2009 S2000

You should not rotate your vehicle’s
tires. The f ront and rear tires are
dif f erent sizes, so they cannot be
rotated f ront-to-rear. The original-
equipment tires on your vehicle have
a unidirectional tread pattern, so
they cannot be rotated side-to-side.
The tires that came on your vehicle
were designed and constructed to
provide superior grip during
acceleration, braking, and cornering.
As a trade-of f , they will wear more
rapidly than tires used on ordinary
passenger vehicles. Because of the
vehicle’s weight distribution, and the
fact that the rear wheels are the
driving wheels, you can expect them
to wear more rapidly than the f ront
tires.Themileageyoucanexpectfrom
yourvehicletiresisthesameas
comparable mid-and rear-engine
sports cars, and it will vary greatly
with your driving habits.
If you drive moderately, the rear
tires could last more than 10,000
miles (16,000 km). However, the
mileage will be substantially less if
you tend to drive your vehicle at the
upper limits of its capabilities.
You should caref ully inspect your
vehicle’s tires f or wear, damage, and
proper inf lation every 7,500 miles
(12,000 km) or when tire inspection
is indicated on the inf ormation
display (see page ).
It is best to replace all f our tires at
thesametime.If thatisnotpossible
or necessary, replace the two f ront
tires or two rear tires as a pair.
Replacing just one tire can seriously
af f ect your vehicle’s handling.
Replace your tires with radial tires of
the same size, load range, speed
rating, and maximum cold tire
pressure rating (as shown on the
tire’s side wall).
Mixing radial and bias-ply tires on
your vehicle can reduce braking
ability, traction, and steering
accuracy. Using tires of a dif f erent
size or construction can cause the
anti-lock brake and the vehicle
stability assist systems to work
inconsistently.
168
Tires
Tire Rotation
Tire Wear Replacing T ires and Wheels
192
2009 S2000

Check the condition of the battery
monthlybylookingatthetest
indicator window. The label on the
battery explains the test indicator’s
colors.Check the terminals f or corrosion (a
white or yellowish powder). To
remove it, cover the terminals with a
solution of baking soda and water. It
will bubble up and turn brown. When
this stops, wash it of f with plain
water. Dry off the battery with a
cloth or paper towel. Coat the
terminals with grease to help prevent
f uture corrosion.
If your vehicle’s battery is
disconnected, or goes dead, the
clock setting in the instrument panel
will be canceled. To reset the time,
see page .
If your vehicle’s battery is
disconnected, or goes dead, the
audio system will disable itself . The
nexttimeyouturnontheradio,you
may see ‘‘CODE’’ (U.S. model) or
‘‘Code’’ (Canadian model) in the
f requency display. Use the preset
buttons to enter the code (see page
). 56
123
Checking the Battery
196
TEST INDICATOR WINDOW
