2009 HONDA RIDGELINE navigation system

Playing the AM/FM Radio
160

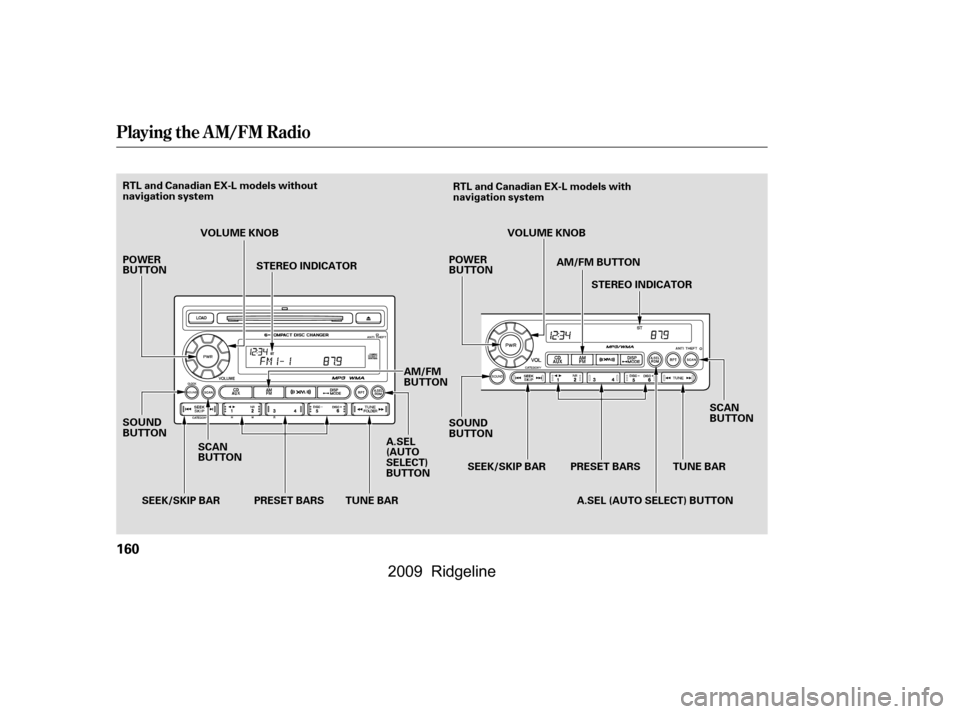

SCAN
BUTTONTUNE BAR
PRESET BARS
SEEK/SKIP BAR
RTL and Canadian EX-L models without
navigation system
RTL and Canadian EX-L models with
navigation system
POWER
BUTTON
SOUND
BUTTON VOLUME KNOB
STEREO INDICATOR
TUNE BAR
PRESET BARS A.SEL
(AUTO
SELECT)
BUTTONVOLUME KNOB
STEREO INDICATOR
AM/FM BUTTON
SCAN
BUTTON
A.SEL (AUTO SELECT) BUTTON
SEEK/SKIP BAR
POWER
BUTTON
SOUND
BUTTON
AM/FM
BUTTON
\f—\f—\fy\f\fy
(\fy\f
y
2009 Ridgeline

µ
µµ µµ
µ
You can use any of f ive methods to
f ind radio stations on the selected
band: tune, seek, scan, the preset
bars, and auto select.
Use the TUNE bar to tune
the radio to a desired f requency.
Press the side of the bar to tune
to a higher f requency, and press the side to tune to a lower
f requency.
The scan f unction samples
all stations with strong signals on the
selected band. To activate it, press
the SCAN button, then release it.
You will see SCAN in the display.
The system will scan f or a station with a strong signal. When it f inds
one, it will stop and play that station
f or about 10 seconds.
If you do nothing, the system will
scan f or the next strong station and
play it f or 10 seconds. When it plays
a station that you want to listen to,
press the SCAN button again.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
Pick a preset number (1 6), and
hold it until you hear a beep.
Usethetune,seek,orscan
function to tune the radio to a
desired station.
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
PWR button or the AM/FM button.
Adjust the volume by turning the
volume knob.
Pushing the AUDIO button will also
turn on the system (see page ).
The band and f requency that the
radio was last tuned to are displayed.
To change bands, press the AM/FM
button. On the FM band, ST will be
displayed if the station is
broadcasting in stereo. Stereo
reproduction in AM is not available.
On the AM band, AM noise
reduction turns on automatically.
Each side of the bars (1
6) can store one f requency on AM
and two f requencies on FM. Select the desired band, AM or
FM. FM1 and FM2 let you store
six stations each.
The SEEK f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it,
press the or side of the
SEEK/SKIP bar, then release it. 1.
2.
3.
4.
163
On models with navigation system
T o Play the A M/FM Radio
T o Select a Station
TUNE
SCAN Preset
SEEK
Playing the AM/FM Radio
Features
161
\f—\f—\fy\f\f\fy
(\fy\f
y
2009 Ridgeline

µ
µ

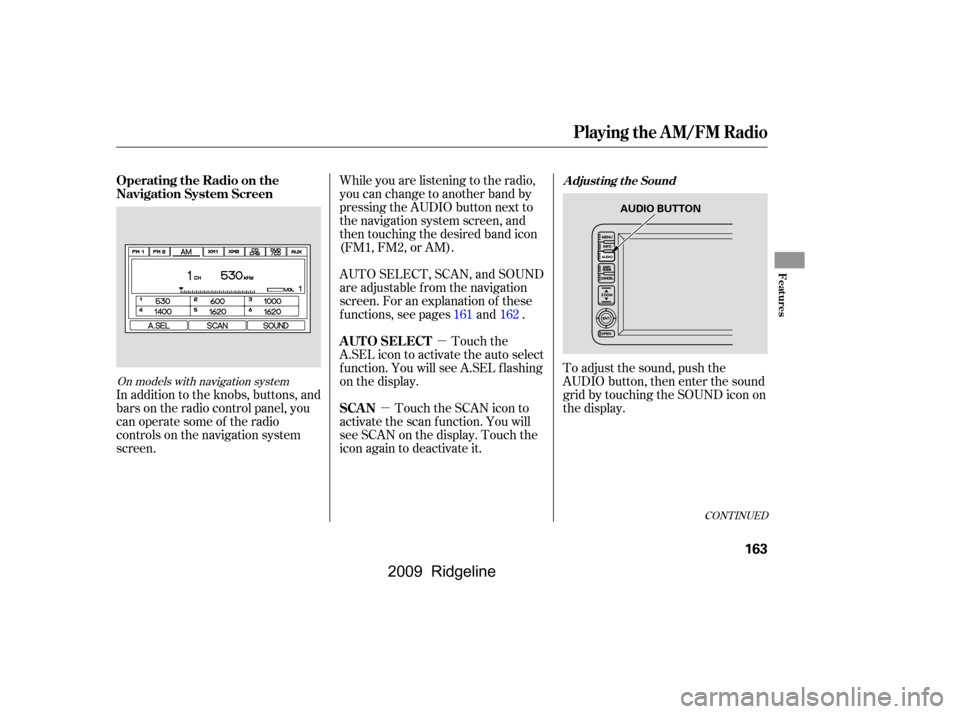

In addition to the knobs, buttons, and
bars on the radio control panel, you
can operate some of the radio
controls on the navigation system
screen. To adjust the sound, push the
AUDIO button, then enter the sound
grid by touching the SOUND icon on
the display.
While you are listening to the radio,
you can change to another band by
pressing the AUDIO button next to
the navigation system screen, and
then touching the desired band icon
(FM1, FM2, or AM).
AUTO SELECT, SCAN, and SOUND
are adjustable f rom the navigation
screen. For an explanation of these
f unctions, see pages and .
Touch the
A.SEL icon to activate the auto select
f unction. You will see A.SEL f lashing
on the display.
Touch the SCAN icon to
activate the scan function. You will
see SCAN on the display. Touch the
icon again to deactivate it. 161162
CONT INUED
On models with navigation system
Operating the Radio on the
Navigation System Screen
AUTO SELECT
SCANA djust ing t he Sound
Playing the AM/FM Radio
Features
163
AUDIO BUTTON
\f—\f—\fy\f\f\f\fy
(\fy\f
y
2009 Ridgeline

µ
µ µ

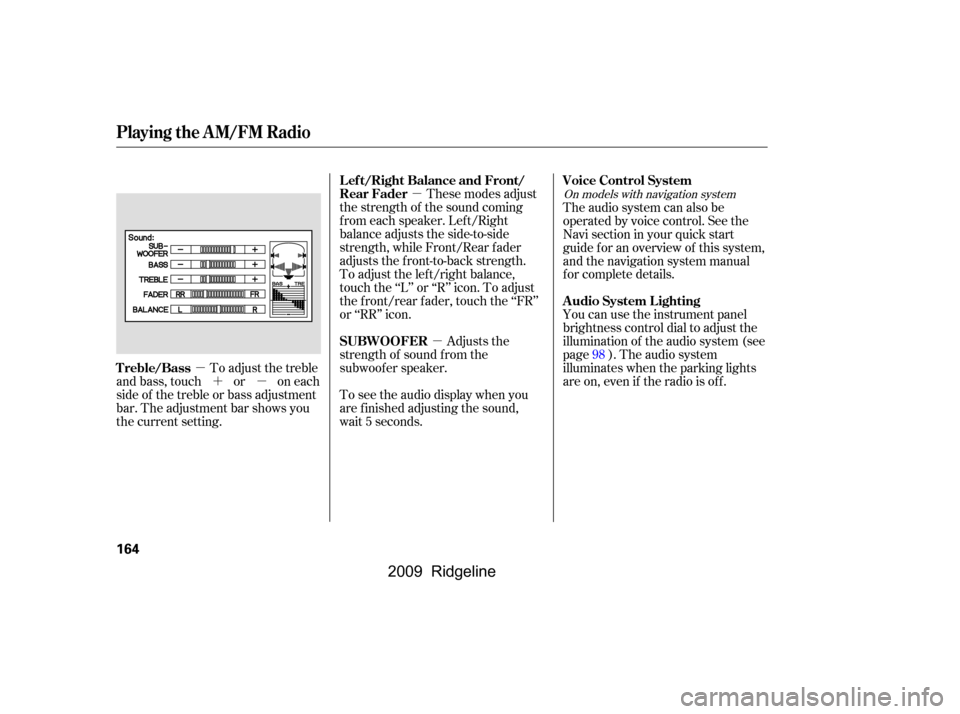

´µ These modes adjust
the strength of the sound coming
f rom each speaker. Lef t/Right
balance adjusts the side-to-side
strength, while Front/Rear f ader
adjusts the front-to-back strength.
To adjust the left/right balance,
touch the ‘‘L’’ or ‘‘R’’ icon. To adjust
the f ront/rear f ader, touch the ‘‘FR’’
or ‘‘RR’’ icon. You can use the instrument panel
brightness control dial to adjust the
illumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the radio is of f .
The audio system can also be
operated by voice control. See the
Navi section in your quick start
guide f or an overview of this system,
and the navigation system manual
f or complete details.
To adjust the treble
and bass, touch or on each
side of the treble or bass adjustment
bar. The adjustment bar shows you
the current setting. Adjusts the
strength of sound f rom the
subwoof er speaker.
To see the audio display when you
are f inished adjusting the sound,
wait 5 seconds. 98On models with navigation system
L ef t/Right Balance and Front/
Rear Fader
A udio System L ighting
Voice Control System
Treble/Bass SUBWOOFER
Playing the AM/FM Radio
164
\f—\f—\fy\f\f\fy
(\fy\f
y
2009 Ridgeline

CONT INUED
Playing the XMSatellite Radio
Features
167

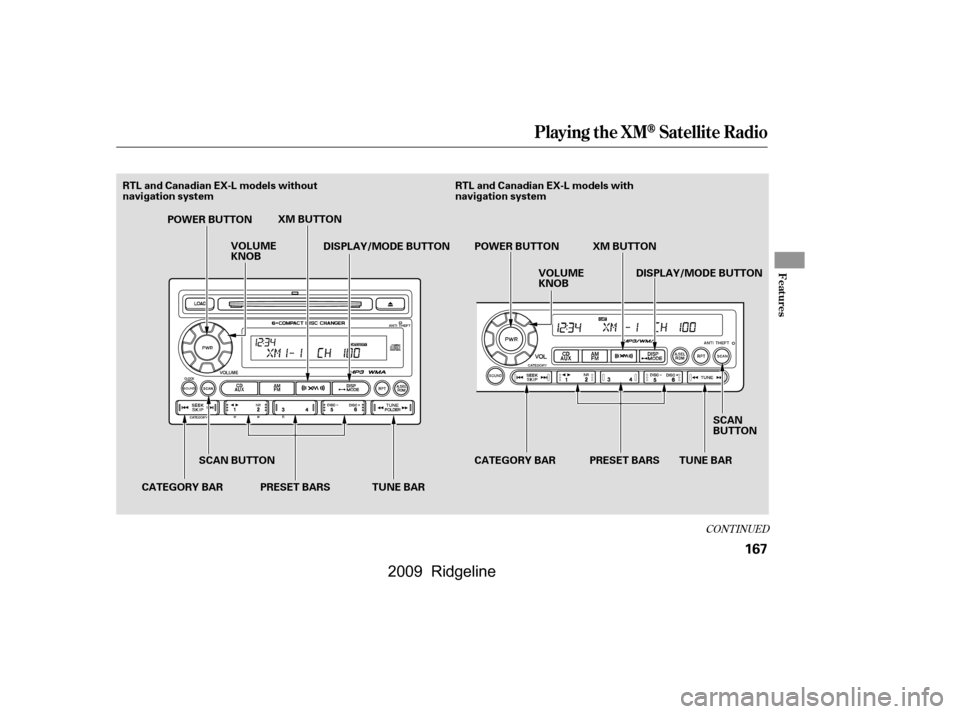

POWER BUTTONTUNE BAR
VOLUME
KNOB
DISPLAY/MODE BUTTON
SCAN BUTTON
CATEGORY BAR POWER BUTTON
VOLUME
KNOB
CATEGORY BAR DISPLAY/MODE BUTTON
PRESET BARS SCAN
BUTTON
RTL and Canadian EX-L models without
navigation system
RTL and Canadian EX-L models with
navigation system
TUNE BAR
PRESET BARS XM BUTTON
XM BUTTON
\f—\f—\fy\f\f
y
(\fy\f
y
2009 Ridgeline

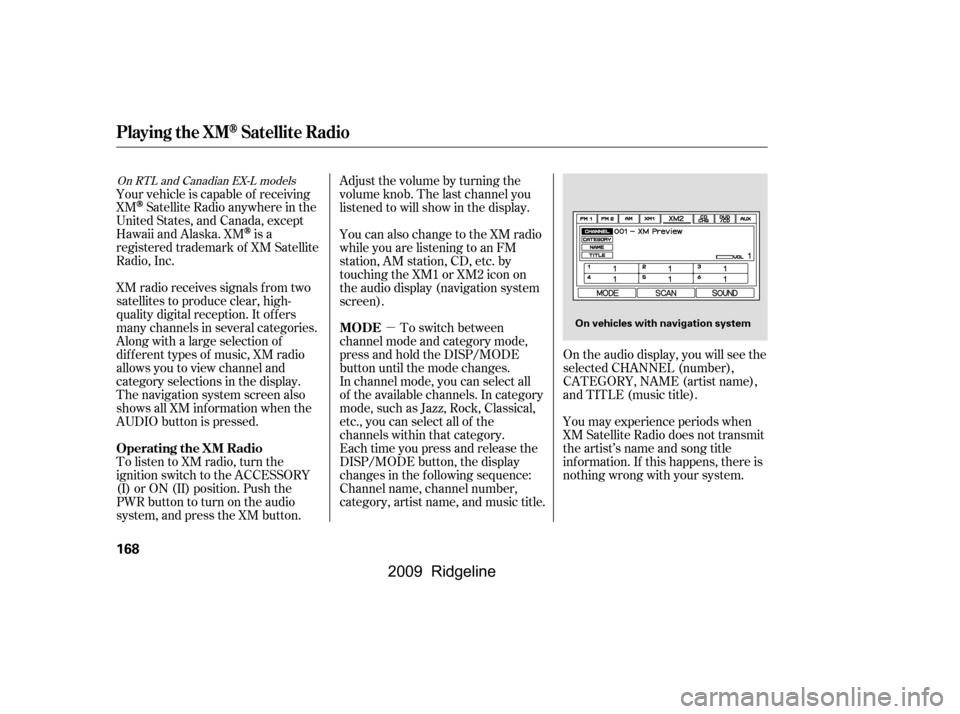

µOn the audio display, you will see the
selected CHANNEL (number),
CATEGORY, NAME (artist name),
and TITLE (music title).
You may experience periods when
XM Satellite Radio does not transmit
the artist’s name and song title
inf ormation. If this happens, there is
nothing wrong with your system.
Your vehicle is capable of receiving
XM
Satellite Radio anywhere in the
United States, and Canada, except
Hawaii and Alaska. XM
is a
registered trademark of XM Satellite
Radio, Inc.
XM radio receives signals f rom two
satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, XM radio
allows you to view channel and
category selections in the display.
The navigation system screen also
shows all XM inf ormation when the
AUDIO button is pressed.
To listen to XM radio, turn the
ignition switch to the ACCESSORY
(I) or ON (II) position. Push the
PWR button to turn on the audio
system, and press the XM button. Adjust the volume by turning the
volume knob. The last channel you
listened to will show in the display.
You can also change to the XM radio
while you are listening to an FM
station, AM station, CD, etc. by
touching the XM1 or XM2 icon on
the audio display (navigation system
screen).
To switch between
channel mode and category mode,
press and hold the DISP/MODE
button until the mode changes.
In channel mode, you can select all
of the available channels. In category
mode, such as Jazz, Rock, Classical,
etc., you can select all of the
channels within that category.
Each time you press and release the
DISP/MODE button, the display
changes in the f ollowing sequence:
Channel name, channel number,
category, artist name, and music title.
On RTL and Canadian EX-L models
Playing the XMSatellite Radio
Operating the XM Radio MODE
168
On vehicles with navigation system
\f—\f—\fy\f\f
y
(\fy\f
y
2009 Ridgeline

CONT INUED
You operate the CD player with the
same controls used f or the radio. See
page f or the CD player operation
inf ormation.
You operate the CD changer with
the same controls used f or the radio.
For models without navigation
system, see pages through .
For models with navigation system,
see pages through .This audio system can also play
CD-Rs and CD-RWs compressed in
MP3 or WMA f ormats. When
playing a disc in MP3, you will see
‘‘MP3’’ in the display. In WMA
f ormat, ‘‘WMA’’ will appear in the
display.
You can select up to 999 tracks/f iles.
If the number of tracks/f iles is 1,000
or more, the system can not access
them.
When there are more than 99 f olders
in a disc, the display only shows two
digits.
You can select up to 400 tracks/f iles
in a disc.
A disc can support a maximum
number of 100 f olders, and each
f older can hold 255 playable f iles.If you have a disc that is a
combination of CD-DA tracks and
MP3/WMA f iles, you can choose the
f ormat to listen by pressing and
holding CD/AUX or CD button until
you hear a beep.
If a f ile on an MP3 or WMA disc is
protected by digital rights
management (DRM), the audio unit
displays UNSUPPORTED
(UNSUPPORT on models with
navigation system), and then skips to
the next f ile.
Video CDs and DVD discs do not
work in this unit.
175
181 188
189 197
On RTS, RTL and Canadian EX-L models On models without navigation system
On models with navigation system
On RT, Canadian DX, and VP models
Playing CDs
Features
173
NOTE:
——yy
(y
y
2009 Ridgeline

µ
µ
µ
µ
µ
µ
µ µ
The specif ications f or compatible
WMA f iles are:
The specif ications f or compatible
MP3 f iles are:
Maximum layers
(including ROOT):
8 layers
99 layers
Sampling f requency:
32/44.1/48 kHz (MPEG1)
16/22.05/24 kHz (MPEG2)
Bitrate:
32/40/48/56/64/80/96/112/128/
160/192/224/256/320 kbps
(MPEG1)
8/16/24/32/40/48/56/64/80/96/
112/128/160 kbps (MPEG2)
Compatible with variable bitrate
and multi-session Sampling f requency:
32/44.1/48 kHz
Bitrate:
48/64/80/96/128/160/192 kbps
Compatible with variable bitrate
and multi-session
Maximum layers
(including ROOT):
8 layers
99 layers
On models without navigation system
On models with navigation system On models without navigation system
On models with navigation system
Playing CDs
