2009 HONDA ODYSSEY security

If you unlock the doors and the
tailgate with the remote transmitter,
but do not open any of the doors or
thetailgatewithin30seconds,the
doors and the tailgate automatically
relock and the security system sets.
You can change this relock time

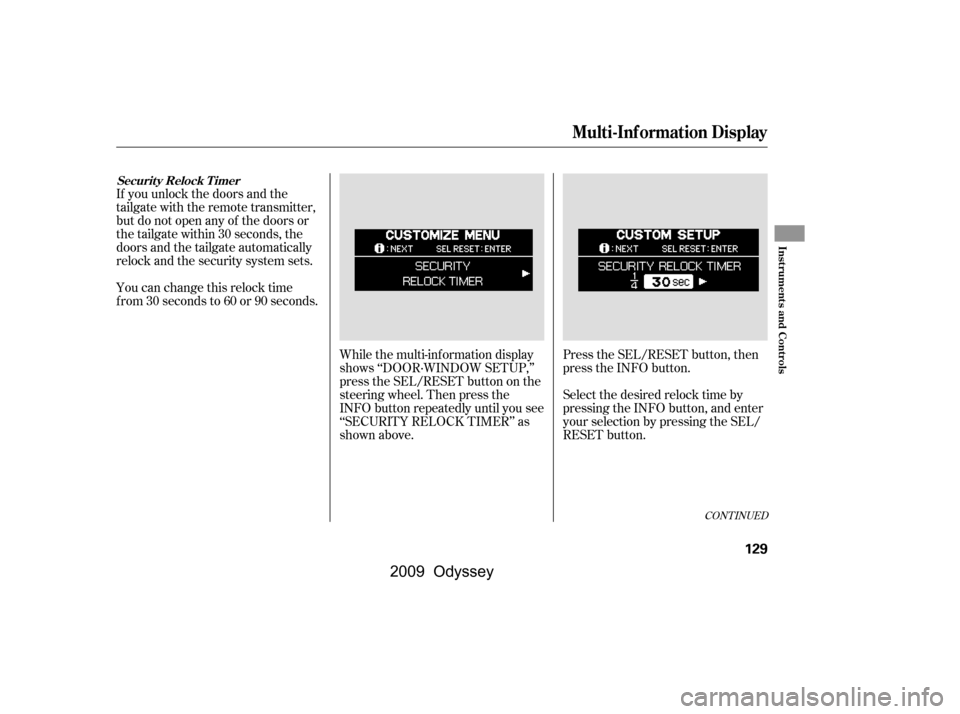

f rom 30 seconds to 60 or 90 seconds.While the multi-information display
shows ‘‘DOOR·WINDOW SETUP,’’
press the SEL/RESET button on the
steering wheel. Then press the
INFO button repeatedly until you see
‘‘SECURITY RELOCK TIMER’’ as
shown above.Press the SEL/RESET button, then
press the INFO button.
Select the desired relock time by
pressing the INFO button, and enter
your selection by pressing the SEL/
RESET button.
CONT INUED
Securit y Relock T imer
Multi-Inf ormation Display
Inst rument s and Cont rols
129
\f—\f—
y



y
(\fy\f
y
2009 Odyssey

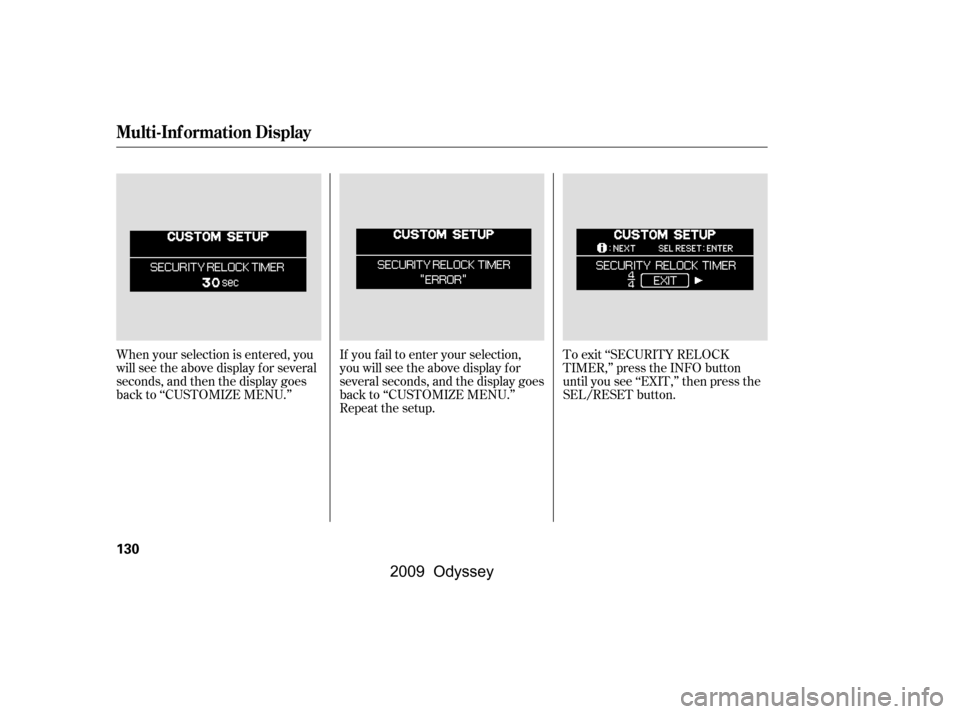

If you f ail to enter your selection,
you will see the above display f or
several seconds, and the display goes
back to ‘‘CUSTOMIZE MENU.’’
Repeat the setup.To exit ‘‘SECURITY RELOCK
TIMER,’’ press the INFO button
until you see ‘‘EXIT,’’ then press the
SEL/RESET button.
When your selection is entered, you
will see the above display for several
seconds, and then the display goes
back to ‘‘CUSTOMIZE MENU.’’
Multi-Inf ormation Display
130
\f—\f—
y


y
(\fy\f
y
2009 Odyssey

µµ
µ Press this button once
to unlock the driver’s door. Press it
twice to unlock the other doors and
the tailgate. Some exterior lights will
f lash twice each time you press the
button. If you do not open any door
orthetailgatewithin30seconds,
they will automatically relock. Press and hold this
button for about 1 second to attract
attention; the horn will sound, and
the exterior lights will f lash f or about
30 seconds. To cancel panic mode,
press any other button on the remote
transmitter, or turn the ignition
switch to the ON (II) position. Panic
mode does not work when the key is
in the ignition switch.
Press this button once to
lock all doors and the tailgate. Some
exterior lights will f lash once. When
you push LOCK twice within 5
seconds, you will hear a beep to
verify that the security system has
set. You cannot lock the doors and
thetailgateif anydoororthetailgate
is not f ully closed or the key is in the
ignition switch. When you press the UNLOCK
button, the f ront and rear individual
map lights, depending on their
switch positions, will come on (see
page ). If you do not open any
door, the lights stay on f or about 30
seconds, then go out. If you relock
thedoorsandthetailgatewiththe
remote transmitter before 30
seconds have elapsed, the lights will
go of f immediately.
205On LX and Canadian DX modelsUNL OCK
PA NIC
LOCK
Remote Transmitter
Inst rument s and Cont rols
145

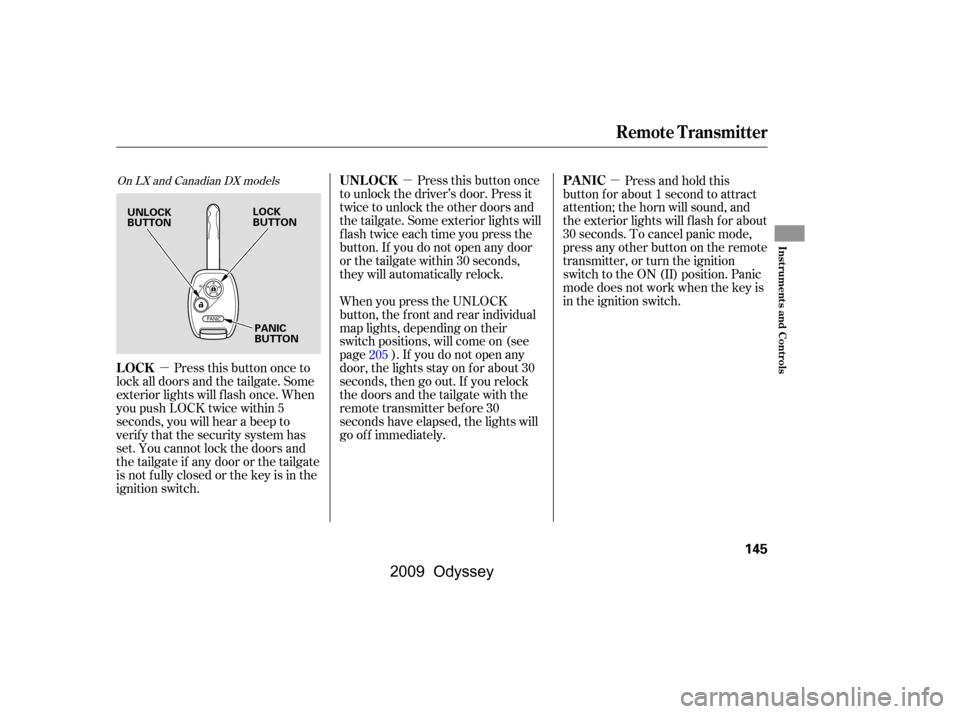

UNLOCK
BUTTON LOCK
BUTTON
PANIC
BUTTON
\f—\f—
y

y
(\fy\f
\fy
2009 Odyssey

µ
µ µ
Press this button once
to unlock the driver’s door. Press it
twice to unlock the other doors and
the tailgate. Some exterior lights will
f lash twice each time you press the
button.
If you do not open any doors or the
tailgate within 30 seconds, they will
automatically relock and the security
system sets.
Press this button once to
lock all doors and the tailgate. Some
exterior lights will f lash once. When
you push LOCK twice within 5
seconds, you will hear a beep to
verify that the security system has
set. You cannot lock the doors and
thetailgateif anydoororthetailgate
is not f ully closed or the key is in the
ignition switch. On Touring models, you can change
this setting (see page ).
If you press the LOCK button and
the PASSENGER’S SIDE SLIDING
DOOR button at the same time f or
about 1 second, the LED in the
remote transmitter will blink twice,
and all doors and the tailgate will
unlock simultaneously when you
press the UNLOCK button. To
cancel this f eature, press the LOCK
button and the PASSENGER’S SIDE
SLIDING DOOR button at the sametime. The LED will blink once.
When you press the UNLOCK
button, the f ront and rear individual
map lights, depending on their
switch positions, will come on (see
page ). If you do not open any
door, the lights stay on f or about 30
seconds, then go out. If you relock
thedoorsandthetailgatewiththe
remote transmitter before 30
seconds have elapsed, the lights will
go of f immediately.
Press and hold this
button for about 1 second to attract
attention; the horn will sound, and
the exterior lights will f lash f or about
30 seconds. To cancel panic mode,
press any other button on the remote
transmitter, or turn the ignition
switch to the ON (II) position. Panic
mode does not work when the key is
in the ignition switch.
129
205On EX, EX-L and Touring modelsUNL OCK
LOCK PANIC
Remote Transmitter
Inst rument s and Cont rols
147
LED LOCK
BUTTON
PANIC
BUTTON
UNLOCK
BUTTON
Touring model is shown.
\f—\f—
y


y
(\fy\f
y
2009 Odyssey

The heating and air conditioning
system in your vehicle provides a
comf ortable driving environment in
all weather conditions.
The standard audio system has
many f eatures. This section
describes those f eatures and how to
use them. (If you have an optional
audio system, ref er to the operating
instructions that came with it.)
Your vehicle has an anti-theft audio
system that requires a code number
to enable it.
The security system helps to
discourage vandalism and thef t of
your vehicle.
Theclimatecontrolsystemandthe
audio system have a voice control
feature. Refer to the navigation
system manual f or more inf ormation..............
Vents, Heating, and A/C .210
Using Automatic Climate ...................................
Control .215
.........
Using the Rear A/C Unit .216
..............
Climate Control Sensors .220
................................
Audio System .221
..........
Playing the AM/FM Radio .222
................................
Playing a Disc .226
.......
Disc Player Error Messages .233
..........
Playing the AM/FM Radio .234
................
Playing the XM
Radio .238
.................................
Playing Discs .244
...
Disc Changer Error Messages .251
..........
Playing the AM/FM Radio .252
................
Playing the XM
Radio .257
.................................
Playing Discs .263
...
Disc Changer Error Messages .271
..................
Protecting Your Discs .272
............
AM/FM Radio Reception .275
...............................
Playing a Tape .277
..........................
Setting the Clock .281
................
Remote Audio Controls .282 ......................
Auxiliary Input Jack .283
.................
Radio Thef t Protection .284
........
Rear Entertainment System .285
............................
Security System .318
...............................
Cruise Control .319
HomeLink
Universal ................................
Transceiver .322
.......
Bluetooth
HandsFreeLink.325
................
Parking Sensor System .361
....
Reaview Camera and Monitor .365
LX and Canadian DX models
EX and EX-L models without navigation system
Models with navigation system
On vehicles with navigation system
Features
Features
209
\f—\f—
y

\f\fy
(\fy\f
y
2009 Odyssey

Once the security system is set,
opening any door, the tailgate, or the
hood without using the key or the
remote transmitter, will cause it to
alarm. It also alarms if the audio unit
is removed f rom the dashboard or
the wiring is cut.The alarm will also be activated if a
passenger inside the locked vehicle
turns the ignition switch on.
The security system will not set if
the hood, tailgate, or any door is not
f ully closed. Bef ore you leave the
vehicle, make sure the doors,
tailgate, and hood are securely
closed.
To see if the system is set
af ter you exit the vehicle, press the
LOCK button on the remote
transmitter within 5 seconds. If the
system is set, the horn will beep
once.
Do not attempt to alter this system
or add other devices to it.
The security system automatically
sets 15 seconds after you lock the
doors, hood, and the tailgate. For the
system to activate, you must lock the
doorsandthetailgatefromthe
outside with the key, driver’s lock
tab, door lock master switch, or
remote transmitter. The security
system indicator on the instrument
panel starts blinking immediately to
show you the system is setting itself .
The security system helps to protect
your vehicle and valuables f rom thef t.
The horn sounds and a combination
of headlights, parking lights, side
marker lights, and taillights f lashes if
someone attempts to break into your
vehicleorremovetheradio.This
alarm continues f or 2 minutes, then
the system resets. To reset an
activated system before the 2
minutes have elapsed, unlock the
driver’s door with the key or the
remote transmitter.
On EX, EX-L and Touring models
Security System
318
NOTE:SECURITY SYSTEM INDICATOR
\f—\f—
y

y
(\fy\fy
2009 Odyssey

·µ
The HomeLink
Universal
Transceiver built into your vehicle
canbeprogrammedtooperateupto
three remote controlled devices
around your home, such as garage
doors, lighting, or home security
systems.
Bef ore programming your
HomeLink to operate a garage door
opener, conf irm that the opener has
an external entrapment protection
system, such as an ‘‘electronic eye,’’
or other saf ety and reverse stop
f eatures.
If your garage door was
manuf actured bef ore April 1, 1982,
you may not be able to program
HomeLink to operate it. These units
do not have safety features that
cause the motor to stop and reverse
it if an obstacle is detected during
closing, increasing the risk of injury. Do not use HomeLink with any
garage door opener that lacks saf ety
stop and reverse f eatures.
Units manuf actured between April 1,
1982 and January 1, 1993 may be
equipped with saf ety stop and
reverse f eatures. If your unit does
not have an external entrapment
protection system, an easy test to
conf irm the f unction and
perf ormance of the saf ety stop and
reverse f eature is to lay a 2 4
under the closing door. The door
should stop and reverse upon
contacting the piece of wood.
As an additional safety feature,
garage door openers manuf actured
af ter January 1, 1993 are required to
have external entrapment protection
systems, such as an electronic eye,
which detect an object obstructing
the door.
Refer to the safety information thatcame with your garage door opener
to test that the safety features are
f unctioning properly. If you do not
have this information, contact the
manuf acturer of the equipment.
Bef ore programming HomeLink to a
garage door or gate opener, make
sure that people and objects are out
of thewayof thedevicetoprevent
potential injury or damage.
When programming a garage door
opener, park just outside the garage.
If you just
received your vehicle and have not
trained any of the buttons in
HomeLink bef ore, you should erase
any previously learned codes bef ore
training the first button. To do this,
press and hold the two outside
buttons on the HomeLink
transceiver for about 20 seconds,
until the red indicator f lashes.
Release the buttons, then proceed to
step 1.
On EX, EX-L and Touring models
HomeL inkUniversal Transceiver
General Inf ormation
Important Saf ety PrecautionsT raining HomeL ink
Bef ore you begin
322
\f—\f—
y


\fy
(\fy\fy
2009 Odyssey

When you pair your phone to HFL,
the HFL system will automatically
select a pairing code at random or in
order. You can customize this setting
mode between Random and Fixed. If
you select the f ixed mode, the HFL
system will select a pairing code
sequentially.Press and release the Talk button.
Af ter the beep, say ‘‘Set Pairing
Code.’’
HFL responds ‘‘Each time a phone
is paired with HandsFreeLink, a
pairing code is used f or security.
This code can be randomly
generated by HandsFreeLink, or
f ixed, which is needed f or some
Bluetooth devices with a preset
pairing code. Would you like to set
the pairing code as Random or
Fixed?’’
Press and release the Talk button.
Af ter the beep, to select the f ixed
mode, say ‘‘Fixed.’’
HFL responds ‘‘What is the f our-
digit number you would like to see
as the pairing code? Press the Talk
button and say the number.’’Press and release the Talk button.
Af ter the beep, say a desired f our-
digit number. For example, say
‘‘1000.’’
HFL responds ‘‘1000. Is this
correct? Press the Talk button and
say Yes or No.’’
HFL responds ‘‘Phone setup
options are pair, edit, delete, list,
status, next phone, and set pairing
code. Press the Talk button and
say a command.’’
Press and release the Talk button.
Af ter the beep, say ‘‘Phone setup.’’ If the number is not correct, say
‘‘No.’’ HFL goes back to step 3.
HFL responds ‘‘HandsFreeLink
willusethiscodewhenpairingtoa
Bluetooth device.’’
Press and release the Talk button.
Af ter the beep, if the number is
correct, say ‘‘Yes.’’
1. 2.
3.4.
5.
6.
To change the setting mode, do this:
BluetoothHandsFreeL ink
Set t ing a Pairing Code
336
\f—\f—
y


y
(\fy\f
y
2009 Odyssey
