2009 HONDA CR-V display

µ
µ
µ If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area.
Press the A. SEL button. You will see
A. SEL f lashing in the display, and
the system goes into scan mode f or
several seconds. It stores the
f requencies of six AM, and twelve
FM stations in the preset buttons.
You will see a ‘‘0’’ displayed af ter
pressing a preset button if auto
select cannot f ind a strong station f or
every preset button. If you do not like the stations auto
select has stored, you can store
other f requencies on the preset
buttons as previously described.
For inf ormation on AM/FM radio
f requencies and reception, see page
.
Each preset button can
store one f requency on AM and two
f requencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each preset
button.
Usethetune,seek,orscan
function to tune the radio to a
desired station.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
Pick a preset button (1 6), and
hold it until you hear a beep. press the
A. SEL button. This restores the
presets you originally set.
1.
2.
3.
4. 211
To turn of f auto select,
AUTO SELECT
Preset
Playing the AM/FM Radio (EX and EX-L models without navigation system)
Features
155
\f—\f—y
\f\fy
(,\fy\f
\fy
2009 CR- V

µµ
µ µ
µ µ
Press the TUNE (SOUND) knob
repeatedly to display the BASS,
TREBLE, FADER, BALANCE,
SUBWOOFER (if equipped), and
SVC (speed-sensitive volume
compensation) settings.
Adjusts the bass.Adjusts the treble.
Adjusts the side-to-
side strength of the sound.
Adjusts the
strength of sound f rom the
subwoof er speaker. Adjusts the front-to-back
strength of the sound. The system will return to the audio
display about 5 seconds af ter you
stop adjusting a mode.
The SVC mode controls the volume
based on vehicle speed. The f aster
you go, the louder the audio volume
becomes. As you slow down, the
audio volume decreases.
The SVC has f our modes: SVC OFF,
SVC LOW, SVC MID, and SVC
HIGH. Turn the TUNE knob to
adjust the setting to your liking. If
you f eel the sound is too loud,choose low. If you f eel the sound is
too quiet, choose high.
Eachmodeisshowninthedisplayas
it changes. Turn the TUNE knob to
adjust the setting to your liking.
When the level reaches the center,
you will see ‘‘C’’ in the display. Adjusts the volume level
basedonthevehiclespeed.
This f unction is set to MID as the
def ault setting when the vehicle
leaves the factory.
You can use the instrument panel
brightness control knob to adjust the
illumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the radio is turned of f .76
If equipped
Adjusting the Sound
BASS
TREBLE
BAL ANCE
SUBWOOFER
FADER SVC
A udio System L ighting
Speed-sensit ive VolumeCompensat ion (SVC)
Playing the AM/FM Radio (EX and EX-L models without navigation system)
156
\f—\f—y
\f
y
(,\fy\f

y
2009 CR- V

Your audio system is capable of
receiving XM Radio anywhere in the
United States, except Hawaii and
Alaska.
XM
is a registered trademark of
XM Satellite Radio
,Inc.
XM Radio receives signals f rom two
satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, XM Radio
allows you to view channel and
category selections in the display.
Playing the XM
Radio
Playing the XMRadio (U.S. EX-L model without navigation system)
Features
On U.S. EX-L wit hout Navigat ion Syst em
157

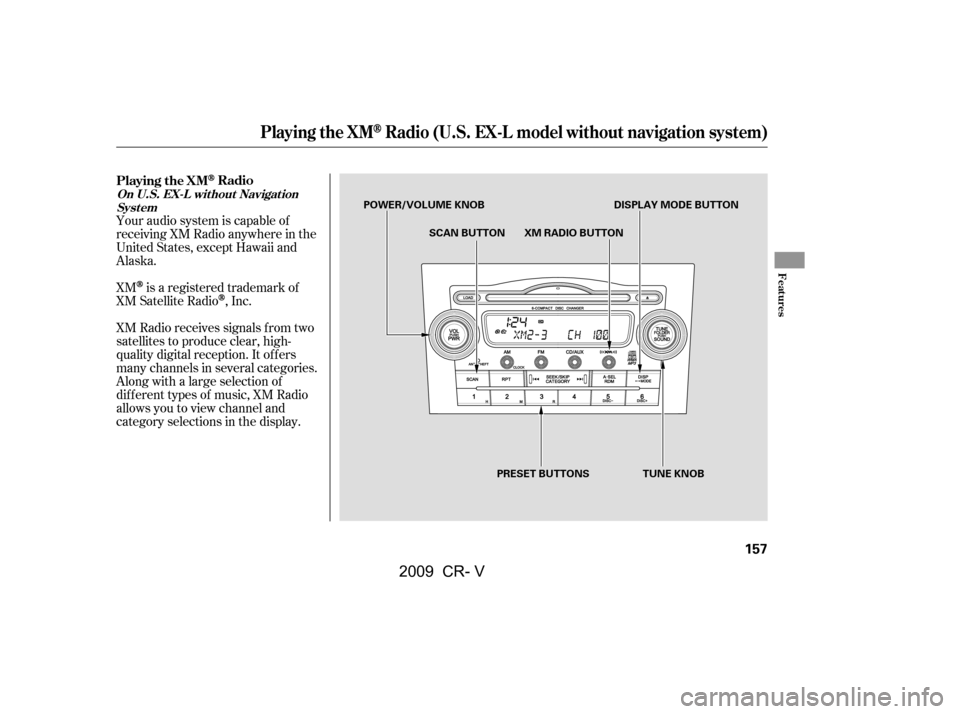

SCAN BUTTON
PRESET BUTTONS TUNE KNOBXM RADIO BUTTON
POWER/VOLUME KNOB
DISPLAY MODE BUTTON
\f—\f—y
\fy
(,\fy\f
y
2009 CR- V

µ
µ
µ
To listen to XM radio, turn the
ignition switch to the ACCESSORY
(I) or the ON (II) position. Push the
power/volume knob to turn on the
audio system, and press the ‘‘XM’’
button. Adjust the volume by turning
the knob. The last channel you
listened to will show in the display.
You may experience periods when
XM Radio does not transmit the
artist’s name and song title
inf ormation. If this happens, there is
nothing wrong with your system.
Turn the TUNE knob to
change channel selections. Turn the
knob right f or higher numbered
channels and lef t f or lower
numbered channels. In the category
mode, you can only select channels
within that category.
To switch between
channel mode and category mode,
press and hold the DISP/MODE
button until the mode changes.
In channel mode, you can select all
of the available channels. In category
mode, such as Jazz, Rock, Classical,
etc., you can select all of the
channels within that category.
Each time you press and release the
DISP/MODE button, the display
changes in the f ollowing sequence:
Channel name, channel number,
category, artist name, and music title.
Press either side of the CATEGORY
bar ( or ) to select another
category.
Operating the XM Radio
TUNE
MODE
SEEK /SK IP (CA T EGORY)
Playing the XMRadio (U.S. EX-L model without navigation system)
158
\f—\f—y
\fy
(,\fy\f
y
2009 CR- V

µµ µ
µ
µ
µ
The scan f unction gives
you a sampling of all channels while
in the channel mode. In the category
mode, only the channels within that
category are scanned. To activate
scan, press the SCAN button. The
system plays each channel in
numerical order f or a f ew seconds,
then selects the next channel. When
you hear a channel you want to
continue listening to, press the
button again. Usethetune,seek,orscan
function to tune to a desired
channel.
In category mode, only channels
within that category can be selected.
In channel mode, all channels can be
selected.
Repeat steps 2 and 3 to store the
f irst six channels.
Press the XM button again. Store
the next six channels using steps 2
and 3.
Youcanstoreupto12
preset channels using the six preset
buttons. Each button stores one
channel f rom the XM1 band and one
channel f rom the XM2 band.
To store a channel:
Press the XM button. Either XM1
or XM2 will show in the display. Pick the preset button you want
f or that channel. Press and hold
the button until you hear a beep.
Once a channel is stored, press and
release the proper preset button to
tune to it. XM is loading the
audio or program inf ormation.
The channel
currently selected is no longer
broadcasting.
The encryption
code is being updated. Wait until the
encryption code is f ully updated.
Channels 0 and 1 should still work
normally.
The signal is
currently too weak. Move the vehicle
to an area away from tall buildings,
and with an unobstructed view of the
southern horizon.
1. 2.
3.
4.
5.
CONT INUED
SCAN
XM Radio Display Messages
Preset ‘‘L OA DING’’
‘‘OFF A IR’’
‘‘UPDA T ING’’
‘‘NO SIGNA L ’’
Playing the XMRadio (U.S. EX-L model without navigation system)
Features
159
\f—\f—y
\fy
(,\fy\f
y
2009 CR- V

Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:Driving on the north side of a
large commercial truck on an
east/west road.
Driving in tunnels.
Driving on a road beside a vertical
wall, steep clif f , or hill to the south
of you.
Driving on the lower level of a
multi-tiered road.
Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you.
Driving on the north side of an
east/west mountain road.
Large items carried on a roof rack.
There may be other geographic
situations that could af f ect XM Radio
reception. If your XM Radio service has expired
or you purchased your vehicle f rom
a previous owner, you can listen to a
sampling of the broadcasts available
on XM Radio. With the ignition
switch in the ACCESSORY (I) or ON
(II) position, push the power/volume
knob to turn on the audio system and
press the XM button. A variety of
music types and styles will play.
If you decide to purchase XM Radio
service, contact XM Radio at
,orat
1-800-852-9696. You will need to give
them your radio I.D. number and
your credit card number. To get your
radio I.D. number, press TUNE until
‘‘0’’ appears in the display. Your I.D. will appear in the display.
After you’ve registered with XM
Radio, keep your audio system in the
satellite radio mode while you wait
f or activation. This should take about
30 minutes.
While waiting f or activation, make
sure your vehicle remains in an open
area with good reception. Once your
audio system is activated, you’ll be
able to listen to XM Radio broadcasts.
XM Radio will continue to send an
activation signal to your vehicle f or
at least 12 hours from the activation
request. If the service has not been
activated after 36 hours, contact
XM
Radio.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
www.xmradio.com
Receiving XM Radio Service
Playing the XMRadio (U.S. EX-L model without navigation system)
Features
161
\f—\f—y
\fy
(,\fy\f
y
2009 CR- V

Playing a Disc
Playing Discs (EX and EX-L models without navigation system)
162
TUNE KNOBDISPLAY
BUTTON
CD BUTTON
POWER/VOLUME KNOB SCAN
BUTTON EJECT
BUTTON
REPEAT BUTTON
EJECT
BUTTON
SCAN
BUTTON SEEK/SKIP BAR
LOAD INDICATOR
CD/AUX
BUTTONDISPLAY
BUTTON
RANDOM
BUTTON
POWER/VOLUME KNOB
SEEK/SKIP BAR
RANDOM BUTTON
LOAD
INDICATOR
DISC SLOT
REPEAT
BUTTON
DISC SLOT
LOAD
BUTTON
U.S. EX and Canadian EX and EX-L models
U.S. EX-L model
LOAD
BUTTON
TUNE KNOB
\f—\f—y
\f\fy
(,\fy\f
y
2009 CR- V

µ
µ
µ
µ
µ µ
µ
µ
To load or play discs, the ignition
switch must be in the ACCESSORY
(I) or ON (II) position.
You operate the disc changer with
the same controls used f or the radio.
To select the disc changer, press the
CD button (CD/AUX button on
models with satellite radio), the disc
and track numbers are displayed.
The system will continuously play a
disc until you change modes.
Compatible with variable bitrate
and multi-session
If a f ile on an MP3 or WMA disc is
protected by digital rights
management (DRM), the audio unit
displays FORMAT, and then skips to
the next f ile.
Video CDs and DVDs do not work in
this unit.
The specif ications f or compatible
MP3 f iles are:
Sampling f requency:
32/44.1/48 kHz (MPEG1)
24/22.05/16 kHz (MPEG2)
Bitrate:
32/40/48/56/64/80/96/112/128/
160/192/224/256/320 kbps
(MPEG1)
8/16/24/32/40/48/56/64/80/96/
112/128/160 kbps (MPEG2)
Maximum layers (including ROOT): 8 layers
The specif ications f or compatible
WMA f iles are:
This audio system can also play
CD-Rs and CD-RWs compressed in
MP3 or WMA f ormats. When
playing a disc in MP3, you will see
‘‘MP3’’ in the display. In WMA
f ormat, ‘‘WMA’’ will appear in the
display. You can select up to 99 f olders, or up to 255 tracks/f iles.
Bitrate:
32/40/48/64/80/96/128/160/192
kbps
Maximum layers
(including ROOT): 8 layers
Compatible with variable bitrate
and multi-session
Sampling f requency:
32/44.1/48 kHz
To Play a Disc
Playing Discs (EX and EX-L models without navigation system)
Features
163
NOTE:
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
\f—\f—y
\f
y
(,\fy\f
y
2009 CR- V
