2009 HONDA CIVIC HYBRID abs

CONT INUED
Disconnect the blade assembly
from the wiper arm:Put a cloth on the edge of the
lock tab, then push up on the
lock tab carefully with a flat-tip
screwdriver. When replacing a wiper blade,
make sure not to drop the wiper
blade or wiper arm down on the
windshield. Remove the blade f rom its holder
by grabbing the tabbed end of the
blade. Pull f irmly until the tabs
come out of the holder.
Pivot the blade assembly toward
the wiper arm until it releases
from the wiper arm.
2.
3.
Wiper Blades
Maint enance
313
WIPER ARM
LOCK TAB BLADE
\f—\f—
y
\f\f
\fy
(#\fy\f
y
2009 Civic Hybrid

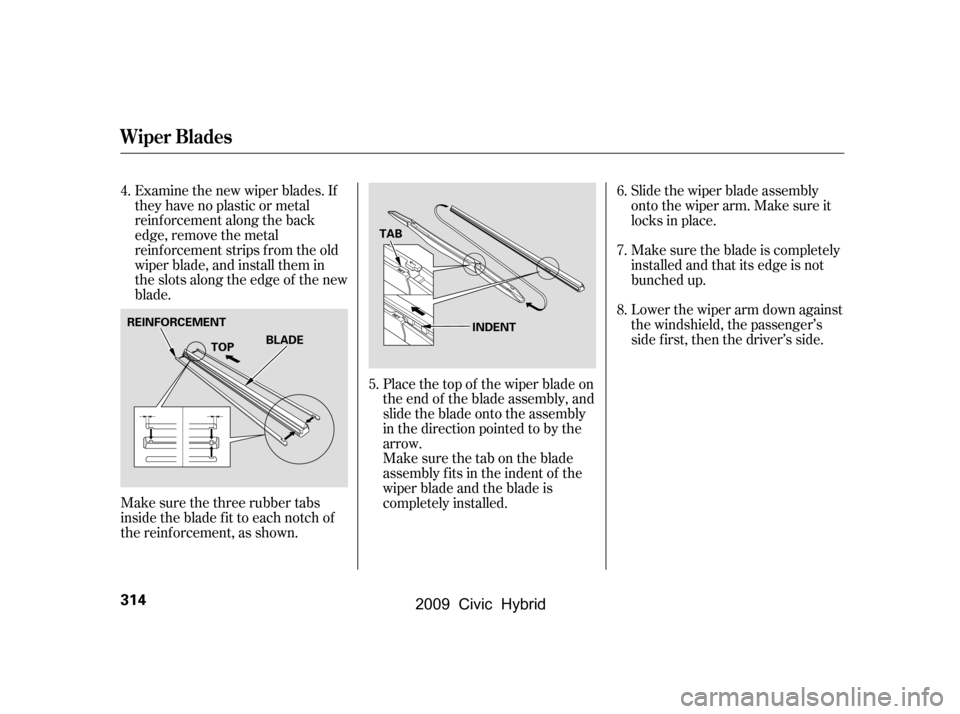

Examine the new wiper blades. If
they have no plastic or metal
reinf orcement along the back
edge, remove the metal
reinf orcement strips f rom the old
wiper blade, and install them in
the slots along the edge of the new
blade.
Make sure the three rubber tabs
inside the blade f it to each notch of
the reinf orcement, as shown. Place the top of the wiper blade on
the end of the blade assembly, and
slide the blade onto the assembly
in the direction pointed to by the
arrow.
Make sure the tab on the blade
assembly fits in the indent of the
wiper blade and the blade is
completely installed.Slide the wiper blade assembly
onto the wiper arm. Make sure it
locks in place.
Make sure the blade is completely
installed and that its edge is not
bunched up.
Lower the wiper arm down against
the windshield, the passenger’s
side first, then the driver’s side.
4.
5.6.
7.
8.
Wiper Blades
314
TOP
REINFORCEMENT
BLADETAB
INDENT
\f—\f—
y
\f\f
y
(#\fy\f
y
2009 Civic Hybrid

Replace your tires with radial tires of
the same size, load range, speed
rating, and maximum cold tire
pressure rating (as shown on the
tire’s sidewall).
To help increase tire lif e and
distribute wear more evenly, rotate
the tires according to the
maintenance messages displayed on
the information display. Move the
tires to the positions shown in the
chart each time they are rotated. If
you purchase directional tires, rotate
only f ront-to-back.
In addition to proper inf lation,
correct wheel alignment helps to
decrease tire wear. If you f ind a tire
is worn unevenly, have your dealer
check the wheel alignment.
Have your dealer check the tires if
you f eel a consistent vibration while
driving. A tire should always be
rebalanced if it is removed f rom the
wheel. When you have new tires
installed, make sure they are
balanced. This increases riding
comf ort and tire lif e. For best results,
have the installer perform a dynamic
balance.
Mixing radial and bias-ply tires on
your vehicle can reduce braking
ability, traction, and steering
accuracy. Using tires of a dif f erent
size or construction can cause the
ABS and vehicle stability assist
system (VSA) to work inconsistently.
It is best to replace all f our tires at
thesametime.If thatisnotpossible
or necessary, replace the two f ront
tires or two rear tires as a pair.
Replacing just one tire can seriously
af f ect your vehicle’s handling.
Tires
Replacing T ires and Wheels
Tire Rotation
T ire Maintenance
318
Front Front
(Front Non-directional
Tires and Wheels) (Front Directional
Tires and Wheels)
Improper wheel weights can damage
your vehicle’s aluminum wheels. Use
only Honda wheel weights f or
balancing.
\f—\f—
y
\f\fy
(#\fy\fy
2009 Civic Hybrid

´
Tires marked ‘‘M S’’ or ‘‘All
Season’’ on the sidewall have an all-
weather tread design suitable for
most winter driving conditions.
For the best perf ormance in snowy
or icy conditions, you should install
snow tires or tire chains. They may
be required by local laws under
certain conditions.
If you mount snow tires on your
vehicle, make sure they are radial
tires of the same size and load range
as original tires. Mount snow tires on
all f our wheels. The traction
provided by snow tires on dry roads
maybelowerthanyouroriginaltires.
Check with the tire dealer f or
maximum speed recommendations.
See page f or DOT tire quality
grading inf ormation, and page
f or tire size inf ormation.
Tires: Wheels:
The ABS and VSA system work by
comparing the speed of the wheels.
When replacing tires, use the same
size originally supplied with the
vehicle. Tire size and construction
can af f ect wheel speed and may
cause the ABS or VSA system to
activate.
If you ever replace a wheel, make
sure that the wheel’s specif ications
match those of the original wheels.
Also be sure you use only TPMS
specif ic wheels (if equipped). If you
do not, the tire pressure monitoring
system will not work.
Replacement wheels are available at
your dealer.
352
354
CONT INUED
Tires
Winter Driving
Wheel and T ire Specif ications
Snow T iresMaint enance
319
P195/65R15 89S 15x6J
Installing improper tires on your
vehicle can affect handling and
stability. This can cause a crash
in which you can be seriously
hurt or killed.
Always use the size and type of
tires recommended in this
owner’s manual.
——
y


y
(#yy
2009 Civic Hybrid

If the ABS indicator comes on with
the brake system indicator, have
your vehicle inspected by your
dealer immediately.
However, if the brake pedal does not
f eel normal, you should take
immediate action. A problem in one
part of the system’s dual circuit
design will still give you braking at
two wheels. You will f eel the brake
pedal go down much f arther bef ore
the vehicle begins to slow down, and
you will have to press harder on the
pedal.
Slow down by shif ting to a lower
gear, and pull to the side of the road
when it is saf e. Because of the long
distance needed to stop, it is
hazardous to drive the vehicle. You
should have it towed and repaired as
soon as possible (see
on page ).
If you must drive the vehicle a short
distance in this condition, drive
slowly and caref ully.
The brake system
indicator normally
comes on when
you turn the ignition switch to the
ON (II) position and as a reminder to
check the parking brake. It will stay
on if you do not f ully release the
parking brake.
If the brake system indicator comes
on while driving, the brake f luid level
is probably low. Press lightly on the
brake pedal to see if it f eels normal.
If it does, check the brake f luid level
thenexttimeyoustopataservice
station (see page ).
If the f luid level is low, take your
vehicle to a dealer, and have the
brake system inspected f or leaks or
worn brake pads. If the brake system indicator
(amber) comes on with the parking
brake system indicator (red) with
the parking brake released, there
may be a malfunction with the
power-assist f eature. When the
power-assist f eature malf unctions,
the brake indicator (red) comes on
and a buzzer sounds f or a second.
The power-assist f eature may stop
when the brake ef f ect is weak. Stop
your vehicle immediately at a saf e
place and contact a dealer.
304
345Emergency
Towing
Brake System Indicator
338
U.S. Canada
\f—\f—
y
\f
y
(#\fy\fy
2009 Civic Hybrid

µ
µNo.
No. Circuits Protected
No.
Circuits Protected
Circuits Protected Amps.
Amps.
Amps.
1
2
3
1
2
3 IMA2
IMA1
Booster MS
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23 Headlight Main
Power Window Main
Booster Motor
Sub Fan Motor
Main Fan Motor
Rear Defogger
Blower
Hazard
FI Sub
Stop and Horn
IG Coil (EX)
IG Coil (IN)
Oil Level
Not Used
Not Used
IG Coil
FI Main
MG Clutch
DBW
Interior Light
Back Up
Main Fuse
EPS
Option Main
Ignition Switch Main
ABS Motor
ABS F/S 50 A
40 A
40 A
20 A
20 A
30 A
40 A
10 A
15 A
15 A
15 A
15 A
7.5 A
20 A
15 A
7.5 A 15 A
7.5 A 10 A 10 A
7.5 A 15 A
100 A
70 A
60 A
50 A
30 A
40 A
Fuse Locations
T aking Care of t he Unexpect ed
343
UNDER-HOOD PRIMARY FUSE BOX UNDER-HOOD SECONDARY FUSE BOX
\f—\f—
y
\f
\fy
(#\fy\fy
2009 Civic Hybrid

µ
µ
µ
µ
µ
µ
µ Î
Î
Î
No. No.No.
Circuits Protected
Amps. Amps.
Amps. Circuits Protected Circuits Protected
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16 17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
ODS
MET ER
SRS
Right Headlight High Beam
Left Headlight High Beam
Small (Interior)
Small (Exterior)
Right Headlight Low Beam
7.5 A
7.5 A
10 A
10 A
10 A
7.5 A
7.5 A 10 A 10 A
20 A
15 A
20 A
(7.5 A)
(7.5 A)
20 A
20 A
(15 A) 15 A
20 A
20 A
20 A
7.5 A 10 A
7.5 A 30 A
7.5 A
15 A
10 A
7.5 A 15 A
7.5 A Power Window
Fuel Pump
IG1 ACG
ABS/VSA Unit
Seat Heater
Not Used
TPMS
Not Used Left Headlight Low Beam
Headlight High Main
Small (Main)
Not Used
Headlight Low Main
(HAC)
STS
Not Used
Door Lock
Driver’s Power Window
Not Used
Rear ACC Socket
ACC
Passenger’s Power Window
Not Used
Right Rear Power Window
Left Rear Power Window
Not Used
ACC, Radio
HAC
Daytime Running Light
Wiper
: Optional in U.S.
Fuse Locations
344

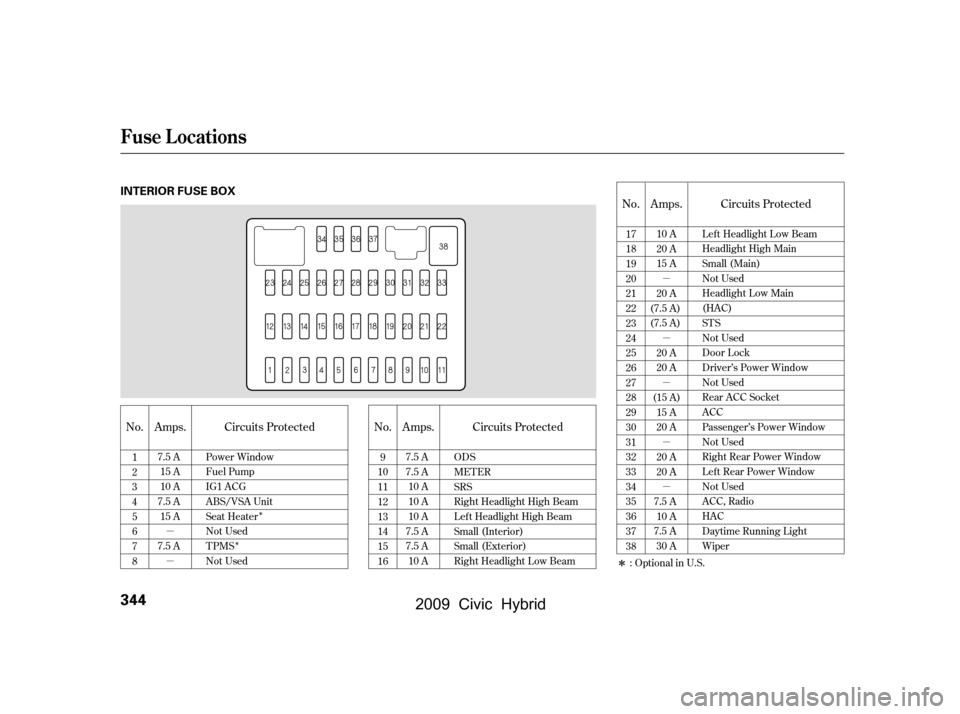

INTERIOR FUSE BOX
\f—\f—
y
\f

y
(#\fy\fy
2009 Civic Hybrid

CONT INUED
....................................
Accessories .263
ACCESSORY (Ignition Key
.......................................
Position) .80
.............
Accessory Power Socket .101
....................
Additives, Engine Oil .297
...............................
Airbag (SRS) .9,21
...
Airbags, Additional Information .21
...
Additional Safety Precautions .32
..........
AdvancedAirbagSystem .26
.............................
Airbag Service .32
How the Passenger Airbag Of f ......................
Indicator Works .31
How the Side Airbag Of f ......................
Indicator Works .30
..
How the SRS Indicator Works .30
How Your Front Airbags
.........................................
Work .24
...
How Your Side Airbags Work .28
How Your Side Curtain Airbags
.........................................
Work .29
........................
SRS Components .21
..............
Air Conditioning System .104
.......................
Air Pressure, Tires .315
......................................
Antif reeze .300Anti-lock Brakes (ABS)
...............................
Indicator .59,280
...................................
Operation .280
..............
Anti-thef t, Audio System .209
Anti-thef t Steering Column
..........................................
Lock .80
........................................
Armrest .95
................................
Audio System .110
.....
Auto Door Locking/Unlocking .83
.........................
Auto Door Locking .82
.....................
Auto Door Unlocking .85
........................
Auto Idle Stop .276,277
...
Automatic Seat Belt Tensioners .19
.............
Automatic Speed Control .214
.
Automatic Transmission (CVT) .272
..........................
Capacity,Fluid .350
...............
Checking Fluid Level .303
.......................................
Shif ting .273
Shif t Lever Position ...............................
Indicators .272
................
Shif t Lever Positions .273
....................
Shif t Lock Release .275 Battery
Charging System ...........................
Indicator .62,336
............................
Jump Starting .331
..............................
Maintenance .321
............................
Specif ications .350
..............................
Bef ore Driving .253
....................................
Belts,Seat .8,18
...........................
Beverage Holder .100
Brakes ...........
Anti-lock System (ABS) .280
.............
Break-in, New Linings .254
....................
Bulb Replacement .308
...........................................
Fluid .304
...................
Pad Wear Indicator .280
.........................................
Parking .99
...........
System Indicator .58,63,338
.............................
Braking System .279
.................
Break-in, New Vehicle .254
..
Brightness Control, Instruments .75
Index
A B
INDEX
I
——
y

y
(#yy
2009 Civic Hybrid
