2009 HONDA ACCORD SEDAN display

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .54
............................
Instrument Panel .55
..........
Instrument Panel Indicators .56
.............................................
Gauges .63
....................
Inf ormation Display .64 .....................................
Odometer .64
Outside Temperature ...................................
Indicator .65
...................................
Trip Meter .65
..........
Check Fuel Cap Message .66
..................
Maintenance Minder .66
...................
Temperature Gauge .66
..................................
Fuel Gauge .66
Controls Near the Steering ...........................................
Wheel .67
.
Windshield Wipers and Washers .68
.........
Turn Signals and Headlights .69
........................................
Fog Lights .72
........
Instrument Panel Brightness .72
.................
Hazard Warning Button .73
.................
Rear Window Def ogger .74
........
Steering Wheel Adjustments .75
...............................
Keys and Locks .76
........................
Immobilizer System .77
................................
Ignition Switch .78
......................................
Door Locks .79
.
Auto Door Locking/Unlocking .80
..............
Childproof Door Locks .86
.......................
Remote Transmitter .86
................................................
Trunk .90
........
Emergency Trunk Opener .91 .................................................
Seats .92
.
Front Seat Power Adjustments .92
FrontSeatManual
............................
Adjustments .93
Driver’s Seat Manual Height ..............................
Adjustment .94
..........................
Head Restraints .94
.......................
Folding Rear Seat .97
......................................
Armrests .98
..................................
Seat Heaters .100
...........................................
Mirrors .101
............................
Power Windows .103
.......................................
Moonroof .107
...............................
Parking Brake .109
.........
Interior Convenience Items .110
.....................
Beverage Holders .111
........
Accessory Power Sockets .111
.............
Console Compartment .112
..................................
Glove Box .113
....................
Sunglasses Holder .113
..................................
Sun Visors .114
............................
Vanity Mirror .115
..................................
Coat Hook .115
..........................
Center Pockets .115
...............................
Interior Lights .116
Instruments and Controls
Inst rument s and Cont rols
53
\f—\f—\fy
\f\fy
)\f
\fy\f\fy
2009 Accord Sedan

This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It
remindsyouthatitistimetotake
your vehicle in f or scheduled
maintenance. The maintenance main
items and sub items will be displayed
in the inf ormation display. See pagef or more inf ormation on the
maintenance minder.
This indicator goes of f when your
dealer resets it after completing the
required maintenance service.
This indicator comes on when you
turn on the cruise control system by
pressing the CRUISE button (see
page ).
This indicator comes on when you
set the cruise control. See page
f or inf ormation on operating the
cruise control.
This indicator comes on when you
turn on the f og lights. For more
inf ormation, see page . This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. It will then go of f if
you have inserted a properly coded
ignition key. If it is not a properly
coded key, the indicator will blink,
and the engine’s f uel system will be
disabled (see page ).
This indicator comes on when the
washer f luid level is low. Add washer
fluidwhenyouseethisindicator
(see page ).
72
223
223 307
32277
If equipped
Canadian models only
Immobilizer System
Indicator
Maintenance Minder
Indicator
Cruise Control Indicator Washer Level Indicator
Cruise Control Main
Indicator
Fog L ight Indicator
Instrument Panel Indicators
62
——y


y
)
yy
2009 Accord Sedan

Î
ÎIf equipped
:

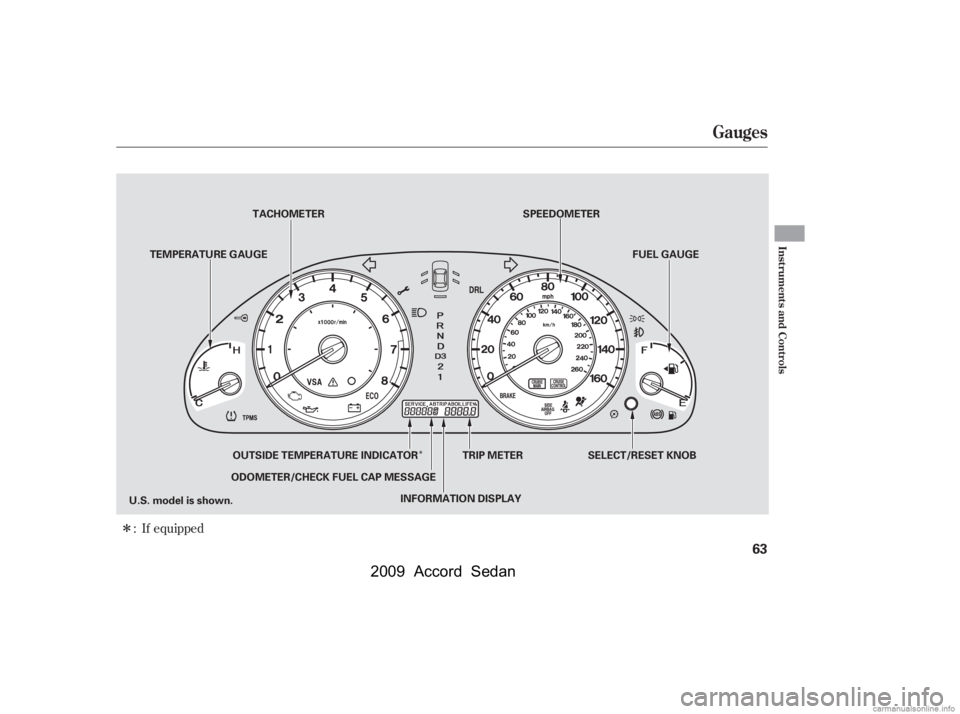

Gauges
Inst rument s and Cont rols
63
SELECT/RESET KNOB
TRIP METER
ODOMETER/CHECK FUEL CAP MESSAGE TACHOMETER
TEMPERATURE GAUGE SPEEDOMETER
FUEL GAUGE
U.S. model is shown. INFORMATION DISPLAY
OUTSIDE TEMPERATURE INDICATOR
\f—\f—\fy

y
)\f
\fy\f\fy
2009 Accord Sedan

The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated.
The inf ormation display shows the
odometer, trip meter, engine oil lif e,
outside temperature (if equipped),
and maintenance item code(s). To switch the display, press and
release the select/reset knob
repeatedly. When you turn the
ignition switch to the ON (II)
position, your last selection is
displayed.
Gauges
Odometer
Inf ormation Display
64
INFORMATION DISPLAY TRIP METER A
TRIP METER B
ENGINE OIL
LIFE
OUTSIDE
TEMPERATURE
INDICATOR
ODOMETER
U.S. model with outside temperature indicator is shown.
\f—\f—\fy
\f\fy
)\f
\fy\f\fy
2009 Accord Sedan

¶¶µ
µµµµ µµµIf equipped
The temperature sensor is in the
f ront bumper. Theref ore, the
temperature reading can be af f ected
by heat ref lection f rom the road
surf ace, engine heat, and the
exhaust f rom surrounding traf f ic.
This can cause an incorrect
temperature reading when your
speed is under 19 mph (30 km/h).
The sensor delays the display update
until it reaches the correct outside
temperature. This may take several
minutes.
If the outside temperature is incorrectly displayed, you can adjust
it up to 5°F in U.S. models ( 3°C
in Canadian models) warmer or
cooler.
The temperature must be
stabilized bef ore doing this
procedure.
Select the outside temperature
display, then press and hold the
select/reset knob f or 10 seconds.
The f ollowing sequence will appear
for1secondeach:0,1,2,3,4,5, 5, 4, 3, 2, 1, 0 (U.S.) or 0, 1, 2,
3, 3, 2, 1, 0 (Canada).
When the temperature reaches the
desired value, release the select/
reset knob. You should see the new
outside temperature displayed.
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace. The trip meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays by pressing the select/reset
knob repeatedly.
Each trip meter works independently,
so you can keep track of two
dif f erent distances.
When you turn the ignition switch to
the ON (II) position, your last
selection is displayed.
To reset a trip meter, display it, and
then press and hold the select/reset
knob until the number resets to ‘‘0.0’’.
This indicator displays the outside
temperature in Fahrenheit (U.S.
models) or Celsius (Canadian
models). To see the outside
temperature, press and release the
select/reset knob until the
temperature is displayed.
Gauges
Outside Temperature Indicator
Trip Meter
Inst rument s and Cont rols
65
NOTE:
\f—\f—\fy
\f
y
)\f
\fy\f\f\fy
2009 Accord Sedan

This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise
from the bottom mark to about the
middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise to the
upper zone. If it reaches the red
(hot) mark, pull saf ely to the side of
the road. Turn to page for
instructions and precautions on
checking the engine cooling system.This shows how much f uel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
of f the ignition.
If your f uel f ill cap is loose or
missing, a ‘‘CHECK FUEL CAP’’
message appears on the information
display af ter you start the engine.
For more inf ormation, see page .
The inf ormation display in the
instrument panel shows you the
engine oil lif e and maintenance
service items when the ignition
switch is in the ON (II) position. This
inf ormation helps to keep you aware
of the periodic maintenance your
vehicle needs f or continued trouble-
f ree driving. Ref er to page f or
more inf ormation. 262
307 367
Gauges
Temperature Gauge
Fuel Gauge
Check Fuel Cap Message
Maintenance Minder
66
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
——y
y
)
y
y
2009 Accord Sedan

Push the button between the center
vents to turn on the hazard warning
lights (f our-way f lashers). This
causes all f our outside turn signals
and both turn indicators in the
instrument panel to f lash. Use the
hazard warning lights if you need to
park in a dangerous area near heavy
traf f ic, or if your vehicle is disabled.
The level of brightness is shown on
the inf ormation display while you
adjust it. It goes out about 5 seconds
af ter you f inish adjusting.
To reduce glare at night, the
instrument panel illumination dims
when you turn the light switch to
or . Turning the select/
reset knob to the right until you hear
a beep will cancel the reduced
brightness. The instrument panel will illuminate
with reduced brightness when you
unlock and open the driver’s door.
The brightness will increase slightly
when you insert the key in the
ignitionswitch,thengotonormal
brightness when you turn the
ignition switch to the ON (II)
position.
If you insert the key but do not turn
the ignition switch to the ON (II)
position, the illumination turns of f in
about 10 seconds.
If you do not insert the key in the
ignition switch af ter opening the
driver’s door, the illumination turns
of f about 30 seconds af ter you close
the door.
Hazard Warning Button
Instrument Panel Brightness, Hazard Warning Button
Inst rument s and Cont rols
73
BRIGHTNESS LEVEL
U.S. model is shown.
\f—\f—\fy


y
)\f
\fy\f\fy
2009 Accord Sedan

Climate Control System
With navigation system
Without navigation system
EX-L and EX-L V6
Features
125
AUTO BUTTON AUTO
INDICATOR
DRIVER’S SIDE
TEMPERATURE
OFF BUTTON
DUAL BUTTON RECIRCULATION
BUTTON FAN CONTROL SWITCHWINDSHIELD DEFROSTER
BUTTON DRIVER’S SIDE
TEMPERATURE
DRIVER’S SIDE
TEMPERATURE
CONTROL SWITCH
DUAL
BUTTON
RECIRCULATION BUTTON
WINDSHIELD
DEFROSTER BUTTON
AUTO
INDICATOR
FAN CONTROL
BAR
AUTO
BUTTON
OFF BUTTON
DRIVER’S SIDE TEMPERATURE
CONTROL SWITCH
MODE
CONTROL
BUTTON
MODE CONTROL BUTTON REAR WINDOW
DEFOGGER/HEATED
MIRROR BUTTON
U.S. models are shown. PASSENGER’S SIDE
TEMPERATURE CONTROL
SWITCH
PASSENGER’S SIDE
TEMPERATURE
AIR
CONDITIONING
(A/C) BUTTON AIR
CONDITIONING
(A/C) BUTTON
PASSENGER’S SIDE
TEMPERATURE CONTROL
SWITCH PASSENGER’S SIDE
TEMPERATURE
REAR
WINDOW
DEFOGGER/
HEATED
MIRROR
BUTTON
CENTER
DISPLAY
