Power Steering Fluid
The power steering uid
reservoir is located near
the front of the engine
compartment, behind the
radiator. SeeEngine
Compartment Overview on
page 5-12for reservoir
location.
When to Check Power Steering Fluid
It is not necessary to regularly check power steering uid
unless you suspect there is a leak in the system or
you hear an unusual noise. A uid loss in this system
could indicate a problem. Have the system inspected
and repaired.
How to Check Power Steering Fluid
1. Turn the key off and let the engine compartment
cool down.
2. Wipe the cap and the top of the reservoir clean.
3. Unscrew the cap and wipe the dipstick with a
clean rag.
4. Replace the cap and completely tighten it.
5. Then remove the cap again and look at the uid
level on the dipstick.
The level should be between the ADD and FULL marks.
If necessary, add only enough uid to bring the level
up to the proper range.
What to Use
To determine what kind of uid to use, see
Recommended Fluids and Lubricants on page 6-11.
Always use the proper uid.
Notice:Use of the incorrect uid may damage the
vehicle and the damages may not be covered by
the vehicle’s warranty. Always use the correct uid
listed inRecommended Fluids and Lubricants
on page 6-11.
5-34

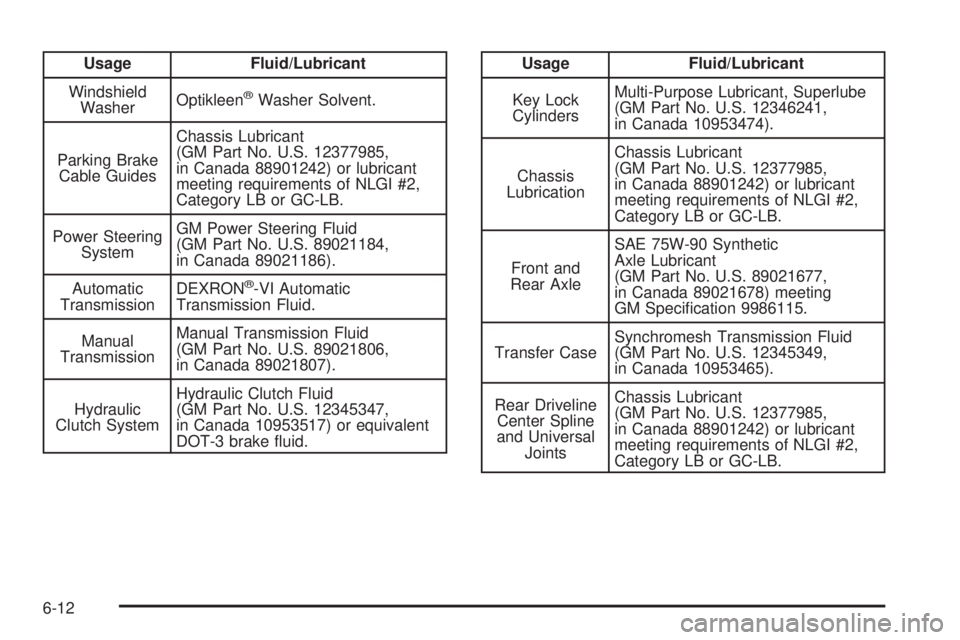

Usage Fluid/Lubricant
Windshield
WasherOptikleen
®Washer Solvent.
Parking Brake
Cable GuidesChassis Lubricant
(GM Part No. U.S. 12377985,
in Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Power Steering
SystemGM Power Steering Fluid
(GM Part No. U.S. 89021184,
in Canada 89021186).
Automatic
TransmissionDEXRON
®-VI Automatic
Transmission Fluid.
Manual
TransmissionManual Transmission Fluid
(GM Part No. U.S. 89021806,
in Canada 89021807).
Hydraulic
Clutch SystemHydraulic Clutch Fluid
(GM Part No. U.S. 12345347,
in Canada 10953517) or equivalent
DOT-3 brake uid.
Usage Fluid/Lubricant
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Chassis
LubricationChassis Lubricant
(GM Part No. U.S. 12377985,
in Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Front and
Rear AxleSAE 75W-90 Synthetic
Axle Lubricant
(GM Part No. U.S. 89021677,
in Canada 89021678) meeting
GM Specication 9986115.
Transfer CaseSynchromesh Transmission Fluid
(GM Part No. U.S. 12345349,
in Canada 10953465).
Rear Driveline
Center Spline
and Universal
JointsChassis Lubricant
(GM Part No. U.S. 12377985,
in Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
6-12

Electronic Immobilizer
PASS-Key®III+...........................................2-16
Electronic Immobilizer Operation
PASS-Key
®III+...........................................2-16
Engine
Air Cleaner/Filter.........................................5-20
Check and Service Engine Soon Lamp...........3-30
Coolant......................................................5-28
Coolant Heater............................................2-21
Coolant Temperature Gage...........................3-29
Drive Belt Routing.......................................6-15
Engine Compartment Overview......................5-12
Exhaust.....................................................2-35
Fan Noise..................................................5-33
Oil .............................................................5-15
Oil Life System...........................................5-18
Overheating................................................5-32
Starting......................................................2-20
Event Data Recorders.....................................7-17
Exit Lighting...................................................3-16
Extender, Safety Belt.......................................1-34
Exterior Cargo Lamps......................................3-15
Exterior Lamps...............................................3-12
F
Filter
Engine Air Cleaner......................................5-20
Finish Damage.............................................5-106
Fixed Mast Antenna........................................3-61
Flashers, Hazard Warning.................................. 3-6
Flash-to-Pass................................................... 3-8
Flat Tire........................................................5-77
Flat Tire, Changing.........................................5-78
Flat Tire, Storing.............................................5-94
Fluid
Automatic Transmission................................5-21
Power Steering...........................................5-34
Windshield Washer......................................5-35
Fog Lamp
Fog ...........................................................3-14
Four-Wheel Drive....................................2-26, 5-44
Front Axle......................................................5-45
Front Turn Signal, Parking and
Daytime Running Lamps...............................5-49
Fuel............................................................... 5-5
Additives...................................................... 5-6
California Fuel.............................................. 5-6
Driving for Better Economy............................. 4-2
5

Passenger Sensing System..............................1-70
Passing.........................................................4-11
PASS-Key
®III+ Electronic Immobilizer...............2-16
PASS-Key®III+ Electronic Immobilizer
Operation...................................................2-16
Passlock
®......................................................2-15
Perchlorate Materials Requirements,
California..................................................... 5-4
Pickup Conversion to Chassis Cab....................4-40
Power
Door Locks.................................................. 2-7
Lumbar Controls........................................... 1-4
Retained Accessory.....................................2-19
Seat ............................................................ 1-3
Steering Fluid.............................................5-34
Windows....................................................2-12
Privacy..........................................................7-16
Event Data Recorders..................................7-17
Navigation System.......................................7-18
OnStar .......................................................7-18
Radio Frequency Identication.......................7-18
Programmable Automatic Door Locks.................. 2-7
R
Radio Frequency Identication (RFID),
Privacy......................................................7-18
Radio(s)........................................................3-44
Radios
Reception...................................................3-60
Setting the Clock.........................................3-43
Theft-Deterrent............................................3-60
Rear Axle......................................................5-43
Limited-Slip.................................................. 4-9
Rear Door Security Locks.................................. 2-8
Rear Doors...................................................... 2-9
Rear Seat Operation...............................1-10, 1-11
Rear Storage Area..........................................2-45
Rearview Mirror, Automatic Dimming..................2-37
Rearview Mirrors.............................................2-37
Reclining Seatbacks.......................................... 1-5
Recommended Fluids and Lubricants.................6-11
Recovery Hooks.............................................4-32
Recreational Vehicle Towing.............................4-41
Remote Keyless Entry (RKE) System.................. 2-4
Remote Keyless Entry (RKE) System,
Operation..................................................... 2-4
10
