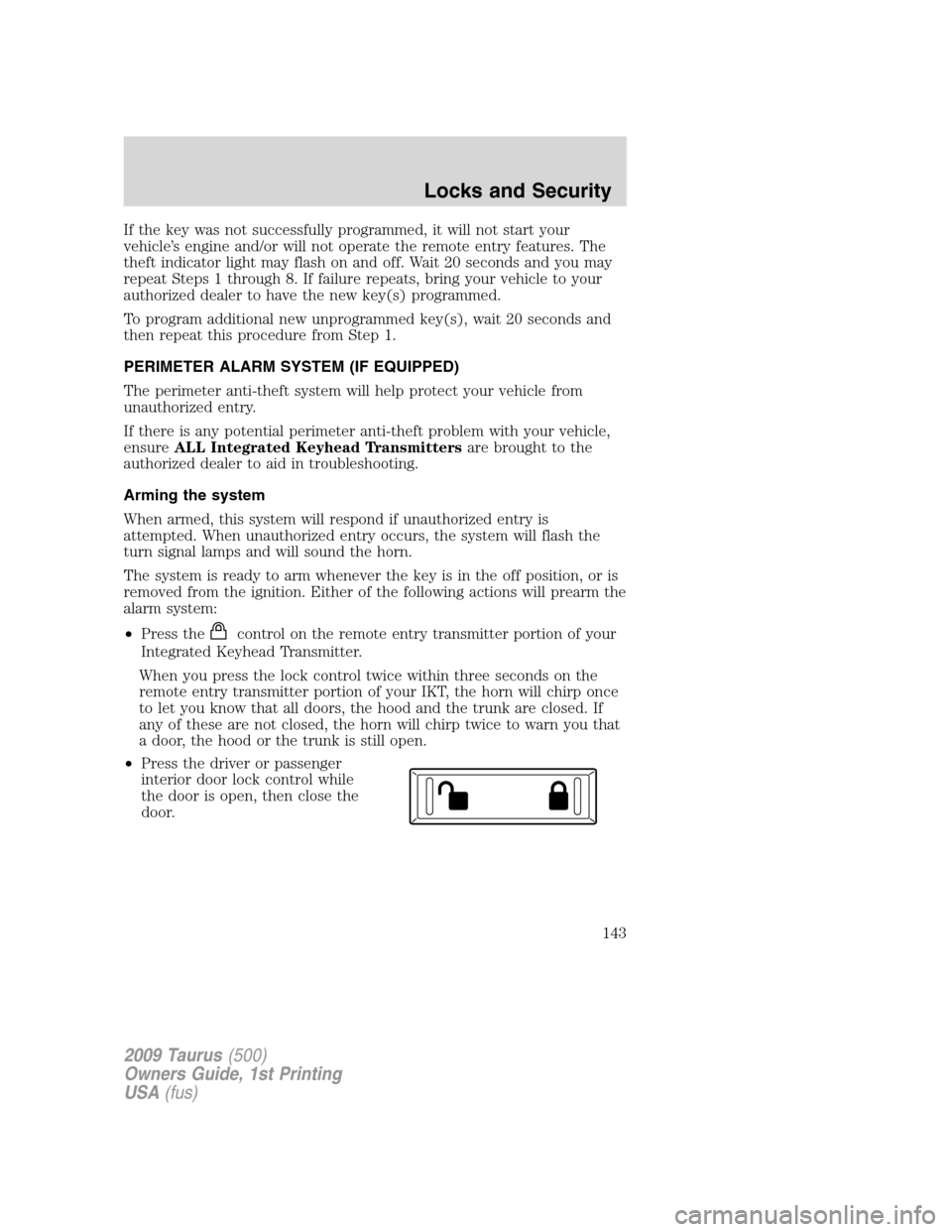

2009 FORD TAURUS remote start

If the key was not successfully programmed, it will not start your
vehicle’s engine and/or will not operate the remote entry features. The
theft indicator light may flash on and off. Wait 20 seconds and you may
repeat Steps 1 through 8. If failure repeats, bring your vehicle to your
authorized dealer to have the new key(s) programmed.
To program additional new unprogrammed key(s), wait 20 seconds and
then repeat this procedure from Step 1.
PERIMETER ALARM SYSTEM (IF EQUIPPED)
The perimeter anti-theft system will help protect your vehicle from
unauthorized entry.
If there is any potential perimeter anti-theft problem with your vehicle,
ensureALL Integrated Keyhead Transmittersare brought to the
authorized dealer to aid in troubleshooting.
Arming the system
When armed, this system will respond if unauthorized entry is
attempted. When unauthorized entry occurs, the system will flash the
turn signal lamps and will sound the horn.
The system is ready to arm whenever the key is in the off position, or is
removed from the ignition. Either of the following actions will prearm the
alarm system:
•Press the
control on the remote entry transmitter portion of your
Integrated Keyhead Transmitter.
When you press the lock control twice within three seconds on the
remote entry transmitter portion of your IKT, the horn will chirp once
to let you know that all doors, the hood and the trunk are closed. If
any of these are not closed, the horn will chirp twice to warn you that
a door, the hood or the trunk is still open.
•Press the driver or passenger
interior door lock control while
the door is open, then close the
door.
2009 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Locks and Security
143

WARNING:When mounting replacement tires and wheels, you
should not exceed the maximum pressure indicated on the
sidewall of the tire to set the beads without additional precautions
listed below. If the beads do not seat at the maximum pressure
indicated, re-lubricate and try again.
When inflating the tire for mounting pressures up to 20 psi (1.38 bar)
greater than the maximum pressure on the tire sidewall, the following
precautions must be taken to protect the person mounting the tire:
1. Make sure that you have the correct tire and wheel size.
2. Lubricate the tire bead and wheel bead seat area again.
3. Stand at a minimum of 12 ft. (3.66 m) away from the tire wheel assembly.
4. Use both eye and ear protection.
For a mounting pressure more than 20 psi (1.38 bar) greater than the
maximum pressure, a Ford Dealer or other tire service professional
should do the mounting.
Always inflate steel carcass tires with a remote air fill with the person
inflating standing at a minimum of 12 ft. (3.66 m) away from the tire
wheel assembly.
Important:Remember to replace the wheel valve stems when the road
tires are replaced on your vehicle.
It is recommended that the two front tires or two rear tires generally be
replaced as a pair.
The tire pressure sensors mounted in the wheels (originally installed on
your vehicle) are not designed to be used in aftermarket wheels.
The use of wheels or tires not recommended by Ford Motor Company
may affect the operation of your Tire Pressure Monitoring System.
If the TPMS indicator is flashing, your TPMS is malfunctioning. Your
replacement tire might be incompatible with your TPMS, or some
component of the TPMS may be damaged.
Safety practices
Driving habits have a great deal to do with your tire mileage and safety.
•Observe posted speed limits
•Avoid fast starts, stops and turns
•Avoid potholes and objects on the road
•Do not run over curbs or hit the tire against a curb when parking
2009 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Tires, Wheels and Loading
206

Peace of mind
Remote start
Vehicle security systems
Wheel locks
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2009 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Accessories
330

fluid, specifications .................324
Power Windows ...........................97
R
Radio ................................18, 22, 29
Rear seat entertainment
system ..........................................45
Recommendations for attaching
safety restraints for children.....184
Relays ........................................255
Remote entry system .......131–132
illuminated entry ............136–137
locking/unlocking doors..132–133
opening the trunk ...................133
panic alarm .............................133
replacement/additional
transmitters .............................135
replacing the batteries ...........134
Reverse sensing system ...........245
Roadside assistance ..................253
S
Safety belts (see Safety
restraints) ..................153, 157–160
Safety Canopy ...................176, 178
Safety defects, reporting ..283–284
Safety restraints ........153, 157–161
Belt-Minder...........................162
extension assembly ................161
for adults .........................158–160
for children .............................182
Occupant Classification
Sensor ......................................155
warning light and
chime ...............................161–162
Safety restraints - LATCH
anchors ......................................190Safety seats for children ..........186
Safety Compliance
Certification Label ....................327
Satellite Radio Information ........42
Seats ..........................................145
child safety seats ....................186
front seats .......................145, 147
heated ................................78, 150
memory seat ...................133, 151
SecuriLock passive anti-theft
system ........................................139
Servicing your vehicle ..............292
Setting the clock
AM/FM single CD .....................23
AM/FM/In-dash 6 CD ................30
Spare tire
(see Changing the Tire) ...........265
Spark plugs,
specifications .....................323, 326
Specification chart,
lubricants ...................................324
Speed control ............................102
Starting your vehicle ........229–231
jump starting ..........................270
Steering wheel
controls ....................................105
tilting .........................................94
SYNC ............................................73
T
Tilt steering wheel ......................94
Tire Pressure Monitoring
System (TPMS)
Roadside Emergencies ...........262
Tires, Wheels and Loading ....214
2009 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Index
335
