2009 FORD SUPER DUTY jump start

Locks and Security 153
Keys 153
Locks 153
Anti-theft system 165
Seating and Safety Restraints 169
Seating 169
Safety restraints 178
Airbags 190
Child restraints 200
Tires, Wheels and Loading 222
Tire information 224
Tire inflation 227
Tire Pressure Monitoring System (TPMS) 242
Vehicle loading 253
Trailer towing 259
Trailer brake controller-integrated 264
Recreational towing 271
Driving 272
Starting 272
Brakes 277
Traction Control™ 279
Transmission operation 282
Reverse sensing system 289
Reverse camera 292
Roadside Emergencies 313
Getting roadside assistance 313
Hazard flasher control 314
Fuel pump shut-off switch 315
Fuses and relays 316
Changing tires 325
Wheel lug nut torque 341
Jump starting 342
Wrecker towing 347
Table of Contents
2
2009 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

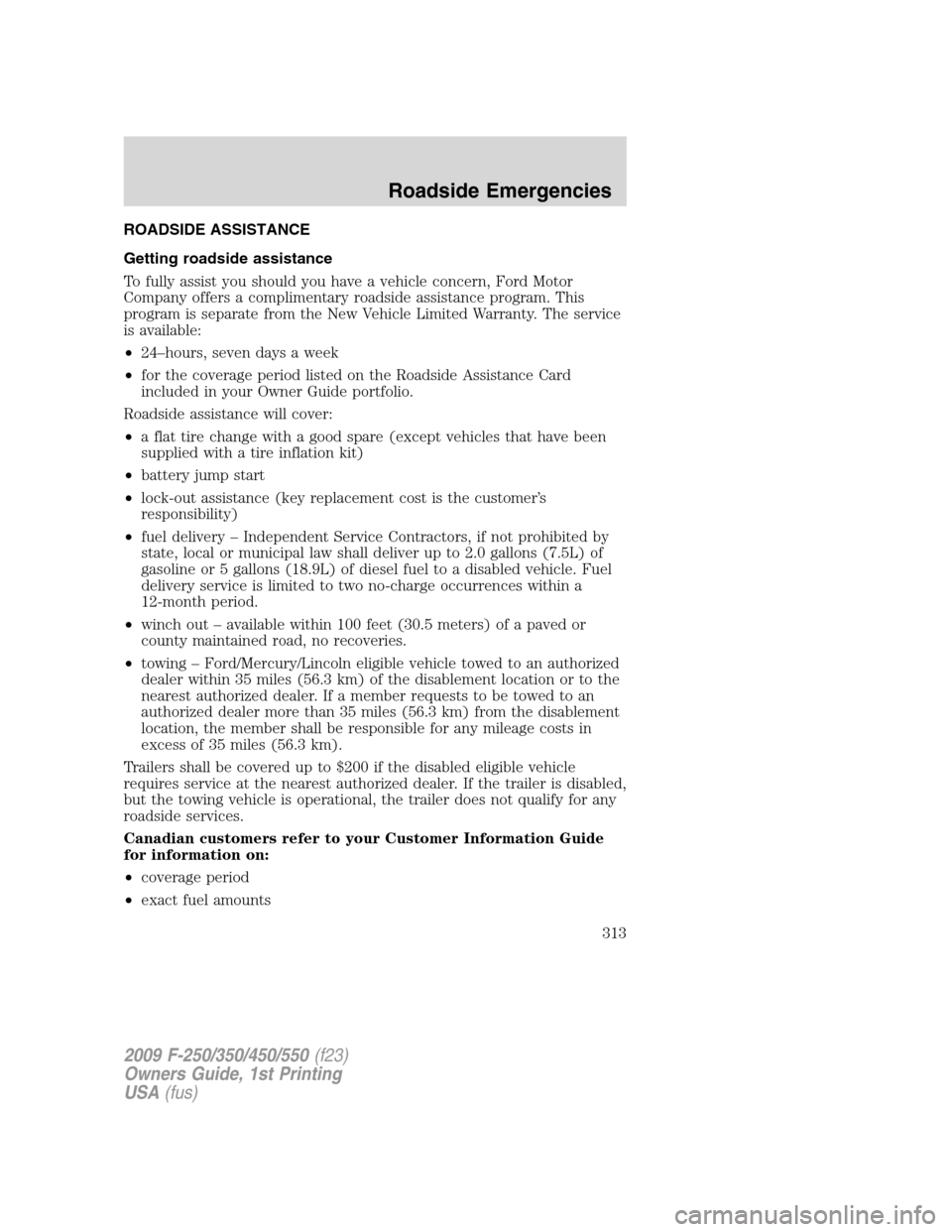

ROADSIDE ASSISTANCE
Getting roadside assistance
To fully assist you should you have a vehicle concern, Ford Motor
Company offers a complimentary roadside assistance program. This
program is separate from the New Vehicle Limited Warranty. The service
is available:
•24–hours, seven days a week
•for the coverage period listed on the Roadside Assistance Card
included in your Owner Guide portfolio.
Roadside assistance will cover:
•a flat tire change with a good spare (except vehicles that have been
supplied with a tire inflation kit)
•battery jump start
•lock-out assistance (key replacement cost is the customer’s
responsibility)
•fuel delivery – Independent Service Contractors, if not prohibited by
state, local or municipal law shall deliver up to 2.0 gallons (7.5L) of
gasoline or 5 gallons (18.9L) of diesel fuel to a disabled vehicle. Fuel
delivery service is limited to two no-charge occurrences within a
12-month period.
•winch out – available within 100 feet (30.5 meters) of a paved or
county maintained road, no recoveries.
•towing – Ford/Mercury/Lincoln eligible vehicle towed to an authorized
dealer within 35 miles (56.3 km) of the disablement location or to the
nearest authorized dealer. If a member requests to be towed to an
authorized dealer more than 35 miles (56.3 km) from the disablement
location, the member shall be responsible for any mileage costs in
excess of 35 miles (56.3 km).
Trailers shall be covered up to $200 if the disabled eligible vehicle
requires service at the nearest authorized dealer. If the trailer is disabled,
but the towing vehicle is operational, the trailer does not qualify for any
roadside services.
Canadian customers refer to your Customer Information Guide
for information on:
•coverage period
•exact fuel amounts
2009 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
313

Inspect the wheel pilot hole prior to
installation. If there is visible
corrosion in wheel pilot hole,
remove loose particles by wiping
with clean rag and apply grease.
Apply grease only to the wheel pilot
hole surface by smearing a “dime”
(1 square cm) sized glob of grease
around the wheel pilot surface (1)
with end of finger. DO NOT apply
grease to lug nut/stud holes or
wheel-to-brake surfaces.
JUMP STARTING
WARNING:The gases around the battery can explode if
exposed to flames, sparks, or lit cigarettes. An explosion could
result in injury or vehicle damage.
WARNING:Batteries contain sulfuric acid which can burn skin,
eyes and clothing, if contacted.
Do not attempt to push-start your automatic transmission
vehicle. Automatic transmissions do not have push-start
capability. Attempting to push-start a vehicle with an automatic
transmission may cause transmission damage.
Preparing your vehicle
When the battery is disconnected or a new battery is installed, the
automatic transmission must relearn its shift strategy. As a result, the
transmission may have firm and/or soft shifts. This operation is
considered normal and will not affect function or durability of the
transmission. Over time, the adaptive learning process will fully update
transmission operation.
1.Use only a 12–volt supply to start your vehicle.
2. Do not disconnect the battery of the disabled vehicle as this could
damage the vehicle’s electrical system.
3. Park the booster vehicle close to the hood of the disabled vehicle
making sure the two vehiclesdo nottouch. Set the parking brake on
both vehicles and stay clear of the engine cooling fan and other moving
parts.
2009 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
342

3. Connect the negative (-) cable to the negative (-) terminal of the
assisting battery.
4. Make the final connection of the negative (-) cable to an exposed
metal part of the stalled vehicle’s engine, away from the battery and the
carburetor/fuel injection system.Do notuse fuel lines, engine rocker
covers or the intake manifold asgroundingpoints.
WARNING:Do not connect the end of the second cable to the
negative (-) terminal of the battery to be jumped. A spark may
cause an explosion of the gases that surround the battery.
5. Ensure that the cables are clear of fan blades, belts, moving parts of
both engines, or any fuel delivery system parts.
Jump starting
1. Start the engine of the booster vehicle and run the engine at
moderately increased speed.
2. Start the engine of the disabled vehicle.
3. Once the disabled vehicle has been started, run both engines for an
additional three minutes before disconnecting the jumper cables.
+–+–
+–+–
2009 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
344

3. Remove the jumper cable from the positive (+) terminal of the booster
vehicle’s battery.
4. Remove the jumper cable from the positive (+) terminal of the
disabled vehicle’s battery.
After the disabled vehicle has been started and the jumper cables
removed, allow it to idle for several minutes so the engine computer can
relearnits idle conditions.
+–+–
+–+–
2009 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
346

washing ....................................357
waxing .....................................358
wheels ......................................358
wiper blades ............................360
Climate control (see Air
conditioning or Heating) ......80, 84
Clock adjust
6-CD in dash .............................37
AM/FM/CD .................................30
Clutch
fluid ..........................................396
operation while driving ..........287
recommended shift speeds ....288
Compass, electronic
set zone adjustment ...............141
Console ......................................106
overhead ..................................105
Controls
power seat ...............................172
steering column ......................118
Coolant
checking and adding ..............377
refill capacities ................381, 404
Cruise control (see Speed
control) ......................................116
Customer Assistance ................313
Ford accessories for your
vehicle .....................................365
Ford Extended Service
Plan ..........................................353
Getting assistance outside the
U.S. and Canada .....................354
Getting roadside assistance ...313
Getting the service you
need .........................................349
Ordering additional owner’s
literature .................................355Utilizing the
Mediation/Arbitration
Program ...................................353
D
Daytime running lamps
(see Lamps) ................................90
Dipstick
automatic transmission
fluid ..........................................396
engine oil .................................372
Driving under special
conditions ..................286, 303, 306
sand .........................................305
snow and ice ...........................307
through water .................306, 309
DVD system .................................51
E
Electronic message
center .................................127, 136
Emergencies, roadside
jump-starting ..........................342
Emergency Flashers .................314
Emission control system ..........391
Engine ........................................408
cleaning ...................................359
coolant .....................................377
diesel .........................................10
fail-safe cooling .......................382
idle speed control ...................375
refill capacities ........................404
service points ..................369–370
starting after a collision .........315
Engine oil ..................................372
checking and adding ..............372
dipstick ....................................372
filter, specifications ........374, 403
2009 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)
Index
414

Instrument panel
cleaning ...........................361–362
cluster ........................................14
lighting up panel and
interior .......................................91
J
Jump-starting your vehicle ......342
K
Keyless entry system
autolock ...................................154
keypad .....................................164
locking and unlocking doors ..165
programming entry code .......164
Keys ...................................166–167
positions of the ignition .........272
L
Lamps
autolamp system .......................89
daytime running light ...............90
fog lamps ...................................89
headlamps .................................89
headlamps, flash to pass ..........90
instrument panel, dimming .....91
interior lamps ...........................95
replacing bulbs .................97–102
LATCH anchors .........................212
Lights, warning and indicator ....14
anti-lock brakes (ABS) ..........278
Limited-slip axle .......................281
Load limits .................................253
Loading instructions .................259
Locks
autolock ...................................154
childproof ................................157doors ........................................153
Lug nuts ....................................341
Lumbar support, seats .............173
M
Manual transmission .................287
fluid capacities ........................404
reverse .....................................289
Message center .................127, 136
english/metric button .............140
system check button ..............139
warning messages ...........130, 142
Mirrors ...............................110–111
automatic dimming rearview
mirror ......................................110
fold away .........................112, 114
side view mirrors (power) .....111
signal .......................................115
Moon roof ..................................122
Motorcraft parts ................383, 403
N
Navigation system .......................79
O
Octane rating ............................387
Oil (see Engine oil) ..................372
Overdrive ...................................104
P
Parking brake ............................278
Parts (see Motorcraft parts) ....403
Pedals (see Power adjustable
foot pedals) ...............................115
Power adjustable foot pedals ...115
2009 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)
Index
416

Power distribution box
(see Fuses) ...............................321
Power door locks ......................153
Power mirrors ...........................111
Power point ...............................107
Power steering ..........................280
fluid, checking and adding ....394
fluid, refill capacity ................404
Power Windows .........................108
Preparing to drive your
vehicle ........................................281
R
Radio ................................26, 28, 35
Rear seat entertainment
system ..........................................51
Relays ........................................316
Remote entry system ...............157
illuminated entry ............162–163
locking/unlocking
doors ................................153, 158
replacing the batteries ...........160
Reverse camera .........................292
Reverse sensing system ...........289
Roadside assistance ..................313
S
Safety belts (see Safety
restraints) ..........................178–183
Safety defects, reporting ..355–356
Safety restraints ................178–183
Belt-Minder
...........................186
extension assembly ................189
for adults .........................179–183
for children .............................200lap belt ....................................184
warning light and
chime ...............................185–186
Safety restraints - LATCH
anchors ......................................212
Safety seats for children ..........204
Safety Compliance
Certification Label ....................409
Satellite Radio Information ........47
Seats ..........................................169
child safety seats ....................204
cleaning ...................................364
heated ........................................84
memory seat ...................159, 174
SecuriCode keyless entry
system ........................................163
SecuriLock passive anti-theft
system ................................165, 167
Servicing your vehicle ..............367
Setting the clock
AM/FM/CD .................................30
AM/FM/In-dash 6 CD ................37
Snowplowing ...............10, 310–311
Spark plugs,
specifications .....................403, 408
Special notice ..............................11
ambulance conversions ............10
diesel-powered vehicles ...........10
four-wheel drive vehicles .......312
utility-type vehicles ..................10
Speed control ............................116
Starting your vehicle ........272–274
jump starting ..........................342
Steering wheel
controls ....................................118
tilting .......................................104
SYNC
..........................................79
2009 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)
Index
417
