2009 FORD MUSTANG coolant

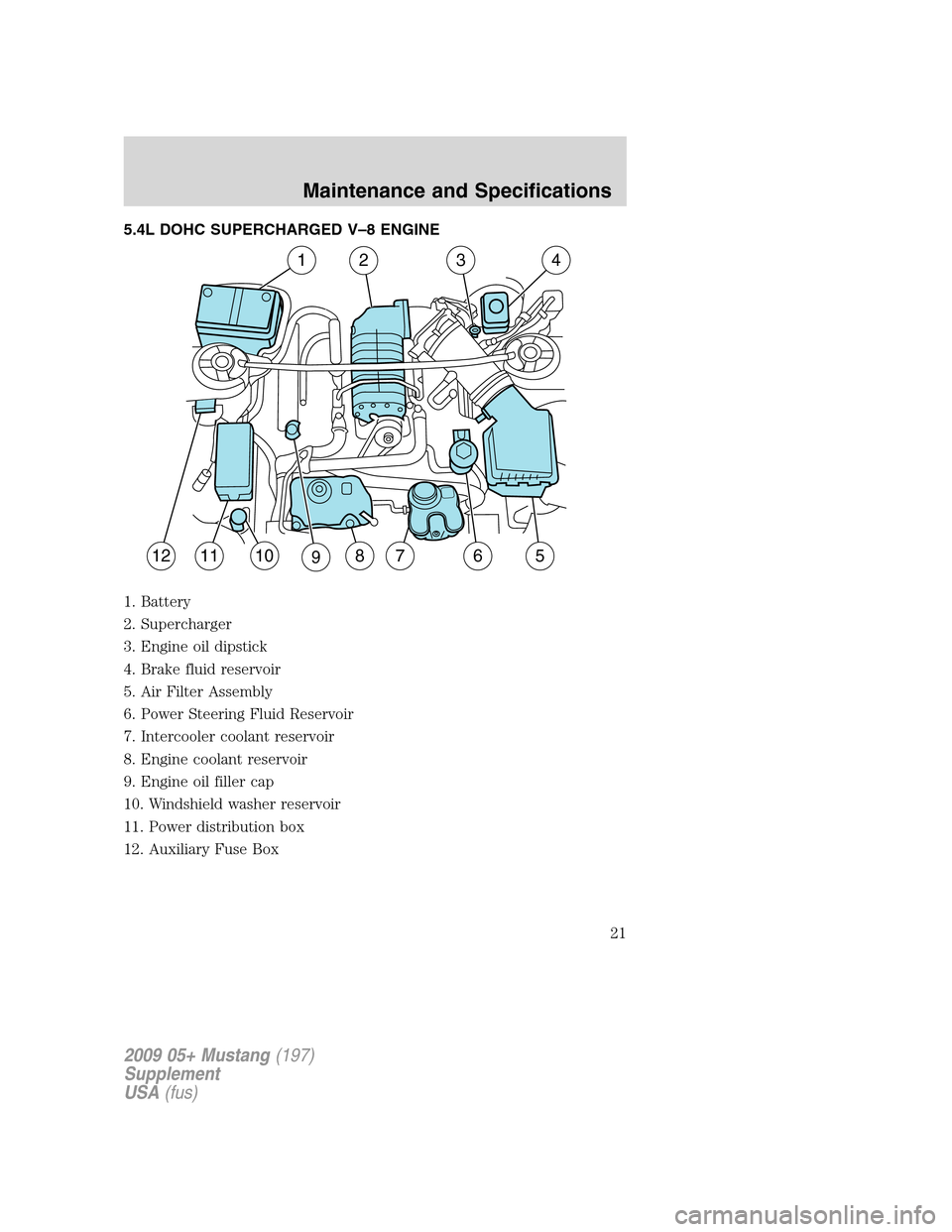

5.4L DOHC SUPERCHARGED V–8 ENGINE
1. Battery
2. Supercharger
3. Engine oil dipstick
4. Brake fluid reservoir
5. Air Filter Assembly
6. Power Steering Fluid Reservoir
7. Intercooler coolant reservoir
8. Engine coolant reservoir
9. Engine oil filler cap
10. Windshield washer reservoir
11. Power distribution box
12. Auxiliary Fuse Box
134
11121098657
2
2009 05+ Mustang(197)
Supplement
USA(fus)
Maintenance and Specifications
21

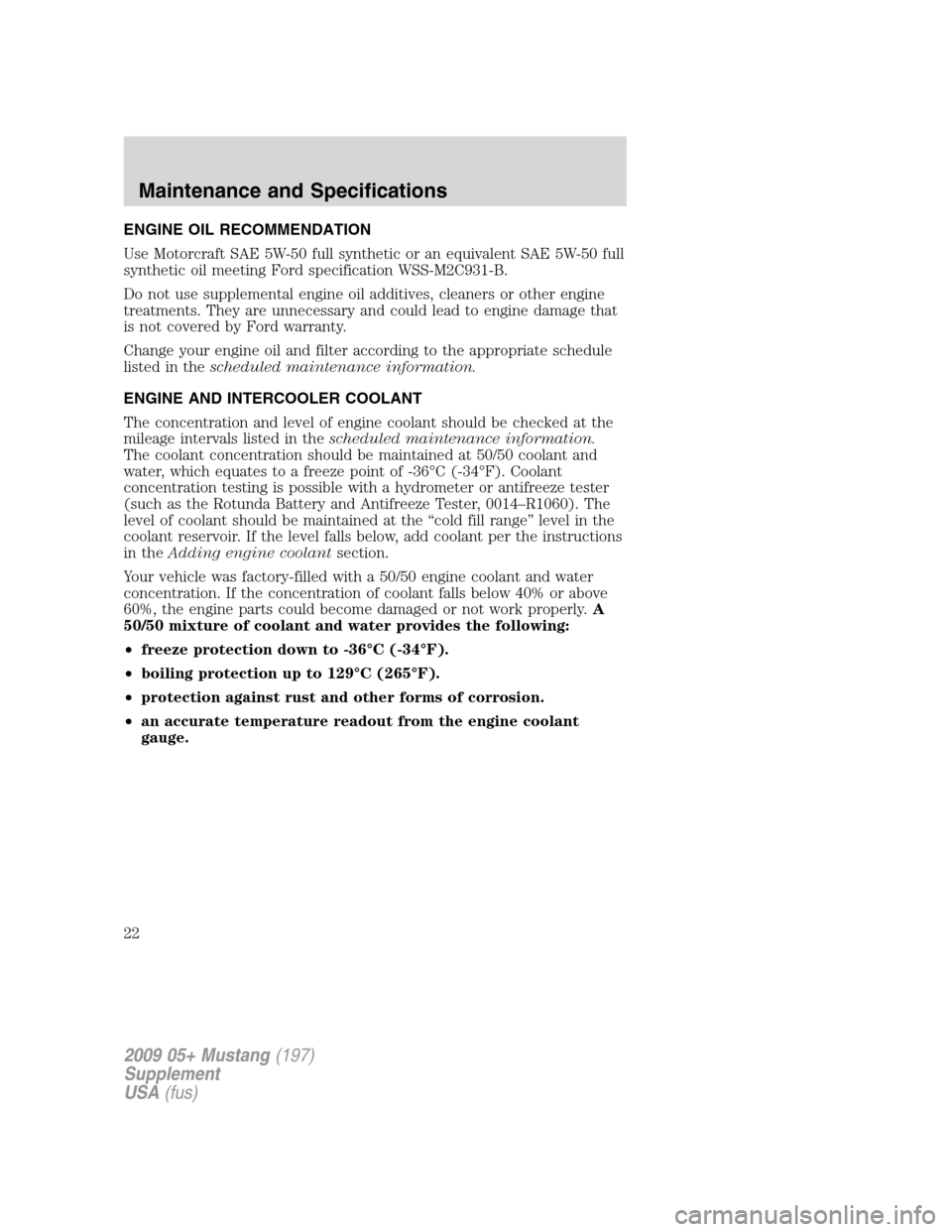

ENGINE OIL RECOMMENDATION
Use Motorcraft SAE 5W-50 full synthetic or an equivalent SAE 5W-50 full
synthetic oil meeting Ford specification WSS-M2C931-B.
Do not use supplemental engine oil additives, cleaners or other engine
treatments. They are unnecessary and could lead to engine damage that
is not covered by Ford warranty.
Change your engine oil and filter according to the appropriate schedule
listed in thescheduled maintenance information.
ENGINE AND INTERCOOLER COOLANT
The concentration and level of engine coolant should be checked at the
mileage intervals listed in thescheduled maintenance information.
The coolant concentration should be maintained at 50/50 coolant and
water, which equates to a freeze point of -36°C (-34°F). Coolant
concentration testing is possible with a hydrometer or antifreeze tester
(such as the Rotunda Battery and Antifreeze Tester, 0014–R1060). The
level of coolant should be maintained at the “cold fill range” level in the
coolant reservoir. If the level falls below, add coolant per the instructions
in theAdding engine coolantsection.
Your vehicle was factory-filled with a 50/50 engine coolant and water
concentration. If the concentration of coolant falls below 40% or above
60%, the engine parts could become damaged or not work properly.A
50/50 mixture of coolant and water provides the following:
•freeze protection down to -36°C (-34°F).
•boiling protection up to 129°C (265°F).
•protection against rust and other forms of corrosion.
•an accurate temperature readout from the engine coolant
gauge.
2009 05+ Mustang(197)
Supplement
USA(fus)
Maintenance and Specifications
22

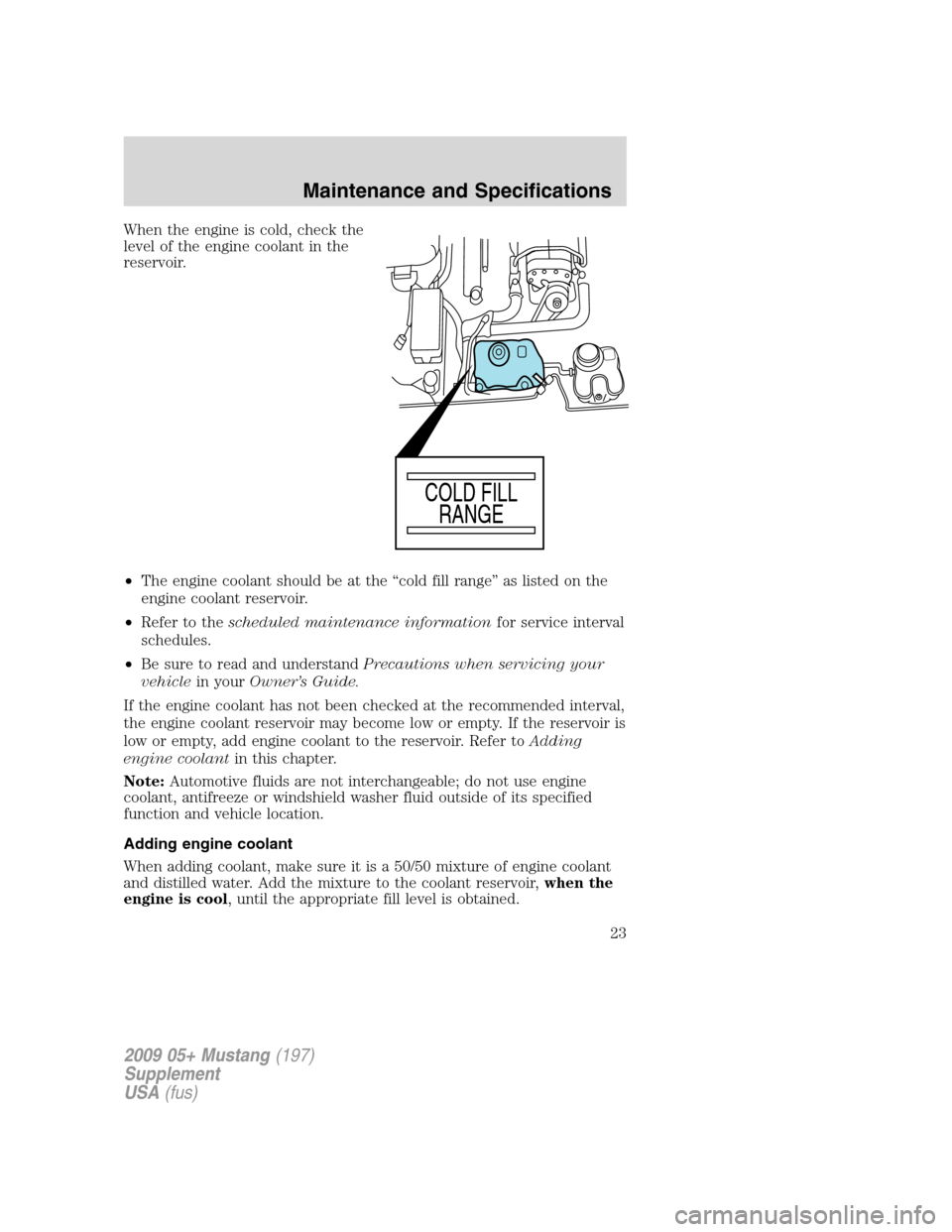

When the engine is cold, check the
level of the engine coolant in the
reservoir.
•The engine coolant should be at the “cold fill range” as listed on the
engine coolant reservoir.
•Refer to thescheduled maintenance informationfor service interval
schedules.
•Be sure to read and understandPrecautions when servicing your
vehiclein yourOwner’s Guide.
If the engine coolant has not been checked at the recommended interval,
the engine coolant reservoir may become low or empty. If the reservoir is
low or empty, add engine coolant to the reservoir. Refer toAdding
engine coolantin this chapter.
Note:Automotive fluids are not interchangeable; do not use engine
coolant, antifreeze or windshield washer fluid outside of its specified
function and vehicle location.
Adding engine coolant
When adding coolant, make sure it is a 50/50 mixture of engine coolant
and distilled water. Add the mixture to the coolant reservoir,when the
engine is cool, until the appropriate fill level is obtained.
COLD FILL
RANGE
2009 05+ Mustang(197)
Supplement
USA(fus)
Maintenance and Specifications
23

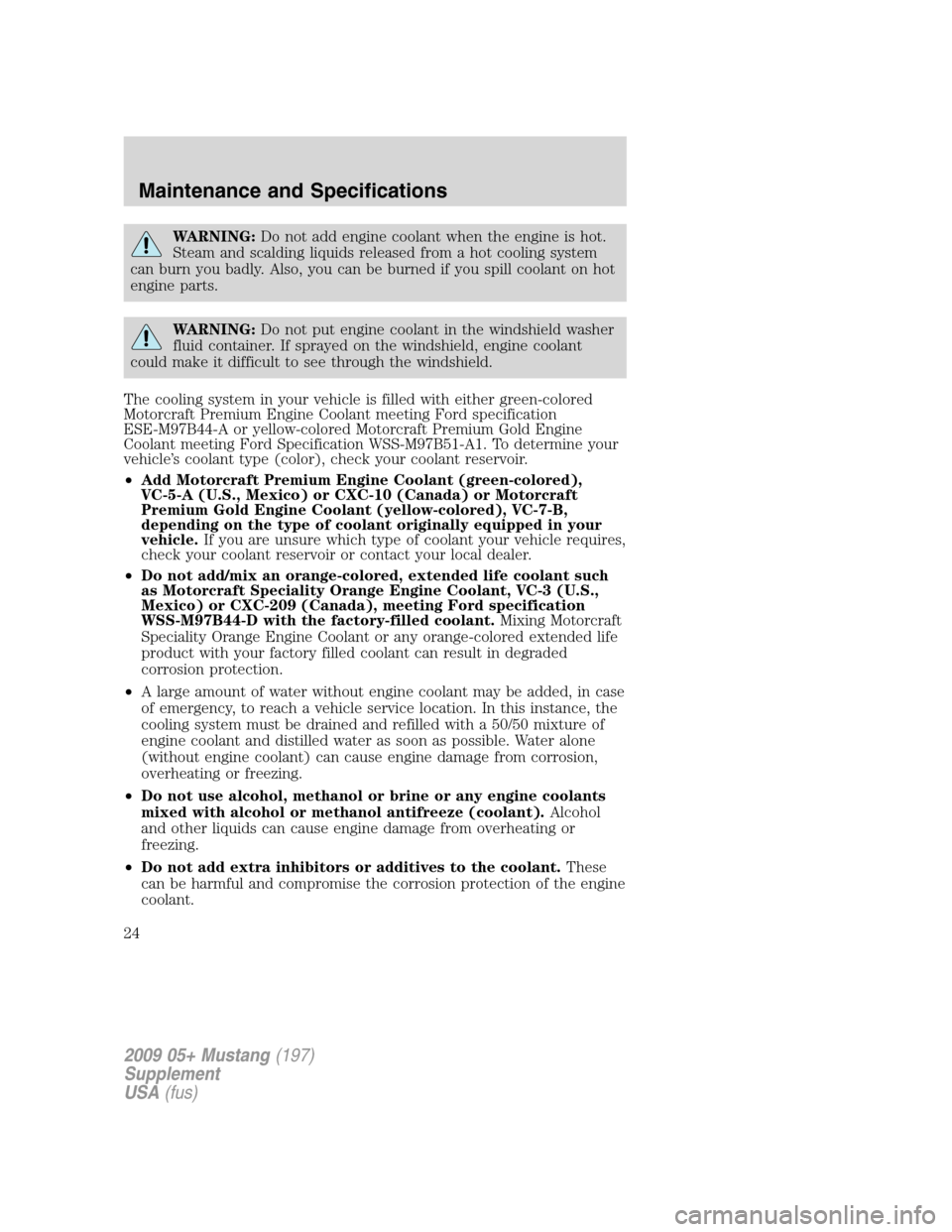

WARNING:Do not add engine coolant when the engine is hot.
Steam and scalding liquids released from a hot cooling system
can burn you badly. Also, you can be burned if you spill coolant on hot
engine parts.
WARNING:Do not put engine coolant in the windshield washer
fluid container. If sprayed on the windshield, engine coolant
could make it difficult to see through the windshield.
The cooling system in your vehicle is filled with either green-colored
Motorcraft Premium Engine Coolant meeting Ford specification
ESE-M97B44-A or yellow-colored Motorcraft Premium Gold Engine
Coolant meeting Ford Specification WSS-M97B51-A1. To determine your
vehicle’s coolant type (color), check your coolant reservoir.
•Add Motorcraft Premium Engine Coolant (green-colored),
VC-5-A (U.S., Mexico) or CXC-10 (Canada) or Motorcraft
Premium Gold Engine Coolant (yellow-colored), VC-7-B,
depending on the type of coolant originally equipped in your
vehicle.If you are unsure which type of coolant your vehicle requires,
check your coolant reservoir or contact your local dealer.
•Do not add/mix an orange-colored, extended life coolant such
as Motorcraft Speciality Orange Engine Coolant, VC-3 (U.S.,
Mexico) or CXC-209 (Canada), meeting Ford specification
WSS-M97B44-D with the factory-filled coolant.Mixing Motorcraft
Speciality Orange Engine Coolant or any orange-colored extended life
product with your factory filled coolant can result in degraded
corrosion protection.
•A large amount of water without engine coolant may be added, in case
of emergency, to reach a vehicle service location. In this instance, the
cooling system must be drained and refilled with a 50/50 mixture of
engine coolant and distilled water as soon as possible. Water alone
(without engine coolant) can cause engine damage from corrosion,
overheating or freezing.
•Do not use alcohol, methanol or brine or any engine coolants
mixed with alcohol or methanol antifreeze (coolant).Alcohol
and other liquids can cause engine damage from overheating or
freezing.
•Do not add extra inhibitors or additives to the coolant.These
can be harmful and compromise the corrosion protection of the engine
coolant.
2009 05+ Mustang(197)
Supplement
USA(fus)
Maintenance and Specifications
24

•Do not mix with recycled coolant unless from a Ford-approved
recycling process (seeUse of recycled engine coolantsection).
WARNING:To reduce the risk of personal injury, make sure the
engine is cool before unscrewing the coolant pressure relief cap.
The cooling system is under pressure; steam and hot liquid can come
out forcefully when the cap is loosened slightly.
If you must remove the pressure relief cap or radiator cap (depending
upon engine application), follow these steps to avoid personal injury:
1. Before you remove the cap, turn the engine off and let it cool.
2. When the engine is cool, wrap a thick cloth around the cap. Slowly
turn cap counterclockwise until pressure begins to release.
3. Step back while the pressure releases.
4. When you are sure that all the pressure has been released, use the
cloth to turn it counterclockwise and remove the cap.
Engine coolant refill procedure
The following procedure should be used when refilling the cooling
system after it has been drained or become extremely low.
1. Remove the pressure relief cap from the engine coolant reservoir as
previously outlined.
2. Slowly add a50/50 mixtureof engine coolant and distilled water to
the engine coolant reservoir until the coolant level is at the “cold fill
level” as listed on the reservoir.
3. Reinstall the pressure relief cap.
4. Start and idle the engine until the upper radiator hose is warm (this
indicates the thermostat is open and coolant is flowing through the
entire system).
5. Shut the engine off and let it cool.
6. Remove the pressure relief cap from the engine coolant reservoir as
previously outlined.
7. Add a50/50 mixtureof engine coolant and distilled water to the
engine coolant reservoir until the coolant level is at the “cold fill range”
as listed on the reservoir.
8. Reinstall the pressure relief cap.
9. Check the coolant level in the reservoir before you drive your vehicle
the next few times (with the engine cool).
2009 05+ Mustang(197)
Supplement
USA(fus)
Maintenance and Specifications
25

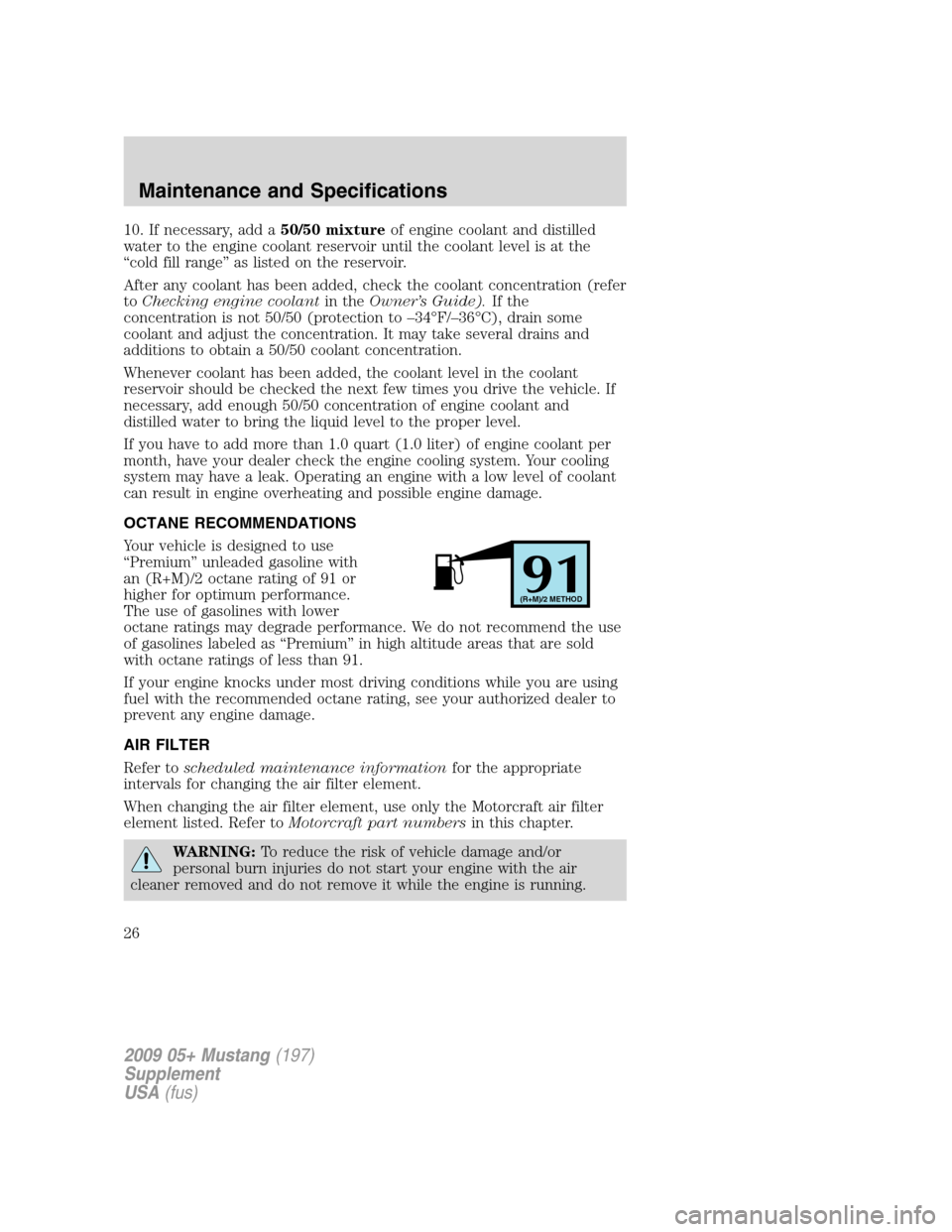

10. If necessary, add a50/50 mixtureof engine coolant and distilled
water to the engine coolant reservoir until the coolant level is at the
“cold fill range” as listed on the reservoir.
After any coolant has been added, check the coolant concentration (refer
toChecking engine coolantin theOwner’s Guide).If the
concentration is not 50/50 (protection to –34°F/–36°C), drain some
coolant and adjust the concentration. It may take several drains and
additions to obtain a 50/50 coolant concentration.
Whenever coolant has been added, the coolant level in the coolant
reservoir should be checked the next few times you drive the vehicle. If
necessary, add enough 50/50 concentration of engine coolant and
distilled water to bring the liquid level to the proper level.
If you have to add more than 1.0 quart (1.0 liter) of engine coolant per
month, have your dealer check the engine cooling system. Your cooling
system may have a leak. Operating an engine with a low level of coolant
can result in engine overheating and possible engine damage.
OCTANE RECOMMENDATIONS
Your vehicle is designed to use
“Premium” unleaded gasoline with
an (R+M)/2 octane rating of 91 or
higher for optimum performance.
The use of gasolines with lower
octane ratings may degrade performance. We do not recommend the use
of gasolines labeled as “Premium” in high altitude areas that are sold
with octane ratings of less than 91.
If your engine knocks under most driving conditions while you are using
fuel with the recommended octane rating, see your authorized dealer to
prevent any engine damage.
AIR FILTER
Refer toscheduled maintenance informationfor the appropriate
intervals for changing the air filter element.
When changing the air filter element, use only the Motorcraft air filter
element listed. Refer toMotorcraft part numbersin this chapter.
WARNING:To reduce the risk of vehicle damage and/or
personal burn injuries do not start your engine with the air
cleaner removed and do not remove it while the engine is running.
91(R+M)/2 METHOD
2009 05+ Mustang(197)
Supplement
USA(fus)
Maintenance and Specifications
26

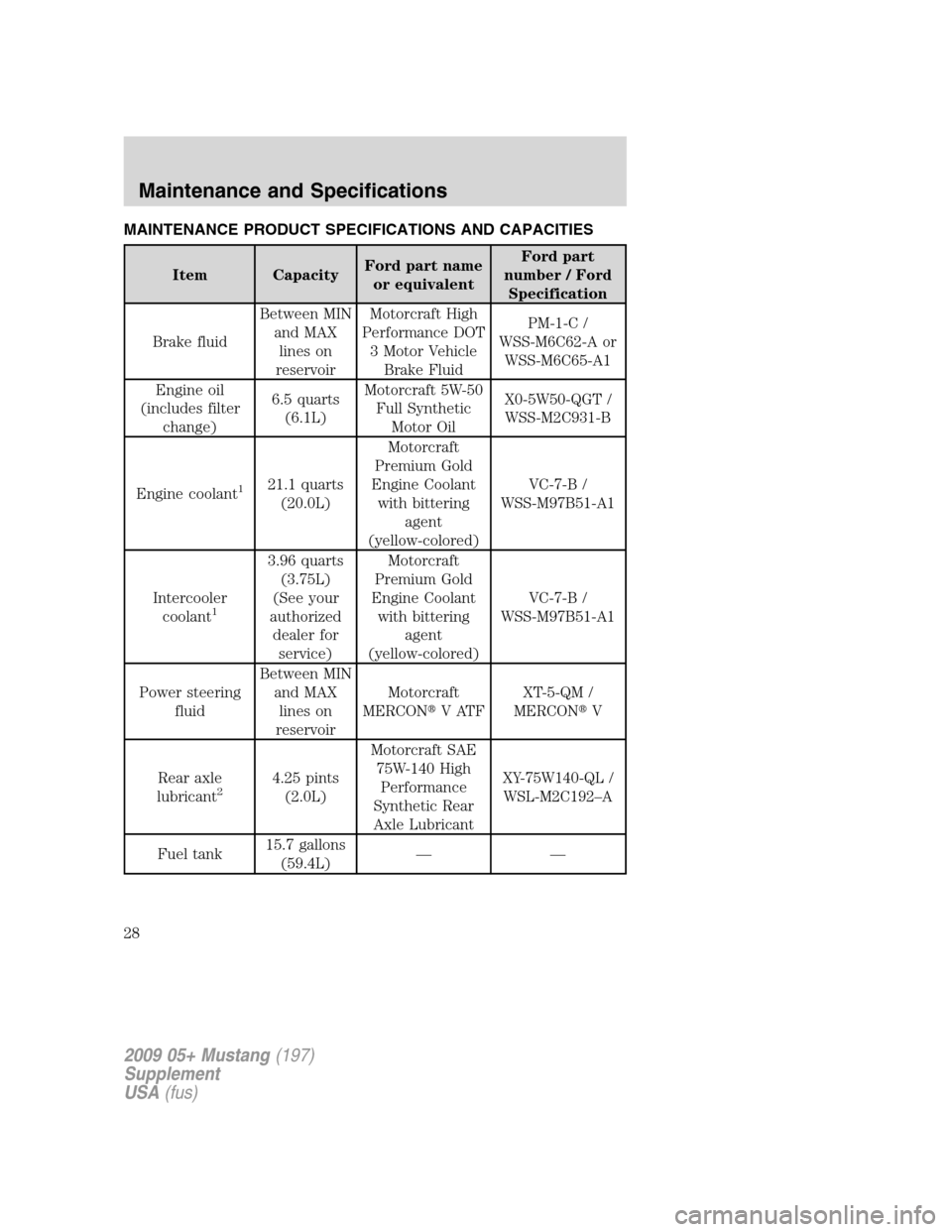

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item CapacityFord part name
or equivalentFord part
number / Ford
Specification
Brake fluidBetween MIN
and MAX
lines on
reservoirMotorcraft High
Performance DOT
3 Motor Vehicle
Brake FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Engine oil
(includes filter
change)6.5 quarts
(6.1L)Motorcraft 5W-50
Full Synthetic
Motor OilX0-5W50-QGT /
WSS-M2C931-B
Engine coolant
121.1 quarts
(20.0L)Motorcraft
Premium Gold
Engine Coolant
with bittering
agent
(yellow-colored)VC-7-B /
WSS-M97B51-A1
Intercooler
coolant
1
3.96 quarts
(3.75L)
(See your
authorized
dealer for
service)Motorcraft
Premium Gold
Engine Coolant
with bittering
agent
(yellow-colored)VC-7-B /
WSS-M97B51-A1
Power steering
fluidBetween MIN
and MAX
lines on
reservoirMotorcraft
MERCON
VATFXT-5-QM /
MERCON
V
Rear axle
lubricant
24.25 pints
(2.0L)Motorcraft SAE
75W-140 High
Performance
Synthetic Rear
Axle LubricantXY-75W140-QL /
WSL-M2C192–A
Fuel tank15.7 gallons
(59.4L)——
2009 05+ Mustang(197)
Supplement
USA(fus)
Maintenance and Specifications
28

Item CapacityFord part name
or equivalentFord part
number / Ford
Specification
Transmission
fluid
36.35 pints
(3.5L)4Motorcraft
MERCON
VATFXT-5-QM /
MERCON
V
Windshield
washer fluid4.0 quarts
(3.8L)Motorcraft
Premium
Windshield
Washer
ConcentrateZC-32-A /
WSB-M8B16–A2
1Add the coolant type originally equipped in your vehicle.
2Rear axle lubricants do not need to be checked or changed unless a
leak is suspected, service is required or the axle assembly has been
submerged in water. The axle lubricant should be changed any time the
rear axle has been submerged in water, using SAE 75W-140 High
Performance rear axle lube, meeting Ford specification WSL-M2C192–A.
Fill 1/4-9/16 in. (6-14 mm) below bottom of fill hold. Add 4 oz. (118 ml)
of Additive Friction Modifier C3AZ-19B546-A or equivalent meeting Ford
specification EST-M2C118-A for complete refill of Traction-Lok axles.
3The Tremec TR-6060 6–Speed manual transmission on your Shelby
GT500 uses MERCON
V automatic transmission fluid. Ensure that the
correct MERCON
V ATF automatic transmission fluid is used as
indicated on the label on your transmission.
4Service refill capacity is determined by filling the transmission to the
bottom of the filler hole with the vehicle on a level surface.
USING THE RIGHT BULBS
Function Trade Number
Park lamp, turn lamp, side marker (front) 3156K
Luggage compartment lamp S211
Fog lamp PS24N
2009 05+ Mustang(197)
Supplement
USA(fus)
Maintenance and Specifications
29
