2009 FORD FREESTYLE engine

Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Engine coolant11.1 quarts
(10.5L)Motorcraft Premium
Gold Engine Coolant
with bittering agent
(yellow-colored)
3
VC-7-B /
WSS-M97B51-A1
Engine coolant (with
rear heater)13.2 quarts
(12.5L)
Power steering fluidBetween MAX and
MIN on reservoirMotorcraft
MERCON
VATFX T-5-QM /
MERCON
V
Windshield washer fluidTop- off fluid as
neededMotorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank18.6 gallons
(70.4L)
(non-PZEV)
——
19.0 (71.9L)
(PZEV)
1Approximate dry fill capacity. Actual amount may vary during fluid changes.2Automatic transmissions that require MERCON
V should only use MERCON
V fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.3Add the coolant type originally equipped in your vehicle.4Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.5See your authorized dealer for fluid level checking or filling.
2009 Taurus X(219)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
347
ProCarManuals.com

ENGINE DATA
Engine 3.5L-DOHC V6 engine
Cubic inches 214
Required fuel 87 octane
Firing order 1–4–2–5–3–6
Spark plug gap 0.052–0.056 inch (1.32–1.42 mm)
Ignition system Coil on plug
Compression ratio 10.3:1
Engine drivebelt routing
1. Short drivebelt is on first pulley groove closest to engine.
2. Long drivebelt is on second pulley groove farthest from engine.
2009 Taurus X(219)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
348
ProCarManuals.com

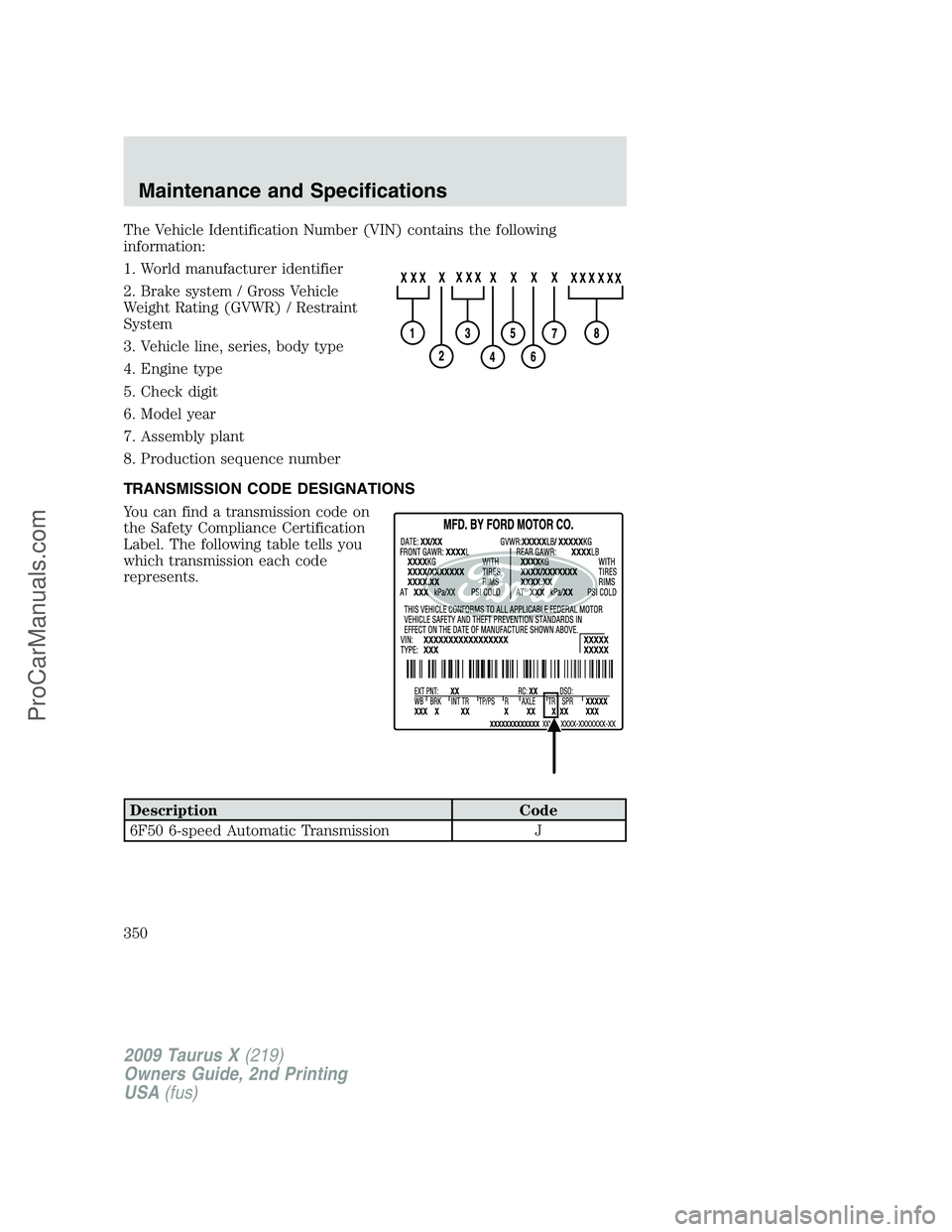

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
6F50 6-speed Automatic Transmission J
2009 Taurus X(219)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
350
ProCarManuals.com

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessories.com.
Exterior style
Bug shields
Moonroof deflector
Side window deflector
Splash guards
Interior style
All weather floor mats
Electrochromic compass/temperature interior mirrors
Carpeted floor mats
Lifestyle
Ash cup / smoker’s package
Cargo organization and management
2009 Taurus X(219)
Owners Guide, 2nd Printing
USA(fus)
Accessories
351
ProCarManuals.com

A
Accessory delay ........................104
AdvanceTrac ..............................259
Air cleaner filter ...............343–345
Air conditioning ........76, 78, 80, 82
Airbag supplemental restraint
system ................183–184, 193, 195
and child safety seats ............186
description ..............184, 193, 195
disposal ....................................199
driver airbag ............186, 193, 196
indicator light .................192, 198
operation .................186, 193, 196
passenger airbag .....186, 193, 196
side airbag ...............................193
All Wheel Drive (AWD),
driving off road .........................270
Antifreeze (see Engine
coolant) .....................................324
Anti-lock brake system
(see Brakes) ..............................257
Anti-theft system ..............149, 153
arming the system ..................153
disarming a triggered
system .....................................154
Audio system
(see Radio) ......................18, 22, 29
Automatic transaxle
fluid, refill capacities ..............346
fluid, specification ..................346
Automatic transmission
driving an automatic
overdrive .................................265
fluid, adding ............................342
fluid, checking ........................342
Auxiliary input jack (Line in) ....37
B
Battery .......................................322acid, treating emergencies .....322
jumping a disabled battery ....293
maintenance-free ....................322
replacement, specifications ...345
servicing ..................................322
Belt-Minder
.............................179
Booster seats .............................215
Brakes ........................................257
anti-lock ...................................257
anti-lock brake system (ABS)
warning light ...........................258
fluid, checking and adding ....341
fluid, refill capacities ..............346
fluid, specifications .................346
lubricant specifications ..........346
parking ....................................258
shift interlock ..........................264
Bulbs ............................................92
C
Capacities for refilling fluids ....346
Cargo cover ...............................132
Cargo net ...................................132
Cell phone use ..............................8
Changing a tire .........................285
Child safety seats ......................203
in front seat ............................204
in rear seat ..............................204
LATCH .....................................207
recommendations ...................201
tether anchorage hardware ...210
Child safety seats - booster
seats ...........................................215
Cleaning your vehicle
engine compartment ..............309
instrument panel ....................311
interior .....................................311
2009 Taurus X(219)
Owners Guide, 2nd Printing
USA(fus)
Index
353
ProCarManuals.com

plastic parts ............................310
washing ....................................307
waxing .....................................308
wheels ......................................308
wiper blades ............................310
Climate control
(see Air conditioning or
Heating) .....................76, 78, 80, 82
Clock adjust
6-CD in dash .............................30
AM/FM/CD .................................23
Compass, electronic
set zone adjustment ...............120
Console ......................................101
overhead ............................99–100
Controls
power seat ...............................158
steering column ......................110
Coolant
checking and adding ..............324
refill capacities ................328, 346
specifications ..........................346
Cruise control (see Speed
control) ......................................107
Customer Assistance ................276
Ford Extended Service
Plan ..........................................304
Getting assistance outside the
U.S. and Canada .....................304
Getting roadside assistance ...276
Getting the service you
need .........................................300
Ordering additional owner’s
literature .................................305
Utilizing the
Mediation/Arbitration
Program ...................................303D
Daytime running lamps (see
Lamps) .........................................89
Dipstick
automatic transmission
fluid ..........................................342
engine oil .................................319
Driving under special
conditions ..........................271, 273
sand .........................................272
snow and ice ...........................274
through water .................272, 275
DVD system .................................45
E
Electronic message center .......117
Emergencies, roadside
jump-starting ..........................293
Emission control system ..........338
Engine ........................................348
cleaning ...................................309
coolant .....................................324
fail-safe cooling .......................328
idle speed control ...................322
lubrication specifications .......346
refill capacities ........................346
service points ..........................316
starting after a collision .........278
Engine block heater .................255
Engine oil ..................................319
change oil soon warning,
message center .......................319
checking and adding ..............319
dipstick ....................................319
filter, specifications ........321, 345
recommendations ...................321
refill capacities ........................346
specifications ..........................346
2009 Taurus X(219)
Owners Guide, 2nd Printing
USA(fus)
Index
354
ProCarManuals.com

storage .....................................285
Jump-starting your vehicle ......293
K
Keyless entry system
autolock ...................................135
keypad .....................................147
locking and unlocking
doors ........................................148
programming entry code .......147
Keys ...................................133, 151
positions of the ignition .........252
L
Lamps
autolamp system .......................87
bulb replacement
specifications chart ..................92
daytime running light ...............89
fog lamps ...................................88
headlamps .................................87
headlamps, flash to pass ..........89
instrument panel, dimming .....89
interior lamps .....................91, 93
replacing bulbs ...................93, 96
LATCH anchors .........................207
Liftgate ......................127–128, 142
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........258
Load limits .................................242
Locks
autolock ...................................135
childproof ................................138
doors ........................................134
Lubricant specifications ...........346
Lug nuts ....................................292
Luggage rack .............................132Lumbar support, seats .............157
M
Message center .........................117
english/metric button .............123
system check button ..............122
warning messages ...................125
Mirrors ...............................105–106
automatic dimming rearview
mirror ......................................105
fold away .................................106
heated ......................................106
programmable memory ..........142
side view mirrors (power) .....106
Moon roof ..................................112
Motorcraft parts ................313, 345
N
Navigation system .......................73
O
Octane rating ............................334
Oil (see Engine oil) ..................319
Overdrive ...................................265
P
Parking brake ............................258
Parts (see Motorcraft parts) ....345
Passenger Occupant
Classification Sensor .................172
Power adjustable foot pedals ...107
Power distribution box
(see Fuses) ...............................282
Power door locks ......................134
Power liftgate ............................128
2009 Taurus X(219)
Owners Guide, 2nd Printing
USA(fus)
Index
356
ProCarManuals.com
