WARNING:While the design allows you to deactivate your
Belt-Minder, this system is designed to improve your chances of
being safely belted and surviving an accident. We recommend you
leave the Belt-Mindersystem activated for yourself and others who
may use the vehicle. To reduce the risk of injury, do not
deactivate/activate the Belt-Minderfeature while driving the vehicle.
Belt-Minderactivation and deactivation procedure
1. Turn the ignition switch to the ON position. (DO NOT START THE
ENGINE.)
2. Wait until the safety belt warning light turns off. (Approximately
1–2 minutes.)
•Steps 3–5 must be completed within 60 seconds or the procedure will
have to be repeated.
3. Buckle then unbuckle the safety belt three times, ending with the
safety belt unbuckled. This can be done before or during Belt-Minder
warning activation.
4. Turn on the parklamps/headlamps, turn off the parklamps/headlamps.
5. Buckle then unbuckle the safety belt three times, ending with the
safety belt unbuckled.
•After step 5 the safety belt warning light will be turned on for three
seconds.
6. Within seven seconds of the safety belt warning light turning off,
buckle then unbuckle the safety belt.
•This will disable Belt-Minderif it is currently enabled, or enable
Belt-Minderif it is currently disabled.
7. Confirmation of disabling Belt-Minderis provided by the safety belt
warning light flashing four times per second for three seconds.
8. Confirmation of enabling Belt-Minderis provided by:
•The safety belt warning light flashing four times per second for three
seconds.
•Followed by three seconds with the safety belt warning light off.
•Once again, the safety belt warning light will flash four times per
second for three seconds.
9. After receiving confirmation, the deactivation/activation procedure is
complete.
2009 F-650/750(f67)
Supplement
USA(fus)
Seating and Safety Restraints
78

Note:When starting the engine, do not press the accelerator as engine
damage may result.
1. Ensure headlamps and all accessories are turned off, the parking
brake is applied and the transmission is in the neutral position (or P
[Park] for Allison 2200 transmissions).
2. Turn the key to ON, but do not start the engine.
In cooler weather, the air intake
heater may activate the WAIT TO
START light in the instrument
cluster. If the WAIT TO START light
illuminates,do notcrank the engine
until the light goes off.
WARNING:If equipped with an air intake heater, DO NOT use
ether or any other starting fluids. The use of starting fluids
(ether) in an engine equipped with an air intake heater could cause an
explosion and result in property damage and/or personal injury.
3. When the WAIT TO START light turns off, turn the key to START;
when the engine starts, release the key.
If the engine does not start after 30 seconds of cranking, allow two
minutes for the starter to cool before trying again. Excessive cranking
may damage the starter.
After the engine starts:
•On some engines, the WAIT TO
START light should illuminate
after the engine starts. Allow the
engine to idle about three
minutes or until the engine
coolant temperature gauge begins to rise. Maintain idle speed until the
WAIT TO START light cycles off to indicate the air intake heater has
shut off (approximately six minutes). Operating the engine at higher
speeds will reduce the effectiveness of the air inlet heater.
WAIT
TO
START
WAIT
TO
START
2009 F-650/750(f67)
Supplement
USA(fus)
Driving
93

Fuse/Relay
LocationFuse Amp
RatingFuse Description
15 10A Interior lamp relay, GEM, Vanity mirrors
16 15A High beams, Indicator
17 — Not used
18 5A Headlamp switch interior lighting
19 15A Engine control
20 5A Starting system
21 10A DRL resistor
22 15A Air horn, Air suspension dump, Two-speed
axle, Driver-controlled locking differential
23 10A Flasher
24 15A ABS, Air dryer, Vacuum pump, Fuel heater
relay
25 10A Function selector switch
26 10A RH low beam headlamp
27 — Not used
28 10A LH low beam headlamp
29 10A Cluster warning lamps, Gauges, GEM,
Hydraulic ABS
30 15A Allison electronic transmission
31 — Not used
Relay 1 — Interior lamps
Relay 2 — Not used
Relay 3 — Horn
Relay 4 — One-touch down window
Relay 5 — Not used
Power distribution box
WARNING:Always disconnect the battery before servicing high
current fuses.
2009 F-650/750(f67)
Supplement
USA(fus)
Roadside Emergencies
146

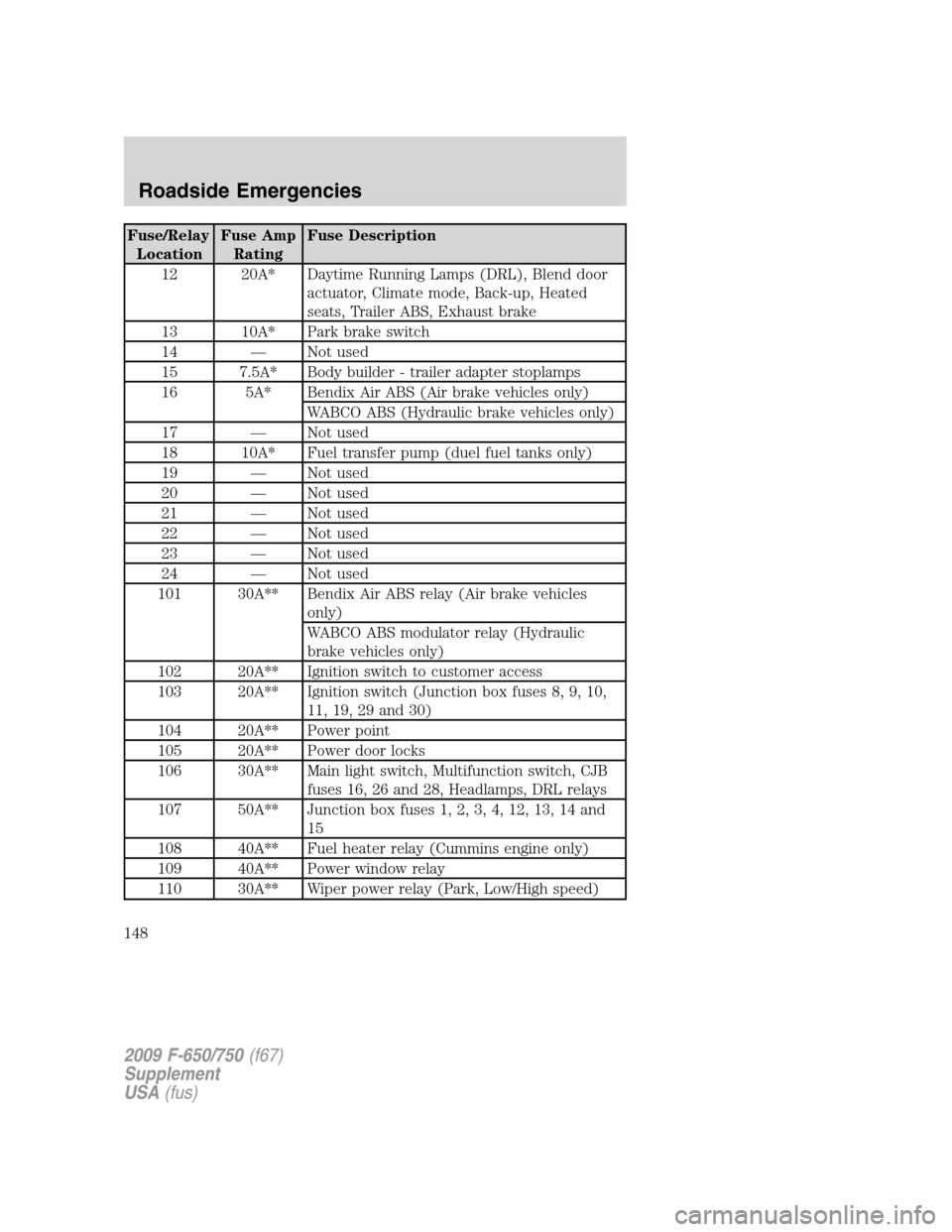

Fuse/Relay
LocationFuse Amp
RatingFuse Description
12 20A* Daytime Running Lamps (DRL), Blend door
actuator, Climate mode, Back-up, Heated
seats, Trailer ABS, Exhaust brake
13 10A* Park brake switch
14 — Not used
15 7.5A* Body builder - trailer adapter stoplamps
16 5A* Bendix Air ABS (Air brake vehicles only)
WABCO ABS (Hydraulic brake vehicles only)
17 — Not used
18 10A* Fuel transfer pump (duel fuel tanks only)
19 — Not used
20 — Not used
21 — Not used
22 — Not used
23 — Not used
24 — Not used
101 30A** Bendix Air ABS relay (Air brake vehicles
only)
WABCO ABS modulator relay (Hydraulic
brake vehicles only)
102 20A** Ignition switch to customer access
103 20A** Ignition switch (Junction box fuses 8, 9, 10,
11, 19, 29 and 30)
104 20A** Power point
105 20A** Power door locks
106 30A** Main light switch, Multifunction switch, CJB
fuses 16, 26 and 28, Headlamps, DRL relays
107 50A** Junction box fuses 1, 2, 3, 4, 12, 13, 14 and
15
108 40A** Fuel heater relay (Cummins engine only)
109 40A** Power window relay
110 30A** Wiper power relay (Park, Low/High speed)
2009 F-650/750(f67)
Supplement
USA(fus)
Roadside Emergencies
148

Maintenance Operation Frequency - Observation
Check the battery terminals for
corrosionWhenever electrical power supply has
diminished.
Tighten the wheel mounting
nuts to the specified torque.
Refer toWheelsin the
Maintenance and
SpecificationschapterRequired initially at 500 and
1000 miles (800 and 1600 km).
Perform again at 500 and 1000 mile
(800 and 1600 km) intervals after
each tire removal/replacement.
Clean body/door drain holes At least twice annually.
Clean windshield wiper blades As required.
Replace windshield wiper
bladesIf wiping the blades with a clean cloth
and mild detergent and washing with
a cleaner does not restore a clean
wipe.
Lubricate body lock cylinders Noisy or difficult to operate.
Check headlamp alignment Lamp beams in wrong position when
vehicle operating loaded.
Check windshield washer fluid
level; add fluid if requiredIf washes do not spray when operated.
1- During maintenance and repair, protect the fuel tube and the hose
assemblies, the power steering lines, and the brake lines from the
external heat, the acids and the abrasion that could damage the lines.
2- Check for (free) linkage action and ensure that (return) spring
force is adequate to maintain pedal free play.
3- Adjust, repair or replace as required with the same or equivalent
parts.
2009 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
249

H
Hazard flashers .........................144
Headlamps ...................................49
aiming ........................................50
daytime running lights .............49
high beam .................................49
warning chime ..........................22
Heating ..................................46–47
heater only system ...................46
manual heating and air
conditioning system .................47
Hood ..........................................179
I
Ignition .........................................92
chime .........................................22
Infant seats (see Safety seats) ..82
Instrument panel
cleaning ...................................168
lighting up panel and
interior .......................................50
J
Jump-starting your vehicle ......153
K
Keys
key in ignition chime ...............22
positions of the ignition ...........92
L
Lamps
bulb replacement
specifications chart ..................51
cargo lamps ...............................50
daytime running light ...............49headlamps .................................49
high beams ................................49
instrument panel, dimming .....50
interior lamps ...........................51
replacing bulbs ...................51–53
Lane change indicator
(see Turn signal) ........................50
Lights, warning and indicator ....22
air suspension ...........................22
anti-lock brakes (ABS) ....22, 119
brake ..........................................22
charging system ........................22
safety belt .................................22
service engine soon ..................22
traction control off ...................22
turn signal indicator .................22
Lubricant specifications ...........220
M
Manual transmission .................127
lubricant specifications ..........220
Mirrors .........................................57
fold away ...................................59
heated ........................................58
side view mirrors (power) .......58
O
Odometer .....................................28
P
Paint chips, repairing ...............166
Parking brake ....................101, 108
warning light .............................22
Power door locks ........................64
Power mirrors .............................58
Power point .................................55
Power steering ..........................179
