Page 2 of 320

FORD E450 2009  Owners Manual Seating and Safety Restraints 92
Seating 92
Safety restraints 100
Airbags 110
Child restraints 120
Tires, Wheels and Loading 140
Tire information 142
Tire inflation 144
Tire Pressure Monitoring System

Page 12 of 320

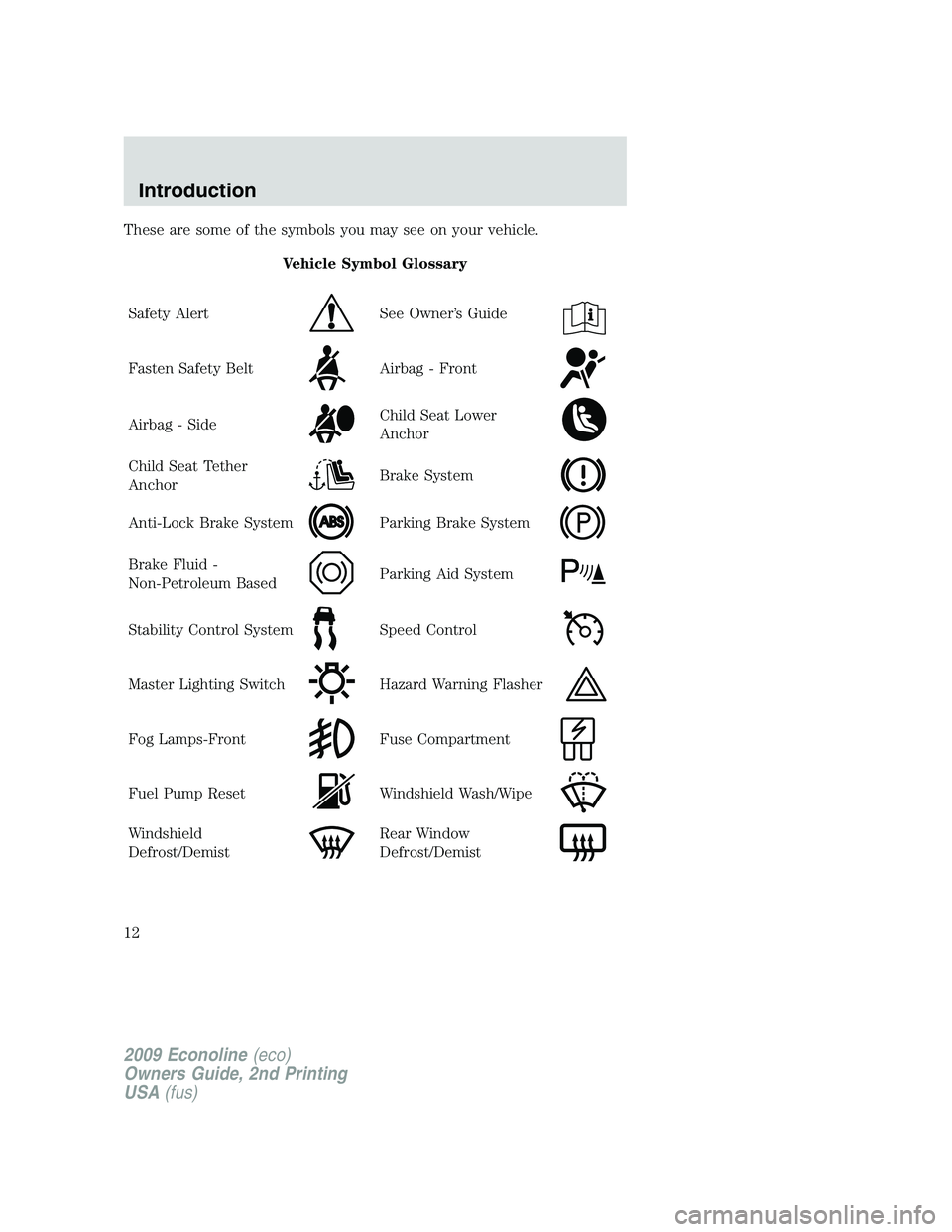

FORD E450 2009  Owners Manual These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety BeltAirbag - Front
Airbag - SideChild Seat Lower
Anchor
Child Seat Tet

Page 63 of 320

FORD E450 2009  Owners Manual 3. Press and hold the SELECT
control until VAR appears in the
display, then release. The display
should show the current zone
number.
4. Press the SELECT control until
the desired zone number appears.

Page 64 of 320

FORD E450 2009  Owners Manual To prevent the fuse from being blown, do not use the power point(s)
over the vehicle capacity of 12 VDC/180W. If the power point or cigar
lighter socket is not working, a fuse may have blown. Refer to

Page 70 of 320

FORD E450 2009  Owners Manual Turning off speed control
There are two ways to turn off the
speed control:
•Depress the brake pedal. This will
not erase your vehicle’s
previously set speed.
•Press the speed control OFF
contro

Page 71 of 320

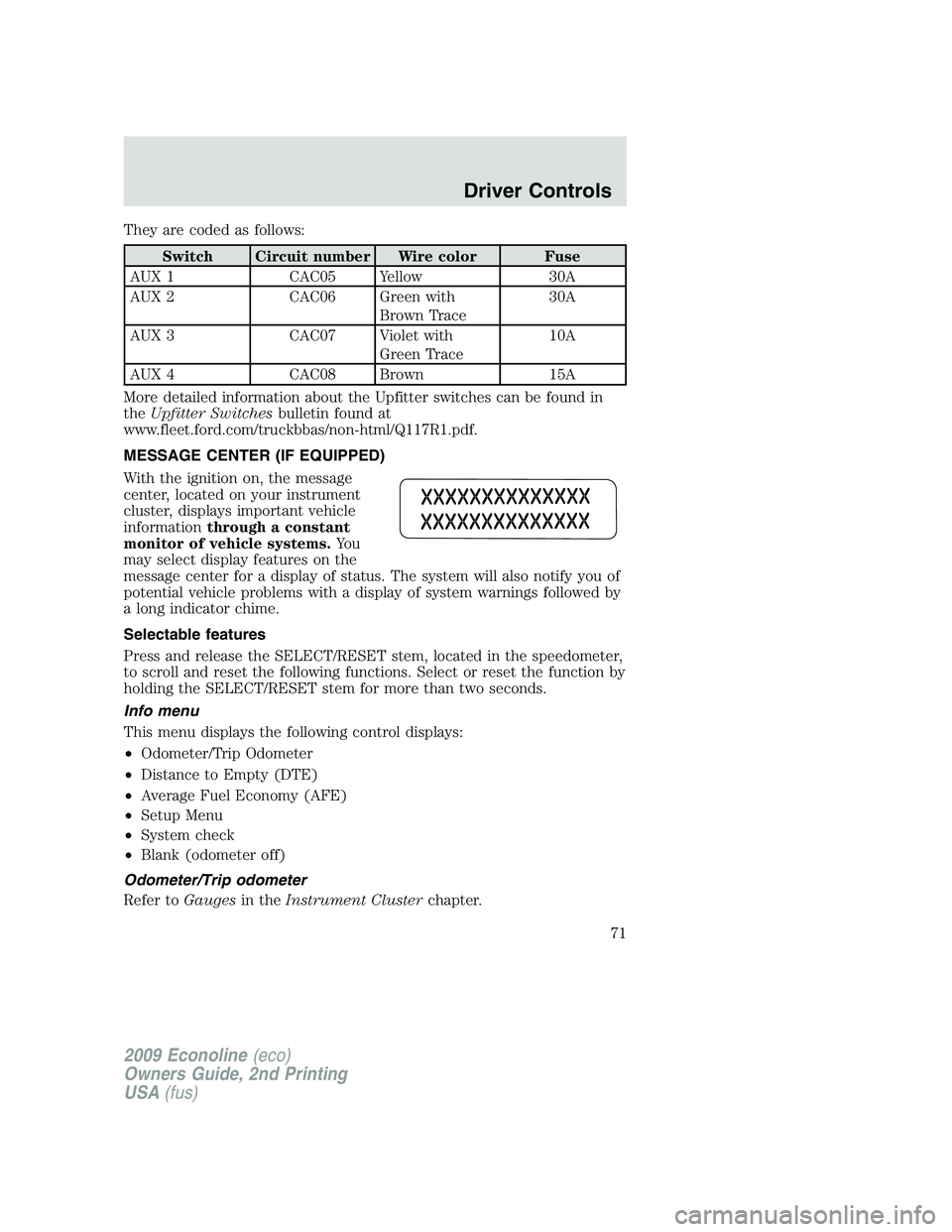

FORD E450 2009  Owners Manual They are coded as follows:
Switch Circuit number Wire color Fuse
AUX 1 CAC05 Yellow 30A
AUX 2 CAC06 Green with
Brown Trace30A
AUX 3 CAC07 Violet with
Green Trace10A
AUX 4 CAC08 Brown 15A
More detailed

Page 111 of 320

FORD E450 2009  Owners Manual WARNING:National Highway Traffic Safety Administration
(NHTSA) recommends a minimum distance of at least 10 inches
(25 cm) between an occupant’s chest and the driver airbag module.
WARNING:Never pla

Page 209 of 320

FORD E450 2009  Owners Manual AUTOMATIC TRANSMISSION OPERATION
Brake-shift interlock
The vehicle is equipped with a brake-shift interlock feature that prevents
the gearshift lever from being moved from P (Park) unless the brake
pe
