2009 FORD E150 alarm

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Service Engine SoonEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
2009 Econoline(eco)
Owners Guide, 2nd Printing
USA(fus)
Introduction
13

vehicle has switched to one step unlocking. Repeat the procedure to
switch back to two-step unlocking.
Locking the doors
1. Pressand release to lock all the doors. If all doors are closed the
park lamps will flash once.
2. Press
and release again within three seconds to confirm that all
the doors are closed and locked.Note:The doors will lock again, the
park lamps will flash and the horn will chirp once. If any door is ajar the
park lamps will not flash and the horn will chirp twice.
Car finder
Press
twice within three seconds. The horn will chirp and the turn
lamps will flash. It is recommended that this method be used to locate
your vehicle, rather than using the panic alarm.
Sounding a panic alarm
Press
to activate the alarm. Press the control again, or turn the
ignition to the accessory or on position to deactivate the alarm.
Note:The panic alarm will only operate when the ignition is in the off
position.
Replacing the battery
The remote entry transmitter uses one coin type three-volt lithium
battery CR2032 or equivalent.
To replace the battery:
1. Twist a thin coin between the two
halves of the remote entry
transmitter near the key ring. DO
NOT TAKE THE RUBBER COVER
AND CIRCUIT BOARD OFF THE
FRONT HOUSING OF THE
REMOTE ENTRY TRANSMITTER.
2009 Econoline(eco)
Owners Guide, 2nd Printing
USA(fus)
Locks and Security
86

3. Cycle eight times rapidly (within 10 seconds) between the 3 (off)
position and 4 (on).Note:The eighth turn must end in the 4 (on)
position.
4. The doors will lock, then unlock, to confirm that the programming
mode has been activated.
5. Within 20 seconds press any button on the remote entry transmitter.
Note:If more than 20 seconds have passed you will need to start the
procedure over again.
6. The doors will lock, then unlock, to confirm that this remote entry
transmitter has been programmed.
7. Repeat Steps 4 and 5 to program each additional remote entry
transmitter (up to four transmitters).
8. Turn the ignition to the 3 (off) position after you have finished
programming all of the remote entry transmitters.
9. The doors will lock, then unlock, to confirm that the programming
mode has been exited.
Illuminated entry
The interior lamps illuminate when the remote entry system is used to
unlock the door(s) or sound the personal alarm.
The illuminated entry system will turn off the interior lights if:
•the ignition switch is turned to the on or accessory position, or
•the remote transmitter lock control is pressed, or
•after 25 seconds of illumination.
The dome lamp control (if equipped) mustnotbe set to the off position
for the illuminated entry system to operate.
The inside lights will not turn off if:
•they have been turned on with the dimmer control, or
•any door is open.
SECURILOCK™ PASSIVE ANTI-THEFT SYSTEM (IF EQUIPPED)
SecuriLock™ passive anti-theft system is an engine immobilization
system. This system is designed to help prevent the engine from being
started unless acoded key programmed to your vehicleis used. The
use of the wrong type of coded key may lead to a “no-start” condition.
Your vehicle comes with two coded keys; additional coded keys may be
purchased from your authorized dealer. The authorized dealer can
2009 Econoline(eco)
Owners Guide, 2nd Printing
USA(fus)
Locks and Security
88

The RSS detects obstacles up to
6 feet (2 meters) from the rear
bumper with a decreased coverage
area at the outer corners of the
bumper, (refer to the figures for
approximate zone coverage areas).
As you move closer to the obstacle,
the rate of the tone increases. When
the obstacle is less than 10 inches
(25.0 cm) away, the tone will sound
continuously. If the RSS detects a
stationary or receding object further
than 10 inches (25.0 cm) from the
side of the vehicle, the tone will
sound for only three seconds. Once
the system detects an object
approaching, the tone will sound
again.
While receiving a warning, on some radios, the volume will be reduced to
a predetermined level. After the warning goes away, the radio will return
to the previous value.
The RSS automatically turns on when the gear selector is placed in R
(Reverse) and the ignition is on. A control in the message center allows
the driver to disable the system only when the ignition is on and the
gear selector is in R (Reverse). Refer toMessage centerin theDriver
Controlschapter for more information.
Keep the RSS sensors (located on the rear bumper/fascia) free
from snow, ice and large accumulations of dirt (do not clean the
sensors with sharp objects). If the sensors are covered, it will
affect the accuracy of the RSS.
If your vehicle sustains damage to the rear bumper/fascia, leaving
it misaligned or bent, the sensing zone may be altered causing
inaccurate measurement of obstacles or false alarms.
2009 Econoline(eco)
Owners Guide, 2nd Printing
USA(fus)
Driving
219

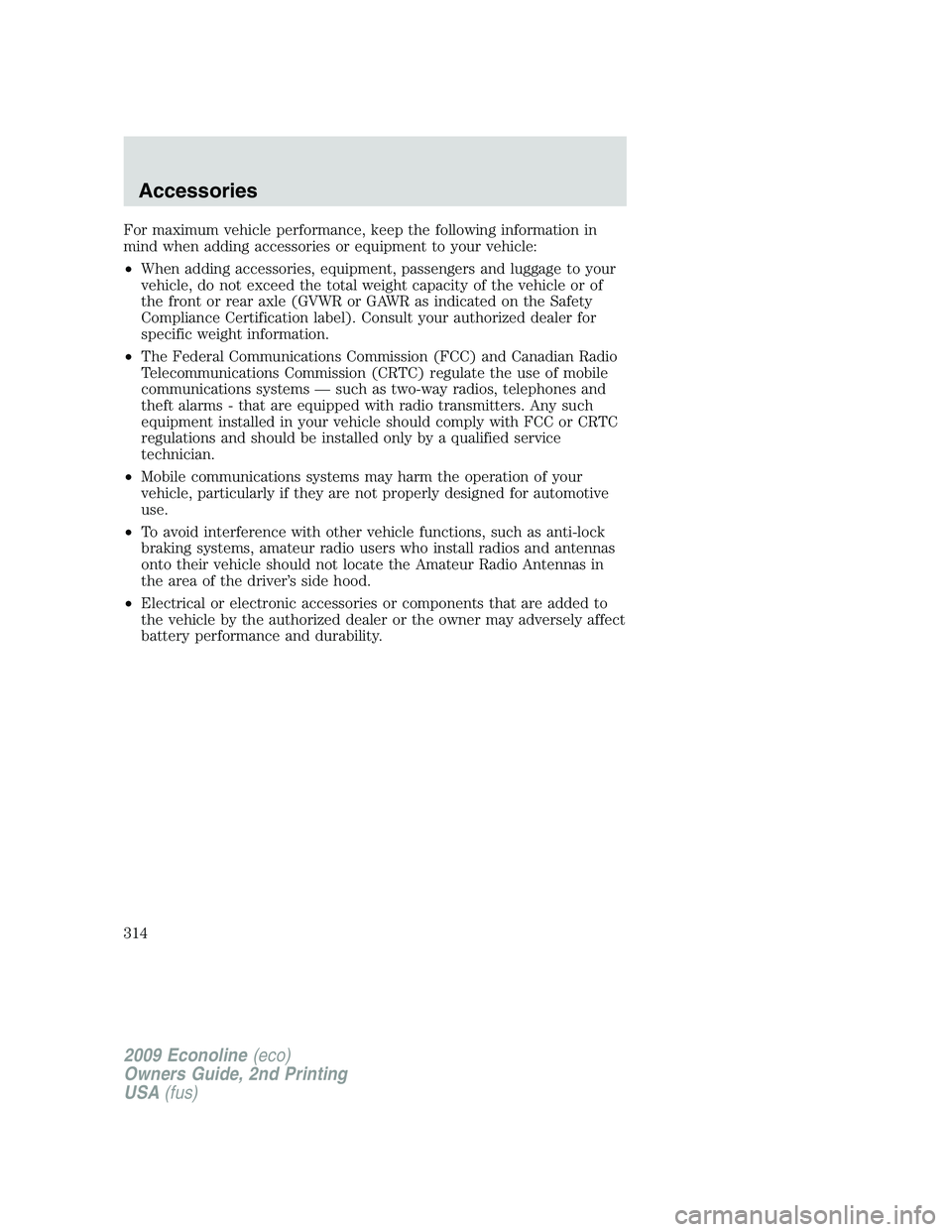

For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2009 Econoline(eco)
Owners Guide, 2nd Printing
USA(fus)
Accessories
314

locking/unlocking
doors ..............................80, 85–86
panic alarm ...............................86
replacement/additional
transmitters ...............................87
replacing the batteries .............86
Reverse camera .........................220
Reverse sensing system ...........218
Roadside assistance ..................224
Roll stability control .................201
S
Safety belts (see Safety
restraints) ..........................100–105
Safety defects, reporting ..........260
Safety restraints ................100–105
Belt-Minder...........................106
extension assembly ................109
for adults .........................101–104
for children .............................120
warning light and chime ........105
Safety restraints - LATCH
anchors ......................................128
Safety seats for children ..........124
Safety Compliance
Certification Label ....................310
Satellite Radio Information ........40
Seats ............................................92
child safety seats ....................124
front seats .................................93
SecuriLock passive anti-theft
system ....................................88, 90
Servicing your vehicle ..............268
Setting the clock
AM/FM single CD .....................25
AM/FM stereo ...........................23AM/FM/In-dash 6 CD ................30
Spare tire
(see Changing the Tire) ...........238
Spark plugs,
specifications .....................304, 309
Special notice ..............................10
ambulance conversions ..............9
diesel-powered vehicles .............8
utility-type vehicles ....................8
Specification chart,
lubricants ...................................305
Speed control ..............................68
Stability system .........................201
Starting a flex fuel vehicle .......195
Starting your vehicle ........193–195
jump starting ..........................245
Steering wheel
tilting .........................................60
T
Temperature control
(see Climate control) ...........44, 46
Tilt steering wheel ......................60
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....160
Tires ...........................142–143, 235
alignment ................................152
care ..........................................148
changing ..................235, 238–240
checking the pressure ............147
inflating ...................................144
label .........................................159
replacing ..........................150, 240
rotating ....................................152
safety practices .......................151
sidewall information ...............154
2009 Econoline(eco)
Owners Guide, 2nd Printing
USA(fus)
Index
319
