2009 FIAT ULYSSE key

2
MUST BE READ!
REFUELLING
JTD engines:only refuel with diesel fuel conforming to the European specification EN590.
The use of other products or mixtures may irreparably damage the engine with invalidation of the warranty
due to the damage caused.
ENGINE START-UP
JTD engines:make sure the handbrake is pulled up; put the gear lever into neutral; press the clutch pedal
down to the floor without touching the accelerator; then turn the ignition key to Mand wait for the instru-
ment panel warning light mto go out, then turn the ignition key to Dand release it as soon as the engine
starts.
JTD enegines with automatic gearbox:make sure the handbrake is pulled up and the gear lever is in P
or N; then turn the ignition key to Mand wait for the instrument panel warning light mto go out, then turn
the key to D, without touching the accelerator and release it as soon as the engine starts.
PARKING OVER INFLAMMABLE MATERIAL
When functioning normally, the catalytic converter reaches high temperatures. For this reason do not park
the vehicle over inflammable material, grass, dry leaves, pine needles, etc.: fire hazard.
K


001-077 ULYSSE ING:001-077 ULYSSE ING 5-11-2009 12:11 Pagina 2

GETTING TO KNOW YOUR CAR
11fig. 2
F0B0401b
THE FIAT CODE
SYSTEM
To further protect your vehicle from
attempted theft, it has been fitted with
an electronic engine immobiliser sys-
tem (called Fiat CODE) which is au-
tomatically activated when the ignition
key is removed. Each ignition key, in
fact, contains an electronic device,
which modulates a radio-frequency
signal emitted by a special aerial, built
into the ignition switch, during ignition.
The modulated signal is a “password”
with which the control unit recognis-
es the key. Engine ignition is enabled
only if the key is recognised by the sys-
tem.THE KEYS fig. 2
The following keys are supplied with
the car:
– two keys Aif the car is fitted with
remote central door locking system
and electronic alarm.
– two keys Bif the car is fitted with
remote central door locking system,
electronic alarm and powered side
sliding doors.The keys shall be used to:
– ignition switch;
– lock/unlock the driver and passen-
ger door
– operate remote door lock-
ing/unlocking
– operate the alarm system (for ver-
sions/markets, where provided)
– deactivate the passenger side airbag
– lock/unlock the fuel filler cap
– lock/unlock the glove compart-
ment.
001-077 ULYSSE ING:001-077 ULYSSE ING 5-11-2009 12:11 Pagina 11

GETTING TO KNOW YOUR CAR
12
The key fig. 3, is fitted with 2 but-
tons:
A -to activate the central locking
system, the alarm and the localisation
function;
B -to activate the central unlocking
system and deactivate the alarm.By pressing button Athe so-called
“localisation” function is turned on: all
the passenger compartment lights and
direction indicators are switched on
for a couple of seconds. Such function
is recognised by the system up to a
distance of around 30 meters from the
vehicle.
The key is also fitted with a metal in-
sert Dwhich can be pushed inside the
key grip by pressing button C.
Press button Cagain to let it come
out from the key grip.When pressing the but-
ton C, take care to pre-
vent the metal insert
from causing harm or damage
when it comes out. The button C
should only be pressed when the
key is away from the body, in par-
ticular from the eyes and from
objects that can be spoilt (e.g.
clothes). Make sure the key can
never be touched by others, es-
pecially children, who may inad-
vertently press button C.
fig. 3
F0B0402b
001-077 ULYSSE ING:001-077 ULYSSE ING 5-11-2009 12:11 Pagina 12

GETTING TO KNOW YOUR CAR
13
A CODE card fig. 5is provided with
the keys. This CODE card bears the
electronic code used by the Fiat
Dealershipswhenever the vehicle
cannot be started. The key fig. 4is fitted with 4 but-
tons:
A -to activate the central locking
system, the alarm and the localisation
function;
B -to activate the central unlocking
system and deactivate the alarm;
C -to lock/unlock the right-hand
side sliding door;
D -to lock/unlock the left-hand side
sliding door.
By pressing button Athe so-called
“localisation” function is turned on: all
the passenger compartment lights and
direction indicators are switched on
for a couple of seconds. Such function
is recognised by the system up to a
distance of around 30 meters from the
vehicle.
The key is also fitted with a metal in-
sert Fwhich can be pushed inside the
key grip by pressing button E.The remote control inside the key
works on radio-frequency.
IMPORTANTIn order to ensure
perfect efficiency of the electronic de-
vices contained inside the keys, they
should never be exposed to direct
sunlight. When pressing the but-
ton E, take care to pre-
vent the metal insert
from causing harm or damage
when it comes out. The button
E should only be pressed when
the key is away from the body, in
particular from the eyes and
from objects that can be spoilt
(e.g. clothes). Make sure the key
can never be touched by others,
especially children, who may in-
advertently press button E.The electronic compo-
nents inside the key may
get damaged if the key is
submitted to sharp knocks.
fig. 4
F0B0403b
Press button Eagain to let it come
out from the key grip.
001-077 ULYSSE ING:001-077 ULYSSE ING 5-11-2009 12:11 Pagina 13

GETTING TO KNOW YOUR CAR
14
REPLACING THE KEY
BATTERIES fig. 6-7
If the doors do not lock and the di-
rection indicators do not come on
when the button on the remote con-
trol is pressed, replace the batteries
with others of the same time:
– open the metal insert;
– open the plastic casing Aby forc-
ing recess B;
– remove the printed circuit Cwith
the battery;
– extract the battery Dand replace
it respecting the polarity;
– refit the printed circuit Cwith the
battery facing inwards;
– close the plastic casing A.Since the electronic alarm absorbs
electricity, if you will not be using the
vehicle for more than a month, you
are advised to switch the system off
with the remote control. This will pre-
vent the battery from going flat. All the keys and the
CODE card must be
handed over to the new
owner when selling the car.
fig. 5
F0B0404b
This code is masked by a special
paint, which should be removed when
the CODE card is used. The CODE
card should therefore be kept in a safe
place and not in the vehicle.Used batteries pollute
the environment. Dispose
of them in the special
containers as specified by current
legislation or take them to your
nearest Fiat Dealership, which
will deal with their disposal. Do
not expose them to naked flames
and high temperatures. Keep out
of children’s reach.
fig. 6
F0B0440b
fig. 7
F0B0441b
001-077 ULYSSE ING:001-077 ULYSSE ING 5-11-2009 12:11 Pagina 14

GETTING TO KNOW YOUR CAR
15
DUPLICATE KEYS
Go directly to your Fiat Dealer-
ship, taking all the keys in your pos-
session and the CODE card with you.
The codes of any keys that are not
available when the new storage pro-
cedure is carried out will be deleted
from the memory to prevent any lost
or stolen keys being used to start the
engine.
All the keys and the CODE card
must be handed over to the new own-
er when selling the car.OPERATION
When the ignition switch is turned
to Sthe Fiat CODE system deacti-
vates the engine control unit functions.
After the engine is started by turning
the key to M, the Fiat CODE system
control unit sends the code for the
function lock deactivation to the en-
gine control unit. The crypted and
varying code is sent only if the system
control unit has recognised the code
sent by the electronic device con-
tained in each ignition key, through the
signal emitted by a special aerial built
into the ignition switch.
If the code is not recognised, you are
recommended to turn the key to S
and then again to M; if the lock cannot
be deactivated, repeat the operation
with the other key provided with the
vehicle.If you are still not able to start the
engine contact a Fiat Dealership.
IMPORTANTEach key supplied
with the vehicle has its own code
which is different from all the others
and which must be stored in the mem-
ory of the system control unit. Con-
tact a Fiat Dealershipfor the new
key storage procedure, taking with
you the CODE card, a personal iden-
tity document and the vehicle owner-
ship documents.
The codes of any keys
that are not available
when the new storage
procedure is carried out will be
deleted from the memory when
all the keys are stored again, in
order to prevent any mislaid keys
being used to start the vehicle.
001-077 ULYSSE ING:001-077 ULYSSE ING 5-11-2009 12:11 Pagina 15

GETTING TO KNOW YOUR CAR
16

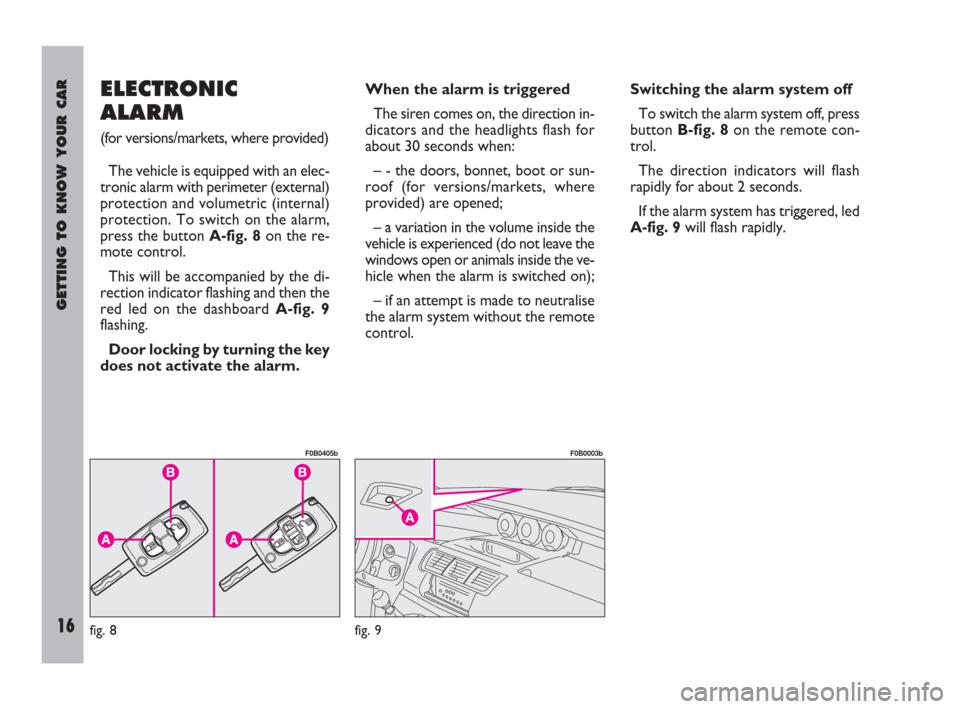

ELECTRONIC
ALARM
(for versions/markets, where provided)
The vehicle is equipped with an elec-
tronic alarm with perimeter (external)
protection and volumetric (internal)
protection. To switch on the alarm,
press the button A-fig. 8on the re-
mote control.
This will be accompanied by the di-
rection indicator flashing and then the
red led on the dashboard A-fig. 9
flashing.
Door locking by turning the key
does not activate the alarm. When the alarm is triggered
The siren comes on, the direction in-
dicators and the headlights flash for
about 30 seconds when:
– - the doors, bonnet, boot or sun-
roof (for versions/markets, where
provided) are opened;
– a variation in the volume inside the
vehicle is experienced (do not leave the
windows open or animals inside the ve-
hicle when the alarm is switched on);
– if an attempt is made to neutralise
the alarm system without the remote
control.Switching the alarm system off
To switch the alarm system off, press
button B-fig. 8on the remote con-
trol.
The direction indicators will flash
rapidly for about 2 seconds.
If the alarm system has triggered, led
A-fig. 9will flash rapidly.
fig. 8
F0B0405b
fig. 9
F0B0003b
001-077 ULYSSE ING:001-077 ULYSSE ING 5-11-2009 12:11 Pagina 16

GETTING TO KNOW YOUR CAR
17
Switching the volumetric
protection off
Before turning on the alarm system,
press button A-fig. 10, which can be
reached when the door is open, and
red led A-fig. 9, placed on the instru-
ment panel, will light up.
In this case only the perimeter pro-
tection (external) system will be ac-
tive.
Press the button A-fig. 9 again to re-
turn to the normal external and in-
ternal protection mode.Deactivation without
the remote control
Proceed as follows:
– open the door with the key (the
siren will come on);
– within 10 seconds, from when the
siren sounds, turn the ignition key to
Mand then press button A-fig. 10.
The siren will be switched off.
If it is necessary to repeat the oper-
ation, wait for the siren to come on.
PROGRAMMING THE SYSTEM
When your new vehicle is handed
over to you the electronic alarm will
have already been programmed by
your Fiat Dealership. Any subse-
quent programming should also be
carried out by a Fiat Dealership.REQUEST FOR ADDITIONAL
REMOTE CONTROLS
If you ever need a new remote con-
trol, go to your nearest Fiat Deal-
ership, taking with you all the vehi-
cle keys in your possession, the CODE
card, a personal identity document and
the vehicle ownership documents.
fig. 10
F0B0218b
