2009 FIAT QUBO check engine

154
SAFETY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
30 60 90 120 150 180
●●
●●●
●
●●●
●●●●●●
●●●●●●
●●●●●●
●●●●●●
●●●
●●●●●●
Thousands of kilometres
Check antievaporation system
Change spark plugs
Replace toothed belt for transmission control (*)
Replace air cleaner cartridge
Top up fluids (engine coolant, brakes, battery, windscreen washer, etc.)
Check engine control system operation
(through diagnosis outlet)
Check for cleanliness of bottom guides of sliding side doors
(or every 6 months)
Change engine oil and oil filter (or every 24 months)
Change brake fluid (or every 24 months)
Change pollen filter (or every 12 months)
(*) Or every 5 years, independently of the mileage.
151-172 QUBO GB 1ed:- 3-12-2009 12:01 Pagina 154

30 60 90 120 150 180
●
●●●
●●●
●●●●●●
●●●●●●
●●
●●●●●●
●●●●●●
●●●
●●●●●●
156
SAFETY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
Thousands of kilometres
Replace accessory drive belt/s
Replace diesel fuel filter
Replace air cleaner cartridge
Top up fluids (engine coolant, brakes, battery, windscreen washer, etc.)
Check engine control system operation
(through diagnosis outlet)
Check the mechanical gearbox oil
Check for cleanliness of bottom guides of sliding side doors
(or every 6 months)
Change engine oil and oil filter
(Multijet versions with DPF) (*)
Change engine oil and oil filter (Multijet versions without DPF)
(or every 24 months)
Change brake fluid (or every 24 months)
Change pollen filter (or every 12 months)
(*) The engine oil and the filter must be replaced when the warning light on the dashboard comes on (see the “Warning lights
and messages” section) or at least every 24 months.
If the car is mainly used in towns and cities, change the engine oil and filter every 12 months.
151-172 QUBO GB 1ed:- 3-12-2009 12:01 Pagina 156

157
SAFETY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
PERIODIC CHECKING
Every 1,000 km or before long journeys,
check and top up if required:
❒engine coolant fluid level;
❒brake fluid level;
❒windscreen washer fluid level;
❒tyre pressure and conditions;
❒operation of lights (headlights, direction
indicators, emergency lights, etc.);
❒operation of the windscreen wiper/
washer system, position and wear of
the windscreen and rear window wiper
blades (for versions/markets, where
provided);
Every 3,000 km check the following and
top-up, if required: engine oil level.
You are recommended to use
PETRONAS LUBRICANTSprod-
ucts, designed and produced specifically
for Fiat vehicles (see table “Refuelling” in
section “Technical specifications”).
DEMANDING
VEHICLE USE
Should prevailing use of the vehicle be un-
der one of the following specially heavy
conditions:
❒trailer towing;
❒dusty roads;
❒short repeated distances (less than 7-
8 km) and with external temperatures
below zero;
❒frequently idling engine or long distance
low speed driving (e.g. taxis or door-to-
door deliveries) or in case of a long
term inactivity;
❒urban driving;
perform the following inspections more
frequently than shown on the Scheduled
Servicing Plan:
❒check front disk brake pad conditions
and wear;❒check cleanness of bonnet and boot
locks and lever cleanness and lubrica-
tion;
❒visually inspect the conditions of: the
engine, gearbox, transmission, pipes and
hoses (exhaust - fuel - brakes), rubber
parts (boots, sleeves, bushes, etc.);
❒check the battery and the battery fluid
(electrolyte) (this check must be car-
ried out by skilled personnel only or by
the Fiat Dealership – also refer to the
instructions provided in the “Battery”
paragraph of this section);
❒visually check the various drive belt
conditions;
❒check pollen filter and replace it, if re-
quired;
❒check air cleaner and replace it, if re-
quired.
151-172 QUBO GB 1ed:- 3-12-2009 12:01 Pagina 157

158
SAFETY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
CHECKING
FLUID LEVELS
Do not smoke while working
on the engine compartment.
Flammable gases may be present. Risk
of fire.
WARNING
Be careful not to confuse the
various types of fluids while
topping up: they are incom-
patible. For this reason, the
vehicle may be seriously damaged.
fig. 1 - 1.4 version
fig. 2 - 1.3 Multijet versionF0T0083m
F0T0076m
1 engine oil - 2 battery - 3 brake fluid -
4 window/rear window washer fluid -
5 engine coolant - 6 power steering sys-
tem fluid
151-172 QUBO GB 1ed:- 3-12-2009 12:01 Pagina 158

159
SAFETY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
fig. 3 - 1.4 versionF0T0082mfig. 4 - 1.3 Multijet versionF0T0077m
IMPORTANT The oil consumption de-
pends on driving style and the conditions
under which the vehicle is used.
IMPORTANT Always top up using engine
oil of the same type as that already in the
engine.
ENGINE OIL fig. 3-4
Engine oil check
Check the oil level a few minutes (about 5)
after the engine has stopped, with the ve-
hicle parked on level ground.
Extract the test rod Aand clean it. Then,
put it back all the way down and extract
it again to check that the level ranges be-
tween the MINand MAXlevels on the
rod. The range between the MINand
MAXlevels corresponds to approxi-
mately 1 litre of oil.
Topping up the engine oil
If the oil level is near or even under the
MINline, add oil through the filler Bto
reach the MAXline.
Oil level must never exceed the MAX
line.
Proceed very carefully inside
the engine compartment
when the engine is hot: risk of burns.
Remember that the electric fan may
start up if the engine is hot: risk of in-
jury. Pay attention to scarves, ties and
other loose fitting garments: they may
be dragged by moving parts.
WARNING
Exhausted engine oil and oil
filter contain substances
which are dangerous for the
environment. For oil and filter
changing, we recommend contacting a
Fiat Dealership.
IMPORTANT If the engine oil level results
above the MAXlevel after the check, go
to the Fiat Dealership for restoring the
correct level.
IMPORTANT After adding or changing
the oil, let the engine turn over for a few
seconds and wait a few minutes after turn-
ing it off before you check the level.
Engine oil consumption
The maximum engine oil consumption is
usually 400 grams every 1000 km.
When the vehicle is new, the engine needs
to be run in. Therefore, the engine oil con-
sumption can only be considered stabilised
after the first 5,000 - 6,000 km.
151-172 QUBO GB 1ed:- 3-12-2009 12:01 Pagina 159

160
SAFETY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
FLUID FOR ENGINE
COOLING SYSTEM
The coolant level must be checked when
the engine is cold and must not drop be-
low the MINline on the vessel.
If the level is too low, slowly pour a mixture
of 50% distilled water and of PETRONAS
LUBRICANTS PARAFLU
UPinto the
filler A-fig. 5of the vessel.
A 50-50 mixture of PARAFLU
UPand
distilled water gives freeze protection up
to –35°C.
When the vehicle is used under particu-
larly harsh weather conditions, we rec-
ommend using a 60-40 mixture of
PARAFLU
UPand demineralised water.WINDSCREEN/REAR WINDOW
WASHING FLUID
To add fluid lift the cap A-fig. 6and pour
in a mixture of water and TUTELA
PROFESSIONAL SC 35fluid, in the
following proportions:
❒30% of TUTELA PROFESSIONAL
SC 35and 70% of water in summer;
❒50% of TUTELA PROFESSIONAL
SC 35and 50% of water in winter.
In case of temperatures below –20°C, use
undiluted TUTELA PROFESSIONAL
SC35fluid.
Check level through the reservoir.
fig. 5F0T0078m
When the engine is extreme-
ly hot, do not remove the
cap from the vessel: risk of burns. The
cooling system is pressurised. If re-
quired, replace the cap with an orig-
inal spare part so as not to jeopardise
system efficiency.
WARNING
PARAFLUUPantifreeze is used
in the engine cooling system.
Use fluid of the same type
contained in the cooling system for top-
ups. PARAFLU
UPmay not be mixed
with other types of fluids. If it is, do not
start the engine and contact the Fiat
Dealership.
fig. 6F0T0079m
151-172 QUBO GB 1ed:- 3-12-2009 12:01 Pagina 160

161
SAFETY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE

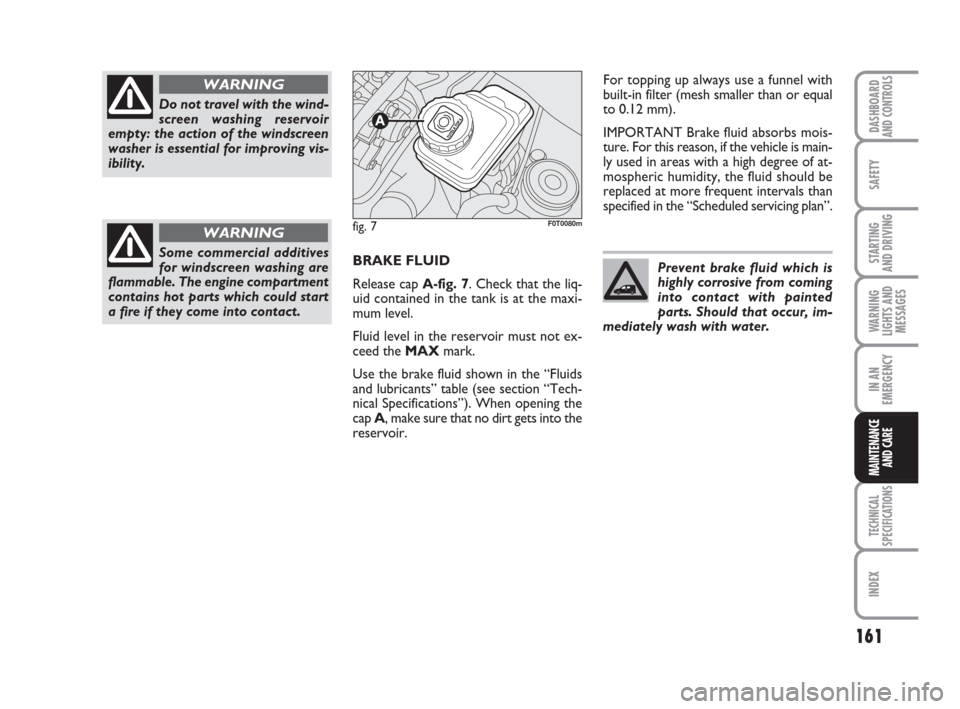

BRAKE FLUID
Release cap A-fig. 7. Check that the liq-
uid contained in the tank is at the maxi-
mum level.
Fluid level in the reservoir must not ex-
ceed the MAXmark.
Use the brake fluid shown in the “Fluids
and lubricants” table (see section “Tech-
nical Specifications”). When opening the
cap A, make sure that no dirt gets into the
reservoir.For topping up always use a funnel with
built-in filter (mesh smaller than or equal
to 0.12 mm).
IMPORTANT Brake fluid absorbs mois-
ture. For this reason, if the vehicle is main-
ly used in areas with a high degree of at-
mospheric humidity, the fluid should be
replaced at more frequent intervals than
specified in the “Scheduled servicing plan”.
Do not travel with the wind-
screen washing reservoir
empty: the action of the windscreen
washer is essential for improving vis-
ibility.
WARNING
Some commercial additives
for windscreen washing are
flammable. The engine compartment
contains hot parts which could start
a fire if they come into contact.
WARNINGfig. 7F0T0080m
Prevent brake fluid which is
highly corrosive from coming
into contact with painted
parts. Should that occur, im-
mediately wash with water.
151-172 QUBO GB 1ed:- 3-12-2009 12:01 Pagina 161

162
SAFETY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
The brake fluid is poisonous
and highly corrosive. In case
of accidental contact, wash the parts
with water and mild soap and rinse
with plenty of water. If swallowed im-
mediately call a doctor.
WARNING
The symbol πon the con-
tainer indicates a synthetic
brake fluid, which is different from a
mineral fluid. Use of a mineral type
fluid will damage the special rubber
seals of the braking system beyond re-
pair.
WARNINGPOWER STEERING
SYSTEM FLUID
Unscrew the cap A-fig. 8. Check that the
fluid contained in the tank is between the
MINand MAXlevels visible on the reser-
voir. The level may go over the MAXline
when the oil is hot.
If topping up is required, make sure the
new oil has the same specifications as that
already in the system.
fig. 8F0T0081m
Prevent power steering fluid
from coming into contact
with hot engine parts: it is flammable.
WARNING
Oil consumption is extremely
low. If another top-up is re-
quired after only a short pe-
riod of time, have the system
checked for leakage at a Fiat Dealer-
ship.
151-172 QUBO GB 1ed:- 3-12-2009 12:01 Pagina 162
