2009 FIAT PUNTO EVO dashboard warning lights

KNOWING YOUR VEHICLE
DASHBOARD
The presence and position of the controls, the instruments and the indicators may vary according to the versions.
F0U0001mfig. 1
1.Adjustable side air vents – 2.Fixed side air vents – 3.Left-hand lever: exterior lights control – 4.Instrument panel
–
5.Right-hand lever: front and rear windscreen wiper controls, trip computer – 6.Controls on dashboard – 7.Ad-
justable central air vents –
8.Fixed upper air vent – 9.Front airbag, passenger side – 10.Glove compartment
–
11.Sound system (for versions/markets where provided) – 12.HVAC controls – 13.Ignition – 14.Front airbag, dri-
ver’s side –
15. Steering wheel adjustment lever – 16.Control panel: headlight position adjustment/digital dis-
play/multifunction display –
17.Light-guiding plate.CONTENTS TECHNICAL
SPECIFICATIONS SERVICING
AND CARE IN AN
EMERGENCY WARNING LIGHTS
AND MESSAGES STARTING
AND DRIVING SAFETY
KNOWING
YOUR
VEHICLE
3
001-036 PUNTO FL EN 3ed 10-12-2009 15:54 Pagina 3

7
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS



F0U0005mfig. 5F0U0006mfig. 6
Replacing the battery of the key with remote
control fig. 6
To replace the battery, proceed as follows:
❒press button A and bring the metal insert B to the open
position;
❒turn the screw C to :using a fine screwdriver;
❒take out the battery case D and replace the battery E,
respecting its polarity;
❒refit the battery case D inside the key and lock it by
turning the screw C to
Á. Dashboard LED indications
When locking the doors, the LED A-fig. 5 in the button
switches on for about 3 seconds and then starts to flash
(as a deterrent).
Once doors are locked, if one or more doors or the boot
are not closed correctly, the LED and direction indicators
start flashing quickly.
001-036 PUNTO FL EN 3ed 10-12-2009 15:54 Pagina 7

49
Knob C adjusts air distribution
¶to direct air to the centre and side vents;
ßto send air to the feet and direct cooler air to the
dashboard vents, in intermediate temperature con-
ditions;
©for heating when the outside temperature is very low:
to direct as much air as possible to the feet;
®to warm the feet and, at the same time, demist the
windscreen;
-for quick windscreen demisting. Knob B activates/adjusts the fan
p0= fan off
1-2-3= fan speed
4
-= max. fan speed
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
fig. 44F0M0037m
Button D turns air recirculation on/off
Press the button (button LED on) to turn the air internal
recirculation on.
Press the button (button LED off) to turn air internal re-
circulation off.
037-081 PUNTO FL EN 3ed 9-12-2009 13:39 Pagina 49

Knob B activates/adjusts the fan
p0= fan off
1-2-3= fan speed
4
-= max. fan speed
MANUAL CLIMATE CONTROL
(for versions/markets where provided)
CONTROLS fig. 46
Knob A regulates the air temperature
(mixing hot and cold air)
Red section = hot air
Blue section = cold air
52
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
fig. 46F0M0039m
Knob C adjusts air distribution
¶to direct air to the centre and side vents;
ßto send air to the feet and direct cooler air to the
dashboard vents, in intermediate temperature con-
ditions;
©for heating when the outside temperature is very low:
to direct as much air as possible to the feet;
®to warm the feet and, at the same time, demist the
windscreen;
-for quick windscreen demisting.
037-081 PUNTO FL EN 3ed 9-12-2009 13:39 Pagina 52

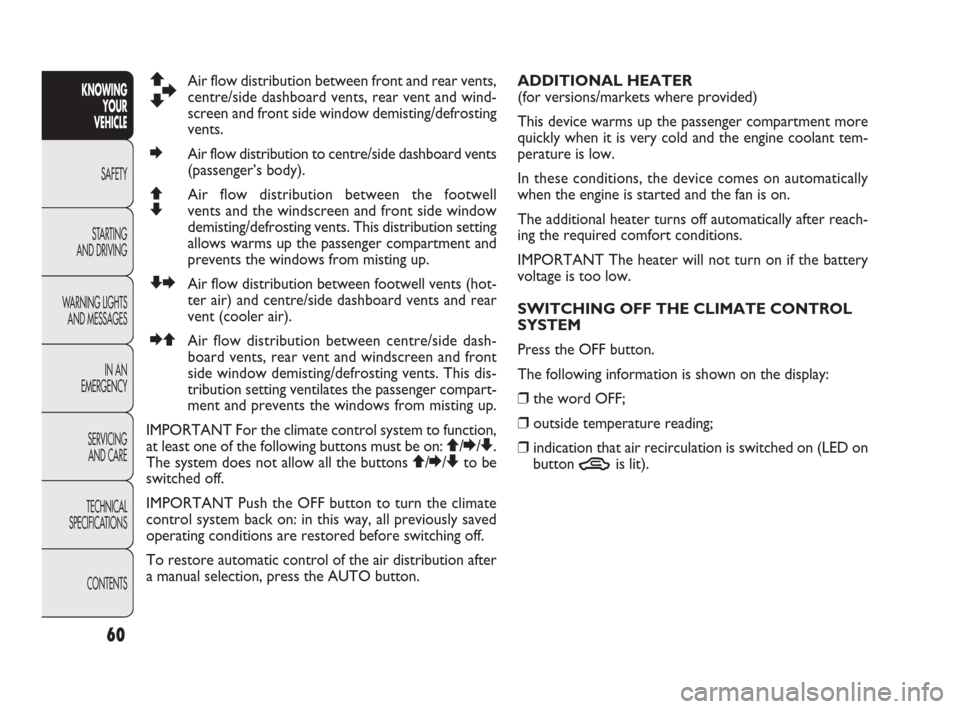

Q
ZEAir flow distribution between front and rear vents,
centre/side dashboard vents, rear vent and wind-
screen and front side window demisting/defrosting
vents.
EAir flow distribution to centre/side dashboard vents
(passenger’s body).
QAir flow distribution between the footwell
Zvents and the windscreen and front side window
demisting/defrosting vents. This distribution setting
allows warms up the passenger compartment and
prevents the windows from misting up.
ZEAir flow distribution between footwell vents (hot-
ter air) and centre/side dashboard vents and rear
vent (cooler air).
EQAir flow distribution between centre/side dash-
board vents, rear vent and windscreen and front
side window demisting/defrosting vents. This dis-
tribution setting ventilates the passenger compart-
ment and prevents the windows from misting up.
IMPORTANT For the climate control system to function,
at least one of the following buttons must be on: Q/E/Z.
The system does not allow all the buttons Q/E/Zto be
switched off.
IMPORTANT Push the OFF button to turn the climate
control system back on: in this way, all previously saved
operating conditions are restored before switching off.
To restore automatic control of the air distribution after
a manual selection, press the AUTO button.ADDITIONAL HEATER
(for versions/markets where provided)
This device warms up the passenger compartment more
quickly when it is very cold and the engine coolant tem-
perature is low.
In these conditions, the device comes on automatically
when the engine is started and the fan is on.
The additional heater turns off automatically after reach-
ing the required comfort conditions.
IMPORTANT The heater will not turn on if the battery
voltage is too low.
SWITCHING OFF THE CLIMATE CONTROL
SYSTEM
Press the OFF button.
The following information is shown on the display:
❒ the word OFF;
❒outside temperature reading;
❒indication that air recirculation is switched on (LED on
button
Tis lit).
60
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
037-081 PUNTO FL EN 3ed 9-12-2009 13:39 Pagina 60

F0U0042mfig. 49
The daytime running lights are an alterna-
tive to the dipped beam headlights for dri-
ving during the daytime in countries where it is com-
pulsory to have lights on during the day, and they
are also permitted in those countries where this not
obligatory. Daytime running lights cannot replace
dipped headlights when driving at night or through
tunnels. The use of daytime running lights is gov-
erned by the highway code of the country in which
you are driving. Keep to the rules.
WARNING
EXTERIOR LIGHTS
The left-hand stalk operates most of the external lights.
The ignition key has to be in the MAR position for the
exterior lights to come on. The instrument panel and the
various controls on the dashboard will be lit up when the
exterior lights are switched on.
DAYTIME RUNNING LIGHTS (D.R.L.) fig. 49
(for versions/markets where provided)
With the ignition key turned to MAR and the twist switch
turned to position
Othe daytime running lights are auto-
matically activated; the other lights and interior lighting
remain off. The daytime running lights function can be
switched on/off using the display menus (see “Multifunction
display and reconfigurable multifunction display” in this sec-
tion). If the daytime running lights are deactivated, no light
comes on when the twist switch is turned to
O.DIPPED HEADLAMPS/SIDE LIGHTS fig. 49
With the ignition key turned to MAR, turn the twist switch
to
2. If dipped beams are activated, the daytime lights
go out and the side lights and dipped beams come on. The
light 3 on the instrument panel comes on. When the ig-
nition key is turned to STOP or removed and the twist
switch is turned from
Oto 2, all the side lights and tail-
lights and number plate lights come on. The
3warning
light will come on in the instrument panel.
MAIN BEAM HEADLIGHTS fig. 49
With the twist switch at position
2, push the stalk for-
wards toward the dashboard (stable position). The warn-
ing light
1on the instrument panel will come on. They
switch off when the stalk is pulled towards the wheel
(dipped beams come back on).
FLASHING fig. 49
You can flash the headlights by pulling the stalk towards
the wheel (temporary position). The light
1on the in-
strument panel will come on.
61
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
037-081 PUNTO FL EN 3ed 9-12-2009 13:39 Pagina 61

Do not use the rear window wiper to re-
move layers of snow or ice. In such condi-
tions, the rear window wiper may be sub-
jected to excessive stress, prompting intervention
from the motor protection which prevents opera-
tion for a few seconds. If operation is not restored,
even after turning the key and restarting the engine,
go to a Fiat Dealership.The rain sensor is able to recognise, and automatically
adjust itself in the presence of, the following particular con-
ditions:
❒impurities on the surface (salt, dirt, etc.);
❒difference between day and night.
IMPORTANT Streaks of water may cause the blades to
move unnecessarily.
REAR WINDOW WIPER/WASHER
This operates only with the ignition turned to MAR. The
function stops when the stalk is released. Turning the twist
switch from Oto
'will operate the rear window wiper
as follows:
❒intermittent operation if the windscreen wiper is off;
❒synchronised operation (but with half-stroke frequen-
cy) when the windscreen wiper is on;
❒continuous operation with reverse engaged and func-
tion on.
With the windscreen wiper on and reverse gear engaged,
rear window wiping will be continuous.
Pushing the stalk towards the dashboard (temporary po-
sition) will activate the rear window washer jet.
Keeping the stalk pushed for more than half a second will
also activate the rear window wiper.
Releasing the stalk will activate the smart washing function,
as described for the windscreen wiper.
65
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
037-081 PUNTO FL EN 3ed 9-12-2009 13:39 Pagina 65

75
F0U0060mfig. 66
F0U0061mfig. 67
SIDE ODDMENTS COMPARTMENT
Storage compartment A-fig. 67 is located to the left of the
steering wheel.
It is built into the dashboard.
To open and close the compartment, use handle B locat-
ed on the flap fig. 66.KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U0062mfig. 68
COMPARTMENT IN CENTRAL CONSOLE
Compartment A-fig. 68 is located on the central console
in front of the handbrake.
037-081 PUNTO FL EN 3ed 9-12-2009 13:39 Pagina 75
