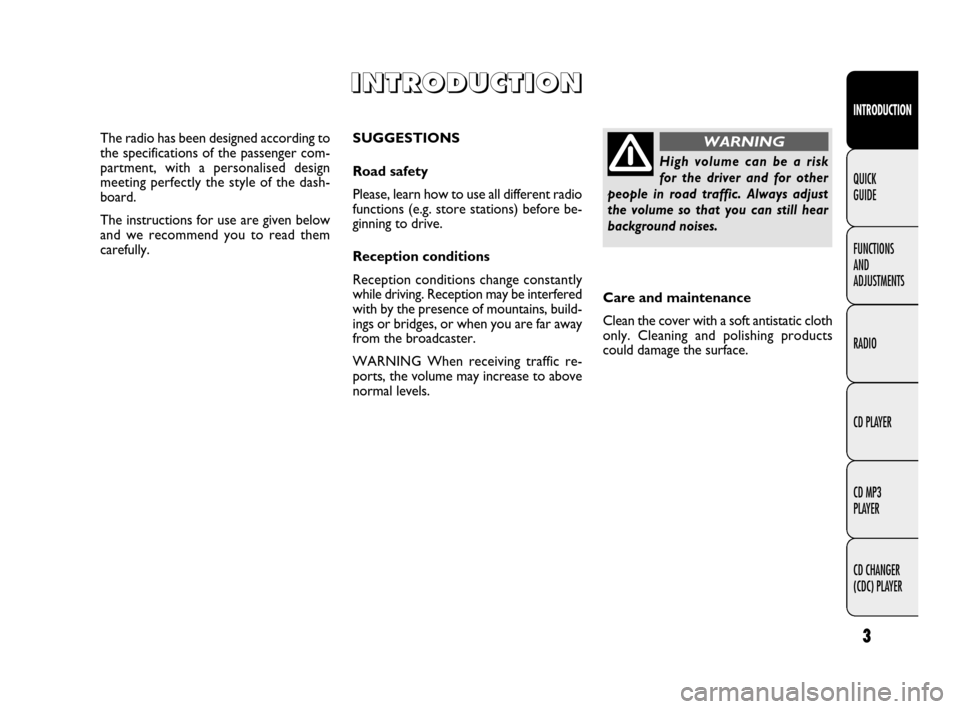

INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER QUICK
GUIDE
SUGGESTIONS
Road safety
Please, learn how to use all different radio
functions (e.g. store stations) before be-
ginning to drive.
Reception conditions
Reception conditions change constantly
while driving. Reception may be interfered
with by the presence of mountains, build-
ings or bridges, or when you are far away
from the broadcaster.
WARNING When receiving traffic re-
ports, the volume may increase to above
normal levels.
I I
N N
T T
R R
O O
D D
U U
C C
T T
I I
O O
N N
The radio has been designed according to
the specifications of the passenger com-
partment, with a personalised design
meeting perfectly the style of the dash-
board.
The instructions for use are given below
and we recommend you to read them
carefully.
High volume can be a risk
for the driver and for other
people in road traffic. Always adjust
the volume so that you can still hear
background noises.
WARNING
Care and maintenance
Clean the cover with a soft antistatic cloth
only. Cleaning and polishing products
could damage the surface.
603_97_577 Radio LINEA SB_08 EN 4-12-2009 14:48 Pagina 3
Page 5 of 34
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER
4
QUICK
GUIDE
❒clean every CD thoroughly removing
any fingermarks or dust using a soft
cloth. Hold CDs by the outside and
clean them from the middle outwards;
❒never use chemicals (e.g. antistatics or
thinners or sprays) for cleaning as they
could damage the surface of the CDs;
❒after listening to them place CDs back
in their boxes to avoid them being
damaged;
❒do not expose CDs to direct sunlight,
high temperatures or moisture for long
periods;
❒do not stick labels on the CD surface
or write on the recorded surface with
pencils or pens;
❒do not use CDs that are very scratched,
flawed, distorted, etc. Using discs like
these will result in malfunctions or dam-
age to the player;
❒The use of original CD media is re-
quired for the best quality audio pro-
duction. Correct operation is not guar-
anteed when CD-R/RW media are
used that were not correctly burned
and/or with a maximum capacity above
650 Mb;
❒Do not use commercially available pro-
tective sheets for CDs or discs with sta-
bilisers as they could get stuck in the in-
ternal mechanism and damage the disc; CDs
The presence of dirt, scratches or distor-
tions to the CDs could cause skipping
while it is playing and poor sound quality.
For optimal playback conditions, follow
these guidelines:
❒only use branded CDs:
603_97_577 Radio LINEA SB_08 EN 4-12-2009 14:48 Pagina 4
Page 6 of 34
5
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER QUICK
GUIDE
❒ The CD player is capable of reading
most compression systems currently
in use (e.g.: LAME, BLADE, XING,
FRAUNHOFER) but, following the de-
velopment of these systems, the read-
ing of all compression formats is not
guaranteed. ❒ if a copy-protected CD is used, it may
take a few seconds before the system
starts to play it. The CD player cannot
be guaranteed to play all protected
discs. The fact that the CD is protect-
ed from being copied is often shown in
very small letters or is difficult to read
on the actual CD cover where it may
be, for example, “COPY CONTROL”,
“COPY PROTECTED”, “THIS CD CAN-
NOT BE PLAYED ON A PC/MAC”, or
it may be identified through the use of
symbols, such as, for example:TECHNICAL SPECIFICATIONS
Power output 4x30 W.
❒Speakers: 4
❒CD Changer presetting
❒Anti-theft protection system
❒Aerial
❒Car radio with CD MP3 player.
603_97_577 Radio LINEA SB_08 EN 4-12-2009 14:48 Pagina 5
Page 7 of 34
6
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER
QUICK
GUIDE
Q Q
U U
I I
C C
K K
G G
U U
I I
D D
E E
Button
MUTE
FM AS
AMGENERAL FUNCTIONS
On
Off
Volume adjustment
Volume activation/deactivation (Mute/Pause)
FM1, FM2, FM Autostore radio source selection
MW1, MW2 radio source selection
Mode
Short button/knob press
Long button/knob press
Left/right button/knob rotation
Short button press
Short cyclical button press
Short cyclical button press
ON/OFF
fig. 1F0T0016m
603_97_577 Radio LINEA SB_08 EN 4-12-2009 14:48 Pagina 6
Page 8 of 34
7
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER
QUICK
GUIDE
Button
▲
¯˙▼
1 2 3 4 5 6
RADIO FUNCTIONS
Radio station search:
– Automatic search
– Manual search
Storing current radio station
Stored station recall
Button
CD
AUDIO
MENU
GENERAL FUNCTIONS
Radio CD/CD CHANGER source selection
Audio adjustments: low tones (BASS), high tones (TREBLE),
RH / LH balance (BALANCE), front / rear balance (FADER)
Advanced functions adjustment
Mode
Short cyclical button press
Menu activation: short button press
Adjustment type selection: button ▲or ▼press
Adjustment of values: button ¯or ˙press
Menu activation: short button press
Adjustment type selection: button ▲or ▼press
Adjustment of values: buttons ¯or ˙
Mode
Automatic search: press buttons ¯or ˙
(long press for fast forward)
Manual search: press buttons ▲or ▼
(long press for fast forward)
Long button press for memory preset
1 to 6 respectively
Short button press for memory preset
1 to 6 respectively
603_97_577 Radio LINEA SB_08 EN 4-12-2009 14:49 Pagina 7
Page 9 of 34
8
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER
QUICK
GUIDE
Button
˚
¯˙
▲▼
CD FUNCTIONS
CD ejection
Play previous/next track
CD track fast forward/rewind
Play previous/next folder (for CD/MP3)
Play previous/next disc (for CD-CHANGER)
Mode
Short button press
Short button press ¯or ˙
Long button press ¯or ˙
Short button press ▲or ▼
603_97_577 Radio LINEA SB_08 EN 4-12-2009 14:49 Pagina 8
