2009 FIAT GRANDE PUNTO technical specifications

12
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IGNITION
The key can be turned to 3 different po-
sitions fig. 9:
❒STOP: engine off, key can be extract-
ed, steering locked. Some electrical de-
vices (e.g. sound system, central door
locking system, etc.) can function.
❒MAR: driving position. All electrical
devices can function.
❒AVV: engine starting (temporary posi-
tion).
The ignition device is fitted with an elec-
tronic safety system that, in the event the
engine fails to start, turns back the ignition
key to STOPbefore repeating the start-
ing operation.STEERING LOCK
Engagement
When the key is in position STOP, re-
move it and turn the steering wheel until
it locks.
Disengagement
Rock the steering wheel slightly as you
turn the key to MAR.
If the ignition device has
been tampered with (e.g. an
attempted theft), have it checked
over by a Fiat Dealership as soon as
possible.
WARNING
Always remove the key when
you leave your car to pre-
vent someone from accidentally op-
erating the controls. Remember to
engage the handbrake. Engage first
gear if the car is parked uphill or re-
verse if the car is parked downhill.
Never leave children unattended in
the car.
WARNING
fig. 9F0M0015m
Never extract the key while
the vehicle is moving. The
steering wheel would lock automati-
cally as soon as it is turned. This also
applies to when the car is towed.
WARNING
It is absolutely forbidden to
carry out any after-market
operation involving steering system or
steering column modifications (e.g. in-
stallation of anti-theft device) that
could badly affect performance and
safety, invalidate the warranty and
also result in the car not complying
with regulations.
WARNING
001-032 ACTUAL 1ed EN.qxd 28-08-2009 13:41 Pagina 12

13
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
INSTRUMENT PANEL
Versions with digital display
ASpeedometer
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DRev counter
EDigital display
Versions with multifunction display
ASpeedometer
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DRev counter
EMultifunction display
F0M0401m
fig. 10
F0M0402mfig. 11
001-032 ACTUAL 1ed EN.qxd 28-08-2009 13:41 Pagina 13

14
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
INSTRUMENTS
Instrument background colour and type
may vary according to the version.
SPEEDOMETER fig. 12
This shows the speed of the vehicle.REV COUNTER fig. 13
The rev counter shows the number of en-
gine revolutions per minute.
IMPORTANT The electronic injection
control system gradually shuts off the flow
of fuel when the engine is over-revving, re-
sulting in a gradual loss of engine power.
When the engine is idling, the rev counter
may indicate a gradual or sudden increase
of the rate.
This is normal and does not indicate a fault.
It may be caused, for example, by the op-
eration of the climate control system or
fan. In these cases, a slow change in revs
is used to protect the battery charge.
fig. 12F0M0405mfig. 13F0M0406m
001-032 ACTUAL 1ed EN.qxd 28-08-2009 13:41 Pagina 14

15
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

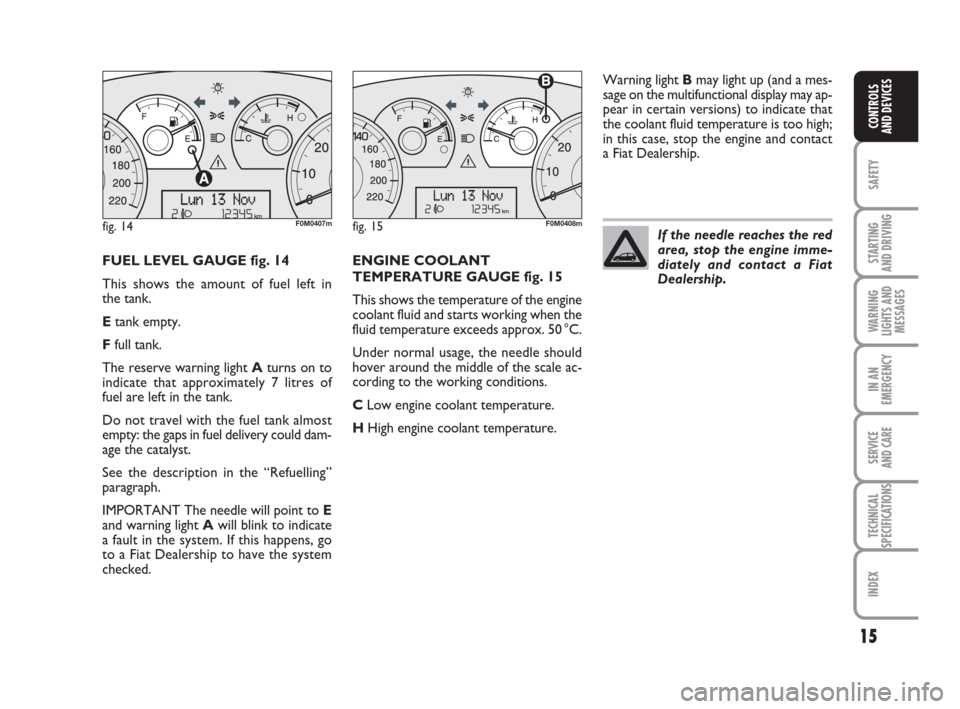

FUEL LEVEL GAUGE fig. 14
This shows the amount of fuel left in
the tank.
Etank empty.
Ffull tank.
The reserve warning light Aturns on to
indicate that approximately 7 litres of
fuel are left in the tank.
Do not travel with the fuel tank almost
empty: the gaps in fuel delivery could dam-
age the catalyst.
See the description in the “Refuelling”
paragraph.
IMPORTANT The needle will point to E
and warning light Awill blink to indicate
a fault in the system. If this happens, go
to a Fiat Dealership to have the system
checked.ENGINE COOLANT
TEMPERATURE GAUGE fig. 15
This shows the temperature of the engine
coolant fluid and starts working when the
fluid temperature exceeds approx. 50 °C.
Under normal usage, the needle should
hover around the middle of the scale ac-
cording to the working conditions.
CLow engine coolant temperature.
HHigh engine coolant temperature.Warning light Bmay light up (and a mes-
sage on the multifunctional display may ap-
pear in certain versions) to indicate that
the coolant fluid temperature is too high;
in this case, stop the engine and contact
a Fiat Dealership.
If the needle reaches the red
area, stop the engine imme-
diately and contact a Fiat
Dealership.
fig. 14F0M0407mfig. 15F0M0408m
001-032 ACTUAL 1ed EN.qxd 28-08-2009 13:41 Pagina 15

16
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
DIGITAL DISPLAY
STANDARD SCREEN fig. 16
The standard screen shows the following
information:
AHeadlamp alignment position (only
with dipped headlamps on).
BTime (always displayed, even with key
extracted and front doors closed)
COdometer (distance covered in kilo-
metres or miles) and TRIP computer
data.
NBWith key removed (when opening
one of the front doors) the display turns
on and shows for a few seconds the time
and distance covered.CONTROL BUTTONS fig. 17
+To scroll the displayed menu and the
related options upwards or to in-
crease the displayed value.
MENUPress briefly to display the menu
ESCmenu and/or go to next screen
or confirm the required menu
option.
Hold down to go back to the
standard screen.
–To scroll the displayed menu and the
related options downwards or to
decrease the displayed value.NBButtons +and –activate different
functions according to the following sit-
uations:
Controlling the car’s interior lights
– on the standard screen, they control in-
strument panel brightness, the sound sys-
tem and the automatic climate control
system.
Setup menu
– within the menu, they scroll up and
down;
– during settings operations, they increase
or decrease values.
fig. 16F0M0119mfig. 17F0M0122m
001-032 ACTUAL 1ed EN.qxd 28-08-2009 13:41 Pagina 16

17
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SETUP MENU
The menu comprises a series of functions
arranged in a circle which can be select-
ed through the +and –buttons to access
the different operations and settings de-
scribed in the following paragraphs.
The setup menu can be activated by briefly
pressing the MENU ESCbutton.
Single presses on the +and –buttons will
scroll the setup menu options.
Management modes differ from each oth-
er according to the option selected.Selecting a menu option
– briefly press the MENU ESCbutton to
select the menu option to set;
– press the +and –buttons (with single
presses) to select the new setting;
– press briefly the MENU ESCbutton to
store the new setting and go back to the
previous menu option.
Selecting “Set Clock”
– briefly press the MENU ESCbutton to
select the first value to change (hours);
– press the +and –buttons (with single
presses) to select the new setting;
– briefly press the MENU ESCbutton to
store the new setting and go to the next
setup menu option (minutes);
– after setting the values with the same
procedure, go back to the previous menu
item.Hold down the MENU ESC button:
– to quit the setup menu if you are in the
menu;
– to quit to the menu if you are setting
an option;
– to save only the settings already stored
(and confirmed by pressing the MENU
ESCbutton).
The setup menu page is timed. Only the
changes stored by the user by briefly
pressing the MENU ESCbutton are
saved when the menu is automatically
closed.
001-032 ACTUAL 1ed EN.qxd 28-08-2009 13:41 Pagina 17

18
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
On the standard screen, briefly press MENU ESCto
start browsing. Press +or –to browse within the menu.
NBFor safety reasons, only the short menu may be
accessed while the car is moving (“SPEEd” setting). Stop
the car to access the full menu.
F0M1007i
+ –
+
–
+
–+
– +–
001-032 ACTUAL 1ed EN.qxd 28-08-2009 13:41 Pagina 18

19
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
Setting the speed limit (SPEEd)
With this function, it is possible to set the
car speed limit (km/h or mph). When this
limit is exceeded, the driver is immediately
alerted (see section “Warning lights and
messages”).
To set the desired speed limit, proceed as
follows:
– briefly press MENU ESC– the mes-
sage (SPEEd) and the previously set unit
(km/h) or (mph) will appear on the display;
– press+or –to activate (On) or deac-
tivate (Off) the speed limit;
– if the function is on, press +or –to se-
lect the required speed limit and then
press MENU ESCto confirm;
NBThe speed may be set in the range
from 30 to 200 km/h, or from 20 to
125 mph according to the previously cho-
sen unit (see “Setting the distance unit
(Unit)” below). The setting will in-
crease/decrease by five units each time
+/–is pressed. Hold down +/–to in-
crease/decrease the setting rapidly. When
you get close to the desired value, finish
the setting with single presses.– briefly press MENU ESCto return to
the menu screen or hold the button down
to return to the standard screen without
saving.
To cancel the setting, proceed as follows:
– briefly press MENU ESC: (On) will
flash on the display;
– press –: (Off) will flash on the display;
– briefly press MENU ESCto return to
the menu screen or hold the button down
to return to the standard screen without
saving.
Setting the clock (Hour)
With this function, it is possible to set the
time.
To do so, proceed as follows:
– briefly press MENU ESC– the “hours”
will flash on the display;
– press +or –to set the value;
– briefly press MENU ESC– the “min-
utes” will flash on the display;
– press +or –to set the value;
– briefly press MENU ESCto return to
the menu screen or hold the button down
to return to the standard screen without
saving.Adjusting the buzzer volume
(BUZZ)
This function is used to adjust the volume
of the buzzer that sounds in the event
of failure/warning indications and when
the MENU ESC,+and –buttons are
pressed.
To set the desired volume, proceed as
follows:
– briefly press MENU ESC– the display
will show the wording (bUZZ);
– press +or –to select the required vol-
ume (adjustable over 8 levels).
– briefly press MENU ESC
to return to
the menu screen or hold the button down
to return to the standard screen without
saving.
001-032 ACTUAL 1ed EN.qxd 28-08-2009 13:41 Pagina 19
