2009 FIAT DUCATO rims

109
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
The sound system shall be installed in the
proper space occupied by the central
oddment compartment, here you will find
the preset cables.
fig. 128F0N0157m
ACCESSORIES
PURCHASED BY THE
OWNER
If after buying the vehicle, you decide to
install electrical accessories that require a
permanent electric supply (alarm, satellite
antitheft system, etc.) or accessories that
in any case burden the electric supply,
contact Fiat Dealership, whose qualified
personnel, besides suggesting the most
suitable devices belonging to Lineaccessori
Fiat, will also evaluate the overall electric
absorption, checking whether the vehicle
electric system is able to withstand the
load required, or whether it needs to be
integrated with a more powerful battery.
For connection to existing ve-
hicle presetting system, con-
tact Fiat Dealership to prevent any
trouble that could impair vehicle safe-
ty.
WARNING
fig. 129F0N0158mTake care when fitting addi-
tional spoilers, alloy rims and
non-standard wheel caps: they might
reduce ventilation of the brakes, thus
their efficiency, during abrupt and re-
peated braking, or long downhill
slopes. Make sure that nothing (mats,
etc.) gets in the way of the pedals
when they are pushed down.
WARNING
INSTALLATION OF ELECTRIC/
ELECTRONIC DEVICES
Electric/electronic devices installed after
buying the vehicle or in aftermarket shall
bear the and marking:
Fiat Auto S.p.A. authorizes the installation
of transceivers provided that installation
is carried out at a specialized shop, work-
manlike performed and in compliance with
manufacturer's specifications.
IMPORTANT Installation of devices re-
sulting in modifications of vehicle charac-
teristics may cause driving license seizing
by traffic agents and also the lapse of the
warranty as concerns defects due to the
abovementioned modification or traceable
back to it directly or indirectly.
Fiat Auto S.p.A. declines all responsibility
for damages caused by the installation of
non-genuine accessories or not recom-
mended by Fiat Auto S.p.A. and installed
not in compliance with the specified re-
quirements.

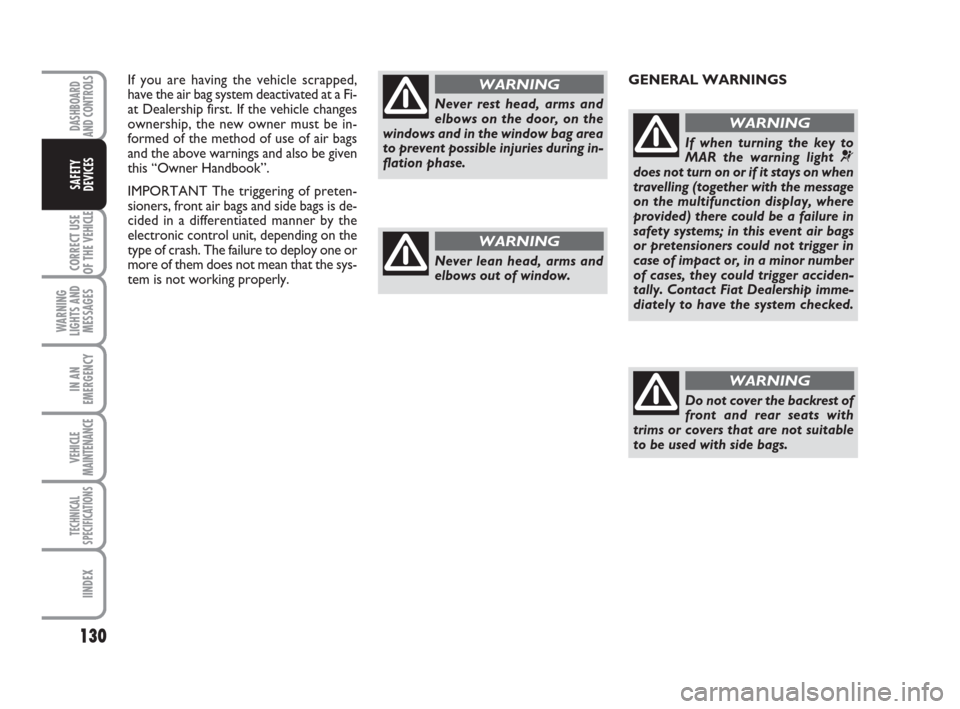

If you are having the vehicle scrapped,
have the air bag system deactivated at a Fi-
at Dealership first. If the vehicle changes
ownership, the new owner must be in-
formed of the method of use of air bags
and the above warnings and also be given
this “Owner Handbook”.
IMPORTANT The triggering of preten-
sioners, front air bags and side bags is de-
cided in a differentiated manner by the
electronic control unit, depending on the
type of crash. The failure to deploy one or
more of them does not mean that the sys-
tem is not working properly.
130
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
Never rest head, arms and
elbows on the door, on the
windows and in the window bag area
to prevent possible injuries during in-
flation phase.
WARNING
Never lean head, arms and
elbows out of window.
WARNING
GENERAL WARNINGS
If when turning the key to
MAR the warning light ¬
does not turn on or if it stays on when
travelling (together with the message
on the multifunction display, where
provided) there could be a failure in
safety systems; in this event air bags
or pretensioners could not trigger in
case of impact or, in a minor number
of cases, they could trigger acciden-
tally. Contact Fiat Dealership imme-
diately to have the system checked.
WARNING
Do not cover the backrest of
front and rear seats with
trims or covers that are not suitable
to be used with side bags.
WARNING

206
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE VEHICLE
IN AN
EMERGENCY
VEICHLE
MAINTENANCE

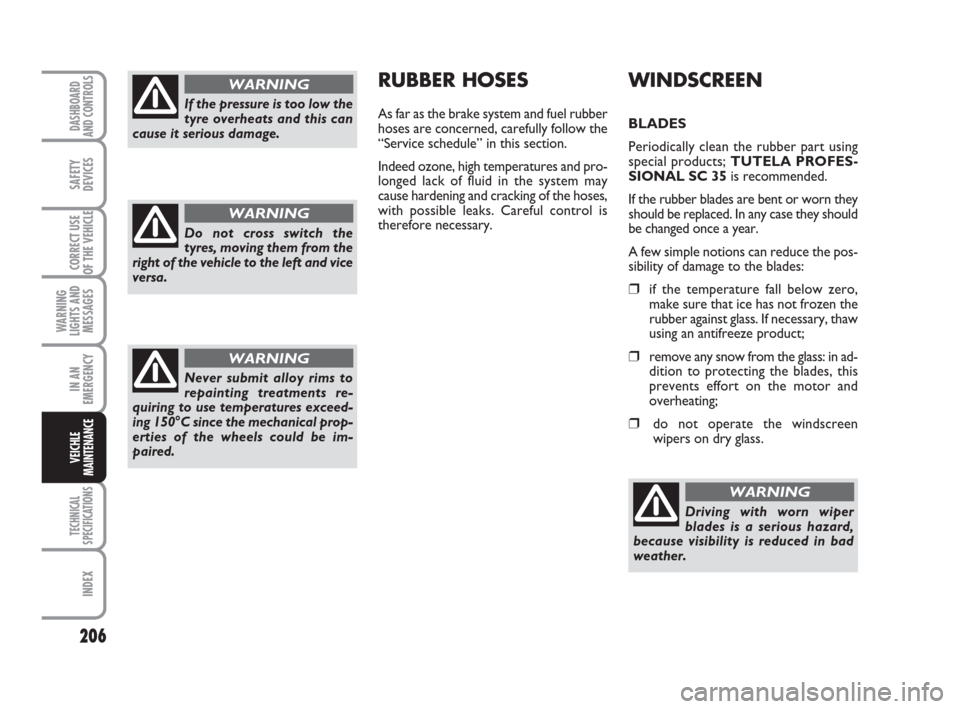

WINDSCREEN
BLADES
Periodically clean the rubber part using
special products; TUTELA PROFES-
SIONAL SC 35is recommended.
If the rubber blades are bent or worn they
should be replaced. In any case they should
be changed once a year.
A few simple notions can reduce the pos-
sibility of damage to the blades:
❒if the temperature fall below zero,
make sure that ice has not frozen the
rubber against glass. If necessary, thaw
using an antifreeze product;
❒remove any snow from the glass: in ad-
dition to protecting the blades, this
prevents effort on the motor and
overheating;
❒do not operate the windscreen
wipers on dry glass.
Driving with worn wiper
blades is a serious hazard,
because visibility is reduced in bad
weather.
WARNING
RUBBER HOSES
As far as the brake system and fuel rubber
hoses are concerned, carefully follow the
“Service schedule” in this section.
Indeed ozone, high temperatures and pro-
longed lack of fluid in the system may
cause hardening and cracking of the hoses,
with possible leaks. Careful control is
therefore necessary.If the pressure is too low the
tyre overheats and this can
cause it serious damage.
WARNING
Do not cross switch the
tyres, moving them from the
right of the vehicle to the left and vice
versa.
WARNING
Never submit alloy rims to
repainting treatments re-
quiring to use temperatures exceed-
ing 150°C since the mechanical prop-
erties of the wheels could be im-
paired.
WARNING

219
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
UNDERSTANDING TYRE
MARKING fig. 4
Example: 215/70 R 15 109S
215 = Nominal width (S, distance be-
tween sidewalls in mm).
70 = Percentage height/width ratio (H/
S).
R = Radial tyre.
15 = Rim diameter in inches (Ø).
109 = Load rating (capacity).
S = Maximum speed rating.
WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless tyres
with radial carcass. The homologated tyres
are listed in the Log book.
IMPORTANT In the event of discrepan-
cies between the information provided on
this “Owner handbook” and the “Log
book”, consider the specifications shown
in the log book only.
To ensure safety of the vehicle in move-
ment, it must be fitted with tyres of the
same make and type on all wheels.
IMPORTANT Do not use inner tubes
with Tubeless tyres.
fig. 4F0N0113m
SPARE WHEEL
Printed steel rim.
Tubeless tyre (same as those fitted).
WHEEL GEOMETRY
Front wheel toe-in measured
from rim to rim: – 1 ± 1 mm
The values refer to the vehicle in running
order.

221
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS

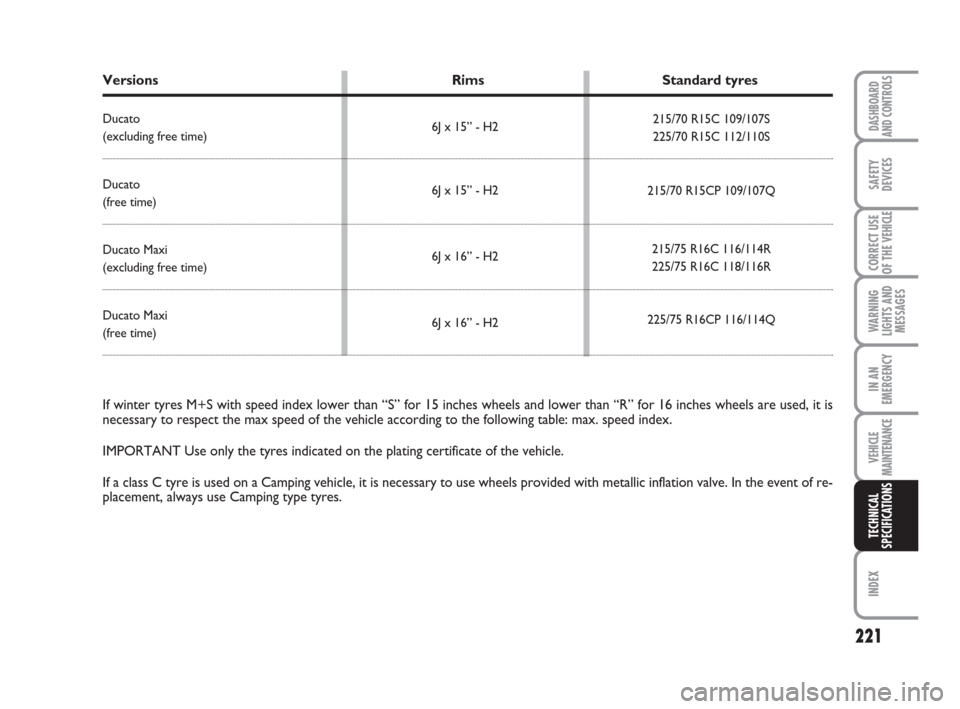

215/70 R15C 109/107S
225/70 R15C 112/110S
215/70 R15CP 109/107Q
215/75 R16C 116/114R
225/75 R16C 118/116R
225/75 R16CP 116/114Q 6J x 15” - H2
6J x 15” - H2
6J x 16” - H2
6J x 16” - H2
Versions Rims Standard tyres
Ducato
(excluding free time)
Ducato
(free time)
Ducato Maxi
(excluding free time)
Ducato Maxi
(free time)
If winter tyres M+S with speed index lower than “S” for 15 inches wheels and lower than “R” for 16 inches wheels are used, it is
necessary to respect the max speed of the vehicle according to the following table: max. speed index.
IMPORTANT Use only the tyres indicated on the plating certificate of the vehicle.
If a class C tyre is used on a Camping vehicle, it is necessary to use wheels provided with metallic inflation valve. In the event of re-
placement, always use Camping type tyres.

272
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Oddment compartment under
the front passenger's seat ............... 86
Oddment compartments .................. 85
Operation at low temperatures ...... 110
Paint ..................................................... 208
Parking .................................................. 136
Parking sensors ................................... 107
Performance ........................................ 229
Plates
– body paint....................................... 213
– identification data.......................... 212
Pollen filter............................................ 202
Power steering fluid level................... 201
Power windows
– controls .......................................... 97
Pretensioners........................................ 116
Protecting the environment ............. 112
Radio-controlled remote control
– government type-approval.......... 266
Radio transmitters and cellular
telephones.......................................... 110
Rain sensor .......................................... 78
Reading/writing desk........................... 88
Rear ceiling lights– bulb replacement .......................... 176
– control............................................. 82
Rear double door................................ 96
Rear fog lights
– bulb replacement .......................... 173
– control button .............................. 83
Rearview camera .............................40-89
Rearview mirrors................................. 45
– door mirrors ................................. 45
– driving mirror ................................ 45
– electric ............................................ 46
Refrigerated compartment................ 85
Refuelling .............................................. 111
Rev counter ......................................... 18
Reversing light ..................................... 173
Rims
– understanding rim marking.......... 220
Roof rack/ski rack................................ 100
Safety devices...................................... 113
Seat adjustment ................................... 37
Seat belts............................................... 114
– general warnings ........................... 117
– load limiters.................................... 116
– maintenance .................................. 109 Interiors ................................................ 209
Isofix....................................................... 124
Jacking the vehicle .............................. 186
Key with remote control ................ 9
Key without remote control ........... 11
Levels
– brake fluid ...................................... 200
– engine coolant ............................... 199
– engine oil ........................................ 198
– power steering fluid ..................... 201
– windscreen/rear window/
headlight washer............................ 200
Load limiters ........................................ 116
Main beam headlights
– bulb replacement .......................... 171
– control ............................................ 75
– flashing ............................................ 75
Manual climate control system ......... 51
Mobile footboard................................. 95
Multifunction display .......................... 26
Multimeter ........................................... 91
Number plate light ............................ 175
