2009 FIAT CROMA Specifications

4
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLSINSTRUMENT DASHBOARD........................................... 5
INSTRUMENT PANEL......................................................... 6
SYMBOLS................................................................................ 8
THE FIAT CODE SYSTEM.................................................. 9
THE KEYS............................................................................... 10
ALARM.................................................................................... 14
DEAD LOCK DEVICE......................................................... 16
IGNITION DEVICE.............................................................. 19
ON BOARD INSTRUMENTS............................................ 20
MULTIFUNCTIONAL DISPLAY ...................................... 22
RECONFIGURABLE MULTIFUNCTIONAL DISPLAY .. 25
DISPLAY FUNCTIONS........................................................ 28
TRIP COMPUTER................................................................. 36
SEATS....................................................................................... 39
HEAD RESTS.......................................................................... 42
STEERING WHEEL............................................................... 43
REAR VIEW MIRRORS ....................................................... 44
HEATING/AIR CONDITIONING SYSTEM................... 47
MANUAL AIR CONDITIONER........................................ 49
AUTOMATIC AIR CONDITIONER................................ 52
EXTERIOR LIGHTS.............................................................. 62
WINDOW CLEANING...................................................... 65CRUISE CONTROL............................................................. 68
CEILING LIGHTS.................................................................. 70
CONTROLS........................................................................... 71
INTERIOR EQUIPMENT..................................................... 74
SUN ROOF............................................................................. 78
DOORS................................................................................... 81
ELECTRIC WINDOW REGULATORS........................... 82
BOOT ...................................................................................... 84
ENGINE HOOD................................................................... 90
ROOF RACK/SKI RACK..................................................... 92
HEADLAMPS.......................................................................... 93
ABS SYSTEM........................................................................... 94
ESP SYSTEM............................................................................ 96
ASR SYSTEM.......................................................................... 97
EOBD SYSTEM...................................................................... 98
T.P.M.S. SYSTEM.................................................................... 99
CAR RADIO........................................................................... 100
USER PURCHASED ACCESSORIES................................. 101
PARKING SENSORS............................................................ 102
VEHICLE REFUELLING........................................................ 104
ENVIRONMENTAL PROTECTION................................. 105
DD D
A A
S S
H H
B B
O O
A A
R R
D D
A A
N N
D D
C C
O O
N N
T T
R R
O O
L L
S S
001-038 Croma TRW GB 28-05-2008 16:29 Pagina 4

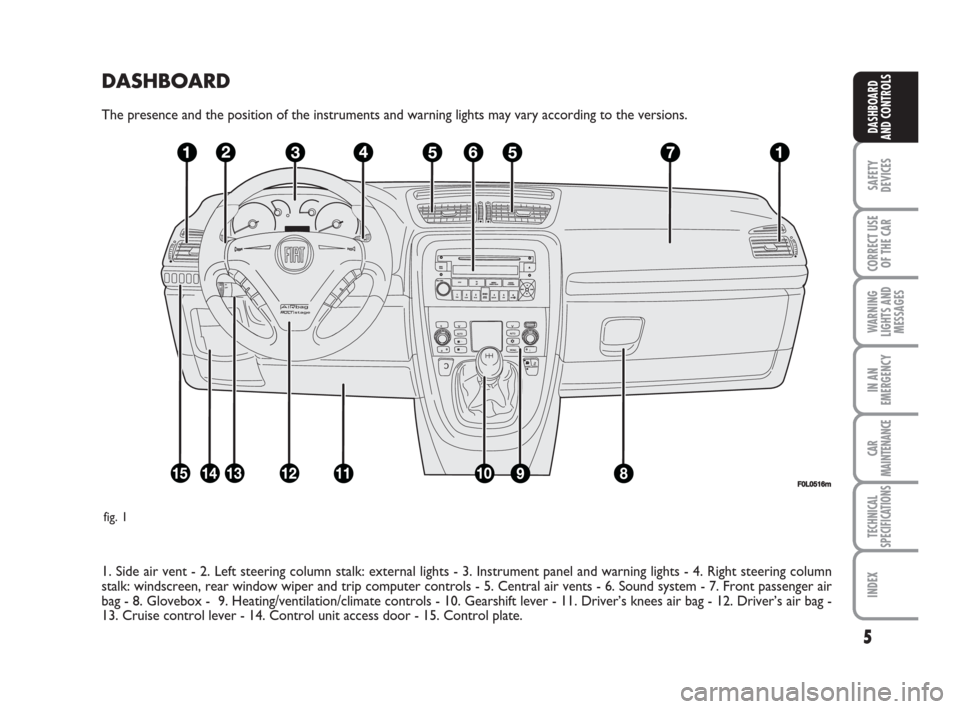

DASHBOARD
The presence and the position of the instruments and warning lights may vary according to the versions.
1. Side air vent - 2. Left steering column stalk: external lights - 3. Instrument panel and warning lights - 4. Right steering column
stalk: windscreen, rear window wiper and trip computer controls - 5. Central air vents - 6. Sound system - 7. Front passenger air
bag - 8. Glovebox - 9. Heating/ventilation/climate controls - 10. Gearshift lever - 11. Driver’s knees air bag - 12. Driver’s air bag -
13. Cruise control lever - 14. Control unit access door - 15. Control plate.
5
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0L0516m
fig. 1
001-038 Croma TRW GB 28-05-2008 16:29 Pagina 5

6
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
INSTRUMENT PANEL1.8 - 1.9 Multijet 8Vversions with
multifunctional display
ASpeedometer (speed indicator)
BFuel level gauge with reserve
warning light
CEngine coolant temperature gauge
and excessive temperature warning
light
DRev counter
Emultifunctional display
mcWarning lights fitted on
Multijet versions
tWarning light fitted on versions
with automatic transmission
1.8 - 1.9 Multijet
8Vwith
reconfigurable multifunctional display
ASpeedometer (speed indicator)
BFuel level gauge with reserve
warning light
CEngine coolant temperature gauge
and excessive temperature warning
light
DRev counter
EReconfigurable multifunctional display
mcWarning lights fitted on
Multijet versions
tWarning light fitted on versions
with automatic transmission
F0L0504m
F0L0505m
fig. 2
On versions 1.8 the end scale value of the engine speed indicator is 8000 rpm.
On versions 1.8 the end scale value of the engine speed indicator is 8000 rpm.
001-038 Croma TRW GB 28-05-2008 16:29 Pagina 6

7
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
2.2 - 1.9 Multijet 16Vversions -
2.4 Multijet
20Vwith multifunctional
display
ASpeedometer (speed indicator)
BFuel level gauge with reserve
warning light
CEngine coolant temperature gauge
and excessive temperature warning
light
DRev counter
EMultifunctional display
mcWarning lights fitted on
Multijet versions
tWarning light fitted on versions
with automatic transmission
2.2 - 1.9 Multijet
16V- 2.4 Multijet 20V
with reconfigurable multifunctional
display
ASpeedometer (speed indicator)
BFuel level gauge with reserve
warning light
CEngine coolant temperature gauge
and excessive temperature warning
light
DRev counter
EReconfigurable multifunctional display
mcWarning lights fitted on
Multijet versions
tWarning light fitted on versions
with automatic transmission
F0L0507m F0L0506m
fig. 3
On Multijet versions the end scale value of the engine speed indicator is 6000 rpm.
On Multijet versions the end scale value of the engine speed indicator is 6000 rpm.
001-038 Croma TRW GB 28-05-2008 16:29 Pagina 7

8
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SYMBOLS
Special coloured labels have been attached
near or actually on some of the compo-
nents of your car. These labels bear sym-
bols that remind you of the precautions
to be taken as regards that particular com-
ponent.The plate summarising the symbols used
can be found under the bonnet fig. 4.
fig. 4F0L0099m
001-038 Croma TRW GB 28-05-2008 16:29 Pagina 8

9
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
The electronic components in-
side the key may be damaged
if the key is submitted to sharp
knocks.
OPERATION
Each time the key is fitted into the ignition
switch, the Fiat CODE system control unit
sends a recognition code to the engine con-
trol unit to deactivate the inhibitor.
The code is sent only if the Fiat CODE sys-
tem control unit has recognised the code
transmitted from the key.
Each time the ignition key is removed, the
Fiat CODE system deactivates the func-
tions of the engine electronic control unit.
If the code has not been recognised cor-
rectly, the warning light
Y(where pro-
vided) turns on accompanied by the relat-
ed message on the display (see chapter
“Warning lights and messages”).
In this case, the key should be removed and
refitted; if the lock continues, possibly try
again with the other key provided with the
car. If it is still not possible to start the car
contact a Fiat Dealership.
IMPORTANT Every key has its own code,
which must be memorised by the system
control unit. To memorise new keys, up to
a maximum of eight, apply to Fiat Dealer-
ship.
THE FIAT CODE SYSTEM
To further protect your car from theft, it
has been fitted with an engine immobilising
system. This system is automatically acti-
vated when the ignition key is removed.
An electronic device, in fact, is fitted in each
ignition key grip. The device transmits a ra-
dio-frequency signal when the engine is
started through a special aerial built into the
ignition switch. The modulate signal, which
changes each time the engine is started, is
the “password”, by means of which the
control unit recognises the key and enables
to start the engine.Warning light
Ycoming on
when driving
❒If the warning light Yturns on, this
means that the system is running a
self-test (for example for a voltage
drop). At the first stop, turn the igni-
tion key to OFF and then back to
ON: if no failure is detected warning
light
Ywill not come on.
❒If the warning light Ystays on, re-
peat the procedure described previ-
ously leaving the key at OFFfor over
30 seconds. Should the inconvenience
persists, contact a Fiat Dealership.
001-038 Croma TRW GB 28-05-2008 16:29 Pagina 9

10
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

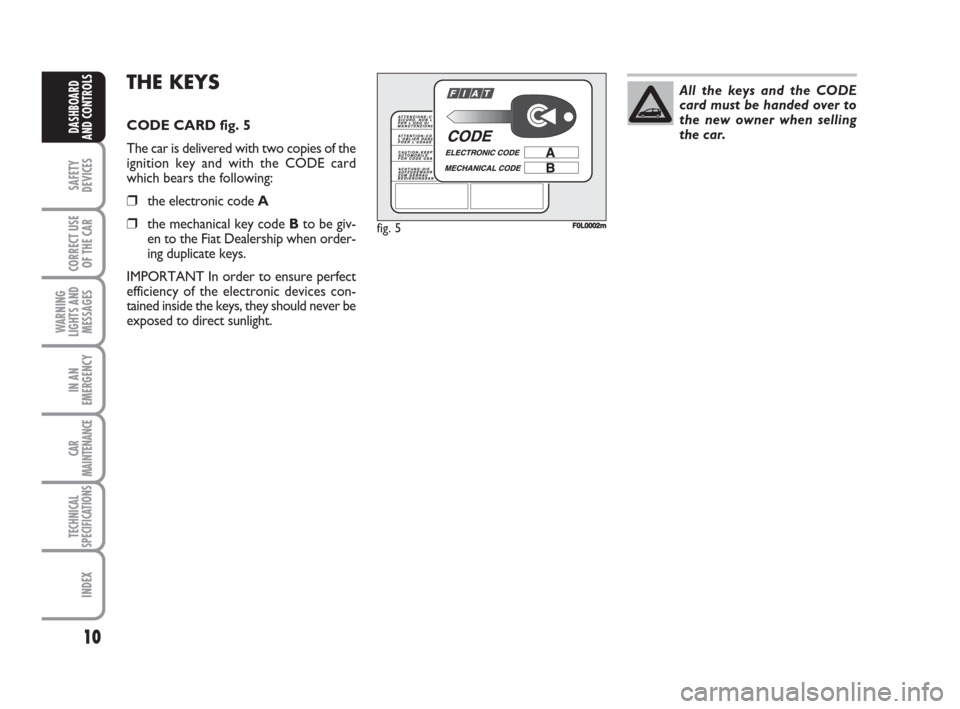

THE KEYS
CODE CARD fig. 5
The car is delivered with two copies of the
ignition key and with the CODE card
which bears the following:
❒the electronic code A
❒the mechanical key code Bto be giv-
en to the Fiat Dealership when order-
ing duplicate keys.
IMPORTANT In order to ensure perfect
efficiency of the electronic devices con-
tained inside the keys, they should never be
exposed to direct sunlight.fig. 5F0L0002m
All the keys and the CODE
card must be handed over to
the new owner when selling
the car.
001-038 Croma TRW GB 28-05-2008 16:29 Pagina 10

11
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
KEY WITH REMOTE CONTROL
fig. 6
This key operates the ignition switch.
Button Ëshall be used for remote open-
ing of doors and tailgate and for remote
deactivation of the alarm (where provid-
ed).
Button Áshall be used for remote lock-
ing of doors and tailgate and for remote
activation of the alarm (where provided).
Button Rshall be used for remote
opening of the tailgate.
When unlocking the doors, the passen-
ger’s compartment lights will come on for
a preset time.
fig. 6F0L0100m
Opening the doors and the tailgate
Briefly press button Ëfor remote un-
locking of doors, tailgate and fuel filler cap
and simultaneous alarm (where provided)
deactivation, timed switching on of the in-
ternal ceiling lights and double flashing of
direction indicators.
Press button Ëfor more than 2 seconds
to open the windows.
Doors will be unlocked automatically if the
fuel inertial cut-off switch comes into op-
eration.
The “Set-up menu” on the display (see
paragraph “Multifunction display”) enables
to set the system so that by pressing but-
ton Ë, only the driver’s door is unlocked.
In this event, to unlock the other doors
press quickly button Ëtwice.
IMPORTANT If the remote control does
not work properly, it is still possible to
carry out the emergency opening proce-
dure by using the metal insert set inside
the remote control (see “Emergency
opening using the metal insert of the key”).Locking the doors and the tailgate
Briefly press button Áfor remote lock-
ing of doors, tailgate and fuel filler cap and
simultaneous alarm (where provided) ac-
tivation, switching off of the internal ceil-
ing lights and single flashing of direction in-
dicators.
Press button Áfor more than 2 seconds
to close the windows. If the button is
briefly pressed twice, the dead lock device
is activated (see paragraph “Dead lock de-
vice”).
IMPORTANT If the remote control does
not work properly, it is still possible to
lock the car doors by following the pro-
cedure described in paragraph “Emer-
gency closing”
001-038 Croma TRW GB 28-05-2008 16:29 Pagina 11
