2009 DODGE JOURNEY display

3. Pull the sun visor toward the inside rearview mirror to
extend it.
PARKVIEWREAR BACKUP CAMERA — IF
EQUIPPED
The Parkview Rear Backup Camera captures live video
of the area behind the vehicle. The live video displays on
the radio’s display screen when backing up your vehicle.
NOTE: Refer to “Setting Display Properties,” under
“System Settings” in the Navigation User’s Manual for
navigation screen brightness adjustment instructions.
To operate the Rear Backup Camera:
1. Start the engine.
2. Move the shift lever into REVERSE.
3. Wait one to two seconds and the video will display on
the radio’s display screen. NOTE:
The video will only display while the shift lever
is in REVERSE.
WARNING!
Drivers must be careful when backing up a vehicle,
even when using the Rear Backup Camera. Always
check carefully for pedestrians, animals, other ve-
hicles, obstructions, and blind spots before backing
up a vehicle. You are responsible for the safety of
your surroundings and must continue to pay atten-
tion while backing up a vehicle. Failure to do so can
result in serious injury or death.
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Phone ButtonThe rearview mirror contains the microphone
for the system (depending on the type of
mirror and radio equipped), and either the
radio or the mirror has the two control buttons
(PHONE Button and VOICE RECOGNITION button)
that will enable you to access the system.
Voice Recognition Button Actual button location may vary with radio.
The individual buttons are described in the
“Operation” section.
The UConnect system can be used with any Hands-Free
Profile certified Bluetooth cellular phone. See the
UConnect website for supported phones. If your cellu-
lar phone supports a different profile (e.g., Headset
Profile) you may not be able to use any UConnect
features. Refer to your cellular service provider or the
phone manufacturer for details. The UConnect
system is fully integrated with the vehi-
cle’s audio system. The volume of the UConnect system
can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped.
The radio display will be used for visual prompts from
the UConnect system such as CELLor caller ID on
certain radios.
Operation
Voice commands can be used to operate the UConnect
system and to navigate through the UConnect menu
structure. Voice commands are required after most
UConnect system prompts. You will be prompted for a
specific command and then guided through the available
options.
•Prior to giving a voice command, one must wait for
the beep, which follows the Readyprompt or another
prompt.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95
3

Dial by Saying a Number
•
Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Dial.
•The system will prompt you to say the number you
want to call.
•For example, you can say 234-567-8901.The phone
number that you enter must be of valid length and
combination. Based on the country in which the ve-
hicle was purchased, the UConnect system limits the
user from dialing an invalid combination of numbers.
For example, in the U.S., 234-567-890 is nine digits
long, which is not a valid U.S. phone number - the
closest valid phone number has 10 digits.
•The UConnect system will confirm the phone num-
ber and then dial. The number will appear in the
display of certain radios.
Call by Saying a Name
•
Press the PHONE button to begin.
•After the Readyprompt and the following beep, say
“Call.
•The system will prompt you to say the name of the
person you want to call.
•After the Readyprompt and the following beep, say
the name of the person you want to call. For example,
you can say John Doe,where John Doe is a previ-
ously stored name entry in the UConnect phonebook.
To learn how to store a name in the phonebook, refer
to Add Names to Your UConnect Phonebook,in
this section.
•The UConnect system will confirm the name and
then dial the corresponding phone number, which
may appear in the display of certain radios.
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Object Exchange Profile (OBEX). Please see your phone
Owner’s Manual for specific instructions on how to send
these entries from your phone.
NOTE:
•The phone handset must support BluetoothOBEX
transfers of phonebook entries to use this feature.
•Some phones cannot send phonebook entries if they
are already connected to any system via Bluetooth ,
and you may see a message on the phone display that
the Bluetooth link is busy. In this case, the user must
first disconnect or drop the Bluetooth connection to
the UConnect system, and then send the address
book entry via Bluetooth. Please see your phone
Owner ’s Manual for specific instructions on how to
drop the Bluetooth connection.
•If the phonebook entry is longer than 24 characters, it
will only use the first 24 characters.
Edit Entries in the UConnect Phonebook
NOTE:Editing names in the phonebook is recom-
mended when the vehicle is not in motion.
•Press the PHONE button to begin.
•After the Readyprompt and the following beep, say
Phonebook Edit.
•You will then be asked for the name of the phonebook
entry that you wish to edit.
•Next, choose the number designation (home, work,
mobile, or pager) that you wish to edit.
•When prompted, recite the new phone number for the
phonebook entry that you are editing.
After you are finished editing an entry in the phonebook,
you will be given the opportunity to edit another entry in
the phonebook, call the number you just edited, or return
to the main menu.
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

send the corresponding phone number associated with
the phonebook entry, as tones over the phone.
NOTE:
•You may not hear all of the tones due to cellular phone
network configurations; this is normal.
•Some paging and voice mail systems have system time
out settings that are too short and may not allow the
use of this feature.
Barge In - Overriding Prompts
The “Voice Recognition” button can be used when you
wish to skip part of a prompt and issue your voice
recognition command immediately. For example, if a
prompt is askingWould you like to pair a phone, clear
a, you could press the “Voice Recognition” button and
say, Pair a Phone to select that option without having to
listen to the rest of the voice prompt.
Turning Confirmation Prompts On/Off
Turning confirmation prompts off will stop the system
from confirming your choices (e.g., the UConnect sys-
tem will not repeat a phone number before you dial it).
•Press the PHONE button to begin.
•After the Readyprompt and the following beep, say
Setup Confirmations. The UConnectsystem will
play the current confirmation prompt status and you
will be given the choice to change it.
Phone and Network Status Indicators
If available on the radio and/or on a premium display
such as the instrument panel cluster, and supported by
your cell phone, the UConnect system will provide
notification to inform you of your phone and network
status when you are attempting to make a phone call
using UConnect. The status is given for roaming, net-
work signal strength, phone battery strength, etc.
108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

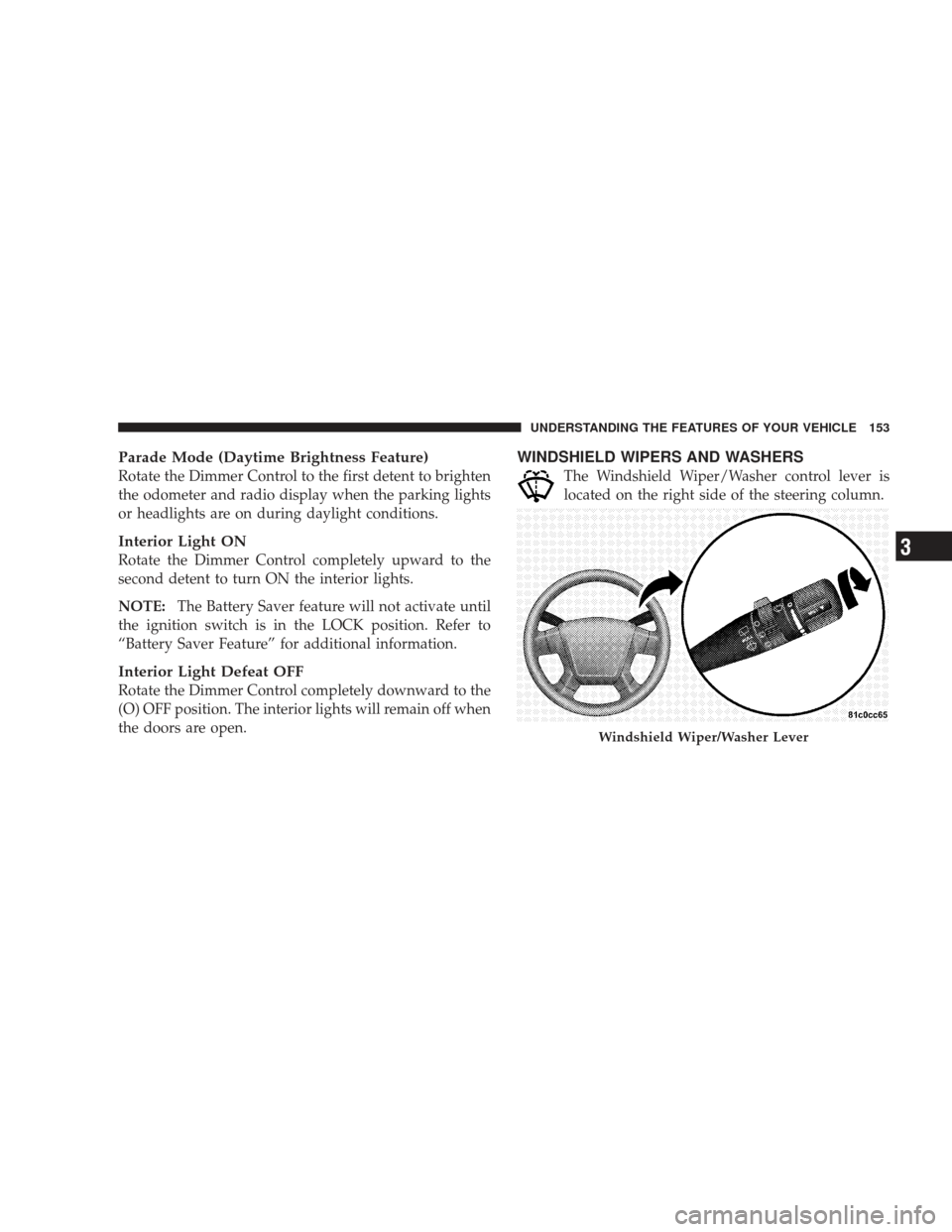

Parade Mode (Daytime Brightness Feature)
Rotate the Dimmer Control to the first detent to brighten
the odometer and radio display when the parking lights
or headlights are on during daylight conditions.
Interior Light ON
Rotate the Dimmer Control completely upward to the
second detent to turn ON the interior lights.
NOTE:The Battery Saver feature will not activate until
the ignition switch is in the LOCK position. Refer to
“Battery Saver Feature” for additional information.
Interior Light Defeat OFF
Rotate the Dimmer Control completely downward to the
(O) OFF position. The interior lights will remain off when
the doors are open.
WINDSHIELD WIPERS AND WASHERS
The Windshield Wiper/Washer control lever is
located on the right side of the steering column.
Windshield Wiper/Washer Lever
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 153
3

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel Features .................203
 Instrument Cluster ......................204
 Instrument Cluster Descriptions ............205
 Electronic Vehicle Information Center (EVIC) —
If Equipped ...........................221
▫ Electronic Vehicle Information Center (EVIC)
Displays ............................223
▫ Oil Change Required ...................225
▫ Trip Functions .......................226 ▫
Compass Display .....................227
▫ Personal Settings (Customer Programmable
Features) ...........................230
 Radio General Information ................233
▫ Radio Broadcast Signals .................233
▫ Two Types Of Signals ..................233
▫ Electrical Disturbance ..................233
▫ AM Reception .......................233
▫ FM Reception ........................2344

INSTRUMENT PANEL FEATURES
1 — Side Window Demist Outlet5 — HAZARD Switch9 — Climate Control
2 — Air Outlet 6 — Switch Bank10 — Radio
3 — Instrument Cluster 7 — Beverage Cooler/Storage Compartment* 11 — Ignition Switch
4 — Storage Compartment or Remote Display Panel* 8 — Glove Box * If Equipped
UNDERSTANDING YOUR INSTRUMENT PANEL 203
4
