2009 DODGE JOURNEY TPMS

will repeat, providing the system fault still exists. The
Tire Pressure Monitoring Telltale light will turn off when
the fault condition no longer exists. A system fault can
occur due to any of the following:
1. Jamming due to electronic devices or driving next to
facilities emitting the same Radio Frequencies as the
TPMS sensors.
2. Installing some form of aftermarket window tinting
that affects radio wave signals.
3. Lots of snow or ice around the wheels or wheel
housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPMS sensors.NOTE:
1. The compact spare tire does not have a tire pressure
monitoring sensor. Therefore, the TPMS will not monitor
the pressure in the compact spare tire.
2. If you install the compact spare tire in place of a road
tire that has a pressure below the low-pressure warning
limit, a chime will sound and the TPMS Telltale light will
turn on upon the next ignition key cycle.
3. After driving the vehicle for up to 10 minutes above 15
mph (25 km/h), the TPMS Telltale light will flash on and
off for 75 seconds and then remain on solid.
4. For each subsequent ignition key cycle, a chime will
sound and the TPMS Telltale light will flash on and off
for 75 seconds and then remain on solid.
STARTING AND OPERATING 359
5

5. Once you repair or replace the original road tire and
reinstall it on the vehicle in place of the compact spare,
the TPMS will update automatically and the TPMS
Telltale light will turn off, as long as no tire pressure is
below the low-pressure warning limit in any of the four
active road tires. The vehicle may need to be driven for
up to 10 minutes above 15 mph (25 km/h) in order for the
TPMS to receive this information.
Premium System — If Equipped
The Tire Pressure Monitor System (TPMS) uses wireless
technology with wheel rim mounted electronic sensors to
monitor tire pressure levels. Sensors, mounted to each
wheel as part of the valve stem, transmit tire pressure
readings to the receiver module.
NOTE:It is particularly important for you to check the
tire pressure in all of the tires on your vehicle monthly
and to maintain the proper pressure. The TPMS consists of the following components:
•Receiver module
•Four Tire Pressure Monitoring Sensors
•Three Trigger modules (mounted in three of the four
wheel-wells)
•Various Tire Pressure Monitoring System messages,
which display in the Electronic Vehicle Information
Center (EVIC)
•Tire Pressure Monitoring Telltale light
Tire Pressure Monitoring Low Pressure Warnings
The Tire Pressure Monitoring Telltale light will
illuminate in the instrument cluster and a chime
will sound when tire pressure is low in one or
more of the four active road tires. In addition, the
360 STARTING AND OPERATING

Electronic Vehicle Information Center (EVIC) will display
a graphic showing the pressure values of each tire with
the low tire pressure values flashing.
Should this occur, you should stop as soon as possible
and inflate the tires with low pressure (those flashing in
the EVIC graphic) to the vehicle’s recommended cold
placard pressure value. Once the system receives theupdated tire pressures, the system will automatically
update, the graphic display in the EVIC will stop flash-
ing, and the Tire Pressure Monitoring Telltale light will
turn off. The vehicle may need to be driven for up to 10
minutes above 15 mph (25 km/h) in order for the TPMS
to receive this information.
Check TPMS Warning
When a system fault is detected, the Tire Pressure Moni-
toring Telltale light will flash on and off for 75 seconds
and then remain on solid. The system fault will also
sound a chime. In addition, the EVIC will display a
CHECK TPM SYSTEM
message for three seconds and
then display dashes (- -) in place of the pressure value to
indicate which sensor is not being received.
STARTING AND OPERATING 361
5

If the ignition key is cycled, this sequence will repeat,
providing the system fault still exists. If the system fault
no longer exists, the Tire Pressure Monitoring Telltale
light will no longer flash, and theCHECK TPM SYS-
TEM message will no longer display, and a pressure
value will display in place of the dashes. A system fault
can occur due to any of the following: 1. Jamming due to electronic devices or driving next to
facilities emitting the same radio frequencies as the TPMS
sensors.
2. Installing some form of aftermarket window tinting
that affects radio wave signals.
3. Lots of snow or ice around the wheels or wheel
housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPMS sensors.
NOTE:
1. The compact spare tire does not have a tire pressure
monitoring sensor. Therefore, the TPMS will not monitor
the pressure in the compact spare tire.
2. If you install the compact spare tire in place of a road
tire that has a pressure below the low-pressure warning
limit, upon the next ignition key cycle, the TPMS Telltale
362 STARTING AND OPERATING

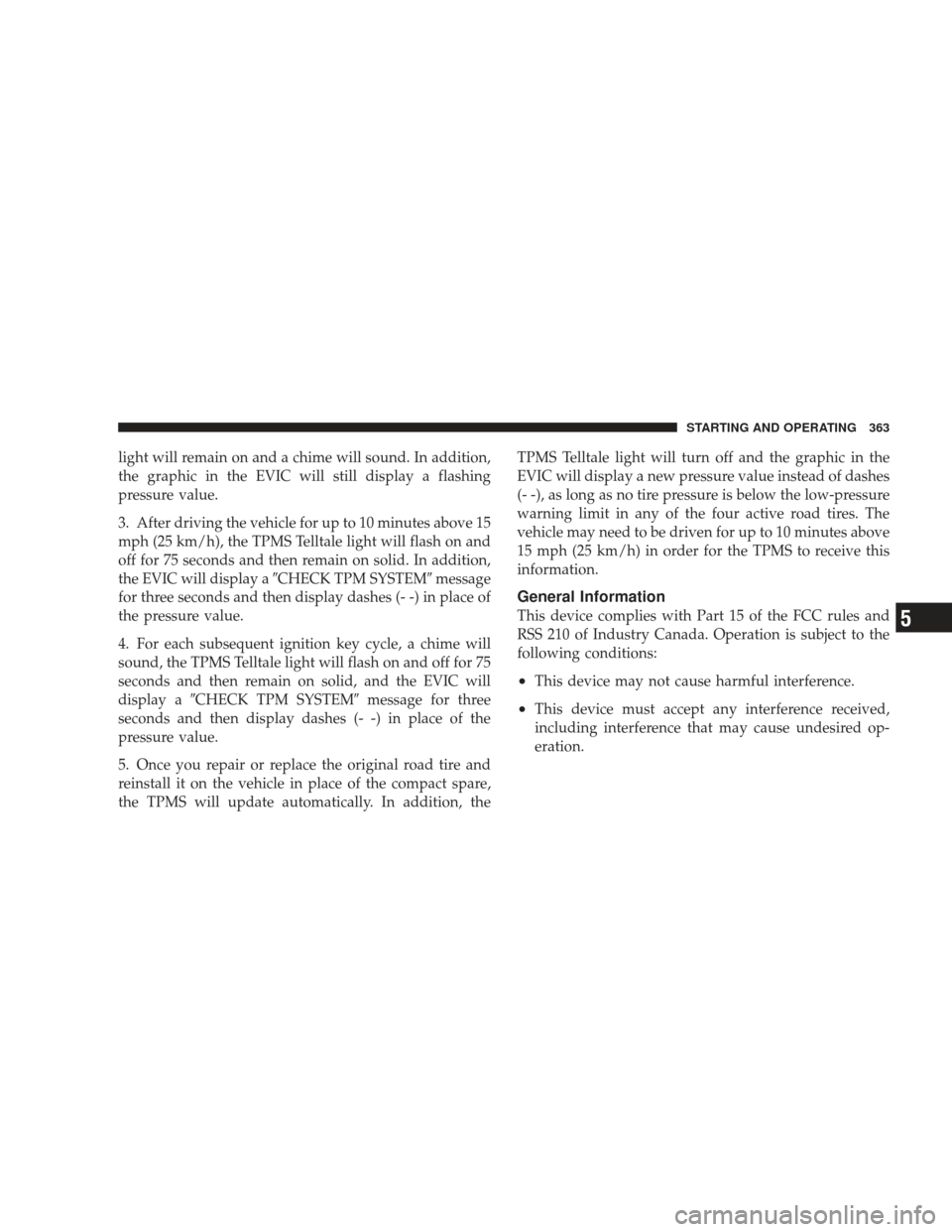

light will remain on and a chime will sound. In addition,
the graphic in the EVIC will still display a flashing
pressure value.
3. After driving the vehicle for up to 10 minutes above 15
mph (25 km/h), the TPMS Telltale light will flash on and
off for 75 seconds and then remain on solid. In addition,
the EVIC will display aCHECK TPM SYSTEM message
for three seconds and then display dashes (- -) in place of
the pressure value.
4. For each subsequent ignition key cycle, a chime will
sound, the TPMS Telltale light will flash on and off for 75
seconds and then remain on solid, and the EVIC will
display a CHECK TPM SYSTEM message for three
seconds and then display dashes (- -) in place of the
pressure value.
5. Once you repair or replace the original road tire and
reinstall it on the vehicle in place of the compact spare,
the TPMS will update automatically. In addition, the TPMS Telltale light will turn off and the graphic in the
EVIC will display a new pressure value instead of dashes
(- -), as long as no tire pressure is below the low-pressure
warning limit in any of the four active road tires. The
vehicle may need to be driven for up to 10 minutes above
15 mph (25 km/h) in order for the TPMS to receive this
information.
General Information
This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired op-
eration.
STARTING AND OPERATING 363
5

CavityCartridge
Fuse Mini-
Fuse Description
M10
—15 Amp
Blue
Vanity Lamps/
Hands-Free Module
(HFM) - if equipped,
Remote Display - if
equipped, Satellite
Digital Audio Re-
ceiver (SDARS) - if
equipped, Universal
Garage Door Opener
(UGDO) - if
equipped, Vanity
Light, Video Enter-
tainment System
(VES)™ - if equipped
M11
—10 Amp
Red
Automatic Tempera-
ture Control (ATC) -
if equipped, Under-
hood LightCavity
Cartridge
Fuse Mini-
Fuse Description
M12 —30 Amp
Green Radio, Amplifier
(AMP)
M13
—20 Amp
Yellow
Cabin Compartment
Node (CCN), Multi-
function Switch/Siren
Module
M14 —20 Amp
Yellow (If Equipped) Trailer
Tow (BUX)
M15
—20 Amp
Yellow
Auto Dim Rearview
Mirror - if equipped,
Infrared Sensor (IR) -
if equipped, Multi-
function Switch, Tire
Pressure Monitor Sys-
tem (TPMS) - if
equipped, Transfer
Case Module - if
equipped,
MAINTAINING YOUR VEHICLE 461
7

Illuminated Entry....................... 20
Instrument Cluster .................. 146,205
Intensity Control ....................... 152
Interior .......................... 151,152
License ............................. 470
Lights On Reminder .................... 148
Low Fuel ......................... 205,207
LowTire ............................ 213
Malfunction Indicator (Check Engine) ........ 215
Map Reading ......................... 151
Oil Pressure .......................... 211
Parade Mode (Daytime Brightness) .......... 153
Park ............................. 146,466
Passing ............................. 150
Rear Servicing ..................... 466,468
Rear Tail ............................ 468
Seat Belt Reminder ..................... 208
Service ........................... 465,466
Service Engine Soon (Malfunction Indicator) . . . 215 Side Marker
.......................... 466
Tire Pressure Monitoring (TPMS) ........213,355
Traction Control ................. 215,332,334
Turn Signal ............. 81,146,149,207,466,468
Vanity Mirror .......................... 91
Warning (Instrument Cluster Description) ..... 205
Load Floor, Cargo ....................... 188
Loading Vehicle ...................... 375,376
Capacities ........................... 376
Tires ............................... 341
Locks ................................. 28
Auto Unlock .......................... 31
Automatic Door ........................ 30
Child Protection ........................ 32
Door ................................ 28
Power Door ........................... 30
Low Tire Pressure System .................. 355
Lower Anchors and Tether for CHildren
(LATCH) ............................ 71,73
508 INDEX
