2009 DODGE CHARGER keyless

6. The doors were not previously locked using the power
door lock switch or Remote Keyless Entry (RKE)
transmitter.
Automatic Door Locks Programming
The Automatic Door Locks feature can be enabled or
disabled as follows:
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Lock Doors Au-
tomatically at 15 mph (24 km/h)” under “Personal
Settings (Customer-Programmable Features)” in the
“Electronic Vehicle Information Center (EVIC) — If
Equipped,” in Section 4 of this manual.
•For vehicles not equipped with the EVIC, perform the
following procedure:
1. Close all doors and place the key in the ignition
switch. 2. Cycle the ignition switch between LOCK and ON and
then back to LOCK four times ending up in the LOCK
position (do not start the engine).
3. Depress the power door LOCK switch to lock the
doors.
4. A single chime will indicate the completion of the
programming.
5. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:
Use the Automatic Door Locks feature in accor-
dance with local laws.Automatic Unlock Doors on Exit
The doors will unlock automatically on vehicles with
power door locks if:
1. The Automatic Unlock Doors On Exit feature is en-
abled.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31
2

The trunk lid can be released from outside the vehicle by
pressing the TRUNK button on the Remote Keyless Entry
(RKE) transmitter twice within five seconds.
With the ignition switch in the ON position, the Trunk
Open symbol will display in the instrument cluster
indicating that the trunk is open. The odometer display
will reappear once the trunk is closed.
With the ignition switch in the LOCK position or the key
removed from the ignition switch, the Trunk Open sym-
bol will display until the trunk is closed.TRUNK SAFETY WARNING
WARNING!
Do not allow children to have access to the trunk,
either by climbing into the trunk from outside, or
through the inside of the vehicle. Always close the
trunk lid when your vehicle is unattended. Once in
the trunk, young children may not be able to escape,
even if they entered through the rear seat. If trapped
in the trunk, children can die from suffocation or
heat stroke.
40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

High Beam/Low Beam Select Switch
Push the multifunction lever away from you to switch
the headlights to high beam. Pull the multifunction lever
toward you to switch the headlights back to low beam.
Flash-to-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward you. This
will cause the headlights to turn on at high beam and
remain on until the multifunction lever is released.
Overhead Console Map/Reading Lights
These lights are mounted between the sun visors on the
overhead console. Each light is turned on by pressing the
lens. Press the lens a second time to turn off the light.
These lights also turn on when a door is opened, or when
the UNLOCK button on the Remote Keyless Entry (RKE)
transmitter is pressed or when the dimmer control is
turned fully upward, past the second detent.
Interior Lights
The interior lights come on when a door is opened.
To protect the battery, the interior lights will turn off
automatically 10 minutes after the ignition switch is
moved to the LOCK position. This will occur if the
interior lights were switched on manually or are on
Overhead Console
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135
3

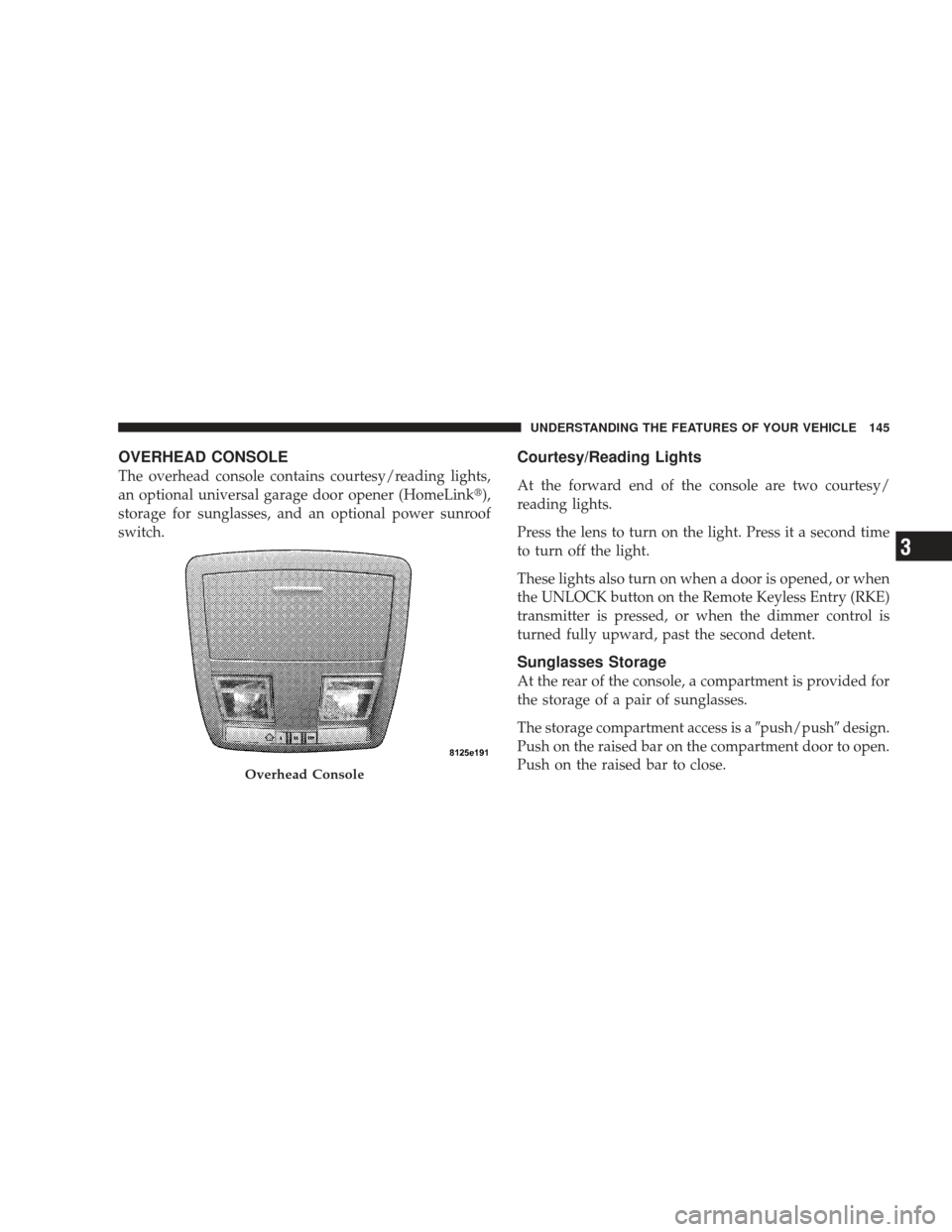

OVERHEAD CONSOLE
The overhead console contains courtesy/reading lights,
an optional universal garage door opener (HomeLink),
storage for sunglasses, and an optional power sunroof
switch.
Courtesy/Reading Lights
At the forward end of the console are two courtesy/
reading lights.
Press the lens to turn on the light. Press it a second time
to turn off the light.
These lights also turn on when a door is opened, or when
the UNLOCK button on the Remote Keyless Entry (RKE)
transmitter is pressed, or when the dimmer control is
turned fully upward, past the second detent.
Sunglasses Storage
At the rear of the console, a compartment is provided for
the storage of a pair of sunglasses.
The storage compartment access is apush/pushdesign.
Push on the raised bar on the compartment door to open.
Push on the raised bar to close.
Overhead Console
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 145
3

“Language”
When in this display you may select one of five lan-
guages for all display nomenclature, including the trip
functions and the navigation system (if equipped). Press
the FUNCTION SELECT button while in this display to
select English, Espanol, Deutsch, Italiano, or Francais.
Then, as you continue, the information will display in the
selected language.
NOTE:The EVIC will not change the uconnect lan-
guage selection. Refer to “Language Selection” under
“uconnect phone” in Section 3.
“Lock Doors Automatically at 15 mph (24 km/h)”
When ON is selected, all doors will lock automatically
when the vehicle reaches a speed of 15 mph (24 km/h).
To make your selection, press and release the FUNC-
TION SELECT button until “ON” or “OFF” appears.
“Unlock Doors Automatically on Exit”
When ON is selected, all doors will unlock when the
vehicle is stopped and the transmission is in the PARK or
NEUTRAL position and the driver’s door is opened. To
make your selection, press and release the FUNCTION
SELECT button until “ON” or “OFF” appears.
“Remote Key Unlock”
WhenDriver Door 1st Press is selected, only the driver’s
door will unlock on the first press of the Remote Keyless
Entry (RKE) transmitter UNLOCK button. When Driver
Door 1st Press is selected, you must press the RKE
transmitter UNLOCK button twice to unlock the passen-
ger’s doors. When All Doors 1st Press is selected, all of
the doors will unlock on the first press of the RKE
transmitter UNLOCK button. To make your selection,
press and release the FUNCTION SELECT button until
“Driver Door 1st Press” or “All Doors 1st Press” appears.
194 UNDERSTANDING YOUR INSTRUMENT PANEL

Auto Up Power Windows.................. 37
Automatic Dimming Mirror ................. 86
Automatic Door Locks ................... 30,31
Automatic Headlights .................... 132
Automatic Oil Change Indicator ..........177,186
Automatic Temperature Control (ATC) ......... 256
Automatic Transaxle Special Additives ...................... 405
Automatic Transmission ...........276,282,404,405
Adding Fluid ...................... 405,430
Autostick ............................ 286
Fluid and Filter Changes ................. 405
Fluid Change ......................... 405
Fluid Level Check ..................... 404
Fluid Type ........................... 430
Gear Ranges ....................... 277,282
Overdrive ........................... 278
Shifting .......................... 276,282
Special Additives ...................... 405 Torque Converter
...................... 280
Automatic Transmission Limp Home Mode . . 281,285
Autostick ............................. 286
Axle Fluid ............................. 430
Axle Lubrication (Axle Fluid) ............... 430
Battery ............................... 389
Emergency Starting ..................... 369
Jump Starting ......................... 369
Keyless Transmitter Replacement (RKE) ....... 25
Location .......................... 370,390
Belts, Seat ............................ 42,79
Body Mechanism Lubrication ............... 392
B-Pillar Location ........................ 306
Brake Assist System ...................... 297
Brake Control System, Electronic ............. 296
Brake Fluid ............................ 430
Brake, Parking .......................... 292
Brake System ........................... 402
INDEX 461
10

Jack Location........................... 358
Jack Operation .......................... 360
Jacking Instructions ...................... 360
Jump Starting .......................... 369
Key, Programming ........................ 17
Key, Replacement ........................ 16
Key, Sentry (Immobilizer) ................... 15
Key-In Reminder ......................... 14
Keyless Entry System ...................... 20
Keys ................................. 12
Kicker Sound System ..................... 246
Knee Bolster ............................ 52
Lane Change and Turn Signals .............. 134
Lap/Shoulder Belts ....................... 42
LATCH (Lower Anchors and Tether
for CHildren) ......................... 71,72
Latch Plate ............................. 44 Latches
................................ 80
Hood .............................. 129
Lead Free Gasoline ...................... 332
Leaks, Fluid ............................ 80
Life of Tires ............................ 316
Light Bulbs .......................... 80,418
Lights .............................. 80,131
Airbag ........................ 60,65,79,175
Anti-Lock ........................... 182
Automatic Headlights ................... 132
Brake Assist Warning ................... 300
Brake Warning ........................ 179
Bulb Replacement ................... 418,419
Courtesy/Reading ................... 135,145
Cruise .............................. 172
Daytime Running ...................... 133
Dimmer Switch, Headlight .............134,135
Electronic Stability Program (ESP) Indicator . . . 300
Electronic Throttle Control Warning ......... 173
INDEX 469
10

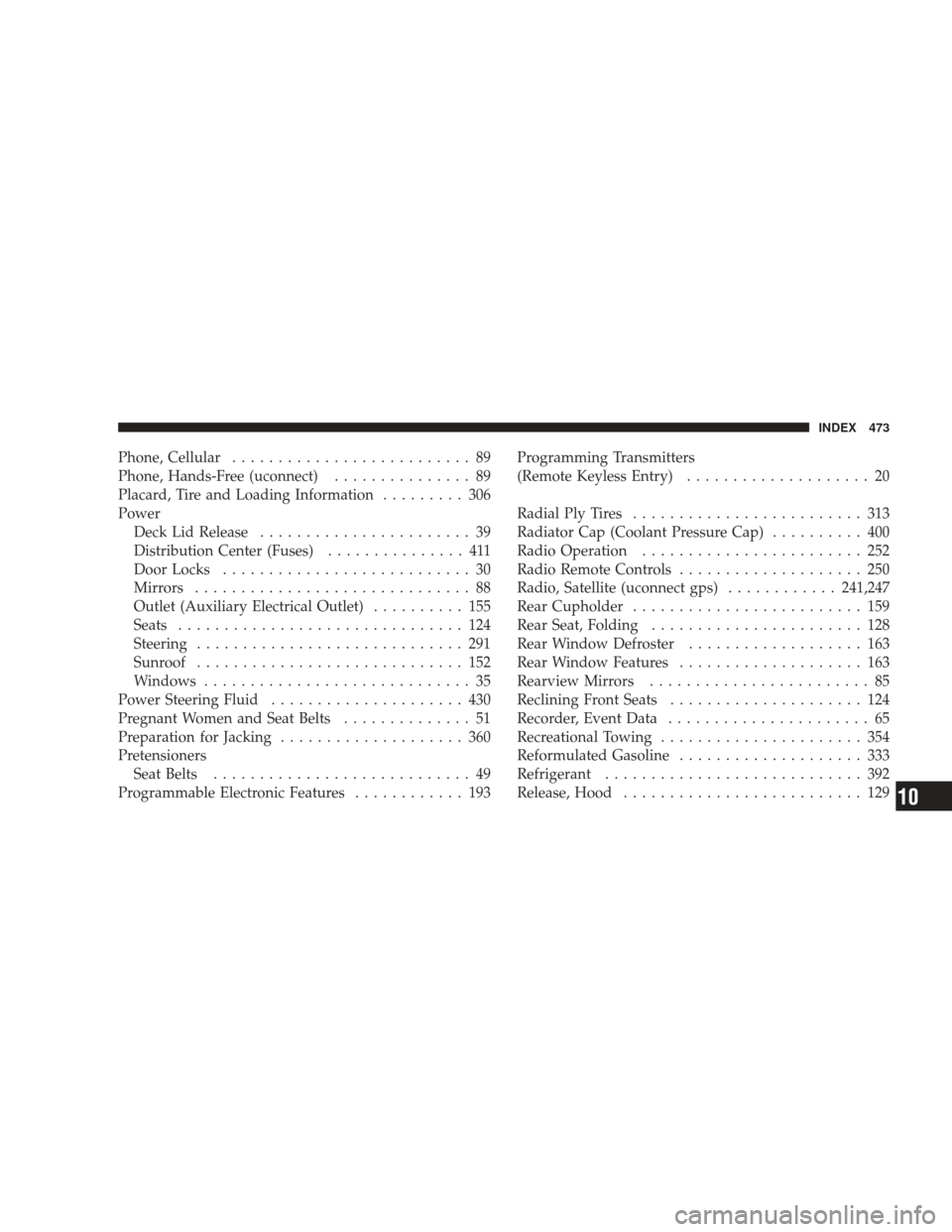

Phone, Cellular.......................... 89
Phone, Hands-Free (uconnect) ............... 89
Placard, Tire and Loading Information ......... 306
Power Deck Lid Release ....................... 39
Distribution Center (Fuses) ............... 411
Door Locks ........................... 30
Mirrors .............................. 88
Outlet (Auxiliary Electrical Outlet) .......... 155
Seats ............................... 124
Steering ............................. 291
Sunroof ............................. 152
Windows ............................. 35
Power Steering Fluid ..................... 430
Pregnant Women and Seat Belts .............. 51
Preparation for Jacking .................... 360
Pretensioners Seat Belts ............................ 49
Programmable Electronic Features ............ 193Programming Transmitters
(Remote Keyless Entry)
.................... 20
Radial Ply Tires ......................... 313
Radiator Cap (Coolant Pressure Cap) .......... 400
Radio Operation ........................ 252
Radio Remote Controls .................... 250
Radio, Satellite (uconnect gps) ............241,247
Rear Cupholder ......................... 159
Rear Seat, Folding ....................... 128
Rear Window Defroster ................... 163
Rear Window Features .................... 163
Rearview Mirrors ........................ 85
Reclining Front Seats ..................... 124
Recorder, Event Data ...................... 65
Recreational Towing ...................... 354
Reformulated Gasoline .................... 333
Refrigerant ............................ 392
Release, Hood .......................... 129
INDEX 473
10
