2009 DODGE CHARGER alarm

NOTE:The front airbags are certified to the Federal
regulations that allow less forceful deployment. The front airbags have a multistage inflator design. This
may allow the airbag to have different rates of inflation
that are based on collision severity.
WARNING!
•Do not put anything on or around the front airbag
covers or attempt to open them. You may damage
the airbags and you could be injured because the
airbags are no longer functional. These protective
covers for the airbag cushions are designed to
open only when the airbags are inflating.
•Do not drill, cut or tamper with the knee bolster in
any way.
•Do not mount any accessories to the knee bolster
such as alarm lights, stereos, citizens band radios
etc.
Front Airbag Components
1 — Airbags
2 — Knee Bolsters THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 53
2

GARAGE DOOR OPENER — IF EQUIPPED
HomeLinkreplaces up to three remote controls (hand-
held transmitters) that operate devices such as garage
door openers, motorized gates, lighting, or home security
systems. The HomeLink unit operates off your vehicle’s
battery.
The HomeLink buttons are located in the overhead
console, and contain one, two, or three dots/lines desig-
nating the different HomeLink channels.
NOTE:HomeLink is disabled when the Vehicle Secu-
rity Alarm is active.
HomeLink Buttons
146 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Reprogramming A Single HomeLinkButton
To reprogram a channel that has been previously trained,
follow these steps:
1. Turn the ignition switch to the ON/RUN position.
2. Press and hold the desired HomeLink button for
20 seconds until the EVIC display states “CHANNEL #
TRAINING.” Do not release the button.
3. Without releasing the button, proceed with Program-
ming HomeLink Step 2 and follow all remaining steps.
Security
It is advised to erase all channels before you sell or turn
in your vehicle.
To do this, press and hold the two outside buttons for
20 seconds until the EVIC message states “CHANNELS
CLEARED.” Note that all channels will be erased. Indi-
vidual channels cannot be erased. The HomeLink
Universal Transceiver is disabled when
the Vehicle Security Alarm is active.
Troubleshooting Tips
If you are having trouble programming HomeLink, here
are some of the most common solutions:
•Replace the battery in the original transmitter.
•Press the learn button on the garage door opener to
complete the training for rolling code.
•Did you unplug the device for training, and remember
to plug it back in?
If you are having any problems or require assistance,
please call toll-free 1–800–355–3515 or, on the Internet at
www.HomeLink.com for information or assistance.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 151
3

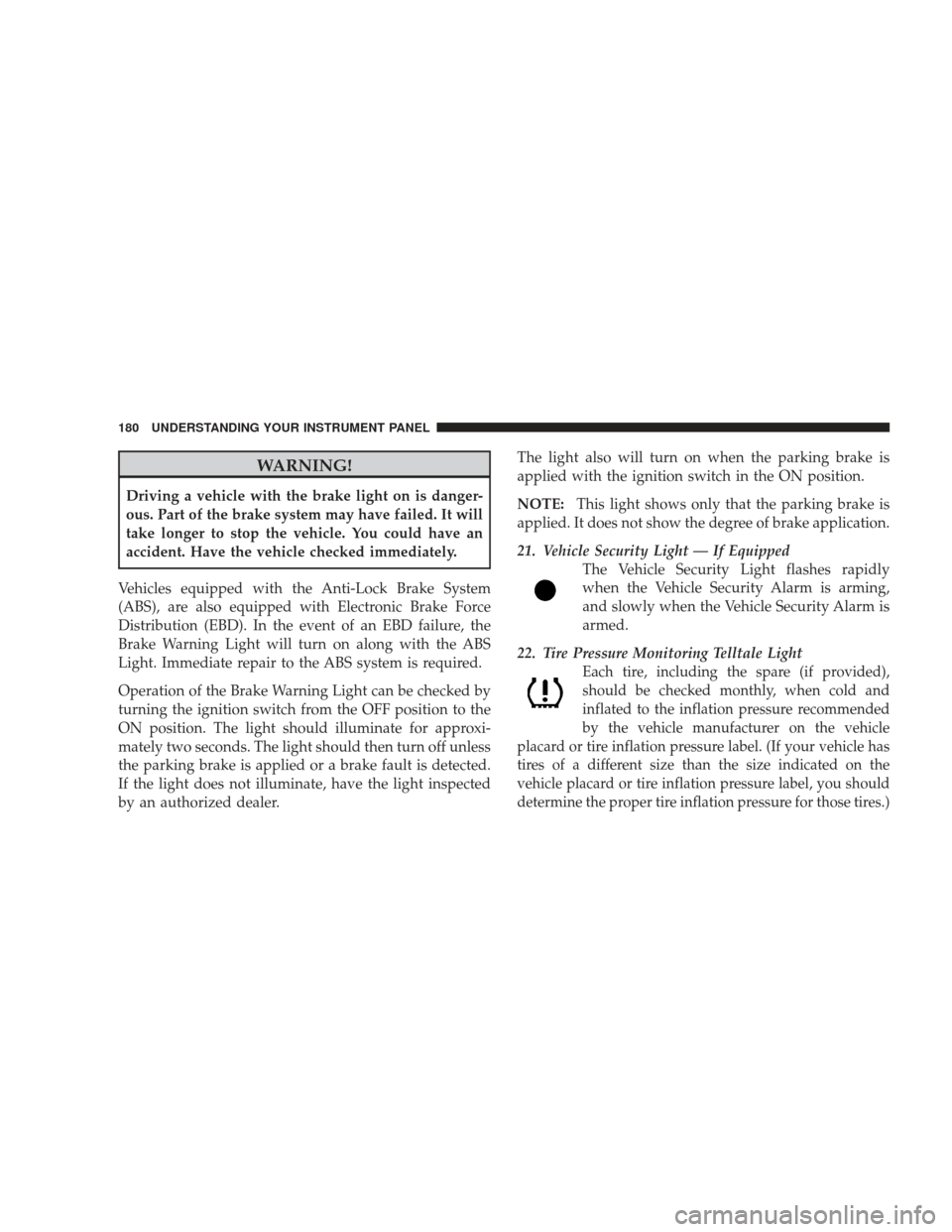

WARNING!
Driving a vehicle with the brake light on is danger-
ous. Part of the brake system may have failed. It will
take longer to stop the vehicle. You could have an
accident. Have the vehicle checked immediately.
Vehicles equipped with the Anti-Lock Brake System
(ABS), are also equipped with Electronic Brake Force
Distribution (EBD). In the event of an EBD failure, the
Brake Warning Light will turn on along with the ABS
Light. Immediate repair to the ABS system is required.
Operation of the Brake Warning Light can be checked by
turning the ignition switch from the OFF position to the
ON position. The light should illuminate for approxi-
mately two seconds. The light should then turn off unless
the parking brake is applied or a brake fault is detected.
If the light does not illuminate, have the light inspected
by an authorized dealer. The light also will turn on when the parking brake is
applied with the ignition switch in the ON position.
NOTE:
This light shows only that the parking brake is
applied. It does not show the degree of brake application.
21. Vehicle Security Light — If Equipped The Vehicle Security Light flashes rapidly
when the Vehicle Security Alarm is arming,
and slowly when the Vehicle Security Alarm is
armed.
22. Tire Pressure Monitoring Telltale Light
Each tire, including the spare (if provided),
should be checked monthly, when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your vehicle has
tires of a different size than the size indicated on the
vehicle placard or tire inflation pressure label, you should
determine the proper tire inflation pressure for those tires.)
180 UNDERSTANDING YOUR INSTRUMENT PANEL

About Your Brakes....................... 292
ABS (Anti-Lock Brake System) .............. 294
Adding Engine Coolant (Antifreeze) .......... 399
Adding Fuel ........................... 337
Adding Washer Fluid ..................... 393
Additives, Fuel ......................... 335
Adjustable Pedals ....................... 140
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 389
Air Conditioner Maintenance ............... 391
Air Conditioning ..................... 253,255
Air Conditioning Controls ................. 253
Air Conditioning Filter .................262,392
Air Conditioning, Operating Tips ............ 263
Air Conditioning Refrigerant .............391,392
Air Conditioning System ..........253,255,256,391
Air Pressure, Tires ....................... 311
Airbag ................................ 52
Airbag Deployment ..................... 59,62
Airbag Light ..................... 60,65,79,175Airbag Maintenance
....................... 64
Airbag, Side .......................... 54,60
Airbag, Window (Side Curtain) .............54,60
Alarm, Panic ............................ 24
Alarm (Security Alarm) .................18,180
Alarm System (Security Alarm) ............... 18
All Wheel Drive (AWD) ................286,405
Alterations/Modifications, Vehicle ............. 7
Antenna, Satellite Radio ................... 243
Antifreeze (Engine Coolant) ...........398,399,427
Disposal ............................ 400
Anti-Lock Brake System (ABS) ............294,296
Anti-Lock Warning Light .................. 182
Anti-Theft Security Alarm (Theft Alarm) ........ 18
Appearance Care ........................ 406
Arming Theft System (Security Alarm) ......... 18
Assistance Towing ....................... 103
Auto Down Power Windows ................ 36
Auto Unlock, Doors ....................... 31
460 INDEX

Occupant Restraints....................... 41
Octane Rating, Gasoline (Fuel) ............332,429
Odometer .......................... 172,177
Trip ............................. 172,177
Oil Change Indicator .................. 177,186
Oil Change Indicator, Reset ..............177,186
Oil, Engine ......................... 385,429
Capacity ............................ 427
Change Interval .................. 177,186,386
Checking ......................... 385,386
Dipstick .......................... 385,386
Disposal ............................ 388
Filter ............................ 388,429
Filter Disposal ........................ 388
Identification Logo ..................... 387
Materials Added to ..................... 388
Recommendation ................... 387,427
Synthetic ............................ 388
Viscosity ......................... 387,427Oil Filter, Change
........................ 388
Oil Filter, Selection ....................... 388
Onboard Diagnostic System ..............382,383
Opener, Garage Door (HomeLink) ........... 146
Operating Precautions .................... 382
Operator Manual (Owner’s Manual) ............ 4
Outside Rearview Mirrors .................. 86
Overdrive ............................. 278
Overhead Console ....................... 145
Overheating, Engine ................... 174,356
Owner’s Manual (Operator Manual) .........4,455
Paint Care ............................. 406
Panic Alarm ............................ 24
Parking Brake .......................... 292
Passing Light ........................... 135
Pedals, Adjustable ....................... 140
Personal Settings ........................ 193
Pets .................................. 77
472 INDEX

Pretensioners.......................... 49
Rear Seat ............................. 42
Reminder ............................ 176
Untwisting Procedure .................... 48
Seats ................................. 122
Adjustment .......................... 122
Head Restraints ....................... 126
Heated ............................. 127
Height Adjustment ..................... 124
Lumbar Support ....................... 126
Power .............................. 124
Rear Folding ......................... 128
Reclining ............................ 124
Seatback Release ....................... 128
Tilting .............................. 124
Security Alarm (Theft Alarm) ................ 18
Selection of Coolant (Antifreeze) ..........398,429
Selection of Oil ......................... 387
Self-Sealing Tires ........................ 318 Sentry Key (Immobilizer)
................... 15
Sentry Key Programming ................... 17
Sentry Key Replacement ................... 16
Service Assistance ....................... 451
Service Contract ......................... 453
Service Engine Soon Light
(Malfunction Indicator) .................... 183
Service Manuals ........................ 455
Setting the Clock ................ 199,213,216,226
Settings, Personal ........................ 193
Shifting ............................... 273
Automatic Transmission ............273,276,282
Shoulder Belt Upper Anchorage .............. 48
Shoulder Belts ........................... 42
Side Airbag ........................... 54,60
Side Curtain (Window Airbag) ............... 54
Signals, Turn ...................... 80,134,174
Sirius Backseat TV™ (uconnect studios) ........ 247
Slippery Surfaces, Driving On ............... 287
INDEX 475
10

Tachometer............................ 172
Telescoping Steering Column ............... 139
Temperature Control, Automatic (ATC) ........ 256
Temperature Gauge, Engine Coolant .......173,357
Tether Anchor, Child Restraint ............... 71
Theft Alarm (Security Alarm) ................ 18
Theft System (Security Alarm) ............... 18
Tilt Steering Column ..................... 139
Time Delay, Headlight .................... 132
Tire and Loading Information Placard ......... 306
Tire Identification Number (TIN) ............. 305
Tire Markings .......................... 301
Tire Safety Information .................... 301
Tires ............................ 80,310,457
Aging (Life of Tires) .................... 316
Air Pressure .......................... 310
Chains .............................. 319
Changing ......................... 357,360
Compact Spare ........................ 313 Flat Changing
........................ 357
General Information .................... 310
High Speed .......................... 312
Inflation Pressures ..................... 311
Jacking ............................. 360
Life of Tires .......................... 316
Load Capacity ........................ 306
Pressure Monitor System (TPMS) ........... 322
Pressure Warning Light .................. 180
Quality Grading ....................... 457
Radial .............................. 313
Replacement ......................... 317
Rotation ............................ 321
Safety ........................... 301,310
Self-Sealing .......................... 318
Sizes ............................... 303
Snow Tires ........................... 320
Spare Tire ........................... 358
Spinning ............................ 315
INDEX 477
10
