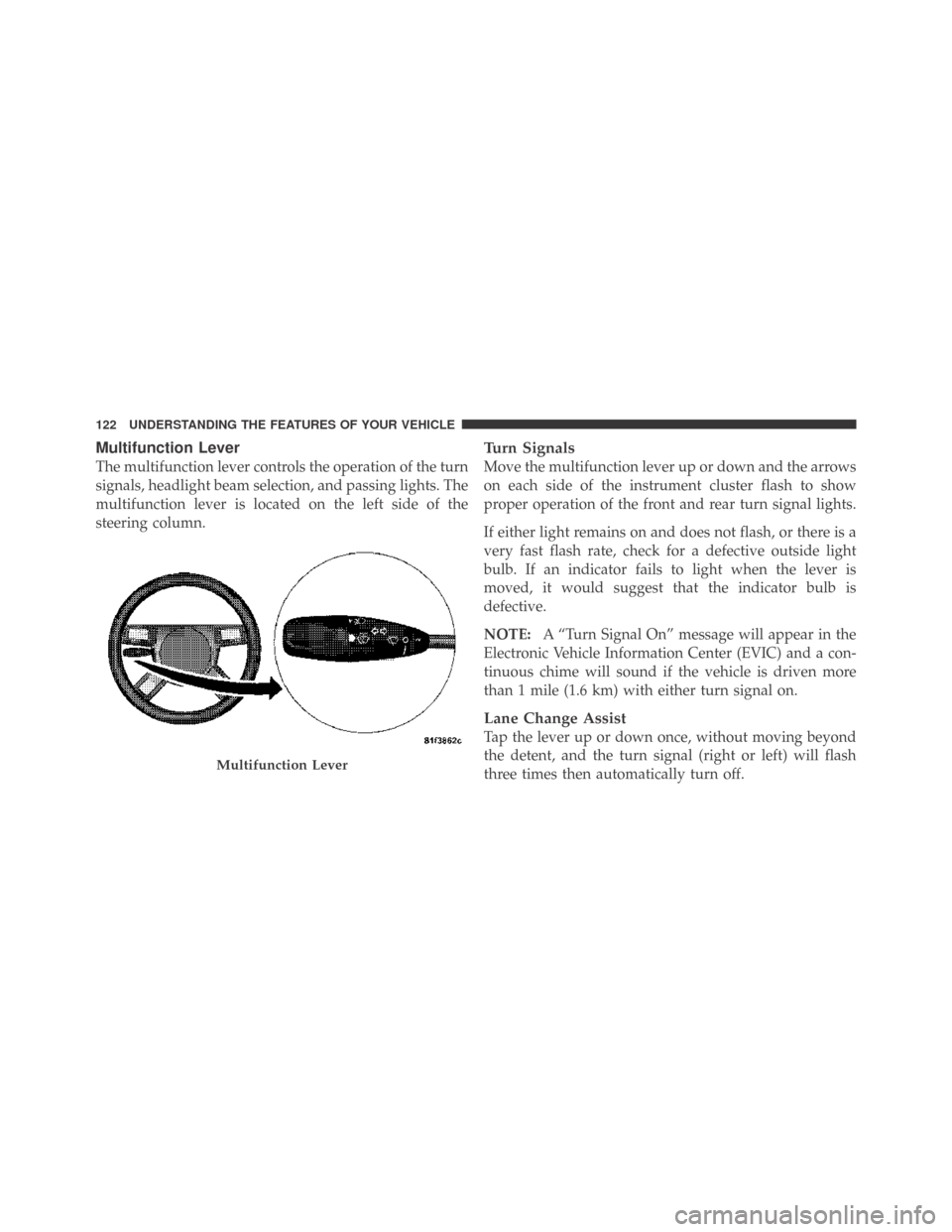

Multifunction Lever
The multifunction lever controls the operation of the turn
signals, headlight beam selection, and passing lights. The
multifunction lever is located on the left side of the
steering column.
Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show
proper operation of the front and rear turn signal lights.
If either light remains on and does not flash, or there is a
very fast flash rate, check for a defective outside light
bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is
defective.
NOTE:A “Turn Signal On” message will appear in the
Electronic Vehicle Information Center (EVIC) and a con-
tinuous chime will sound if the vehicle is driven more
than 1 mile (1.6 km) with either turn signal on.
Lane Change Assist
Tap the lever up or down once, without moving beyond
the detent, and the turn signal (right or left) will flash
three times then automatically turn off.
Multifunction Lever
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

14. Oil Pressure Warning Light
This light indicates low engine oil pressure. The
light should turn on momentarily when the engine
is started. If the light turns on while driving, stop the
vehicle and shut off the engine as soon as possible. A
chime will sound for four minutes when this light turns
on.
Do not operate the vehicle until the cause is corrected.
This light does not indicate how much oil is in the engine.
The engine oil level must be checked under the hood.
15. High Beam Indicator
This indicator will turn on when the high beam
headlights are on. Push the multifunction lever
away from the steering wheel to switch the headlights to
high beam.16. Seat Belt Reminder Light
This light will turn on for five to eight seconds as
a bulb check when the ignition switch is first
turned ON. A chime will sound if the driver’s seat
belt is unbuckled during the bulb check. The Seat Belt
Warning Light will flash or remain on continuously if the
driver’s seat belt remains unbuckled after the bulb check
or when driving.
17. Shift Lever Indicator — Automatic Transmission
Only
The Shift Lever Indicator is self-contained within the
instrument cluster. It displays the gear position of the
automatic transmission.
18. Front Fog Light Indicator — If Equipped
This indicator will illuminate when the front fog
lights are on.
160 UNDERSTANDING YOUR INSTRUMENT PANEL

Saver Mode.......................... 172
Specifications......................... 415
Tank Capacity........................ 414
Fuel Optimizer......................... 172
Fuel Saver............................. 172
Fuel System Caution..................... 322
Fueling ............................... 321
Fuses................................ 400
Garage Door Opener (HomeLink) ........... 133
Gas Cap (Fuel Filler Cap)...............321,368
Gasoline, Clean Air...................... 317
Gasoline (Fuel)......................... 316
Conserving.......................... 172
Gasoline, Reformulated................... 317
Gauges
Coolant Temperature................... 157
Fuel............................... 156
Odometer........................... 161Speedometer......................... 156
Tachometer.......................... 156
Gear Ranges........................... 259
General Information............... 17,25,106,316
General Maintenance..................... 371
Glass Cleaning.......................... 399
Gross Axle Weight Rating...............324,326
Gross Vehicle Weight Rating.............324,325
GVWR ............................... 324
Hands-Free Phone (uconnect) ............... 78
Hazard
Driving Through Flowing, Rising, or Shallow
Standing Water........................ 270
Hazard Warning Flasher................... 338
Head Restraints......................... 114
Headlights............................ 409
Automatic........................... 120
Bulb Replacement...................... 409
10
INDEX 451

Jump Starting.......................... 356
Key, Programming........................ 16
Key, Replacement........................ 16
Key, Sentry (Immobilizer)................... 14
Key-In Reminder......................... 14
Keyless Entry System...................... 20
Keyless Go....................... 12,175,245
Keys................................. 12
Kicker Sound System..................... 227
Knee Bolster............................ 45
Lane Change and Turn Signals.............. 122
Lap/Shoulder Belts....................... 37
LATCH (Lower Anchors and
Tether for CHildren).................... 60,62
Latches................................ 69
Hood............................... 117
Lead Free Gasoline...................... 316Leaks, Fluid............................ 69
LifeofTires ............................ 303
LightBulbs .......................... 69,408
Lights.............................. 69,119
Airbag........................ 51,54,68,158
Alarm .............................. 164
Anti-Lock.........................166,279
Automatic Headlights................... 120
Brake Assist Warning................... 287
Brake Warning.....................163,277
Bulb Replacement...................408,409
Center Mounted Stop................... 413
Courtesy/Reading...................123,132
Cruise .............................. 156
Daytime Running...................... 121
Dimmer Switch, Headlight.............122,123
Electronic Stability Program (ESP) Indicator . . . 287
Electronic Throttle Control Warning......... 157
Engine Temperature Warning.............. 159
10
INDEX 453
