2009 DODGE AVENGER relay

CavityCartridge
FuseMini Fuse Description
13 —20 Amp Yel-
low—
14 — 10 Amp RedIgnition Off
Draw (IOD)
— Cabin
Compart-
ment Node
(CCN)/ In-
terior Light-
ing
1540 Amp
Green—Battery Feed
— Radiator
Fan RelayCavityCartridge
FuseMini Fuse Description
16 —15 Amp Lt.
BlueIGN Run/
ACC — Ci-
gar Lighter/
PWR
Sunroof
Mod
17 — 10 Amp RedIgnition Off
Draw (IOD)
— Wireless
Control
Module
(WCM)/
Clock/
Steering
Control
Module
(SCM)
MAINTAINING YOUR VEHICLE 403
7

CavityCartridge
FuseMini Fuse Description
1840 Amp
Green—Battery Feed
— Auto
Shutdown
(ASD) Relay
19 —20 Amp Yel-
lowIgnition Off
Draw (IOD)
— Power
Amp Feed 2
-if
equipped
20 —15 Amp Lt.
BlueIgnition Off
Draw (IOD)
— Radio
21 — 10 Amp Red —CavityCartridge
FuseMini Fuse Description
22 — 10 Amp RedIgnition
Run — Cli-
mate
Controls/
Hot Cup-
holder - if
equipped
23 —15 Amp Lt.
BlueAuto Shut-
down (ASD)
Relay Feed
3
24 —25 Amp
ClearBattery Feed
— PWR
Sunroof
Feed
404 MAINTAINING YOUR VEHICLE

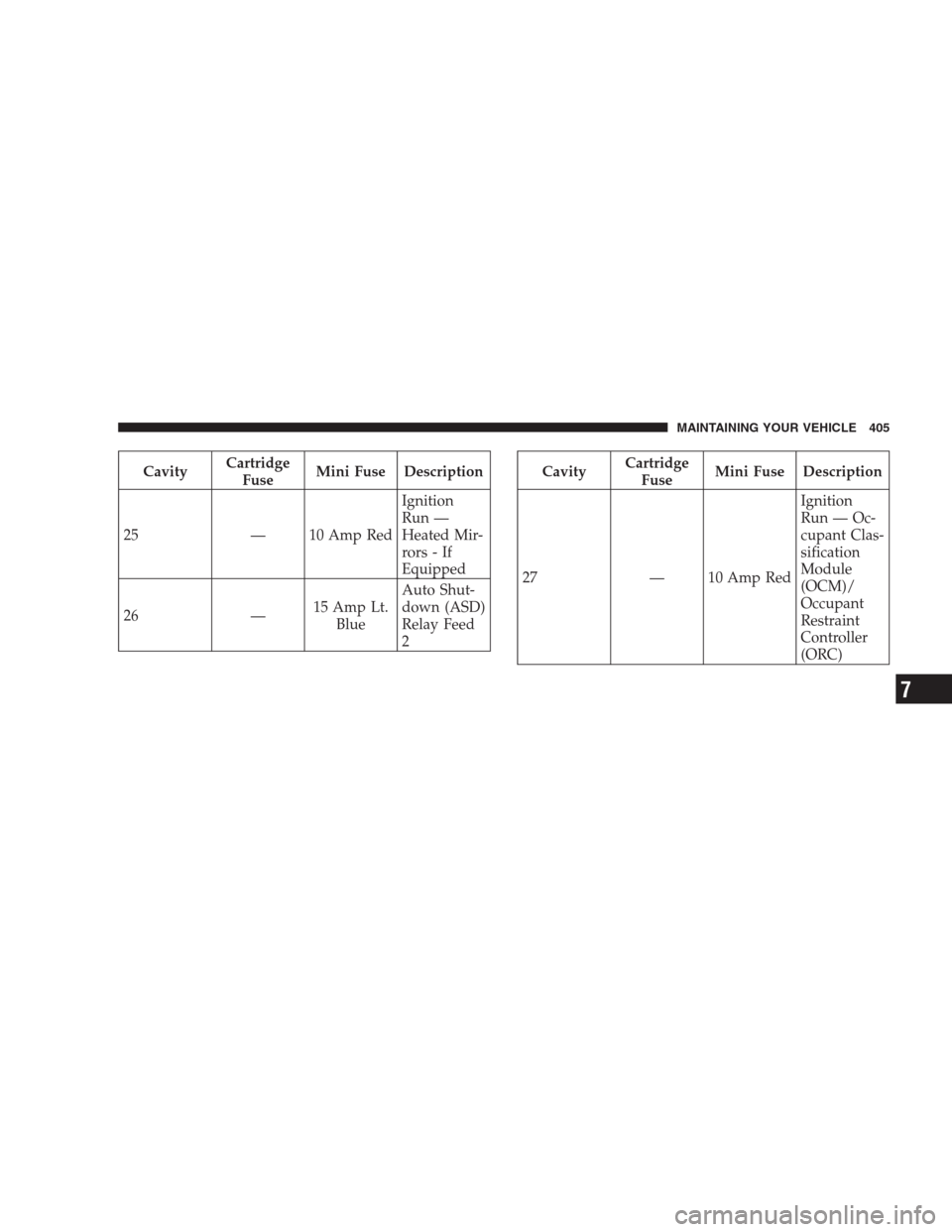

CavityCartridge
FuseMini Fuse Description
25 — 10 Amp RedIgnition
Run —
Heated Mir-
rors - If
Equipped
26 —15 Amp Lt.
BlueAuto Shut-
down (ASD)
Relay Feed
2CavityCartridge
FuseMini Fuse Description
27 — 10 Amp RedIgnition
Run — Oc-
cupant Clas-
sification
Module
(OCM)/
Occupant
Restraint
Controller
(ORC)
MAINTAINING YOUR VEHICLE 405
7

CavityCartridge
FuseMini Fuse Description
28 — 10 Amp RedIgnition
Run — Oc-
cupant Clas-
sification
Module
(OCM)/
Occupant
Restraint
Controller
(ORC)
29 — —Hot Car
(No Fuse
Required)
30 —20 Amp Yel-
lowIgnition
Run —
Heated
Seats - If
EquippedCavityCartridge
FuseMini Fuse Description
31 — 10 Amp Red —
3230 Amp
Pink—Auto Shut-
down (ASD)
Relay Feed
1
33 — 10 Amp RedBattery Feed
— Switch
Bank/
Diagnostic
Link
Connector/
Powertrain
Control
Module
(PCM)
406 MAINTAINING YOUR VEHICLE
