D R I V I N G

 Press the brake pedal.

 Operate the starter.

 When the engine is running,
place the selector on R , D or M
as required .

 Check, in the instrument panel,
the position engaged.

 Gradually release the brake ped-
al and accelerate.

 To avoid a difference between
the position of the selector and
the actual position of the gear-
box, only exit from position P
with the ignition on and the brake
pedal pressed.
Park Reverse gear
This position of the selector is used
to prevent the vehicle from moving
when you are stationary.

 To select position P, move the
selector back to the highest po-
sition (towards R ), then push it
forwards and then to the left. Only engage this position when
the vehicle is stationary. To prevent
snatching, do not accelerate too
soon after selection.
Neutral
Never select position N if the vehicle
is moving.
Never select positions P or

R if the vehicle is not sta-
tionary.
If, while the vehicle is moving, po-
sition N is engaged inadvertently,
allow the engine to idle before en-
gaging position D or M .
Otherwise, when the ignition is on or
the engine is running:

 reposition the selector in posi-
tion P ,

 put your foot on the brake ped-
al and then select the gear you
want. Automatic operation

 Move the selector to position D .
The gearbox constantly selects the gear that is best suited to the
following conditions:
- driving style,
- road profi le,
- vehicle load.
The gearbox is then operating in

auto-adaptive mode, without re-
quiring any action on your part.
For certain manoeuvres (for exam-
ple overtaking), you can obtain max-
imum acceleration by pressing the
accelerator pedal down hard, which
then produces an automatic change
down to a lower gear.
When braking, the gearbox may
change down automatically in order
to provide effective engine braking.
If you lift your foot off the accelerator
abruptly, the gearbox will not change
up.

 To exit position P , move the se-
lector to the right and then to the
position you want.

 Only engage this position when
the vehicle is completely sta-
tionary. In this position, the front
wheels are locked. Make sure
that the selector is correctly po-
sitioned.

117
IX
D R I V I N G
Override of the programmed
speed
The accelerator pedal is equipped
with an end-of-travel switch. If you
action this switch by pressing the
pedal hard down, you can exceed
the memorised maximum speed at
any time.
During the time the speed is be-
ing exceeded, the displayed speed
fl ashes.
You have only to release the ac-
celerator pedal to return below the
maximum speed and render the
function active again.
If during the operation of the speed
limiter, the system is unable to keep
within the maximum speed (for ex-
ample on a steep descent or under
heavy acceleration) then the speed
fl ashes. Adapt your speed as neces-
sary.
The function will re-engage when
your speed returns below the de-
sired maximum speed. Return to normal driving

 By moving the control 1 from po-
sition "LIM" to position 0 .

 By the engine stopping.
The speed previously chosen is still
memorised.
Operating fault
If there is a speed limiter malfunc-
tion, a message will display accom-
panied by an audible signal and
lighting of the service warning lamp.
Have it checked by a CITROËN
dealer.
On a steep downhill gradient or on
sharp acceleration, the speed limiter
will not be able to prevent the vehi-
cle from exceeding the programmed
speed.
Use of fl oor mats that are not ap-
proved by CITROËN may hinder
access to the accelerator pedal and
thus interfere with the functioning of
the speed limiter.
To avoid any risk of interfering with
the pedals:
- check that the fl oor mat is cor- rectly positioned,
- never use more than one fl oor mat.

119
IX
D R I V I N G
Deactivation

 Either by pressing on the brake
pedal or on the clutch pedal.

 Or by pressing button 3 .

 Or if either the ESP or the ASR
system is active.
The cruise control is not active if the
gear lever is in neutral.
These actions cause the information

"OFF" to appear on the instrument
panel display.
These actions do not cancel the
cruise speed which remains dis-
played in the instrument panel.
Reactivation

 By recall of the memorised
speed
After a disengagement, press on button 3 . Your vehicle automati-
cally returns to the memorised
cruise speed which is displayed
in zone A .
If the memorised cruise speed is higher than the current speed,
the vehicle will accelerate to
reach the former.

 By selection of the current
speed
Press on button 2 or 4 once the
desired speed has been reached.
The information "OFF" will then
disappear from the instrument
panel display. Overriding the programmed
speed
During the operation of cruise con-
trol, it is always possible to use the
accelerator to go faster than the
cruise speed (for example to over-
take another vehicle). The speed
displayed in zone
A fl ashes.
You have only to release the acce-
lerator pedal to return to the cruise
speed.
Return to normal driving

 By an action on the control 1 from
position "REG" to position 0 .

 By the engine stopping.
The cruise speed previously chosen
is no longer memorised. Operating fault
If there is a malfunction, a message
will display accompanied by an
audible signal and lighting of the
service warning lamp.
Have it checked by a CITROËN
dealer.
If during the operation of cruise
control, the system is unable to
keep within the memorised speed
(for example on a steep descent),
then the speed fl ashes. Adapt your
speed as necessary. Cruise control should only be used
when the driving conditions allow
you to drive at a constant speed.
Do not use it in heavy traffi c, or on
dangerous or slippery roads.
The driver must remain attentive
and in full control of his vehicle.
You are recommended to keep your
feet within range of the pedals.
To avoid any risk of interfering with
the pedals:
- check that the fl oor mat is cor-
rectly positioned,
- never use more than one fl oor mat.

124
X
C H E C K S
BONNET
Protects the components of the engine
and provides access for checking levels.
Opening
 Push the exterior control B to the
left and raise the bonnet.

 Unclip the strut C from its housing.

 Fix the strut in the notch to hold
the bonnet open. Closing

 Take the strut out of the support
notch.

 Clip the strut in its housing.

 Lower the bonnet then slam it
fi rmly at the end of its travel.

 Pull on the bonnet to check that
it is secured correctly.
The location of the interior control
prevents opening of the bonnet
while the driver's door is closed.
This operation must only be carried
out when the vehicle is stationary.
Avoid opening the bonnet in strong
winds.

 Pull the interior control A , located
under the dashboard, to the right.

129
X
C H E C K S
CHECKING LEVELS
Check all of these levels regularly
and top them up if necessary, unless
otherwise indicated.
If a level drops signifi cantly, have the
corresponding system checked by a
CITROËN dealer.
Oil level
Oil change
Refer to the Maintenance and
Warranty Guide for details of the in-
terval for this operation. Oil specifi cation
The oil must correspond to your en-
gine and conform to the manufactur-
er's recommendations.
Brake fluid level
Fluid change
Refer to the Maintenance and
Warranty Guide for details of the in-
terval for this operation.
This fl uid must be changed regu-
larly. Fluid which has been used for
too long may cause a loss of braking
effi ciency.
Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations
and fulfi l the DOT4 standards.
Coolant level
Draining the system
The coolant does not have to be
changed.
Fluid specifi cation
The coolant must conform to the
manufacturer's recommendations.
The reading will only be
correct if the vehicle is on
level ground and the engine
has been off for more than
15 minutes.
The check is carried out either when
the ignition is switched on using the
oil level indicator on the instrument
panel, or using the dipstick.
Between two oil changes, the con-
sumption should not exceed 0.5 litre
per 600 miles (approx. 1 000 km).
Check this level also between each
scheduled service and before long
journeys. The brake fl uid level should
be close to the "MAX" mark.
If it is not, check the brake
pad wear.
The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the tem-
perature of the coolant is regulated
by the fan. This can operate with the
ignition off.

On vehicles which are fi tted with
a particle emission fi lter, the fan
may operate after the vehicle has
been switched off, even if the en-
gine is cold.
In addition, as the cooling system is
pressurised, wait at least one hour
after switching off the engine before
carrying out any work.
To avoid any risk of scalding, un-
screw the cap by two turns to al-
low the pressure to drop. When the
pressure has dropped, remove the
cap and top up the level.
In order to maintain the re-
liability of the engine and
emission control system,
the use of additives in the engine
oil is prohibited.

131
X
C H E C K S
CHECKS
Unless otherwise indicated, check
these components in accordance
with the Maintenance and Warranty
Guide and according to your engine.
Otherwise, have them checked by a
CITROËN dealer.
Battery The battery does not re-
quire any maintenance.
However, check that the
terminals are clean and
correctly tightened, particu-
larly in summer and winter.
When carrying out work on the bat-
tery, refer to the "Practical infor-
mation" section for details of the
precautions to be taken before dis-
connecting the battery and following
its reconnection. Air filter and passenger
compartment filter
Refer to the Maintenance
and Warranty Guide for
details of the replacement
intervals for these compo-
nents.
Depending on the environment (e.g.
dusty atmosphere) and the use of
the vehicle (e.g. city driving), replace
them twice as often if necessary
(refer to the "Engines" paragraph).
A clogged cabin fi lter may have an
adverse effect on the performance
of the air conditioning system and
generate undesirable odours.
Oil filter
Replace the oil fi lter each
time the engine oil is
changed. Particle filter system (Diesel)
Complementary to the catalytic
converter, this fi lter makes an ac-
tive contribution to the preservation
of air quality by the retaining of the
unburnt pollutant particles. Black
exhaust fumes are thus no longer
emitted.
After prolonged idling or driving
at very low speeds, you may oc-
casionally notice water vapour be-
ing emitted from the exhaust when
accelerating. This is of no conse-
quence to the running of the vehicle
or to the environment.
If there is risk of clogging, a mes-
sage appears on the multifunction
screen, accompanied by an audi-
ble signal and lighting of the serv-
ice warning lamp.
This alert tells you that the particle
fi lter is starting to fi ll up (in condi-
tions of urban driving of excep-
tionally long duration: low speeds,
traffi c jams etc.)
To regenerate the fi lter, it is advised
to drive as soon as possible, when
traffi c conditions permit, at a speed
of 40 mph (around 60 km/h) or
more for at least fi ve minutes (until
the alert message disappears).
If this alert persists, consult a
CITROËN dealer.
Refer to the Maintenance and Warranty
Guide for details of the replacement in-
terval for this component.

132
X
C H E C K S

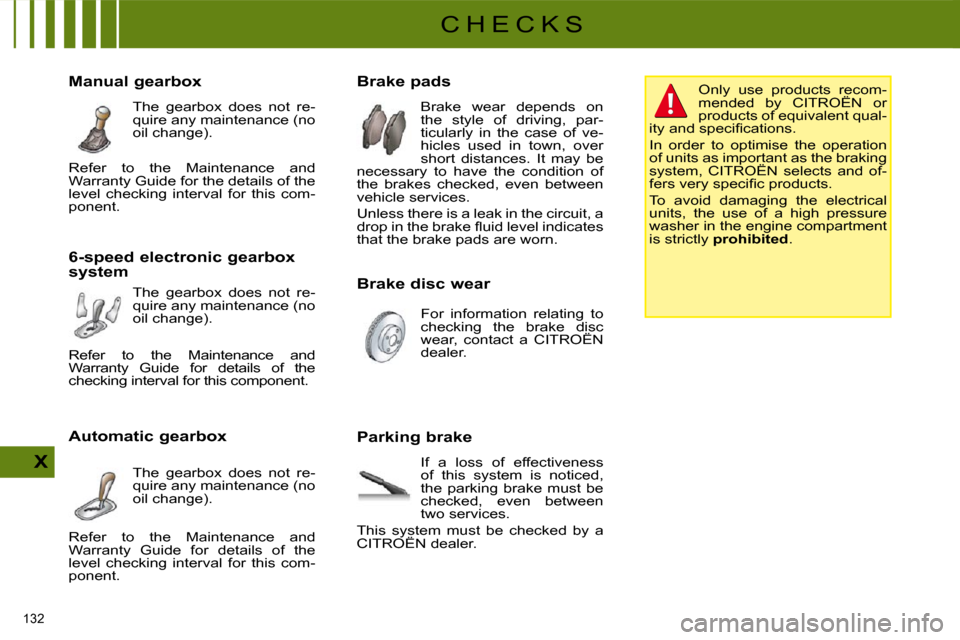

Brake pads Brake wear depends on
the style of driving, par-
ticularly in the case of ve-
hicles used in town, over
short distances. It may be
necessary to have the condition of
the brakes checked, even between
vehicle services.
Unless there is a leak in the circuit, a
drop in the brake fl uid level indicates
that the brake pads are worn.
Manual gearbox
The gearbox does not re-
quire any maintenance (no
oil change).
6-speed electronic gearbox
system The gearbox does not re-
quire any maintenance (no
oil change).
Automatic gearbox The gearbox does not re-
quire any maintenance (no
oil change). Brake disc wear
For information relating to
checking the brake disc
wear, contact a CITROËN
dealer.
Parking brake If a loss of effectiveness
of this system is noticed,
the parking brake must be
checked, even between
two services.
This system must be checked by a
CITROËN dealer. Only use products recom-
mended by CITROËN or
products of equivalent qual-
ity and specifi cations.
In order to optimise the operation
of units as important as the braking
system, CITROËN selects and of-
fers very specifi c products.
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compartment
is strictly prohibited .
Refer to the Maintenance and
Warranty Guide for the details of the
level checking interval for this com-
ponent.
Refer to the Maintenance and
Warranty Guide for details of the
checking interval for this component.
Refer to the Maintenance and
Warranty Guide for details of the
level checking interval for this com-
ponent.

149
XI
P R A C T I C A L I N F O R M A T I O N Fuses in the engine
compartment Access to the fuses

 Detach and remove the cover.

Access to the second dashboard
fusebox

After any operation on the fuses
in the fusebox, check that the
fusebox cover is put back cor-
rectly for their protection. Table of fuses

Fuse N° Rating Functions

F36 30 A Hi-Fi amplifi er

F37 30 A Driver's electric seat

F39 20 A Heated seats

After any operation, carefully
refi t

the cover. If the cover is not cor-
rectly positioned or not properly
closed, this could cause serious
problems on your vehicle. For
the same reason, take care not to
spill any liquid in the fusebox. All work on the maxi-fuses,
which are located in these
fuseboxes and which give
extra protection, must be carried
out by CITROËN technicians.
