18
FAMILIARISATION
Cruise control
This maintains a constant vehicle speed programmed by the driver.
1. "ON/OFF" button: activation/deactivation of the cruise control mode.
2. "COAST SET" button: storing of a driving speed then decreasing of the cruising speed.
3. "ACC RES" button: increasing of the cruising speed and recalling of the stored speed.
4. "CANCEL" button: switching off of the cruise control.
I n o r d e r t o b e p r o g r a m m e d o r a c t i v a t e d , the vehicle speed must be higher than 25 mph (40 km/h) with at least second gear engaged.
T h i s d e t e c t s a n y o b s t a c l e ( p e r s o n , v e h i c l e , t r e e , g a t e , . . . ) l o c a t e d b e h i n d the vehicle.
T h e v e h i c l e i s fi t t e d w i t h f o u r s e n s o r s :
D. two side sensors.
E. two central sensors.
Audible rear parking assistance
122 124
DRIVING SAFELY
Four wheel drive system
Three transmission modes are avail-able and can be selected manually by the driver in accordance with his requirements:
A. Two wheel drive (2WD),
B. Four wheel drive (4WD AUTO),
C. Four wheel drive (4WD LOCK),
120
Also...
You can change transmission mode when stationary or when driving at a speed below 60 mph (100 km/h).
VII
D R I V I N G
124
AUDIBLE REAR PARKING
ASSISTANCE
It detects any obstacle (person, vehicle,
tree, gate, ...) located behind the vehicle,
but it cannot detect obstacles located
immediately below the bumper. Activation
The parking assistance is activated by
engaging reverse gear.
The proximity information is indicated
by an audible signal which becomes
more frequent as the vehicle approaches
the obstacle.
When a certain distance between the
rear of the vehicle and the obstacle is
reached, the audible signal becomes
continuous:
An object such as a stake, a road
works cone or any other similar ob-
ject may be detected at the begin-
ning of the manoeuvre but may no
longer be detected when the vehicle
moves closer to it.

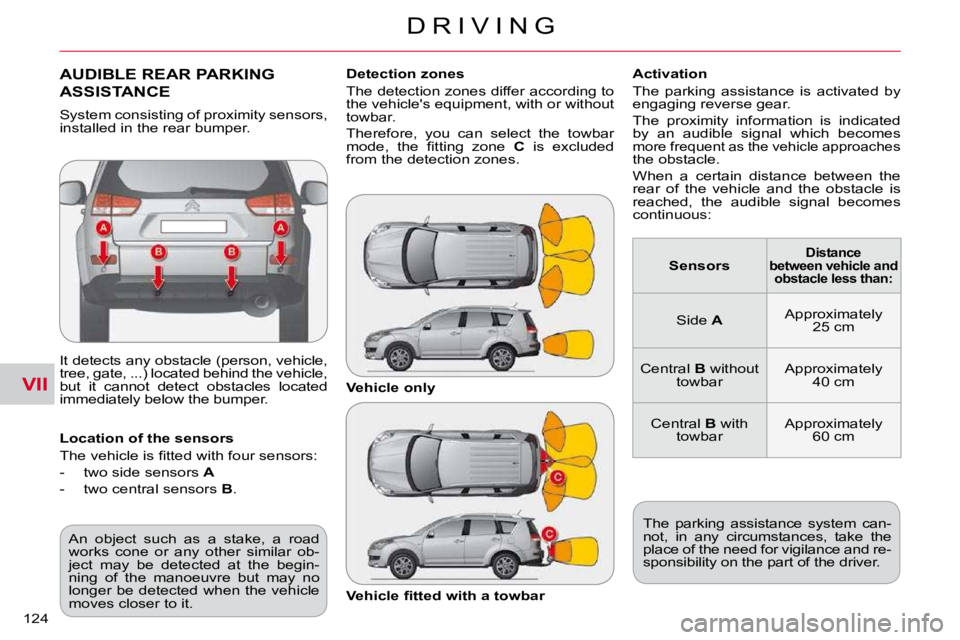

Location of the sensors
T h e v e h i c l e i s fi t t e d w i t h f o u r s e n s o r s :
- two side sensors
A
- two central sensors B . Vehicle only
V e h i c l e fi t t e d w i t h a t o w b a r
Detection zones
The detection zones differ according to
the vehicle's equipment, with or without
towbar.
Therefore, you can select the towbar
m o d e , t h e fi t t i n g z o n e
C is excluded
from the detection zones.
The parking assistance system can-
not, in any circumstances, take the
place of the need for vigilance and re-
sponsibility on the part of the driver.
Sensors
Distance
between vehicle and obstacle less than:
Side A Approximately
25 cm
Central B without
towbar Approximately
40 cm
Central B with
towbar Approximately
60 cm
System consisting of proximity sensors,
installed in the rear bumper.
